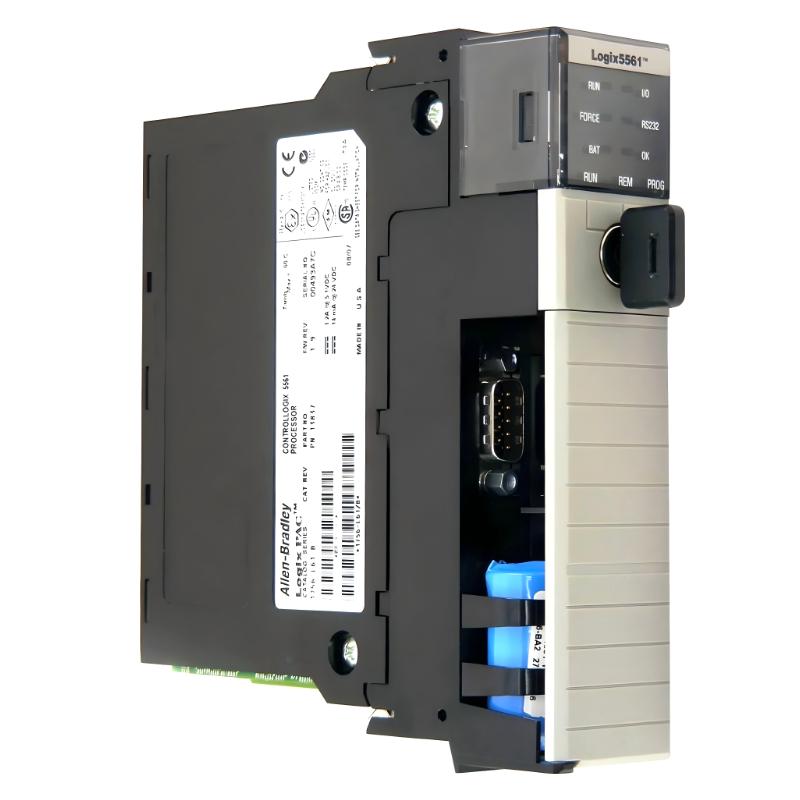

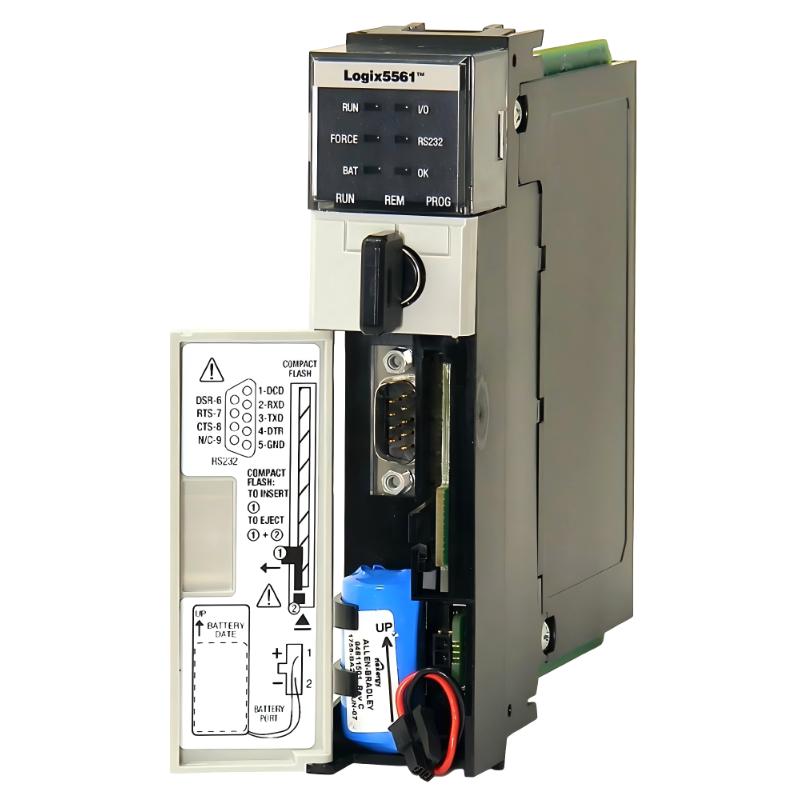

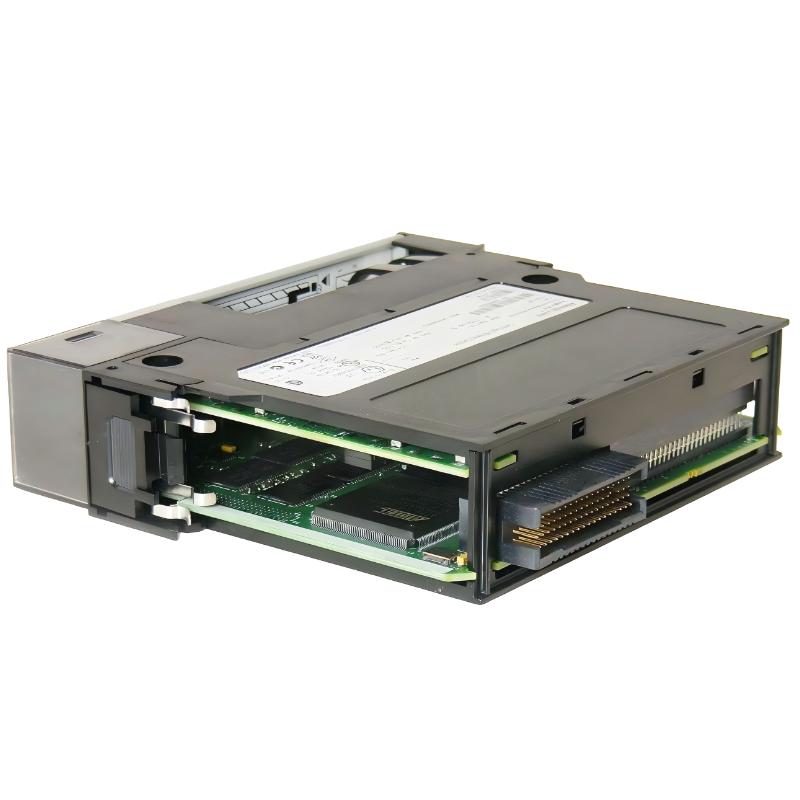

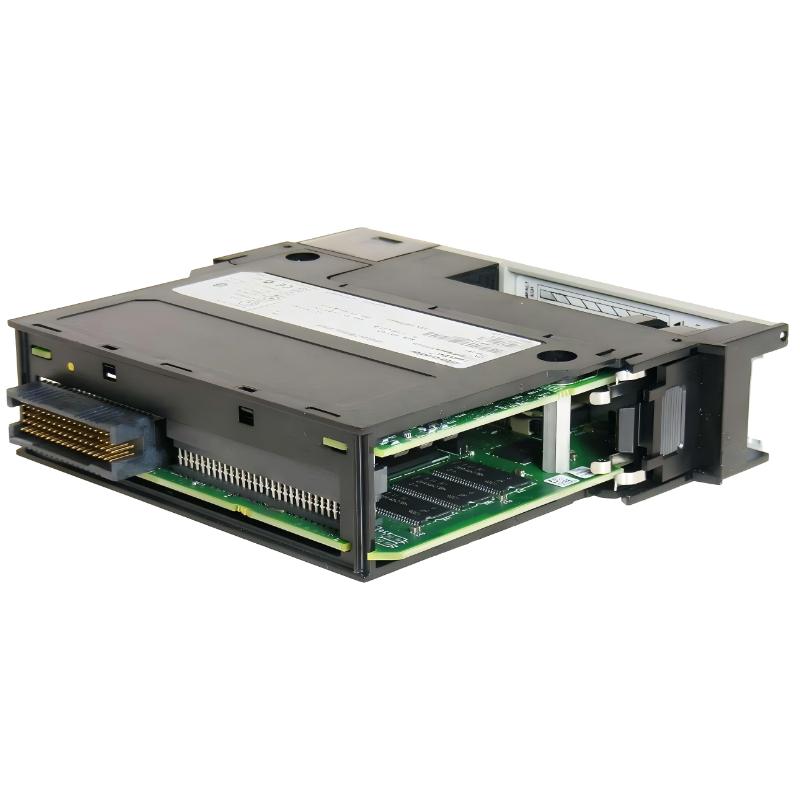

The 1756-L61 ControlLogix Processor Module from Rockwell Automation is a widely used mid-to-high performance PLC CPU designed for industrial automation systems that require strong processing capability, modular communication expansion, and long-term operational stability.
As part of the ControlLogix 5561 family, the L61 is known for its balance of performance, memory capacity, and system scalability. It has been extensively deployed in manufacturing, process industries, and infrastructure automation, and remains a cornerstone in many installed-base systems worldwide despite its discontinued status.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1756-L61 |
| Series | ControlLogix 5561 |
| User Memory | 2 MB |
| I/O Memory | 478 KB |
| Optional Nonvolatile Memory | 1784-CF128 CompactFlash |
| Maximum I/O Capacity | 128,000 digital / 4,000 analog |
| Controller Tasks | Up to 32 tasks |
| Programs per Task | Up to 100 |
| Serial Communication | 1 × RS-232 port |
| Backplane Current (5V DC) | ~1.2 A |
| Backplane Current (24V DC) | ~14 mA |
| Power Dissipation | ~3.5 W |
| Isolation Voltage | 30 V continuous |
| Programming Software | RSLogix 5000 / early Studio 5000 |
| Battery | 1756-BA1 / 1756-BATM |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Dimensions (H × W × D) | 13.3 × 5.1 × 14.5 cm |
| Weight | ~0.32–0.40 kg |
The module uses a standard single-slot ControlLogix chassis format, making it easy to integrate into existing industrial racks without hardware redesign.
Recommended Related Models
For system expansion or replacement planning, the following modules are commonly used alongside the 1756-L61:
- 1756-L71 / L72 ControlLogix CPUs (modern upgrade path)
- 1756-EN2T EtherNet/IP Communication Module
- 1756-ENBT Ethernet Bridge Module
- 1756-CNB ControlNet Bridge Module
- 1756-IB16 / OB16 Digital I/O Modules
Popular Allen-Bradley ControlLogix Models
Within the same ecosystem, engineers commonly work with:
- 1756-L55 mid-generation controllers
- 1756-L71 / L72 high-performance controllers
- 1756-L73 / L74 advanced ControlLogix CPUs
- 1756-EN2T high-speed Ethernet modules
- 1756-DNB DeviceNet communication modules
These modules represent the evolution of ControlLogix systems from legacy deterministic control to modern industrial networking and IIoT integration.
