Introduction

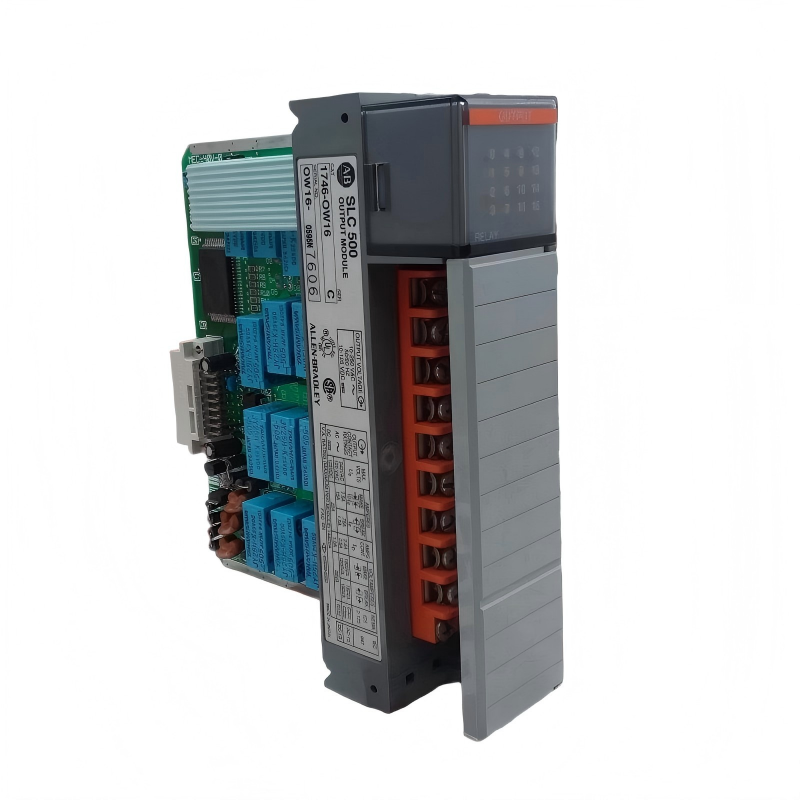

The Allen Bradley 1746-OW16 SLC 500 Digital Output Module is a reliable and compact solution for industrial automation systems. Engineered for high-speed, accurate signal transmission, it enables precise control of field devices while integrating seamlessly with SLC 500 controllers and I/O modules. Its durability, ease of installation, and low-maintenance design make it an ideal choice for both small-scale and large-scale industrial automation networks.

Technical Specifications

Parameter	Specification
Module Type	Digital Output Module
Model Number	1746-OW16
Dimensions	144.5 × 34.6 × 130.18 mm
Weight	0.29 kg / 0.64 lb
Functionality	Provides digital output control for field devices
Compatibility	Allen Bradley SLC 500 controllers and I/O modules
Operating Environment	Industrial automation systems
Durability	Resistant to vibration, EMI/RFI, and temperature fluctuations
Installation	Panel-mounted
Application Scope	Actuator control, relay control, and automation process outputs

Applications

The Allen Bradley 1746-OW16 is a high-performance digital output module designed for SLC 500 systems, enabling precise control of actuators, relays, and field devices in industrial automation applications. Perfect for manufacturing plants, process control environments, and distributed automation systems, the OW16 ensures reliable signal transmission and seamless integration with other SLC 500 modules.

Advantages

Reliable Digital Output: Controls field devices with high accuracy and minimal delay.
Compact and Robust Design: 144.5 × 34.6 × 130.18 mm, 0.29 kg, ideal for panel-mounted installation.
Seamless Integration: Fully compatible with Allen Bradley SLC 500 controllers and I/O modules.
High-Speed Operation: Responds rapidly to control commands for efficient automation.
Reduced Wiring Complexity: Supports multiple output channels to minimize panel clutter.
Industrial-Grade Durability: Built to withstand vibration, temperature fluctuations, and electrical noise.
Maintenance-Friendly: Easy access for troubleshooting and minimal servicing required.
Enhanced Process Reliability: Ensures consistent operation of connected devices.
Flexible Deployment: Suitable for both small-scale panels and large automation networks.
Optimized for Automation Systems: Delivers dependable output signals to support critical process control.

Technical FAQs

What is the primary function of the 1746-OW16?
It provides digital output control for relays, actuators, and other field devices.
Is it compatible with Allen Bradley SLC 500 systems?
Yes, it integrates seamlessly with SLC 500 controllers and I/O modules.
Can it operate in harsh industrial environments?
Yes, it is designed to withstand vibration, EMI/RFI, and temperature variations.
Does it support high-speed output switching?
Yes, it delivers rapid response for real-time control applications.
Is the module easy to install?
Yes, its compact, panel-mounted design allows straightforward integration.
Does it improve overall process reliability?
Yes, consistent and precise outputs ensure stable operation of connected devices.
Is it suitable for complex automation systems?
Absolutely, it scales efficiently for both small and large SLC 500 networks.
Does it require frequent maintenance?
No, it is engineered for long-term, low-maintenance performance.
Can it reduce wiring complexity in control panels?
Yes, multiple output channels simplify wiring and improve panel organization.
Is it optimized for industrial automation applications?
Yes, it delivers dependable outputs to support critical process and manufacturing operations.
