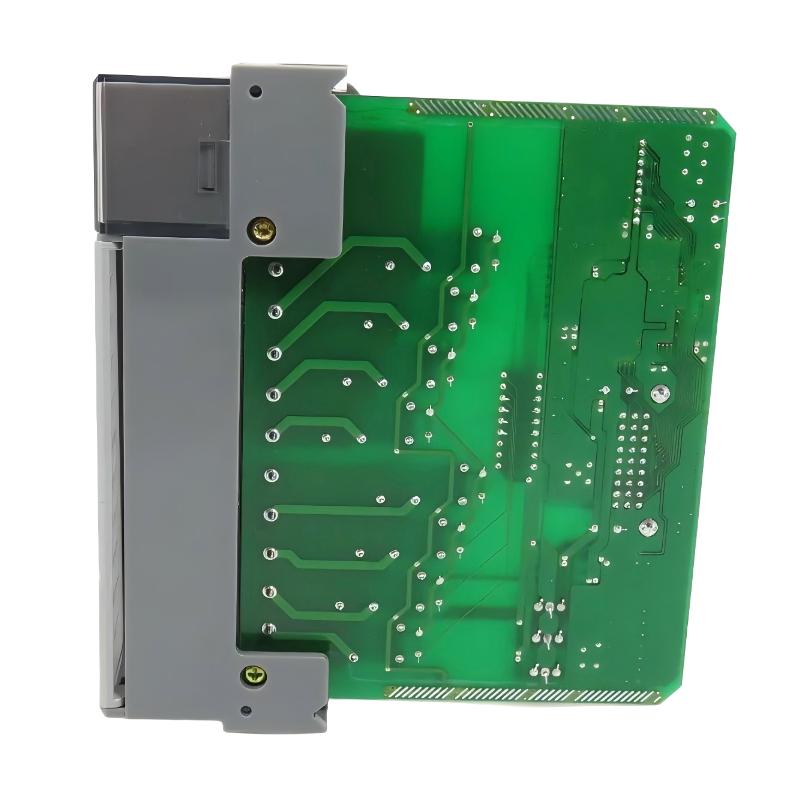

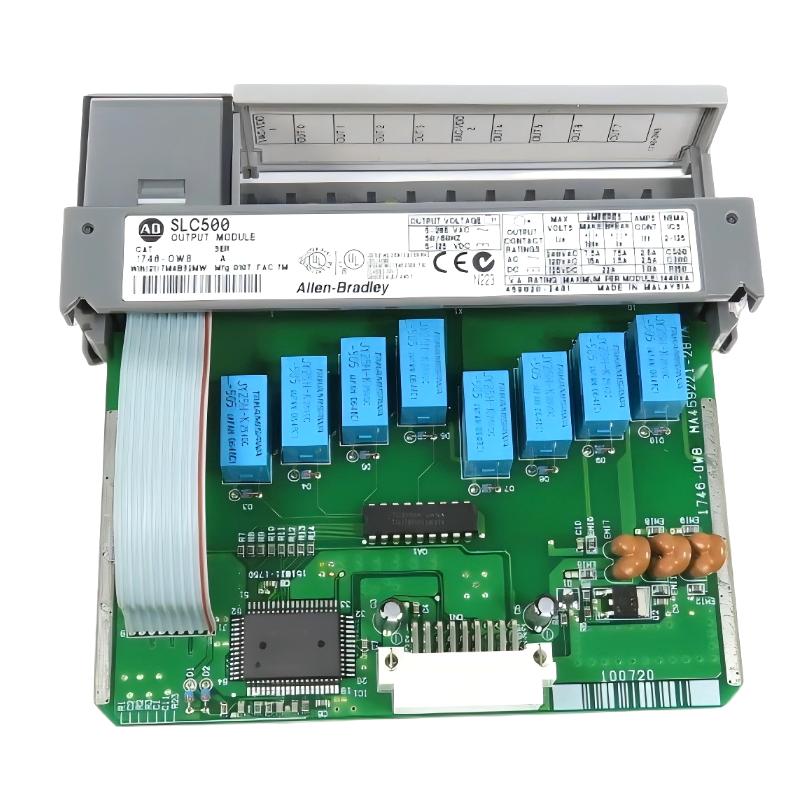

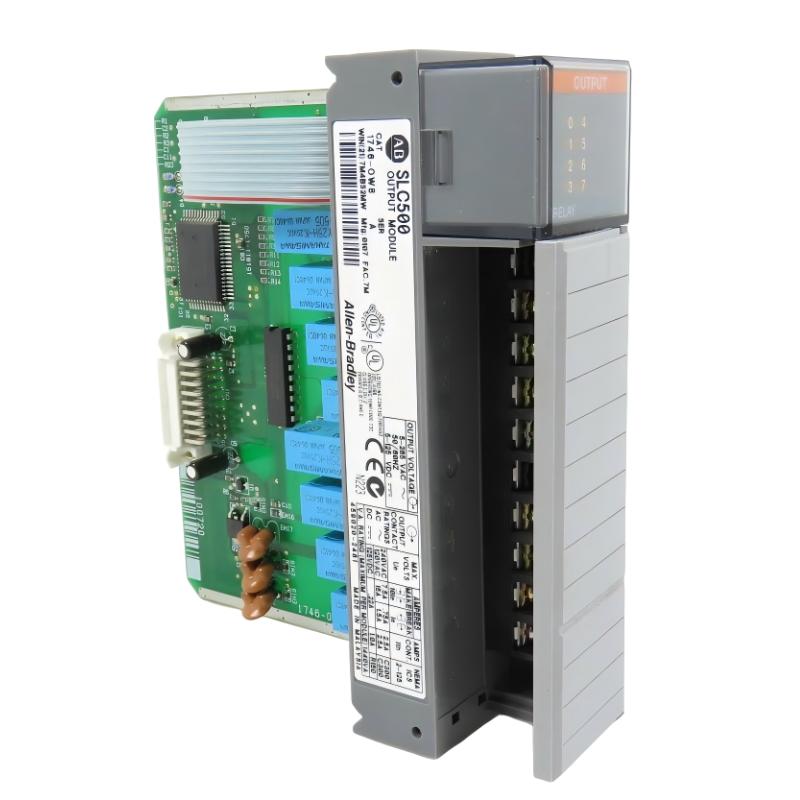

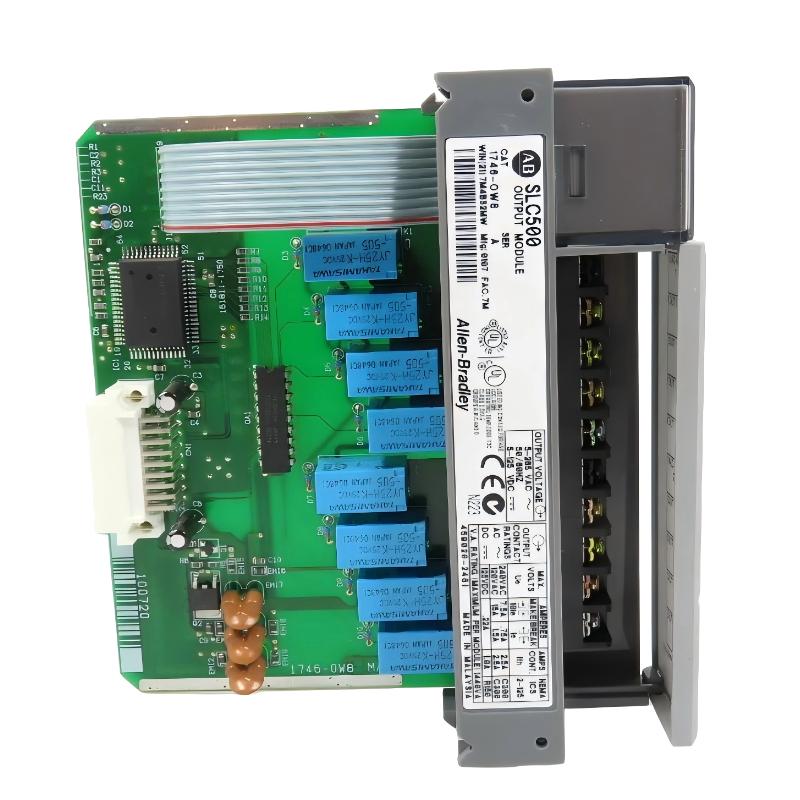

Allen Bradley 1746-OW8 SLC 500 Relay Output Module
Allen Bradley 1746-OW8 SLC 500 Relay Output Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1746-OW8 Product Origin:USA Product Dimensions:144.5 × 34.6 × 130.18 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1746-OW8 SLC 500 Relay Output Module is a versatile and reliable solution for industrial automation applications that require electrically isolated outputs. Its compact, durable design and high switching capability make it ideal for controlling solenoids, motors, and contactors in both small machine panels and large distributed automation networks. With easy integration into SLC 500 systems and low maintenance requirements, the OW8 ensures dependable operation for critical processes.
Technical Specifications
Parameter
Specification
Module Type
Relay Output Module
Model Number
1746-OW8
Dimensions
144.5 × 34.6 × 130.18 mm
Weight
0.45 kg / 0.99 lb
Functionality
Provides relay-based control for field devices
Compatibility
Allen Bradley SLC 500 controllers and I/O modules
Operating Environment
Industrial automation systems
Durability
Resistant to vibration, EMI/RFI, and temperature variations
Installation
Panel-mounted, plug-and-play
Application Scope
Solenoid, motor, and contactor control
Applications
The Allen Bradley 1746-OW8 Relay Output Module is designed to provide dependable relay-based control for industrial automation systems using SLC 500 controllers. Ideal for manufacturing plants, process industries, and machine automation, the OW8 allows precise control of solenoids, contactors, and other relay-driven devices. It is particularly suited for applications requiring electrical isolation between control logic and output devices.
Advantages
Reliable Relay Output: Controls field devices with high electrical isolation for safe operation.
Compact and Durable Design: 144.5 × 34.6 × 130.18 mm, 0.45 kg, perfect for panel-mounted installations.
Seamless SLC 500 Integration: Compatible with Allen Bradley SLC 500 controllers and I/O modules.
High Switching Capacity: Supports control of high-current loads while maintaining module longevity.
Industrial-Grade Construction: Resistant to vibration, electrical noise, and temperature variations.
Flexible Deployment: Suitable for small machine panels and large distributed automation networks.
Low Maintenance: Minimal servicing required due to robust relay components.
Enhanced Process Safety: Electrically isolates control logic from output devices.
Fast Installation: Panel-mounted, plug-and-play configuration simplifies setup.
Optimized for Automation Systems: Ideal for controlling solenoids, motors, and contactors.
Technical FAQs
What is the primary function of the 1746-OW8?
Provides relay output control for solenoids, contactors, and other relay-driven devices.
Is it compatible with Allen Bradley SLC 500 systems?
Yes, it integrates seamlessly with SLC 500 controllers and I/O modules.
Does it provide electrical isolation?
Yes, relays electrically isolate the control circuit from high-current output devices.
Can it handle high-current switching?
Yes, it supports moderate to high-current loads typical in industrial applications.
Is it durable in industrial environments?
Yes, it is designed to withstand vibration, EMI/RFI, and temperature fluctuations.
Can it be installed in compact panels?
Absolutely, its compact size allows easy integration into tight control panels.
Does it require frequent maintenance?
No, robust relay components provide long service life with minimal maintenance.
Is it suitable for controlling motors or solenoids?
Yes, it is ideal for controlling various relay-driven devices.
Can it be used in distributed automation systems?
Yes, it scales effectively for both small and large SLC 500 networks.
Is it optimized for process safety?
Yes, electrical isolation protects control logic and ensures safe operation of connected devices.
