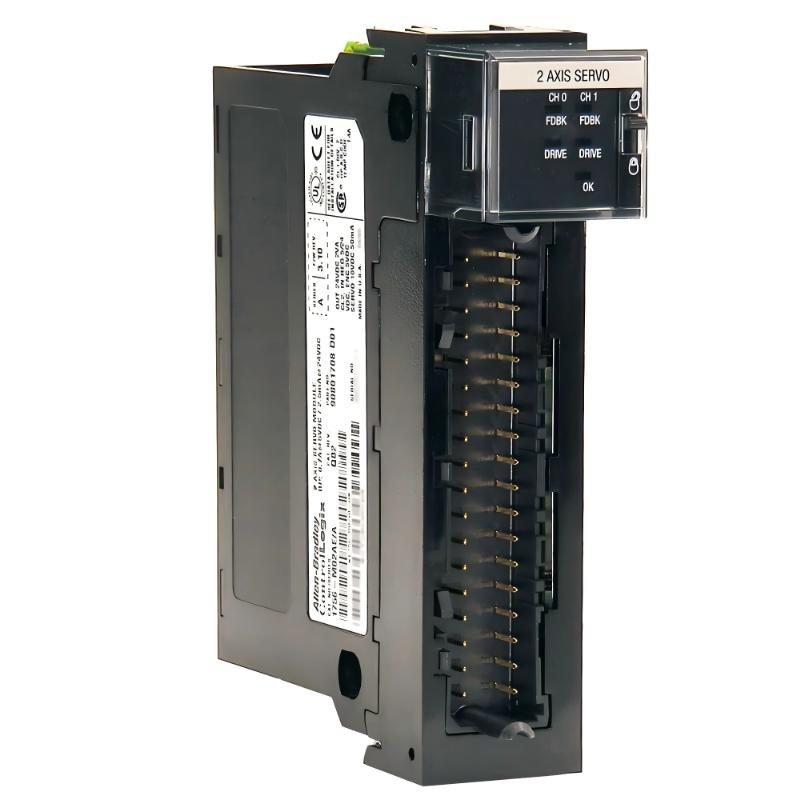

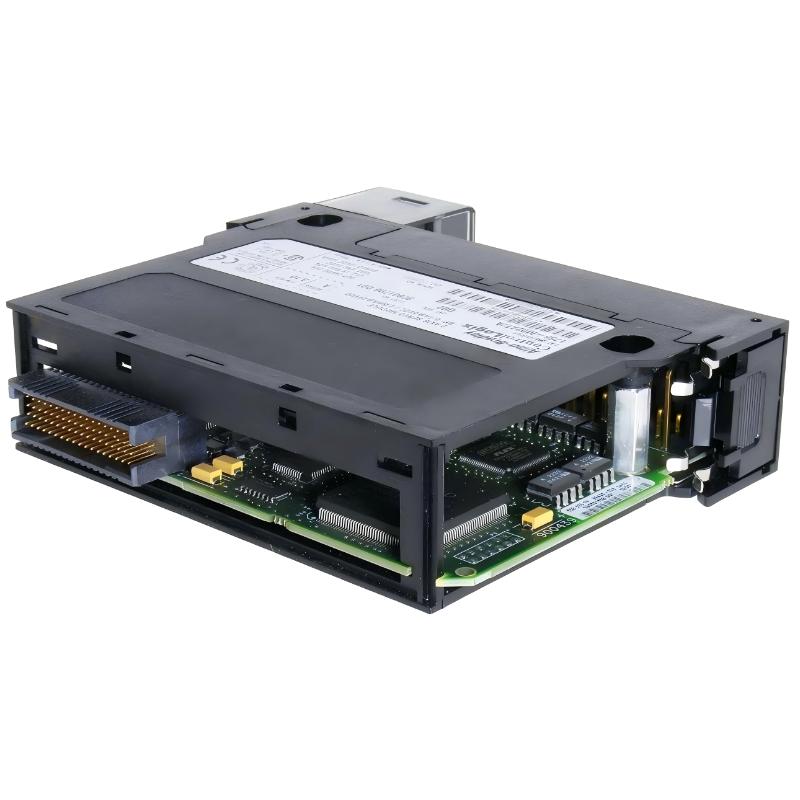

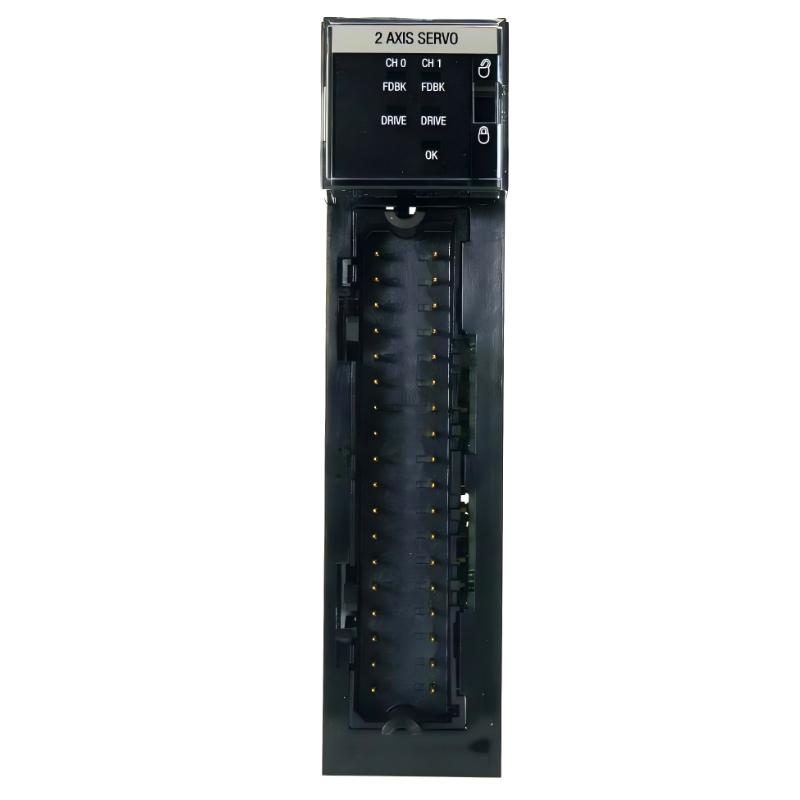

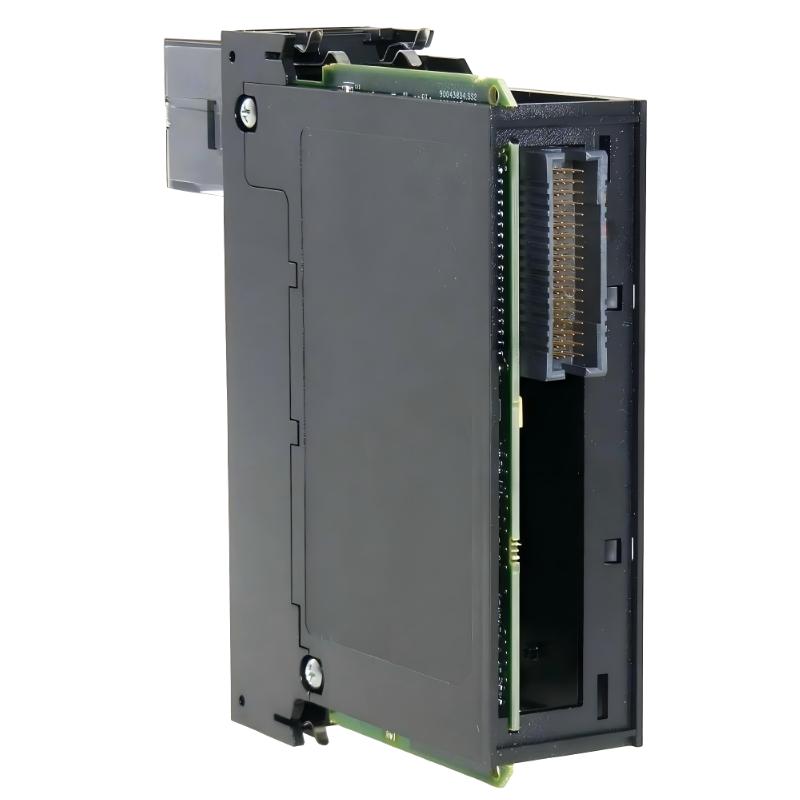

The 1756-M02AE ControlLogix Analog Motion Module from Rockwell Automation is a specialized 2-axis servo motion control module designed for ControlLogix systems requiring ±10V analog command output, encoder feedback, and high-precision motion control integration.
It is widely used in packaging machines, CNC-style automation, robotics subsystems, and legacy servo drive applications, where motion is controlled through analog velocity or torque references rather than full digital servo networks.
This module is part of Rockwell’s classic ControlLogix motion portfolio and is often found in installed-base systems and retrofit industrial automation architectures.
Technical Specifications (Including Size & Weight)
| Parameter | Specification |
|---|---|
| Model | 1756-M02AE |
| Series | ControlLogix Motion Modules |
| Module Type | 2-Axis Analog Motion Control Module |
| Axes Supported | 2 axes |
| Output Type | ±10V analog (velocity / torque reference) |
| Feedback Type | Incremental quadrature encoder (4X) |
| Max Encoder Rate | Up to 4 MHz |
| Loop Update Rate | ~250 µs (velocity), ~500 µs (position typical) |
| Control Mode | Open/closed loop via external drive |
| Input Voltage | 24 V DC (digital inputs) |
| Backplane Current (5.1V DC) | ~700 mA |
| Power Dissipation | ~5.5 W |
| Isolation | Optical isolation (channels/backplane) |
| Programming Software | Studio 5000 / RSLogix 5000 |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Weight | ~0.30–0.60 kg |
Physical Dimensions
- Size (H × W × D): 142 × 35 × 118 mm
This compact single-slot module fits into standard ControlLogix chassis and is designed for tight integration with motion control and servo systems.
Recommended Related Models
The 1756-M02AE is commonly used with:
- 1756-L71 / L73 ControlLogix CPUs
- 1756-M02AS analog motion module (SSI feedback variant)
- 1756-HYD02 hydraulic motion module
- 1756-IB16 / 1756-OB16 digital I/O modules
- 1756-EN2T EtherNet/IP communication module
Popular Allen-Bradley Motion & Control Modules
Within the ControlLogix motion ecosystem:
- 1756-M02AE 2-axis analog motion module
- 1756-M02AS SSI feedback motion module
- 1756-HYD02 hydraulic motion control module
- Kinetix servo drive systems (modern replacement architecture)
- AMCI-compatible replacement motion modules
These components support both legacy analog motion control and modern integrated servo architectures.
