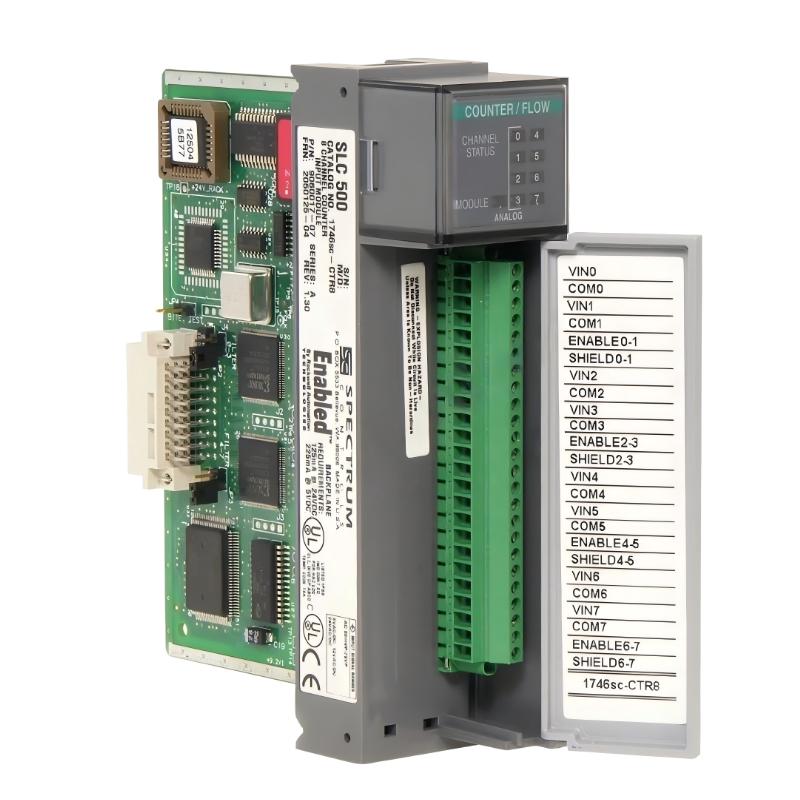

Allen Bradley 1746SC-CTR8 SLC 500 Counter Module

Applications

The Allen Bradley 1746SC-CTR8 Counter Module is designed to provide high-speed, reliable counting and monitoring for SLC 500 systems in industrial automation environments. It is ideal for applications such as production line tracking, event counting, batch processing, and machine cycle monitoring. The CTR8 module ensures accurate counting performance, enabling precise control over process flows and operational efficiency.

Advantages

• High-Speed Counting: Supports rapid input signal processing for accurate real-time counts.
• Compact Design: 144.5 × 34.6 × 130.18 mm, 0.181 kg, ideal for panel-mounted applications.
• Seamless SLC 500 Integration: Works efficiently with Allen Bradley SLC 500 controllers and I/O modules.
• Versatile Functionality: Handles up/down counting, totalizing, and preset comparisons.
• Industrial-Grade Durability: Resistant to vibration, electrical noise, and temperature fluctuations.
• Simplified Installation: Plug-and-play module for easy integration into existing SLC 500 racks.
• Low Maintenance: Reliable electronic components reduce service requirements.
• Improved Process Control: Enhances automation by providing precise count data for operations.
• Flexible Deployment: Suitable for both small machines and large automated systems.
• Optimized for Automation Systems: Ensures dependable counting and event monitoring for critical processes.

Technical FAQs

1. What is the main function of the 1746SC-CTR8?
   It provides high-speed counting and event monitoring for SLC 500 systems.
2. Is it compatible with all SLC 500 controllers?
   Yes, it integrates seamlessly with SLC 500 I/O modules and processors.
3. What types of counting can it perform?
   Up/down counting, totalizing, and preset comparison functions.
4. Can it handle high-speed signals?
   Yes, it is designed for rapid input pulse processing in industrial applications.
5. Is it suitable for industrial environments?
   Yes, it withstands vibration, electrical noise, and temperature fluctuations.
6. Is installation straightforward?
   Yes, the compact, panel-mounted design allows easy plug-and-play setup.
7. Does it require frequent maintenance?
   No, the CTR8 is designed for long-term, low-maintenance operation.
8. Can it improve production line monitoring?
   Absolutely, accurate counting enhances operational efficiency and process control.
9. Is it scalable for large automation networks?
   Yes, it can be deployed in both small and extensive SLC 500 configurations.
10. Does it integrate with other SLC 500 modules?
    Yes, it works seamlessly with input, output, and power supply modules in the SLC 500 system.
