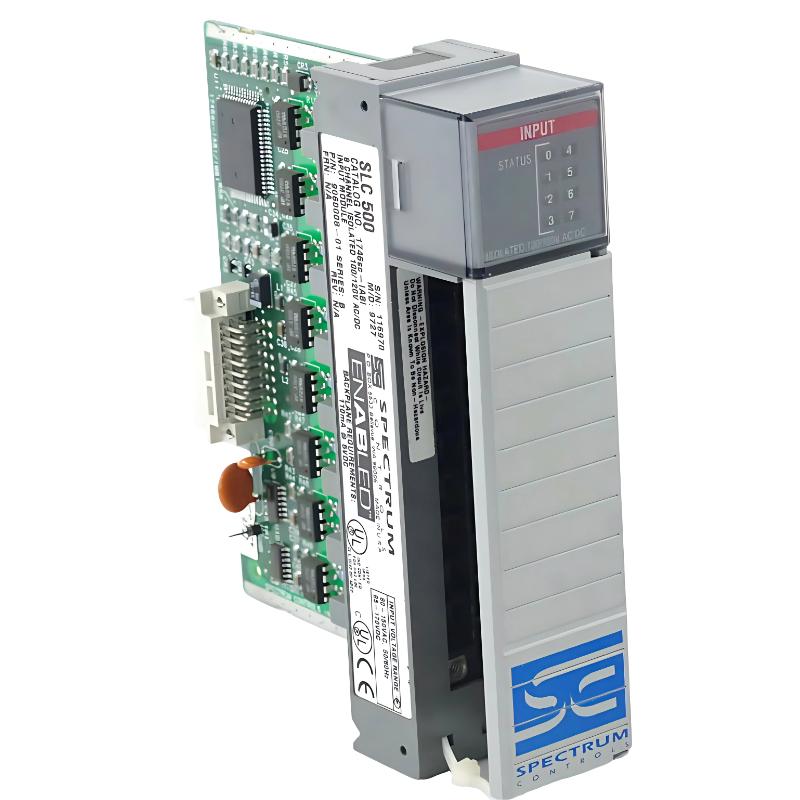

Allen Bradley 1746SC-IM8I SLC 500 Isolated Circuit Input Module

Applications

The Allen Bradley 1746SC-IM8I Isolated Circuit Input Module is engineered to deliver reliable and electrically isolated digital input signals to SLC 500 systems. It is ideal for industrial automation environments where input devices such as switches, sensors, and push buttons need protection from electrical noise or ground loops. Applications include machine control panels, production line monitoring, process automation, and industrial safety systems requiring high-integrity signal acquisition.

Advantages

• Electrical Isolation: Protects control logic from voltage spikes, surges, and ground loops.
• Reliable Input Detection: Ensures accurate, consistent digital input readings for critical processes.
• Compact, Robust Design: 144.5 × 34.6 × 130.18 mm, 0.45 kg, ideal for panel installation.
• Seamless SLC 500 Integration: Fully compatible with Allen Bradley SLC 500 controllers and I/O modules.
• Industrial-Grade Durability: Resistant to vibration, EMI/RFI interference, and temperature extremes.
• Flexible Deployment: Suitable for both small machine panels and large distributed automation systems.
• Reduced Downtime: Isolation reduces risk of input-related faults impacting control systems.
• Simplified Installation: Plug-and-play module designed for quick integration.
• Low Maintenance: Robust design minimizes servicing requirements.
• Optimized for Automation Systems: Provides dependable input signals for critical industrial processes.

Technical FAQs

1. What is the primary purpose of the 1746SC-IM8I?
   To provide electrically isolated digital input signals to the SLC 500 system.
2. Is it compatible with all SLC 500 controllers?
   Yes, it integrates seamlessly with SLC 500 I/O modules and processors.
3. What types of devices can it monitor?
   Switches, sensors, push buttons, and other digital input devices.
4. Does it provide protection against electrical noise?
   Yes, isolation protects control logic from voltage spikes and EMI/RFI interference.
5. Can it be used in harsh industrial environments?
   Absolutely, it is designed to withstand vibration, temperature extremes, and electrical noise.
6. Is installation straightforward?
   Yes, its compact, panel-mounted design allows plug-and-play integration.
7. Does it require frequent maintenance?
   No, the IM8I is built for long-term, low-maintenance operation.
8. Can it improve system reliability?
   Yes, isolation reduces the risk of input faults affecting the SLC 500 system.
9. Is it suitable for large automation networks?
   Yes, it scales effectively for both small and extensive SLC 500 configurations.
10. Does it enhance process safety?
    Yes, it provides electrically isolated input channels, protecting both the control logic and connected devices.
