Introduction

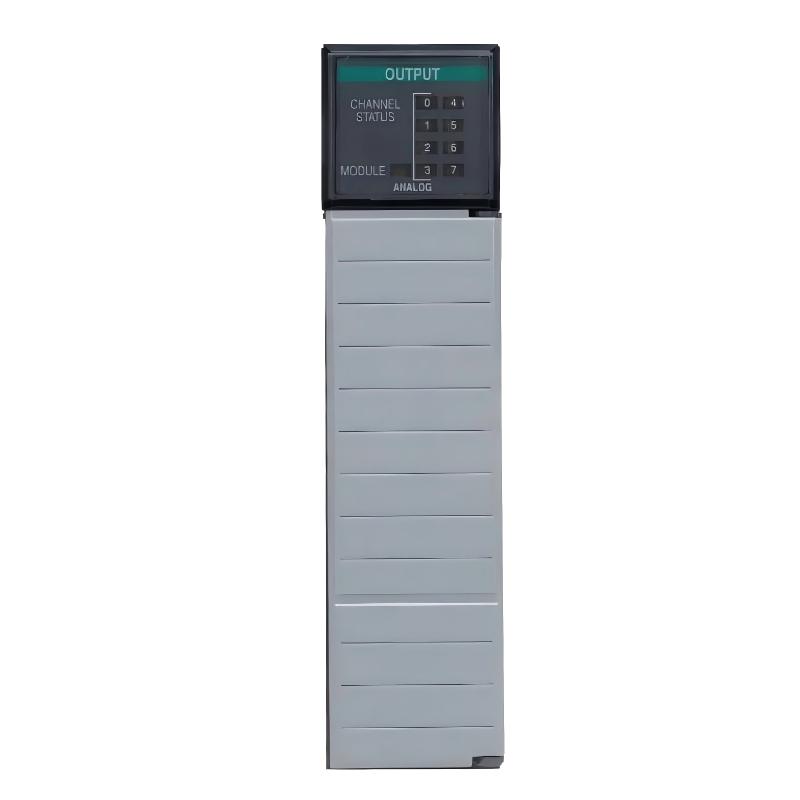

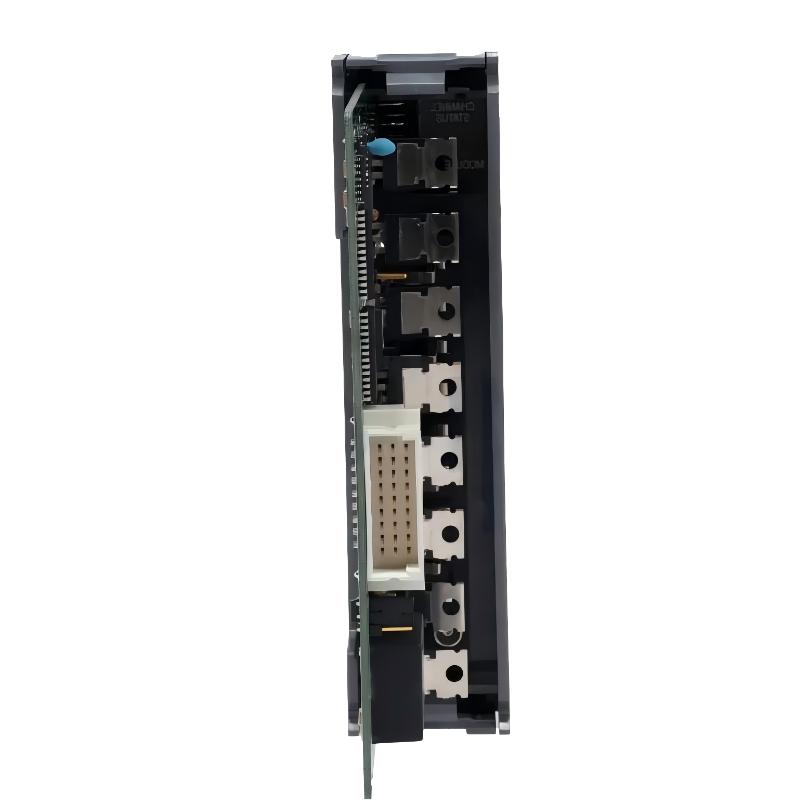

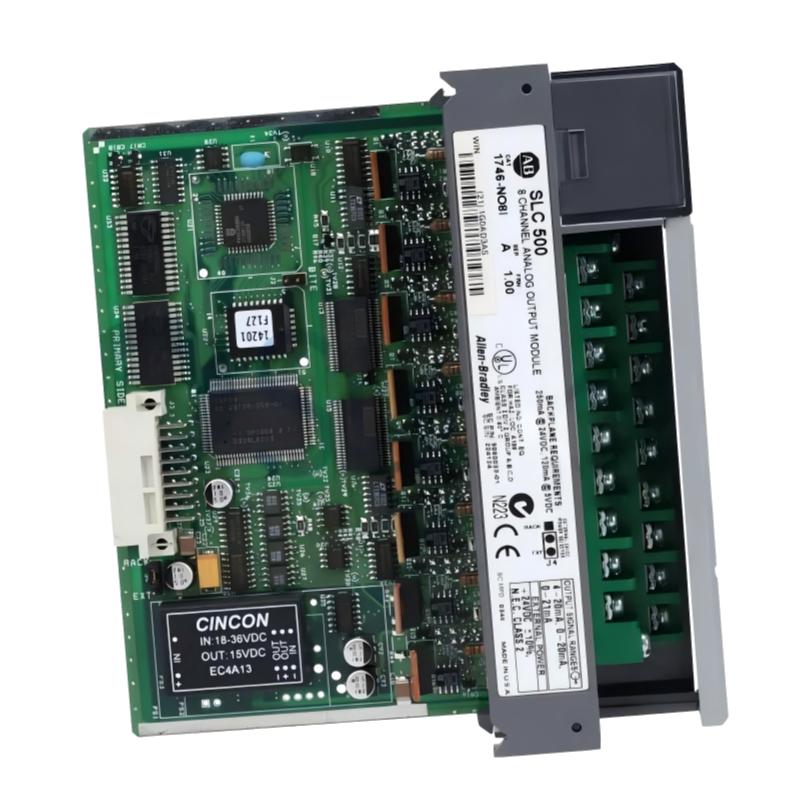

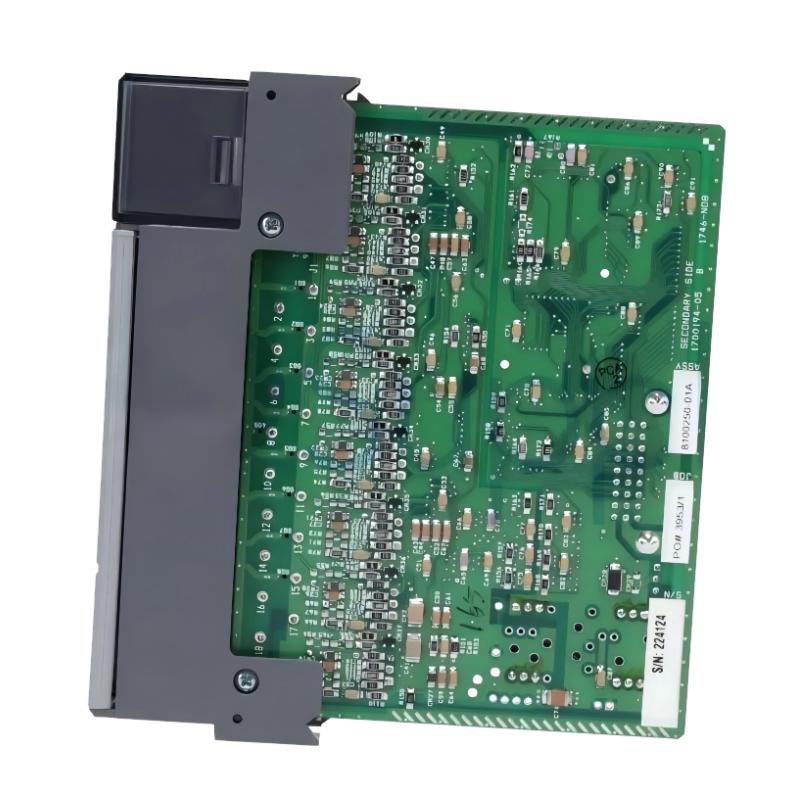

The Allen Bradley 1746SC-NO8I SLC 500 Analog Current Output Module is a high-precision solution for industrial analog control applications. Its reliable 4–20 mA output channels and durable design make it perfect for controlling valves, actuators, and other process devices in critical automation systems. Fully compatible with SLC 500 controllers and modules, the NO8I ensures accurate signal delivery and dependable performance in compact, panel-mounted form.

Technical Specifications

Parameter	Specification
Module Type	Analog Current Output Module
Model Number	1746SC-NO8I
Dimensions	144.5 × 34.6 × 130.18 mm
Weight	0.259 kg / 0.57 lb
Functionality	Provides accurate analog current outputs (4–20 mA)
Compatibility	Allen Bradley SLC 500 controllers and I/O modules
Output Signal Type	4–20 mA current
Operating Environment	Industrial automation systems
Durability	Resistant to vibration, EMI/RFI, and temperature extremes
Installation	Panel-mounted, plug-and-play
Application Scope	Actuators, valves, motors, and process control loops

Applications

The Allen Bradley 1746SC-NO8I is an analog current output module designed for SLC 500 systems, providing precise and reliable control over industrial actuators, valves, and process equipment. It is ideal for applications such as process control loops, machine automation, and industrial monitoring systems where accurate analog output signals are essential to maintain operational efficiency and process stability.

Advantages

Precise Current Output: Delivers accurate analog control signals for reliable process operation.
Compact, Robust Design: 144.5 × 34.6 × 130.18 mm, 0.259 kg, suitable for tight panel layouts.
Versatile Signal Support: Outputs standard 4–20 mA current signals compatible with most field devices.
Seamless Integration: Fully compatible with SLC 500 controllers and other I/O modules.
Industrial-Grade Durability: Withstands vibration, EMI/RFI interference, and temperature variations.
Simplified Installation: Panel-mounted, plug-and-play setup for easy deployment.
Enhanced Process Control: Provides accurate control of valves, actuators, and analog devices.
Reduced Downtime: Reliable electronics minimize the risk of output failure.
Flexible Deployment: Suitable for small machines and large industrial control systems.
Optimized for Automation Systems: Supports efficient analog control for critical processes.

Technical FAQs

What is the primary function of the 1746SC-NO8I?
To provide accurate 4–20 mA analog current outputs for SLC 500 control systems.
Is it compatible with all SLC 500 controllers?
Yes, it integrates seamlessly with Allen Bradley SLC 500 I/O modules and processors.
What devices can it control?
Actuators, valves, motors, and other devices requiring analog current input.
Can it handle multiple analog outputs simultaneously?
Yes, it supports eight independent output channels for comprehensive control.
Is it suitable for industrial environments?
Absolutely, it is designed to operate reliably in vibration-prone and electrically noisy environments.
Does it improve process control accuracy?
Yes, precise output ensures stable and reliable operation of connected devices.
Is installation straightforward?
Yes, its compact, panel-mounted design allows plug-and-play integration.
Does it require frequent maintenance?
No, the NO8I is engineered for long-term, low-maintenance operation.
Can it be used in feedback control loops?
Yes, it is ideal for closed-loop control systems requiring precise analog outputs.
Is it scalable for large automation systems?
Yes, it can be integrated into small or extensive SLC 500 configurations.
