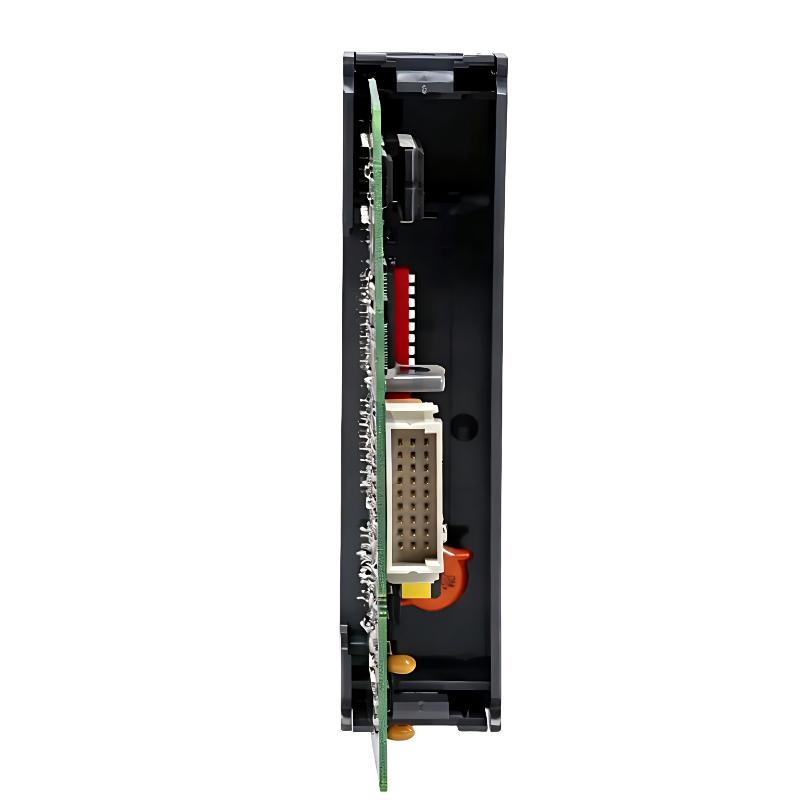

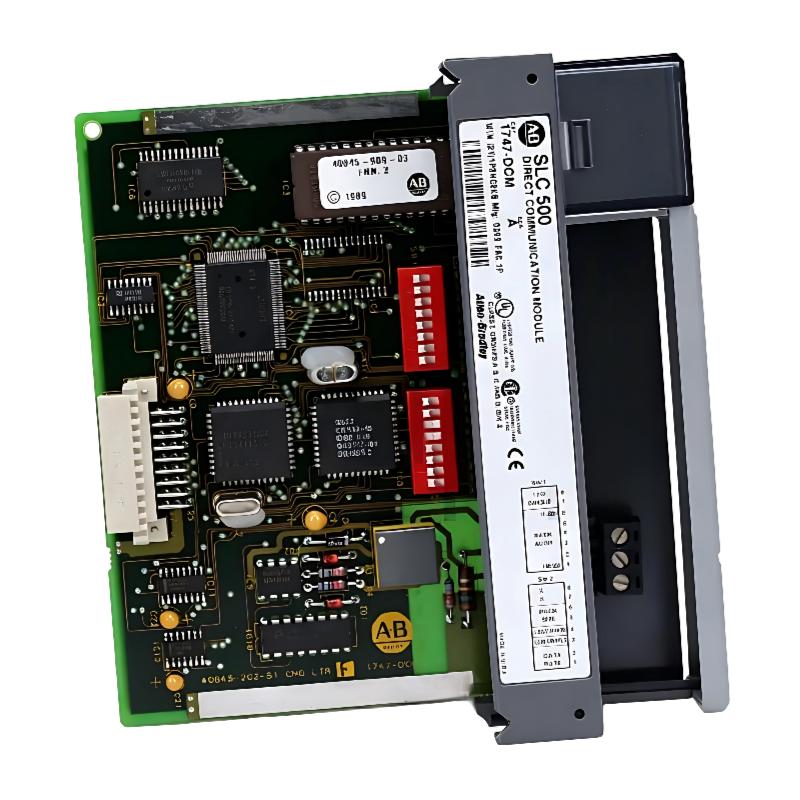

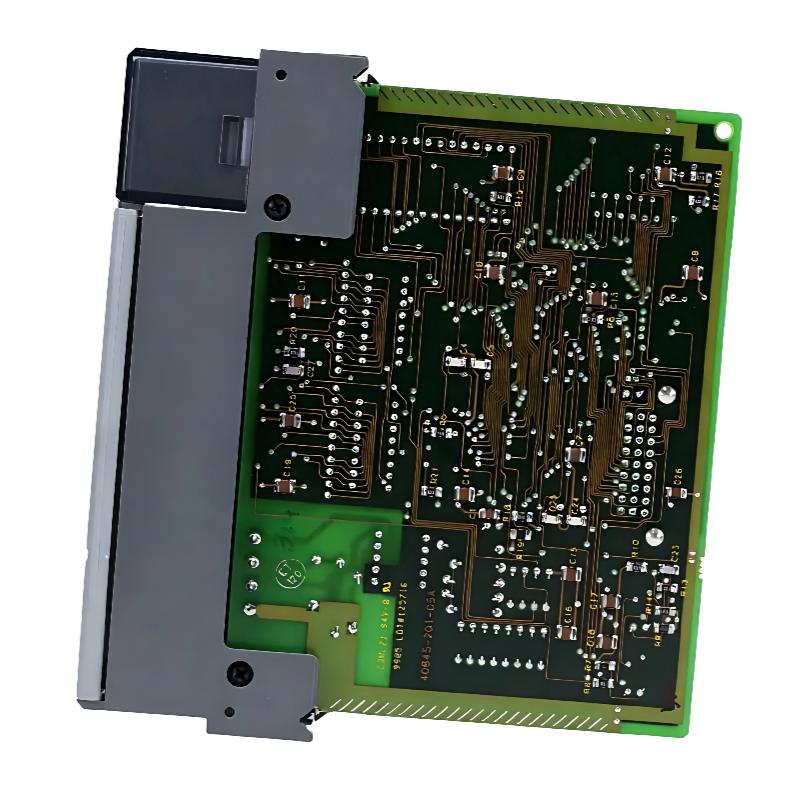

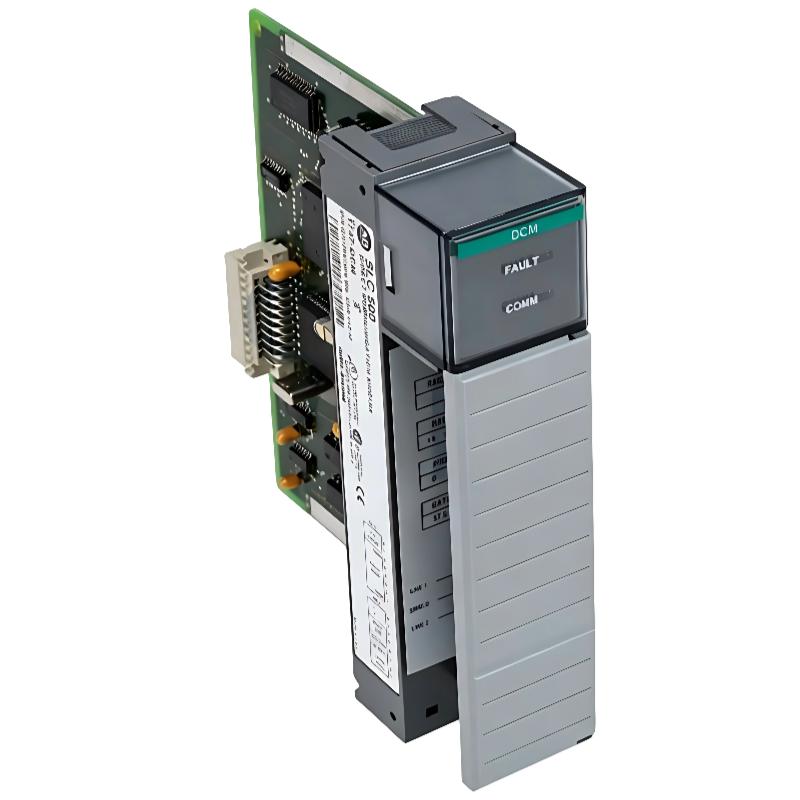

Allen Bradley 1747-DCM/A SLC 500 Direct Communication Module

Applications

The Allen Bradley 1747-DCM/A module enables high-speed, reliable direct communication between SLC 500 controllers and external devices or networks. It is ideal for industrial applications requiring rapid data exchange, including SCADA integration, HMI systems, remote monitoring, and distributed control setups. By providing direct connectivity, this module minimizes latency and streamlines automation processes across large-scale operations.

Advantages

• Direct High-Speed Communication: Ensures fast and efficient data transfer between controllers and external devices.
• Compact Form Factor: 144.5 × 34.6 × 130.18 mm, 0.45 kg, perfect for panel-mounted installations.
• Plug-and-Play Integration: Simplifies deployment with minimal configuration effort.
• Industrial-Grade Durability: Designed to withstand vibration, EMI/RFI, and temperature extremes.
• Seamless SLC 500 Compatibility: Works flawlessly with Allen Bradley SLC 500 controllers and I/O modules.
• Supports SCADA & HMI: Optimized for integration with supervisory control systems and monitoring interfaces.
• Reduces Network Complexity: Direct connection eliminates the need for intermediary modules or converters.
• Enhanced System Responsiveness: Reduces latency, improving real-time control and feedback loops.
• Scalable Deployment: Suitable for both small machinery networks and large industrial systems.
• Reliable Operation: Minimizes downtime and ensures consistent communication performance.

Technical FAQs

1. What is the primary purpose of the 1747-DCM/A?
   To provide direct communication between SLC 500 controllers and external devices or networks.
2. Is it compatible with all SLC 500 controllers?
   Yes, it integrates seamlessly with SLC 500 processors and I/O modules.
3. Which types of systems can it connect to?
   SCADA systems, HMI interfaces, remote I/O racks, and other automation devices.
4. Does it require specialized software for configuration?
   No, it works with standard SLC 500 programming tools.
5. Can it handle multiple devices simultaneously?
   Yes, depending on the network configuration and controller capabilities.
6. Is it suitable for harsh industrial environments?
   Absolutely, it is designed to tolerate vibration, EMI/RFI, and temperature fluctuations.
7. Does it improve automation response times?
   Yes, direct communication reduces latency for faster control loops.
8. Is installation straightforward?
   Yes, compact, panel-mounted design allows plug-and-play deployment.
9. Can it support distributed control systems?
   Yes, ideal for connecting remote I/O and external monitoring systems.
10. Does it simplify network architecture?
    Yes, it eliminates the need for intermediate communication modules.
