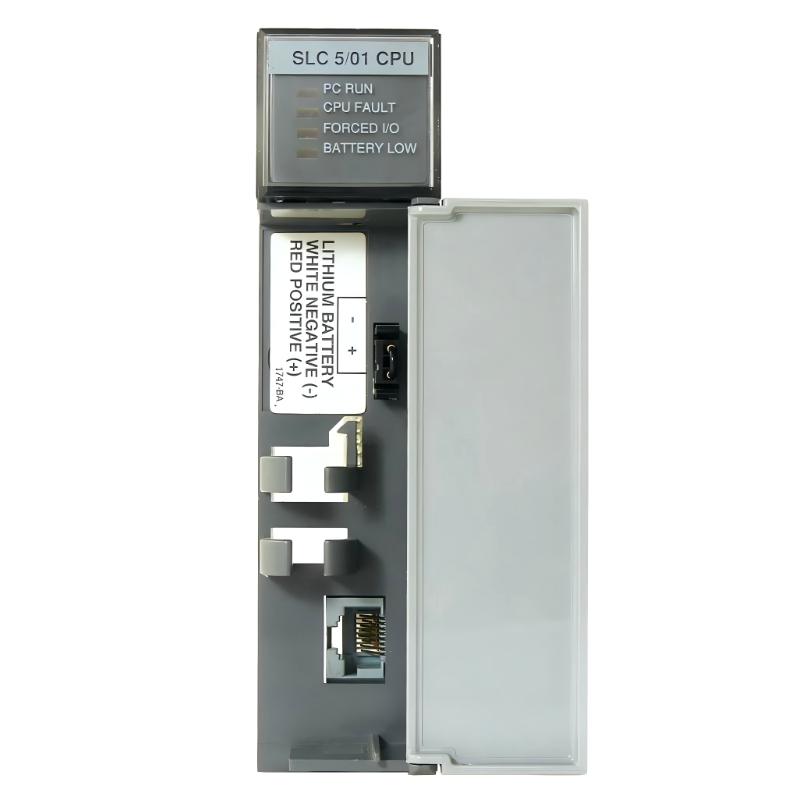

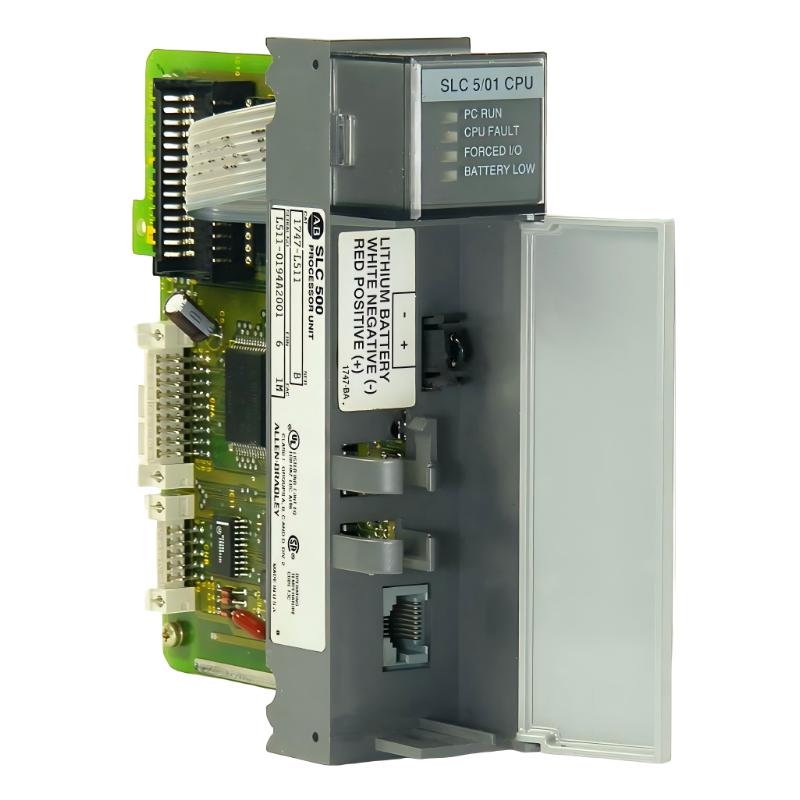

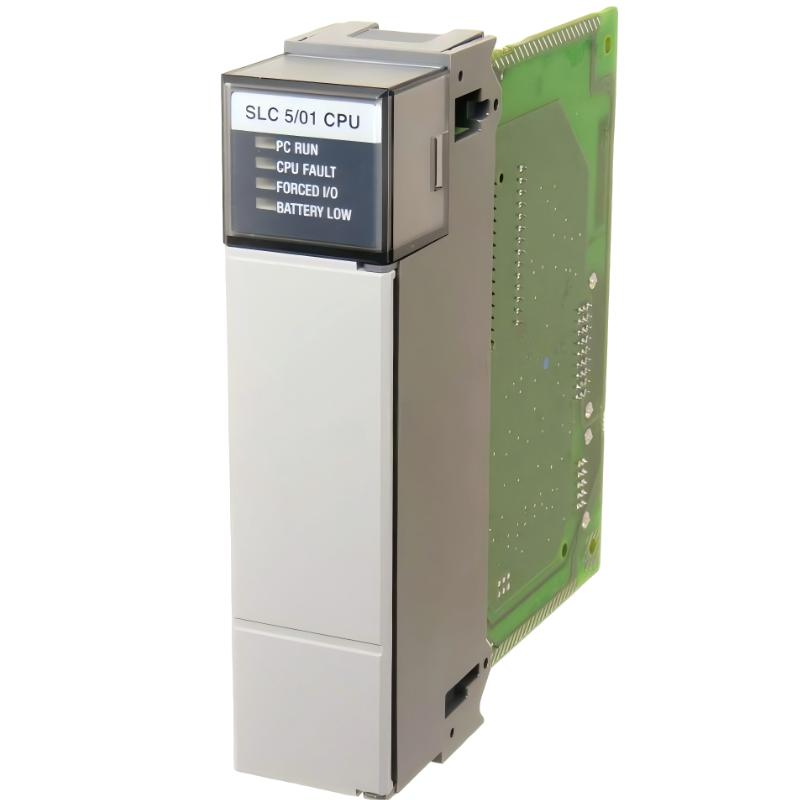

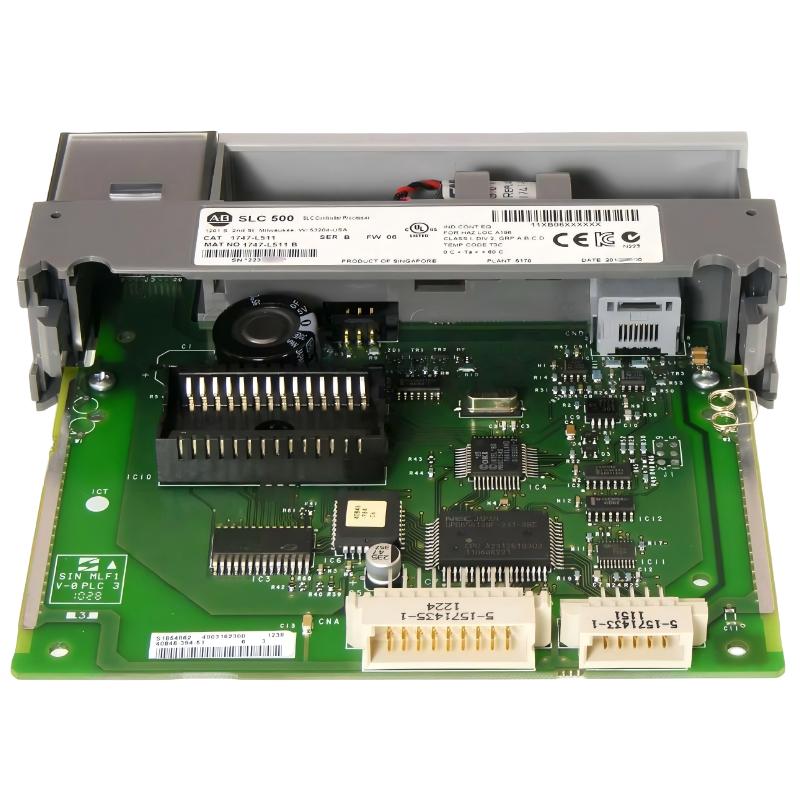

Allen Bradley 1747-L511 CPU Processor Unit Module

Applications

The Allen Bradley 1747-L511 CPU Processor Unit is designed to deliver reliable control in SLC 500 automation systems. Perfect for small- to medium-sized industrial processes, it manages digital and analog I/O, performs logic execution, and interfaces with communication and HMI modules. Ideal for manufacturing lines, process monitoring, and material handling systems requiring dependable automation performance.

Advantages

• Compact and Lightweight: 144.5 × 34.6 × 130.18 mm, 0.2 kg, fits easily in space-constrained panels.
• Reliable Processing Power: Handles real-time logic execution and I/O management efficiently.
• Seamless Integration: Fully compatible with SLC 500 controllers, I/O modules, and communication modules.
• Fast Data Exchange: Ensures responsive control and minimized process latency.
• Industrial Durability: Designed to withstand vibration, EMI/RFI, and temperature variations.
• Scalable Deployment: Can work alongside multiple I/O racks for expanding system capacity.
• Easy Installation: Panel-mounted plug-and-play module reduces setup time.
• Optimized for Automation: Supports HMI, SCADA, and distributed control systems.
• Enhanced System Reliability: Ensures continuous operation and reduces downtime.
• Flexible Use Cases: Suitable for machine control, batch processing, and industrial process applications.

Technical FAQs

1. What is the function of the 1747-L511?
   Acts as the CPU for SLC 500 systems, performing logic control and managing I/O operations.
2. Is it compatible with all SLC 500 I/O modules?
   Yes, both analog and digital I/O modules are supported.
3. Can it interface with remote I/O?
   Yes, when used with remote I/O adapter modules.
4. Does it support real-time processing?
   Yes, designed for fast logic execution and responsive control loops.
5. Is special programming software required?
   No, it is programmed using standard RSLogix or compatible software.
6. Can it operate in industrial environments?
   Yes, built to withstand vibration, EMI/RFI, and temperature extremes.
7. Is installation complex?
   No, its compact, plug-and-play design simplifies setup.
8. Can it integrate with HMI and SCADA systems?
   Absolutely, optimized for seamless communication with monitoring interfaces.
9. Does it allow system expansion?
   Yes, it supports additional I/O racks and modules for scalable automation.
10. Does it improve system reliability?
    Yes, robust design ensures stable and continuous operation.
