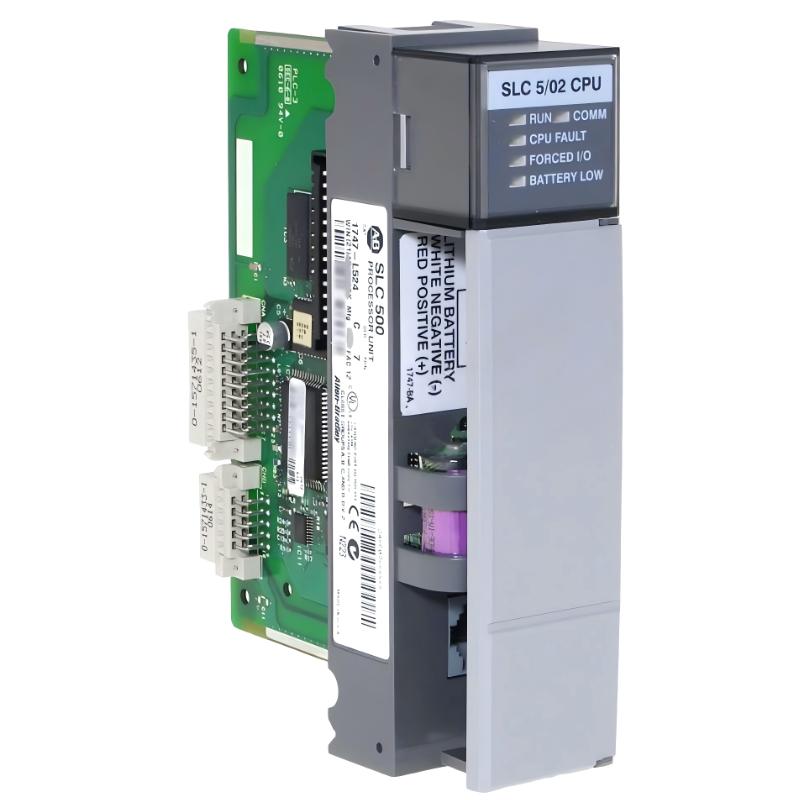

Allen Bradley 1747-L524 CPU Processor Unit Module

Applications

The Allen Bradley 1747-L524 CPU Processor Unit is a high-performance core module for SLC 500 automation systems. It is perfect for small- to medium-scale industrial applications such as machine automation, process control, material handling, and batch processing. The L524 ensures rapid logic execution, smooth I/O communication, and reliable integration with SCADA and HMI systems.

Advantages

• Ultra-Compact Design: 144.5 × 34.6 × 130.18 mm, 0.16 kg, ideal for space-limited panels.
• Reliable CPU Performance: Handles real-time logic execution and I/O scanning efficiently.
• Seamless Integration: Compatible with all SLC 500 digital, analog, and communication modules.
• Fast Data Handling: Optimizes communication and control loops for reduced latency.
• Industrial Durability: Designed to withstand vibration, electrical noise, and temperature variations.
• Scalable Control Architecture: Supports remote I/O racks and additional modules for larger systems.
• Plug-and-Play Installation: Simplifies setup and reduces commissioning time.
• Enhanced System Responsiveness: Improves real-time monitoring and control of processes.
• Versatile Application: Suitable for machine automation, batch operations, and distributed control.
• Reduced Downtime: Robust design ensures continuous operation and system reliability.

Technical FAQs

1. What is the main function of the 1747-L524?
   Acts as the central processing unit for SLC 500 systems, performing logic execution and managing I/O.
2. Is it compatible with all SLC 500 modules?
   Yes, it supports both analog and digital I/O modules as well as communication modules.
3. Can it connect to remote I/O racks?
   Yes, when paired with remote I/O adapters like the 1747-ASB/A.
4. Does it support real-time operations?
   Absolutely, designed for fast and reliable logic execution.
5. Which programming software is required?
   RSLogix or compatible SLC 500 programming software.
6. Can it operate in harsh industrial environments?
   Yes, it is resistant to vibration, EMI/RFI, and temperature extremes.
7. Is installation complicated?
   No, its compact and plug-and-play design allows easy panel mounting.
8. Can it integrate with SCADA or HMI systems?
   Yes, it communicates seamlessly for process monitoring and control.
9. Is it suitable for small or large-scale systems?
   It works efficiently in small to medium setups and can scale with remote I/O modules.
10. Does it improve overall system reliability?
    Yes, robust design ensures consistent performance and minimal downtime.
