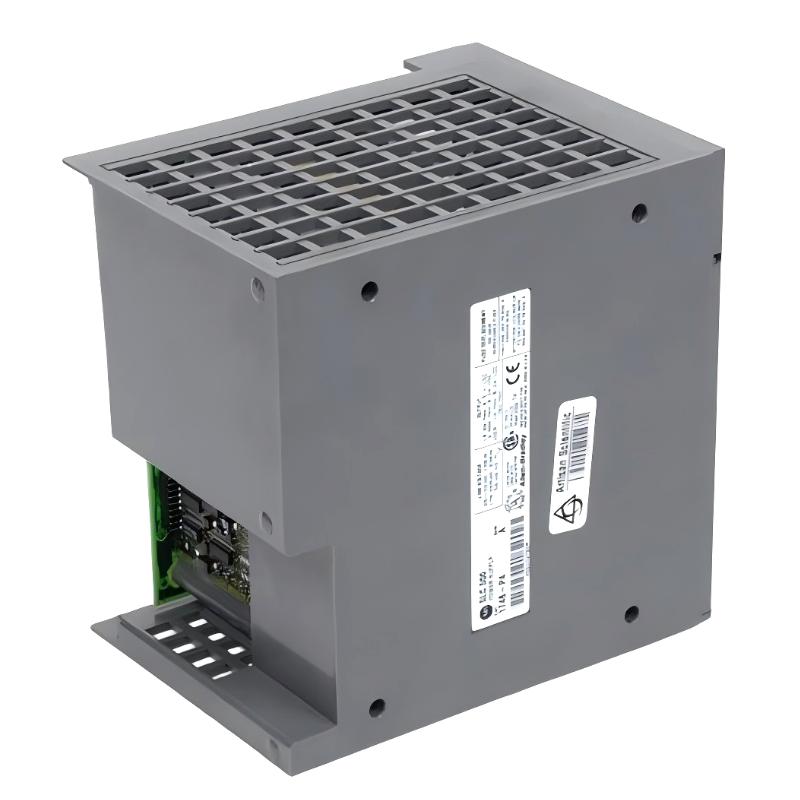

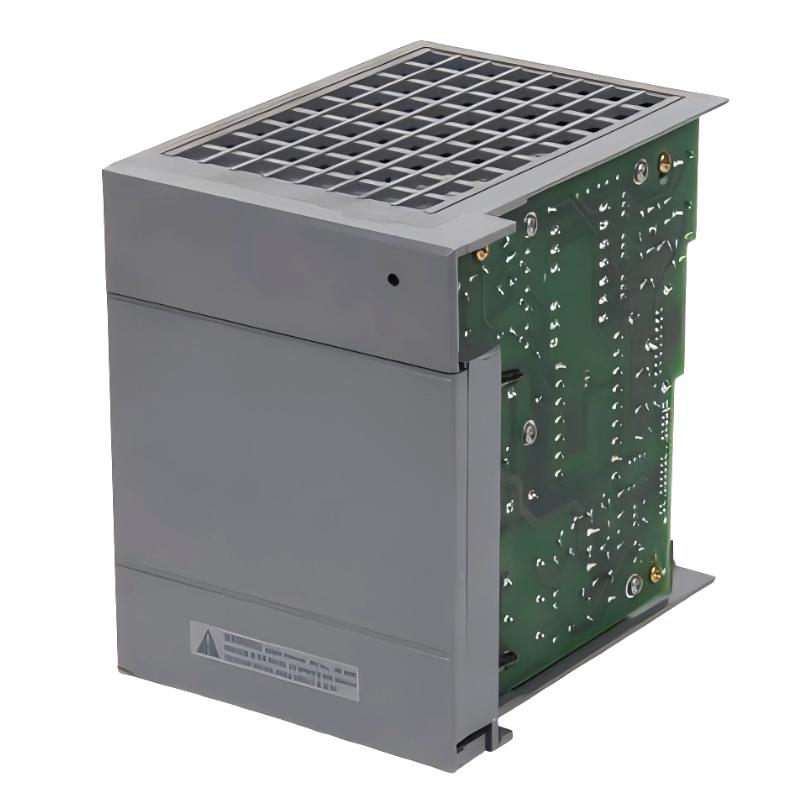

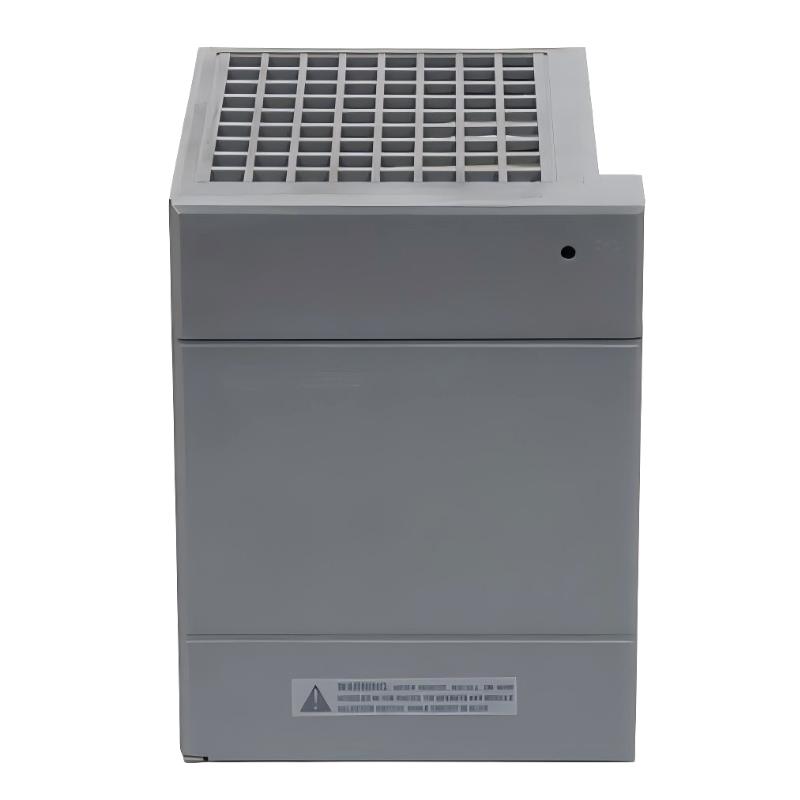

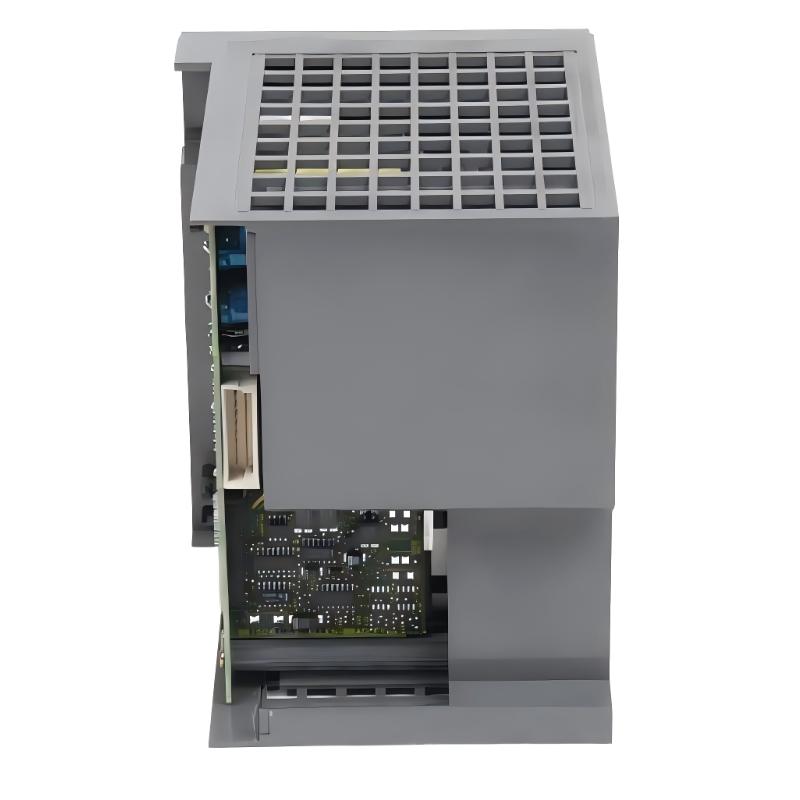

Allen Bradley 1746-P4 SLC 500 Power Supply Module

Applications

• Provides reliable DC power for SLC 500 PLC systems and I/O modules.

• Supports expansion of SLC 500 racks with additional modules.

• Ensures stable power for industrial automation in manufacturing environments.

• Integrates into control panels requiring regulated 5V and 24V DC outputs.

• Ideal for critical applications demanding uninterrupted power supply.

Key Advantages

• Delivers consistent DC output for optimal PLC and module performance.

• Compact design fits standard 1746 SLC 500 racks efficiently.

• High durability with industrial-grade components for long service life.

• Protects connected modules from voltage fluctuations and surges.

• Simplifies system setup with easy installation and reliable operation.

Technical FAQs

Q1: What is the output voltage of the 1746-P4 module?
It provides 5V DC for logic and 24V DC for I/O modules.

Q2: What is the maximum output current?
Maximum output current is 4A for 5V DC and 3A for 24V DC outputs.

Q3: Can this power supply handle expansion racks?
Yes, it supports multiple SLC 500 I/O modules within rated capacity.

Q4: Does it provide protection against voltage spikes?
Yes, built-in protection safeguards connected modules against overvoltage and surges.

Q5: What is the operating temperature range?
The module operates reliably from 0°C to 55°C.

Q6: Can the module be hot-swapped?
No, power must be removed before installation or replacement.

Q7: What are the compatible PLC chassis?
Compatible with Allen Bradley SLC 500 series 1746 chassis.

Q8: Does the module indicate operational status?
Yes, LED indicators provide status of module operation and faults.

Q9: How is the module mounted?
It is designed for standard 1746 rack installation using the integral DIN rail or chassis slots.

Q10: Is calibration required?
No calibration is required; outputs are factory set and regulated.
