Brand:Allen Bradley PLC Item No.:1747-FC Product Origin:USA Product Dimensions:80 × 50 × 20 mm Product Weight:0.068 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

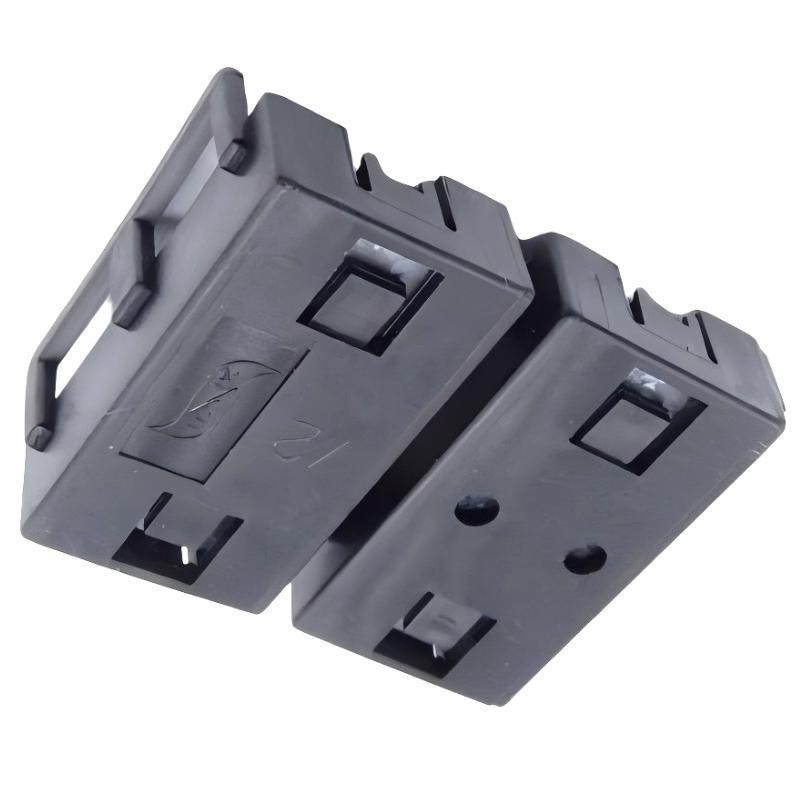

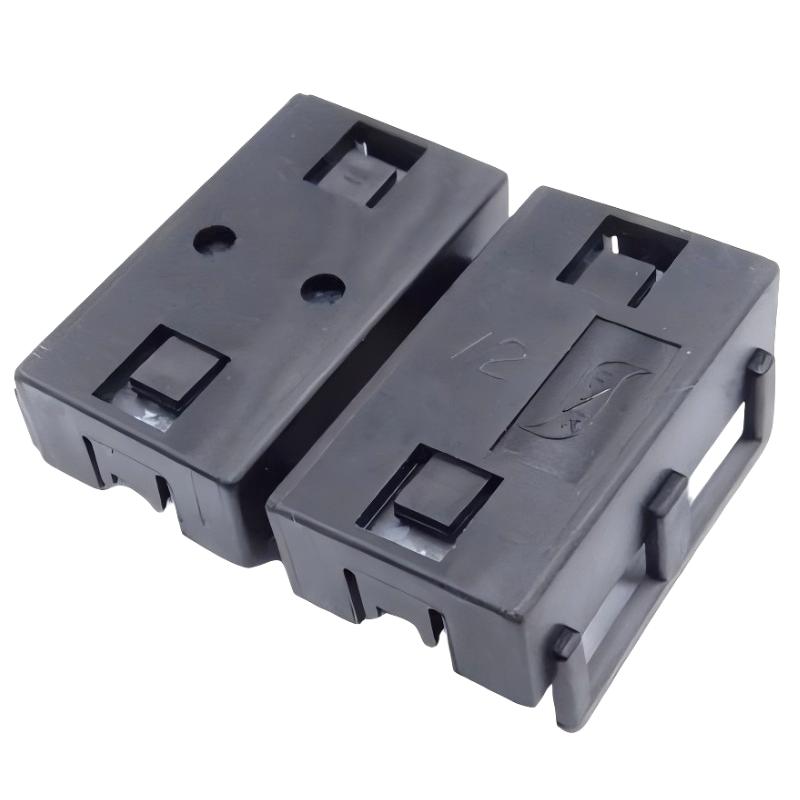

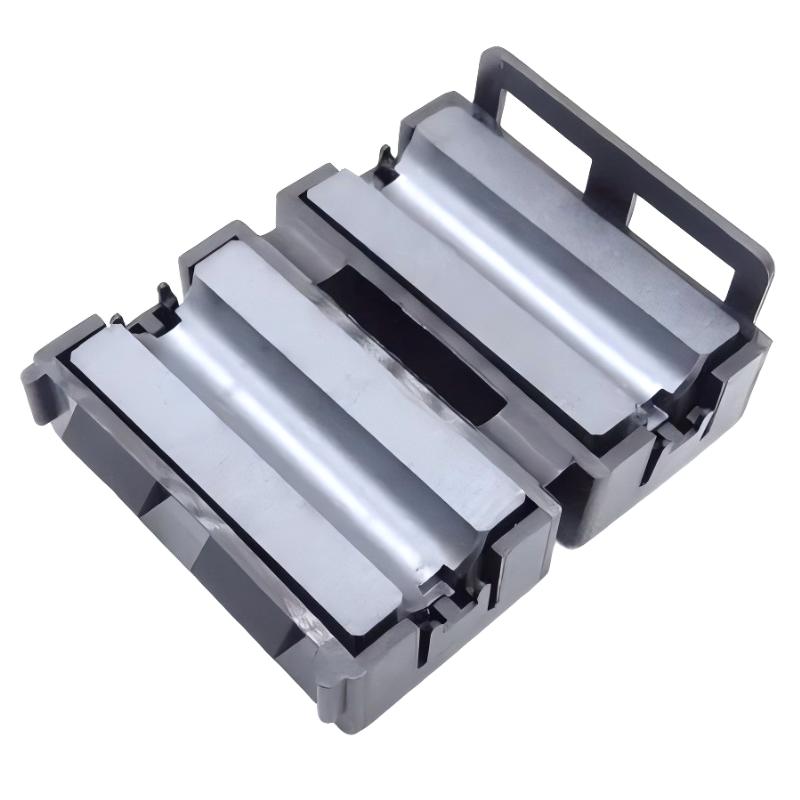

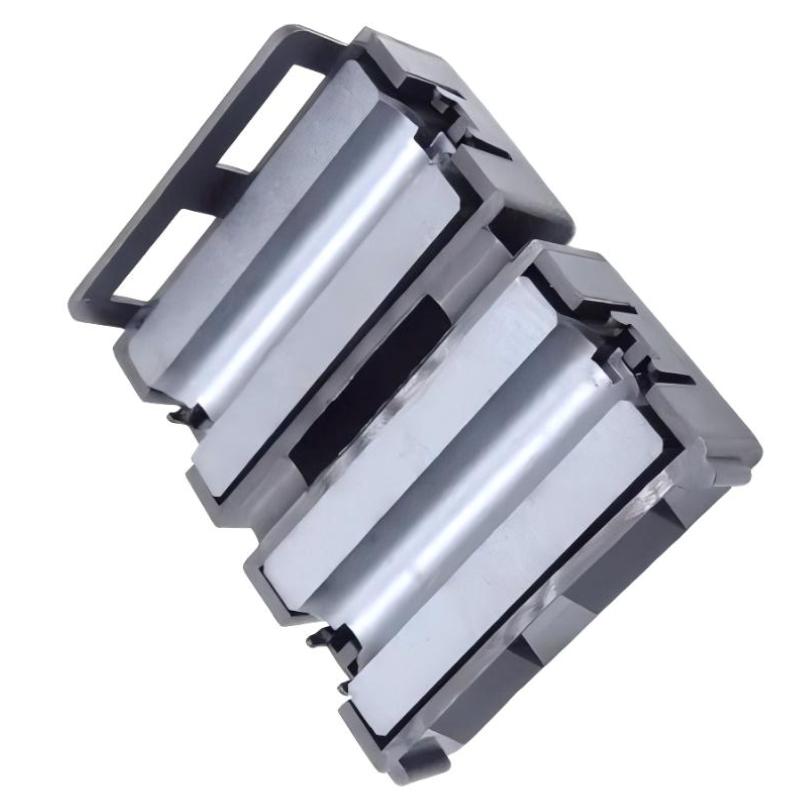

The Allen Bradley 1747-FC Ferrite Magnetic Ring is a compact and effective solution for electromagnetic interference suppression in industrial automation systems. Its ferrite material ensures reliable performance, protecting sensitive PLC and control system signals without modifying existing wiring. Ideal for use in manufacturing, process control, and high-noise environments.
Technical Specifications
Parameter
Specification
Material
Ferrite
Function
EMI/RFI suppression
Mounting
Snap-on / cable pass-through
Operating Temperature
-20°C to 85°C
Storage Temperature
-40°C to 90°C
Dimensions
80 × 50 × 20 mm
Weight
0.068 kg
Recommended Related Models
Model
Product Name
1747-FC2
Ferrite Ring for Medium Cables
1747-FC3
Ferrite Ring for High-Performance EMI Suppression
1747-OPC
Signal Cable Protective Clamp
1747-FC4
Large Diameter Ferrite Ring for Industrial Cables
Popular Related Models
Model
Product Name
1747-FC1
Standard Ferrite Magnetic Ring
1747-AC
Cable Shielding Clamp
1747-FC5
Ferrite Ring for High-Frequency Suppression
1747-EMI
EMI Suppression Kit for PLC Cables
Applications
• Reducing electromagnetic interference (EMI) in industrial control systems.
• Filtering high-frequency noise in PLC signal and power cables.
• Protecting sensitive automation equipment from transient voltage spikes.
• Enhancing signal integrity in complex wiring networks.
• Suitable for use in manufacturing, process control, and automation panels.
Key Advantages
• Effectively suppresses EMI and RFI to improve system reliability.
• Compact and lightweight design enables easy installation on cables.
• Durable ferrite material ensures long-term performance under industrial conditions.
• Simple implementation without modification of existing wiring.
• Enhances overall performance of Allen Bradley PLC and control systems.
Technical FAQs
Q1: What is the primary function of the 1747-FC ferrite ring?
It suppresses electromagnetic and radio frequency interference on cables.
Q2: What cable sizes are compatible with this ferrite ring?
It accommodates standard industrial signal and power cables, typically up to 15 mm in diameter.
Q3: Can it be used in high-voltage applications?
Yes, but it should only be used within its rated electrical and thermal limits.
Q4: Is the ferrite material durable for industrial use?
Yes, it is constructed from high-quality ferrite suitable for harsh environments.
Q5: How does the ring affect signal transmission?
It minimally impacts signal integrity while effectively reducing noise.
Q6: Can multiple rings be used on a single cable?
Yes, using multiple rings can increase EMI suppression for critical applications.
Q7: What is the operating temperature range?
The module operates reliably from -20°C to 85°C.
Q8: Is installation permanent or removable?
The ring is removable and can be repositioned as needed.
Q9: Does it require maintenance?
No maintenance is required; the ferrite material is passive and durable.
Q10: Can it be used with all Allen Bradley modules?
Yes, it is compatible with PLC and I/O cabling systems to enhance EMI performance.
