Brand:Allen Bradley PLC Item No.:1747-L514 Product Origin:USA Product Dimensions:144.5 × 34.6 × 130.18 mm Product Weight:0.34 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

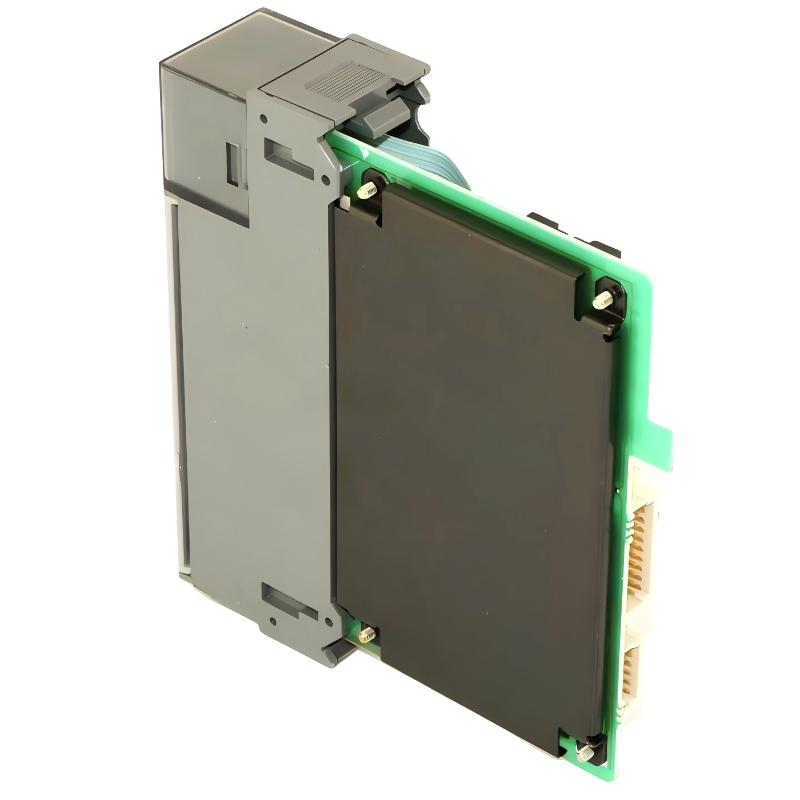

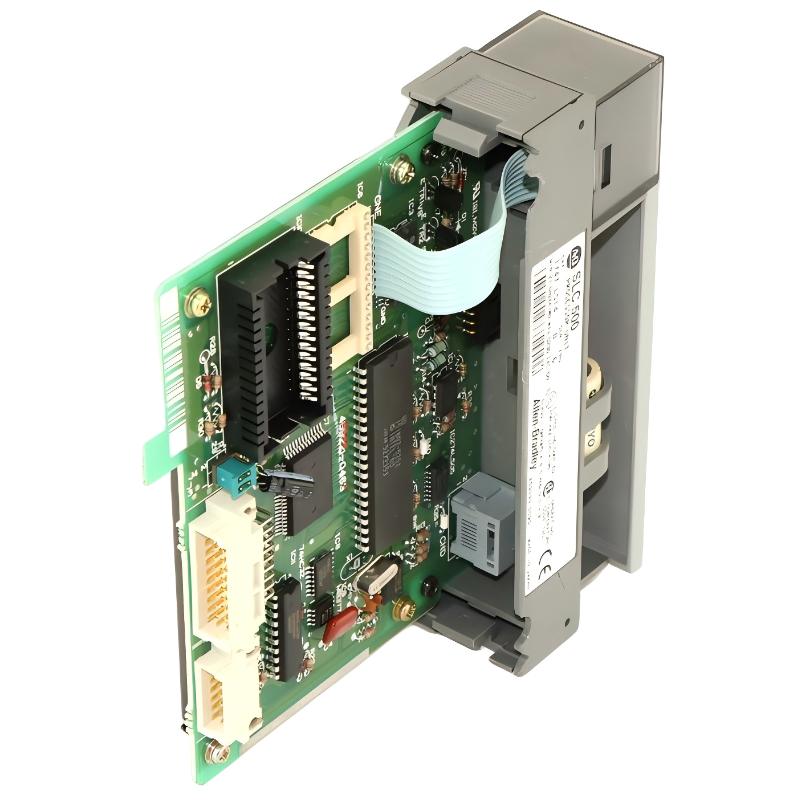

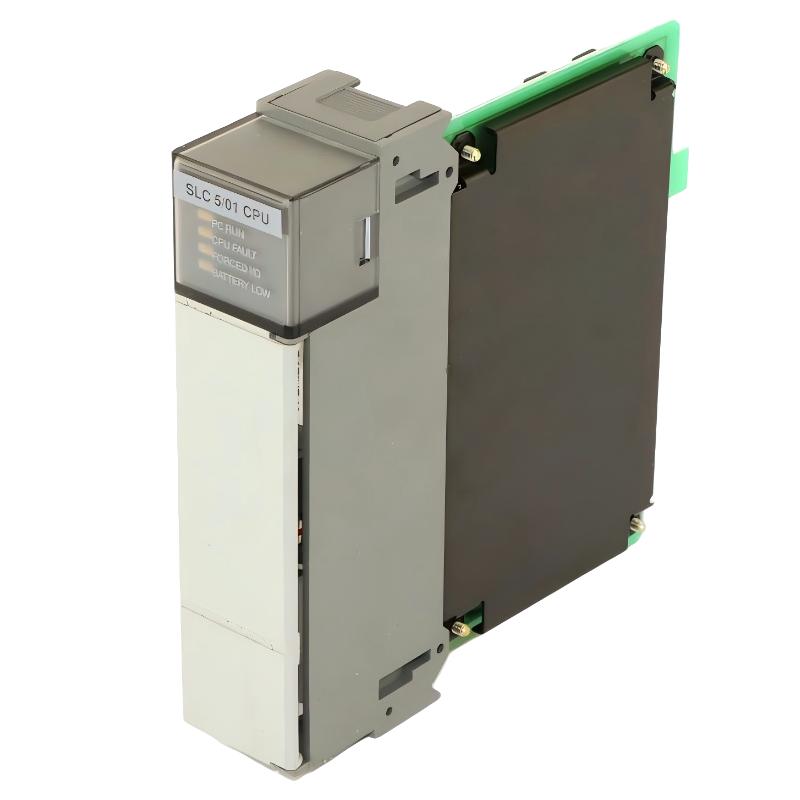

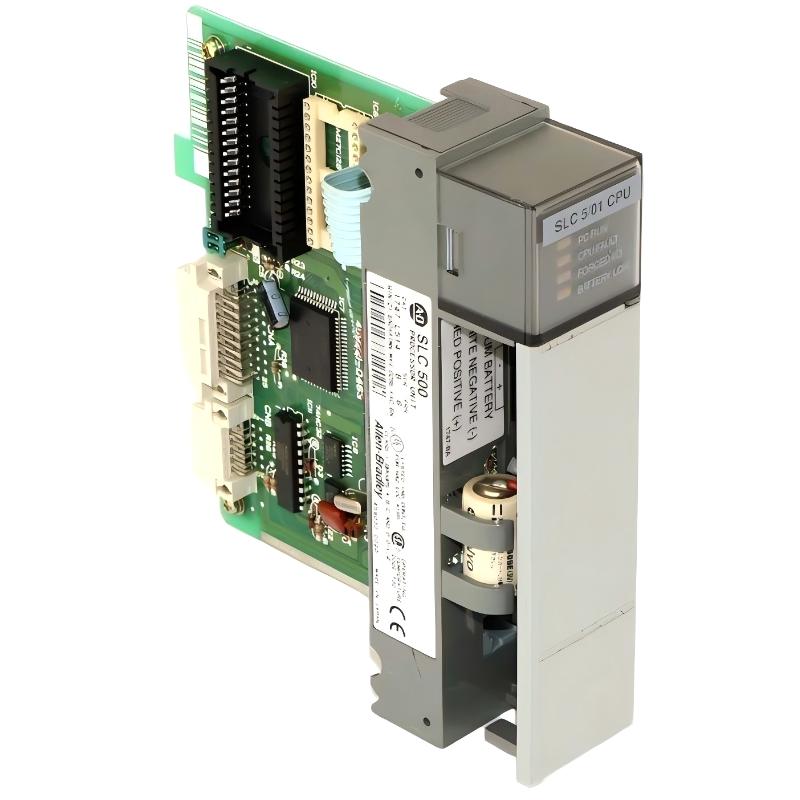

The Allen Bradley 1747-L514 CPU Processor Unit is a high-performance module designed to serve as the brain of SLC 500 PLC systems. It executes complex programs, manages I/O operations, and integrates seamlessly with additional modules to provide reliable automation control in industrial environments.
Technical Specifications
Parameter
Specification
CPU Type
High-performance SLC 500 microprocessor
Memory
Sufficient RAM and user program memory
Compatible Chassis
Allen Bradley 1746 SLC 500 series
Diagnostics
LED indicators and system status monitoring
Operating Temperature
0°C to 55°C
Storage Temperature
-20°C to 70°C
Dimensions
144.5 × 34.6 × 130.18 mm
Weight
0.34 kg
Recommended Related Models
Model
Product Name
1747-L532
SLC 500 CPU Processor Unit (Advanced)
1747-IA16
16-Channel Analog Input Module
1746-OB8
8-Channel Digital Output Module
1746-A7
7-Slot SLC 500 Chassis
Popular Related Models
Model
Product Name
1747-L511
SLC 500 CPU Processor Unit (Standard)
1746-NO8I
8-Channel Analog Output Module
1746-IB16
16-Channel Digital Input Module
1746-A4
4-Slot SLC 500 Chassis
Applications
• Central processing and control for SLC 500 PLC systems.
• Managing I/O operations for automated industrial processes.
• Executing user-defined programs for manufacturing and process control.
• Real-time monitoring and diagnostics of system performance.
• Integrating with communication modules for networked control systems.
Key Advantages
• High-speed processing ensures rapid execution of PLC programs.
• Compatible with SLC 500 architecture for seamless system expansion.
• Supports memory and program storage for complex automation tasks.
• Provides reliable and stable operation in industrial environments.
• Easy integration with additional I/O and communication modules.
Technical FAQs
Q1: What type of processor is used in the 1747-L514?
It uses a high-performance microprocessor optimized for SLC 500 control applications.
Q2: What is the memory capacity of this CPU module?
It supports sufficient RAM and user memory for complex program execution and data storage.
Q3: Which PLC chassis is compatible with this module?
It is compatible with Allen Bradley SLC 500 series and 1746 chassis models.
Q4: Does it support communication with other PLCs or devices?
Yes, it supports integration with communication modules for networked systems.
Q5: Can the CPU module be hot-swapped?
No, power must be removed before installation or replacement.
Q6: What is the operating temperature range?
The module operates reliably from 0°C to 55°C.
Q7: How are programs loaded onto the CPU?
Programs are loaded via RSLogix 500 software using a serial or network connection.
Q8: Does it provide diagnostic features?
Yes, it provides status LEDs and system diagnostics to monitor CPU operation.
Q9: Can it handle high-speed I/O operations?
Yes, it is optimized for fast scanning and processing of I/O modules.
Q10: Is calibration required for this CPU module?
No calibration is required; it operates as a plug-and-play module with factory settings.
