Brand:Allen Bradley PLC Item No.:1747-L532 Product Origin:USA Product Dimensions:144.5 × 34.6 × 130.18 mm Product Weight:0.25 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

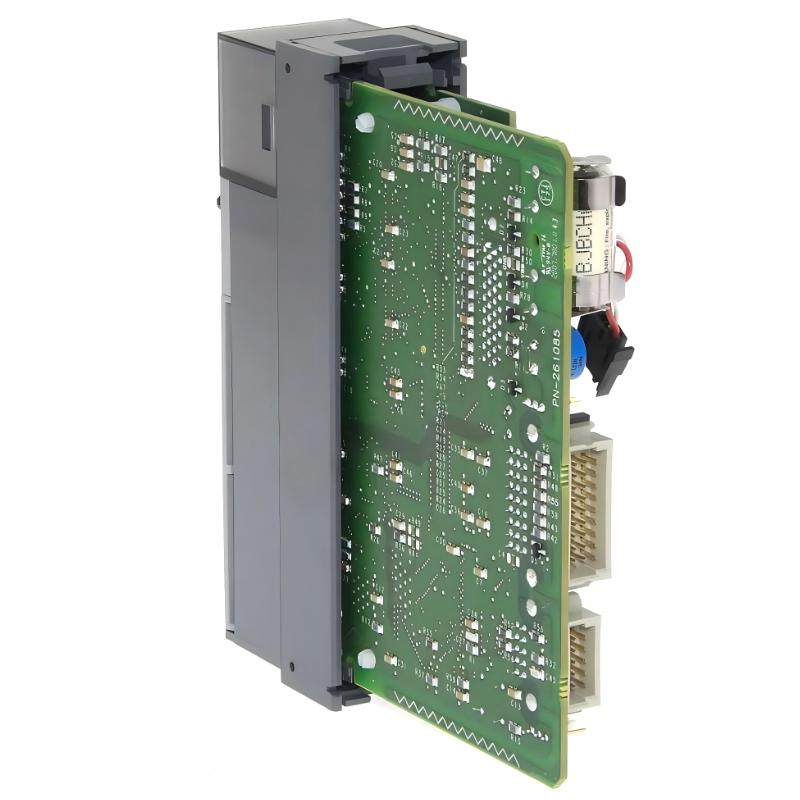

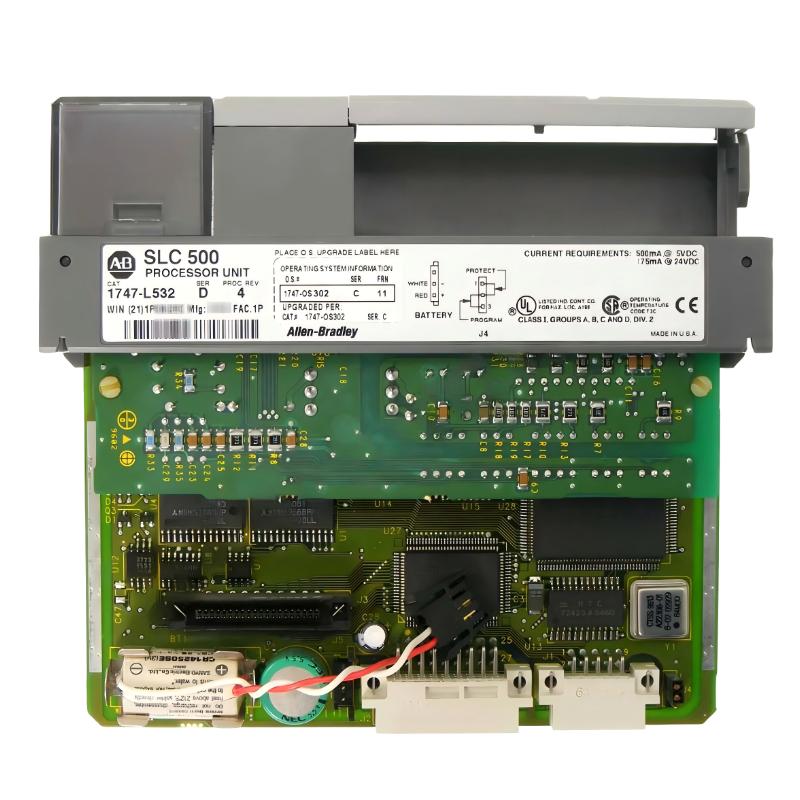

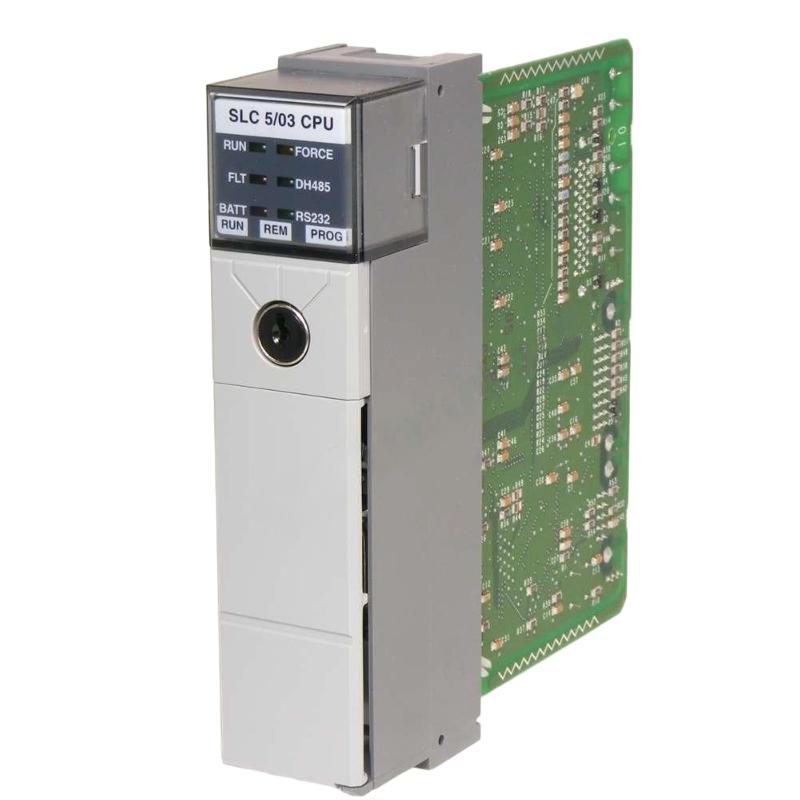

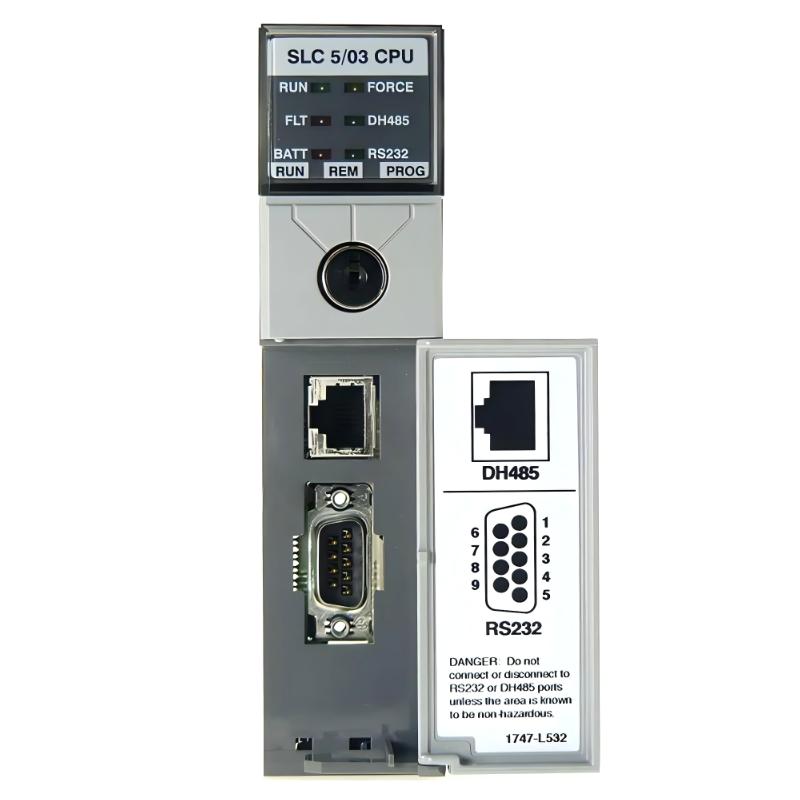

The Allen Bradley 1747-L532 CPU Processor Unit Module is a high-performance processor for SLC 500 PLC systems, designed for advanced automation applications. It offers expanded memory, fast processing, and reliable operation in demanding industrial environments, providing seamless integration with I/O and communication modules.
Technical Specifications
Parameter
Specification
CPU Type
High-speed SLC 500 microprocessor
Memory
Expanded RAM and user program storage
Compatible Chassis
Allen Bradley 1746 SLC 500 series
Diagnostics
LED indicators and system status monitoring
Operating Temperature
0°C to 55°C
Storage Temperature
-20°C to 70°C
Dimensions
144.5 × 34.6 × 130.18 mm
Weight
0.25 kg
Recommended Related Models
Model
Product Name
1747-L514
SLC 500 CPU Processor Unit (Standard)
1746-IA16
16-Channel Analog Input Module
1746-OB8
8-Channel Digital Output Module
1746-A7
7-Slot SLC 500 Chassis
Popular Related Models
Model
Product Name
1747-L511
SLC 500 CPU Processor Unit (Basic)
1746-NO8I
8-Channel Analog Output Module
1746-IB16
16-Channel Digital Input Module
1746-A4
4-Slot SLC 500 Chassis
Applications
• Central processing for SLC 500 PLC systems in industrial automation.
• Execution of complex logic and control programs.
• High-speed I/O management for real-time process monitoring.
• Integration with communication modules for networked industrial systems.
• Monitoring and diagnostics for system health and performance.
Key Advantages
• High-performance CPU optimized for advanced SLC 500 applications.
• Supports larger memory for complex programs and data storage.
• Provides fast scan rates for responsive control of I/O modules.
• Compact design fits standard 1746 chassis with minimal footprint.
• Reliable operation in demanding industrial environments.
Technical FAQs
Q1: What type of processor does the 1747-L532 use?
It features a high-speed microprocessor optimized for advanced SLC 500 control tasks.
Q2: How much memory is available for programs and data?
The module provides expanded RAM and user memory suitable for complex automation programs.
Q3: Which chassis are compatible with this CPU module?
It is compatible with Allen Bradley 1746 SLC 500 series chassis.
Q4: Does it support communication with other PLCs or devices?
Yes, it can integrate with compatible communication modules for networked control.
Q5: Can this CPU be hot-swapped?
No, power must be removed before installation or replacement.
Q6: What is the operating temperature range?
The module operates reliably from 0°C to 55°C.
Q7: How are programs loaded onto the module?
Programs are uploaded using RSLogix 500 software via serial or network connections.
Q8: Does it offer diagnostic features?
Yes, it includes LED indicators and system diagnostics for CPU monitoring.
Q9: Can it handle high-speed I/O operations?
Yes, it is optimized for fast scanning and management of multiple I/O modules.
Q10: Is calibration required for the CPU?
No calibration is required; it is factory set and plug-and-play ready.
