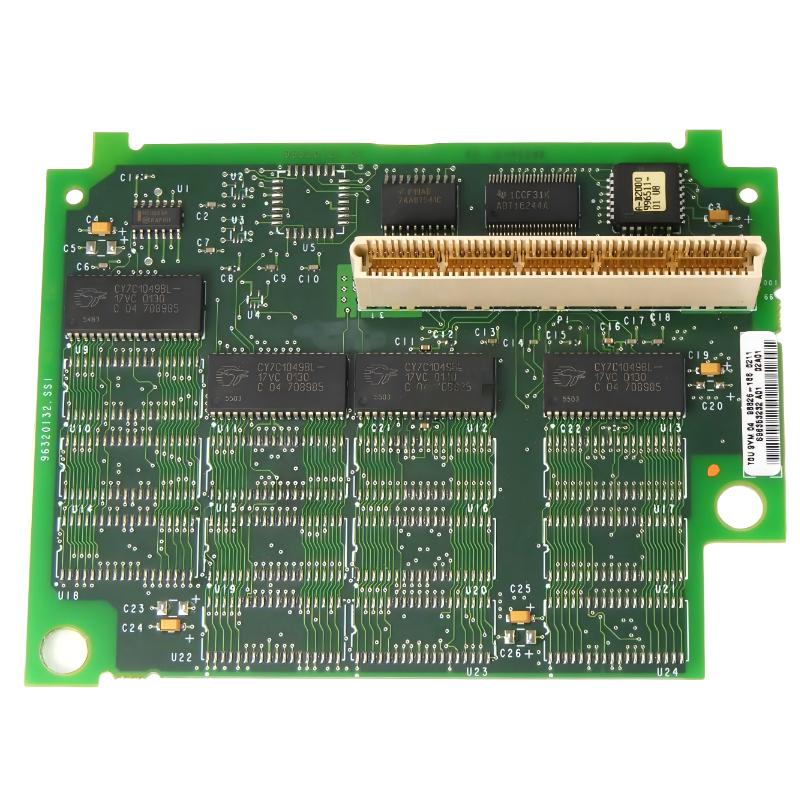

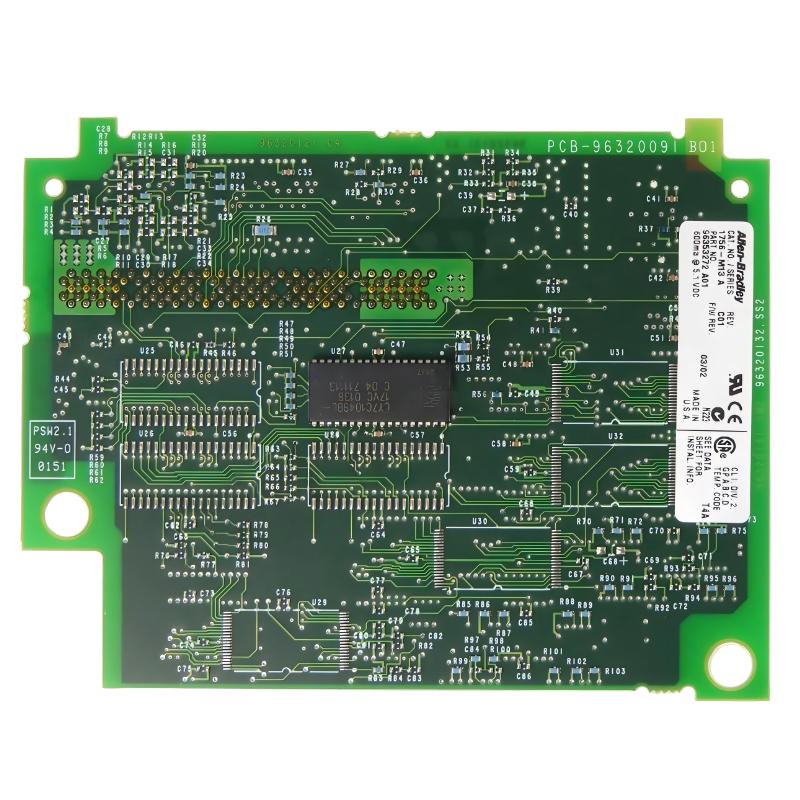

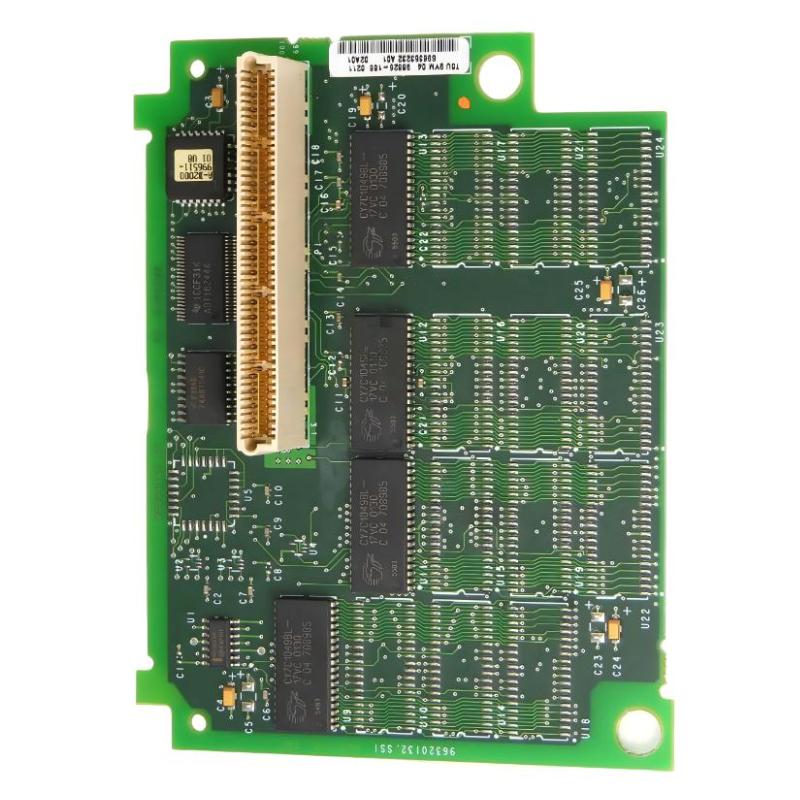

The 1756-M13 ControlLogix Motion Module from Rockwell Automation is a high-performance industrial servo motion control module engineered for demanding automation systems requiring precise axis coordination, fast response times, and reliable integration within the ControlLogix platform.
Designed for advanced machine control applications, the 1756-M13 delivers stable synchronized motion performance for packaging machinery, automated production lines, robotics, material handling systems, and precision positioning equipment. Its architecture supports deterministic industrial motion processing while maintaining seamless compatibility with ControlLogix controllers and servo drive systems.
Technical Specifications (Including Size & Weight)
| Parameter | Specification |
|---|---|
| Model | 1756-M13 |
| Series | ControlLogix Motion Modules |
| Module Type | Industrial Motion Control Module |
| Motion Function | Coordinated servo motion control |
| Supported Control Modes | Position, velocity, torque |
| Feedback Support | Incremental encoder interface |
| Synchronization Capability | Multi-axis coordinated control |
| Communication | ControlLogix backplane integration |
| Servo Compatibility | Industrial servo drive systems |
| Update Performance | High-speed deterministic processing |
| Backplane Current (5.1V DC) | ~850 mA |
| Power Dissipation | ~6.5 W |
| Isolation Protection | Industrial electrical isolation |
| Programming Software | Studio 5000 / RSLogix 5000 |
| Chassis Compatibility | Standard ControlLogix chassis |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Mounting Method | Single-slot chassis installation |
| Weight | ~0.45–0.80 kg |
Physical Dimensions
- Size (H × W × D): 145 × 35 × 140 mm
Its compact single-slot structure helps reduce cabinet space requirements while supporting reliable industrial motion control performance.
Recommended Related Models
The 1756-M13 is commonly integrated with:
- 1756-L71 / 1756-L73 / 1756-L75 ControlLogix CPUs
- 1756-M03SE SERCOS servo modules
- 1756-M08SE multi-axis motion modules
- Kinetix servo drive systems
- 1756-EN2T EtherNet/IP communication modules
Popular Allen-Bradley Motion Control Models
Within the ControlLogix motion ecosystem, widely deployed models include:
- 1756-M03SE 3-axis SERCOS module
- 1756-M08SE 8-axis motion module
- 1756-M02AE analog motion module
- 1756-HYD02 hydraulic motion controller
- Kinetix integrated motion platforms
These motion solutions provide scalable architectures for modern industrial automation systems requiring accurate synchronized servo control.
