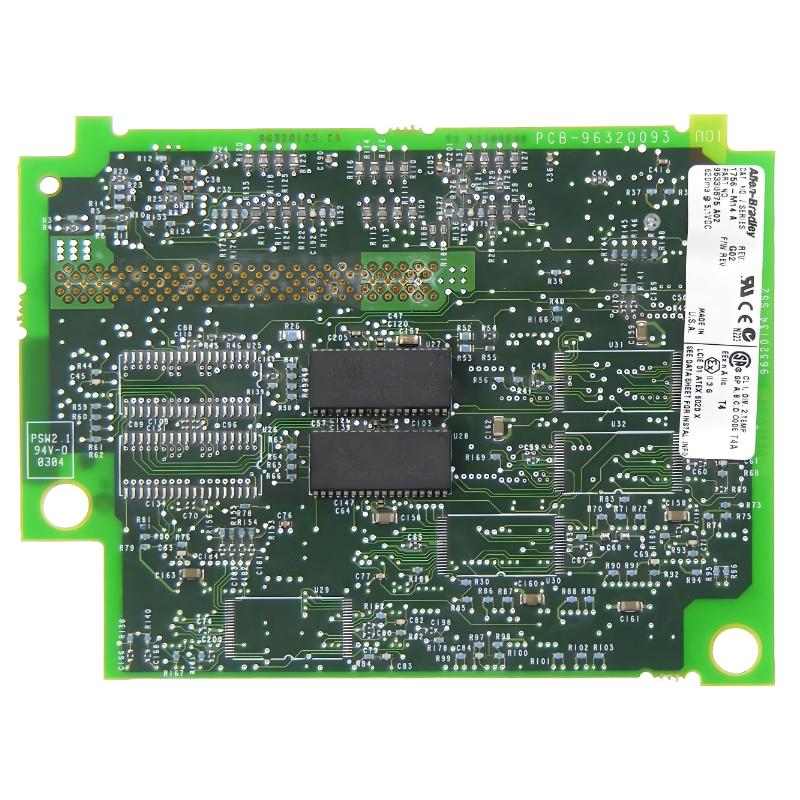

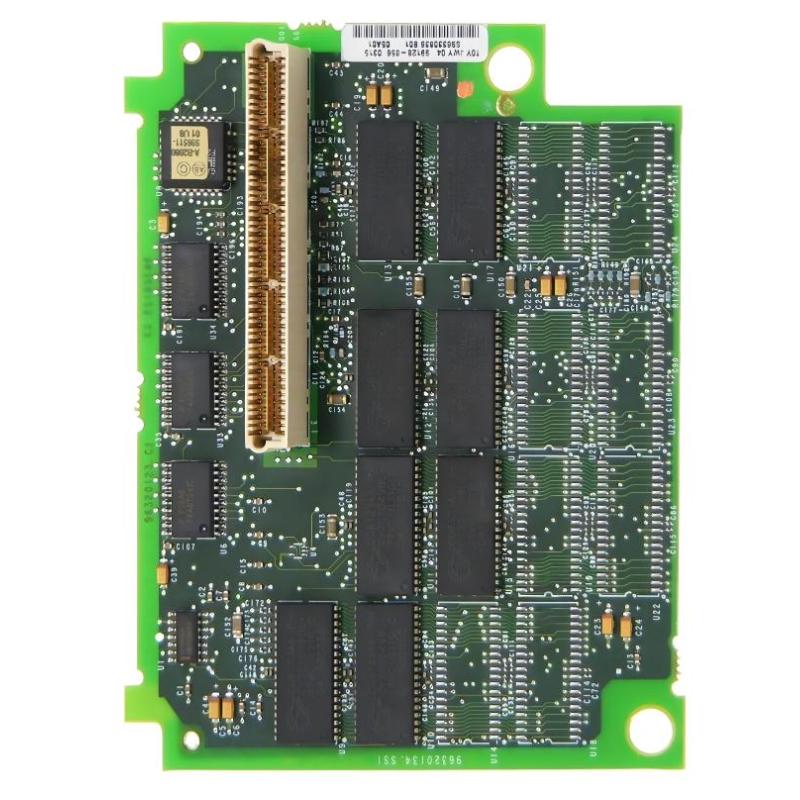

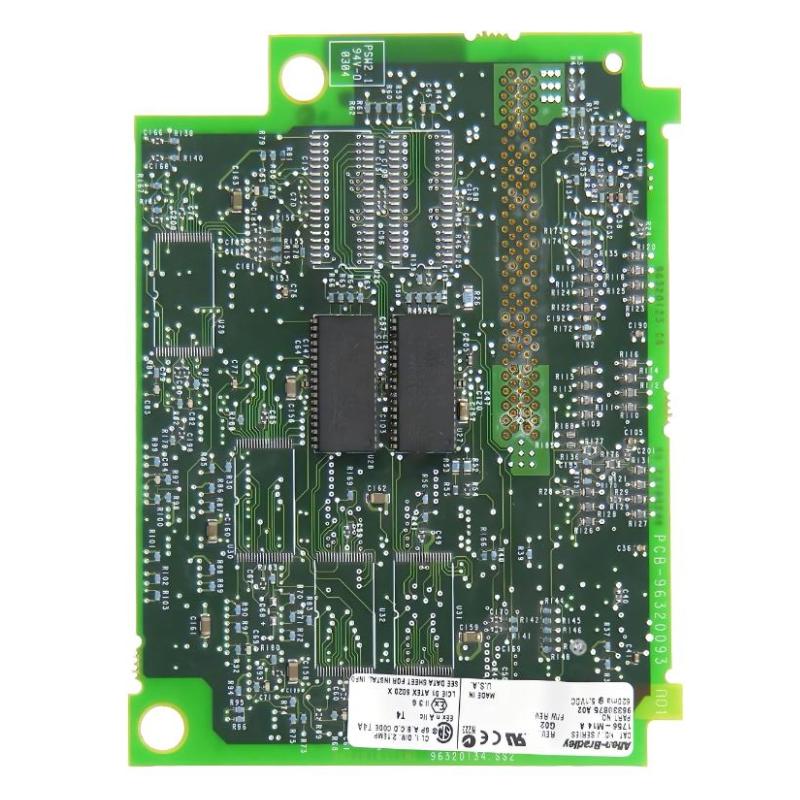

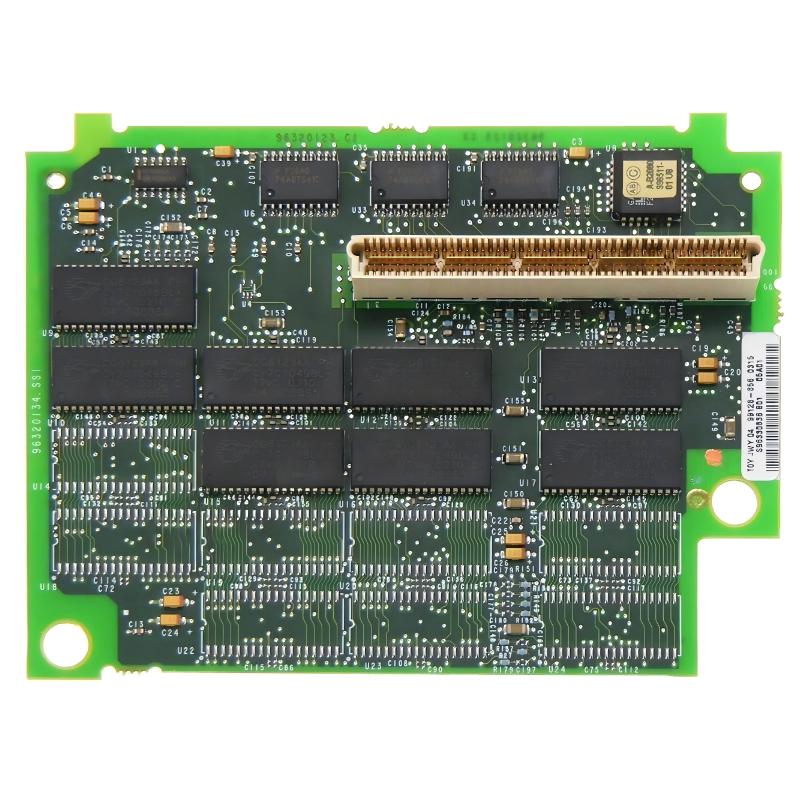

The 1756-M14 ControlLogix Motion Control Module from Rockwell Automation is a professional-grade industrial motion solution engineered for high-precision servo coordination, synchronized axis control, and real-time machine automation within the ControlLogix platform.
Built for demanding production environments, the 1756-M14 is commonly deployed in automated packaging systems, robotics, material handling equipment, indexing machinery, and high-speed manufacturing lines where smooth motion execution and reliable machine synchronization are essential.
Its modular architecture allows seamless integration into existing ControlLogix systems while supporting scalable industrial motion applications.
Technical Specifications (Including Size & Weight)
| Parameter | Specification |
|---|---|
| Model | 1756-M14 |
| Series | ControlLogix Motion Modules |
| Module Type | Industrial Servo Motion Control Module |
| Motion Capability | Coordinated multi-axis servo control |
| Control Functions | Position, velocity, torque control |
| Feedback Interface | Incremental encoder support |
| Communication | ControlLogix backplane integration |
| Synchronization | Deterministic real-time axis coordination |
| Servo Compatibility | Industrial servo drive systems |
| Processing Performance | High-speed motion execution |
| Backplane Current (5.1V DC) | ~850 mA |
| Power Dissipation | ~6.5 W |
| Isolation Protection | Industrial-grade electrical isolation |
| Programming Software | Studio 5000 / RSLogix 5000 |
| Installation | Single-slot ControlLogix chassis |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Weight | ~0.45–0.85 kg |
Physical Dimensions
- Size (H × W × D): 145 × 35 × 140 mm
The compact single-slot form factor helps maximize cabinet efficiency while maintaining reliable industrial motion performance.
Recommended Related Models
The 1756-M14 is commonly integrated with:
- 1756-L71 / L73 / L75 ControlLogix processors
- 1756-M03SE SERCOS servo modules
- 1756-M08SE multi-axis motion modules
- Kinetix servo drive systems
- 1756-EN2T EtherNet/IP communication modules
Popular Allen-Bradley Motion Control Models
Within the ControlLogix motion ecosystem, widely used modules include:
- 1756-M03SE SERCOS motion module
- 1756-M08SE 8-axis servo module
- 1756-M02AE analog motion controller
- 1756-HYD02 hydraulic motion module
- Kinetix integrated motion systems
These motion products support scalable architectures for advanced industrial automation and synchronized machine control.
