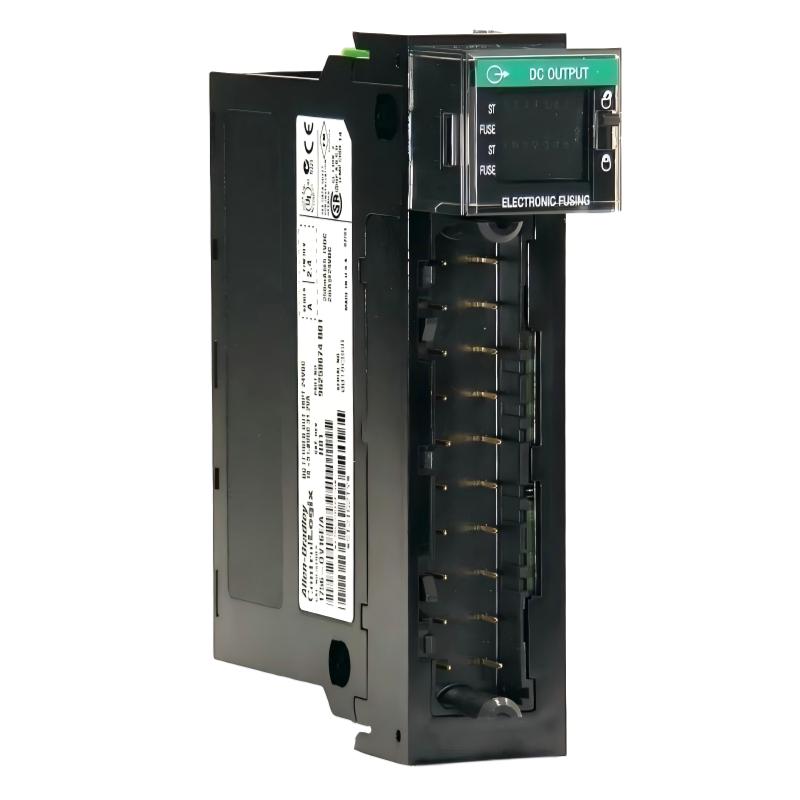

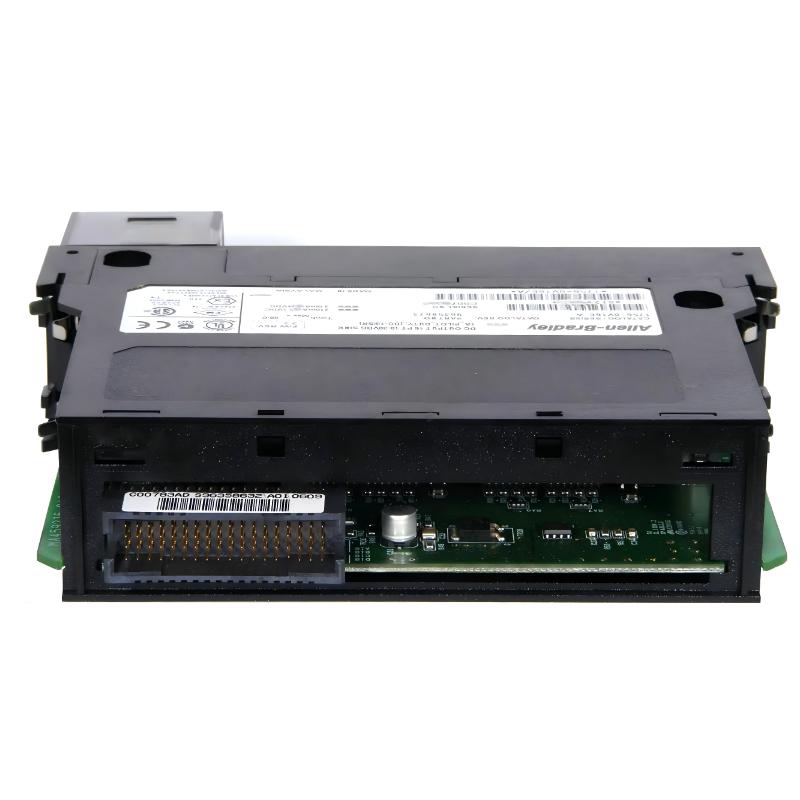

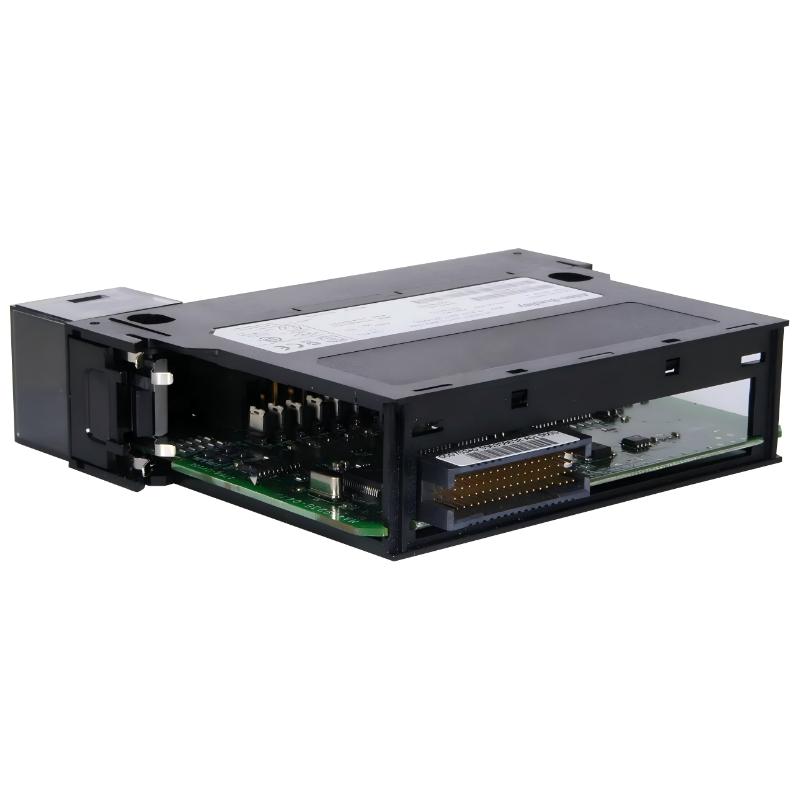

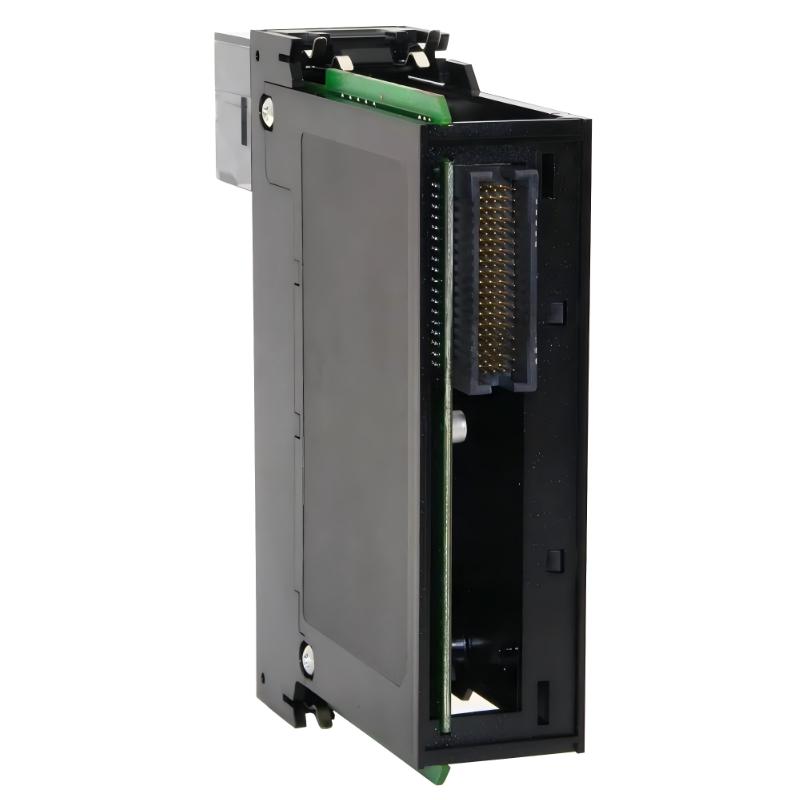

The 1756-OV16E ControlLogix Digital Output Module from Rockwell Automation is a high-reliability 16-point sourcing DC output module featuring integrated electronic fusing for each output channel. Designed for modern industrial automation systems, this module provides enhanced protection, fast fault isolation, and dependable 24V DC output control in demanding production environments.
The 1756-OV16E is especially suitable for applications where minimizing downtime is critical. Its electronically fused architecture helps protect field devices and wiring from overload or short-circuit conditions without the need for traditional replaceable fuses. This makes it a preferred choice for automotive manufacturing, packaging systems, material handling equipment, and intelligent machine control applications.
With seamless integration into the ControlLogix platform, the module delivers reliable performance and efficient system diagnostics for advanced automation systems.
Technical Specifications (Including Size & Weight)
| Parameter | Specification |
|---|---|
| Model | 1756-OV16E |
| Series | ControlLogix Digital Output Modules |
| Module Type | 16-Point Electronically Fused DC Output Module |
| Number of Outputs | 16 sourcing outputs |
| Output Voltage Range | 10–31.2V DC |
| Nominal Voltage | 24V DC |
| Output Configuration | 2 groups of 8 outputs |
| Output Type | Sourcing transistor outputs |
| Continuous Current per Point | 1 A per channel |
| Continuous Current per Module | 8 A maximum |
| Protection Type | Electronic fuse per output point |
| Isolation Voltage | 250V continuous |
| Switching Time | ON: ~0.5 ms / OFF: ~1 ms |
| Short-Circuit Protection | Integrated electronic protection |
| Backplane Current (5.1V DC) | ~250 mA |
| Power Dissipation | ~4–5 W |
| Field Power Requirement | External 24V DC supply |
| Terminal Block Compatibility | 1756-TBNH / 1756-TBSH |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Weight | ~0.35–0.50 kg |
Physical Dimensions
- Size (H × W × D): 145 × 35 × 140 mm
The compact single-slot design allows efficient use of cabinet space while supporting high-density industrial output control.
Recommended Related Models
The 1756-OV16E is commonly paired with:
- 1756-IB16 digital input module
- 1756-OV32E high-density DC output module
- 1756-OB16E electronically fused output module
- 1756-L71 / L73 ControlLogix controllers
- 1756-EN2T EtherNet/IP communication modules
- 1756-PA75 power supply modules
Popular Allen-Bradley Output Modules
Frequently used ControlLogix output modules include:
- 1756-OV16E electronically fused DC output module
- 1756-OB16 standard DC output module
- 1756-OB16D diagnostic output module
- 1756-OV32E high-density output module
- 1756-OA16 AC output module
These modules provide flexible and scalable output solutions for industrial automation systems.
