Introduction

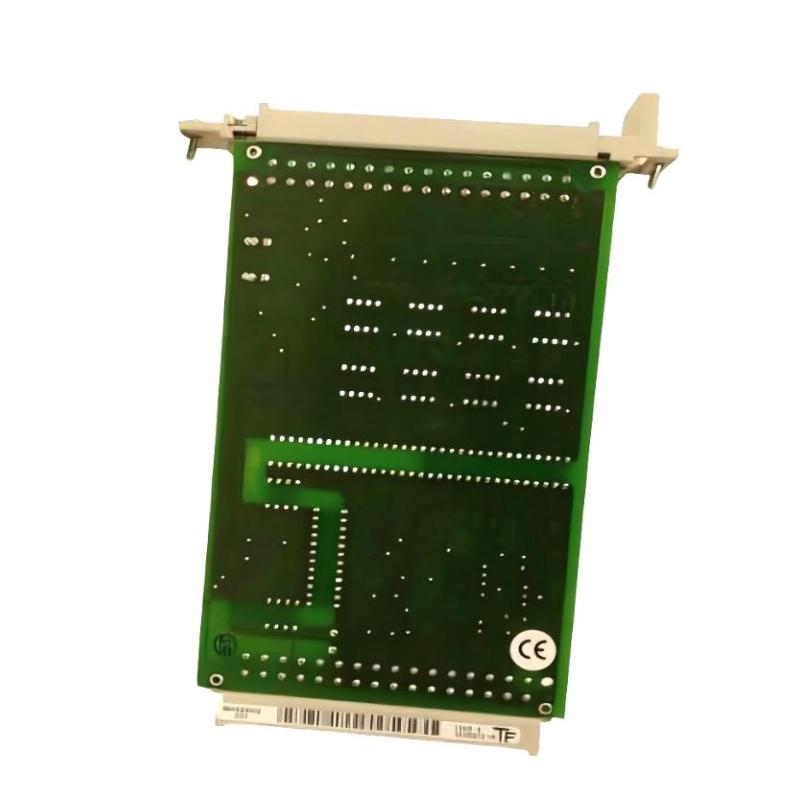

The HIMA F1202 Safety Relay Module is a high-integrity solution for industrial safety applications where precise relay switching is critical. Its four-channel design allows independent operation of multiple field circuits, providing reliable amplification and switching for safety loops.
Engineered for durability, high noise immunity, and SIL-rated safety environments, the F1202 ensures that emergency shutdown and interlock signals are executed reliably, giving operators confidence that their safety systems will perform when needed most.
Technical Specifications
| Parameter | Details |
|---|---|
| Module Type | Safety Relay Module |
| Channels | 4 independent relay channels |
| Signal Compatibility | Solenoids, actuators, alarm relays, and other field devices |
| System Platform | HIMA F-series / HIMax |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Diagnostics | Fault detection and channel status indication |
| Dimensions (W × H × D) | 152 × 120 × 75 mm |
| Weight | 1.3 kg |
| Mounting | Standard HIMA rack slot |
| Operating Environment | Industrial-grade EMI and temperature tolerance |
Recommended Related Models
| Model | Description |
|---|---|
| F1201 | 4x Relay Amplifier Module |
| F1101 | Switching Amplifier Module |
| F1109 | Analog Input Module |
| F1 DI 16 01 | Digital Input Module |
| F1 DO 08 01 | Digital Output Module |
| F1 CPU 01 | Safety Controller |
| F2 DO 16 01 | Remote Digital Output Module |
| F3 DIO 16 24 | Combined I/O Module |
| F2 AIO 08 01 | Mixed Analog/Digital I/O Module |
| F1 PS 01 | Power Supply Module |
