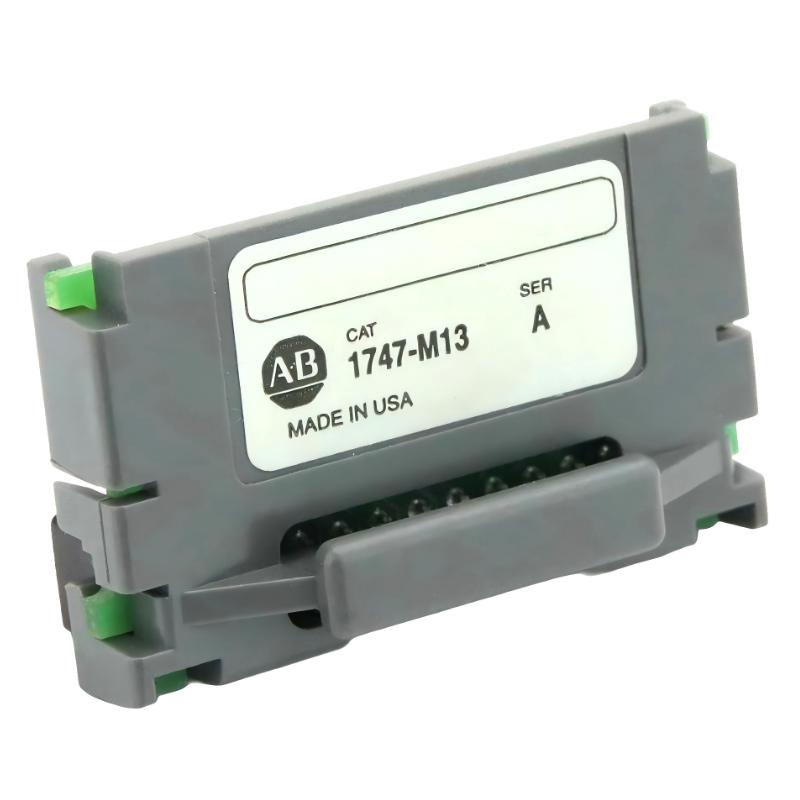

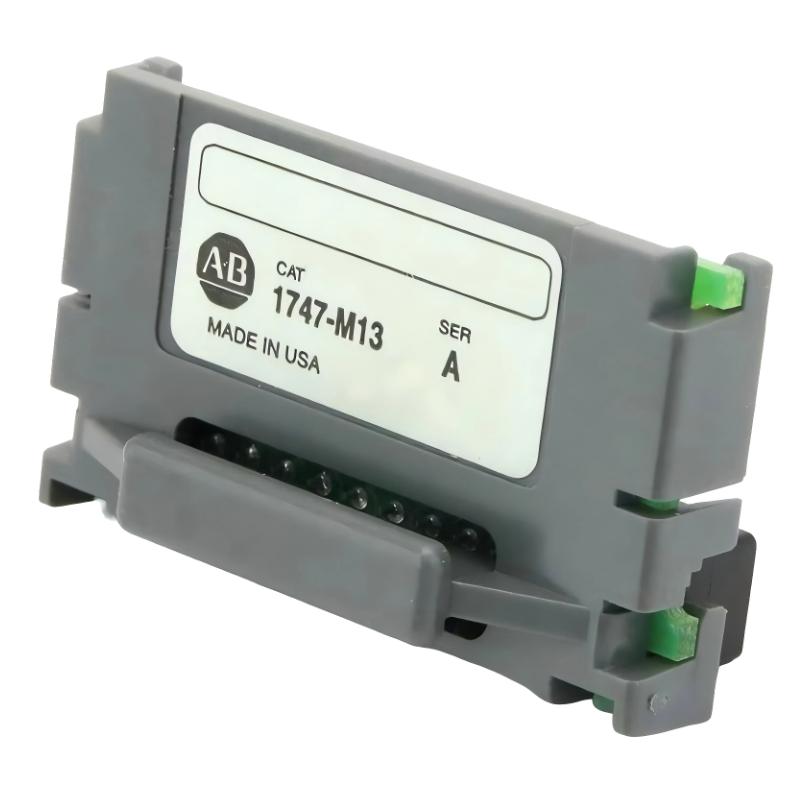

Allen Bradley 1747-M13 EEPROM Storage Module

Applications

The Allen Bradley 1747-M13 EEPROM Storage Module is designed to ensure reliable, non-volatile memory storage for SLC 500 automation systems. Typical applications include:

• Storing program data, configuration settings, and critical parameters for SLC 500 CPUs
• Backup and recovery of automation system data during power outages
• Data retention for system upgrades, maintenance, or replacement
• Supporting secure storage for mission-critical process control environments
• Enhancing system reliability and minimizing downtime in industrial operations

Advantages

• Reliable Non-Volatile Memory: Retains data even during power loss
• Seamless Integration: Fully compatible with Allen Bradley SLC 500 CPUs
• Compact and Lightweight: Saves valuable panel space
• High Data Integrity: Ensures program and configuration accuracy over long periods
• Easy Installation: Quick plug-and-play setup with SLC 500 systems
• Supports System Upgrades: Safely transfers stored data during CPU replacements
• Durable Design: Withstands typical industrial environmental conditions
• Low Maintenance: No regular intervention required once installed
• Reduces Operational Risks: Protects critical process data
• Proven Reliability: Trusted in industrial automation environments

Technical FAQs

1. What is the primary function of the 1747-M13 module?
   It provides non-volatile memory storage for programs and configuration data in SLC 500 systems.
2. Which CPUs is it compatible with?
   Fully compatible with Allen Bradley SLC 500 series CPUs.
3. Does it retain data during power loss?
   Yes, it uses EEPROM technology for permanent storage.
4. Can it be used for backup purposes?
   Absolutely, it is ideal for data backup and recovery.
5. Is installation complicated?
   No, it supports plug-and-play installation in the SLC 500 chassis.
6. Can it transfer data during CPU upgrades?
   Yes, it facilitates safe program and configuration transfer.
7. Is it affected by industrial environments?
   It is designed to handle normal industrial temperature and vibration conditions.
8. How often does it need maintenance?
   No routine maintenance is required once installed.
9. Can it support multiple CPU programs?
   It can store programs and configuration for a single CPU at a time.
10. Does it enhance system reliability?
    Yes, by providing secure, non-volatile storage, it minimizes risks of data loss.
