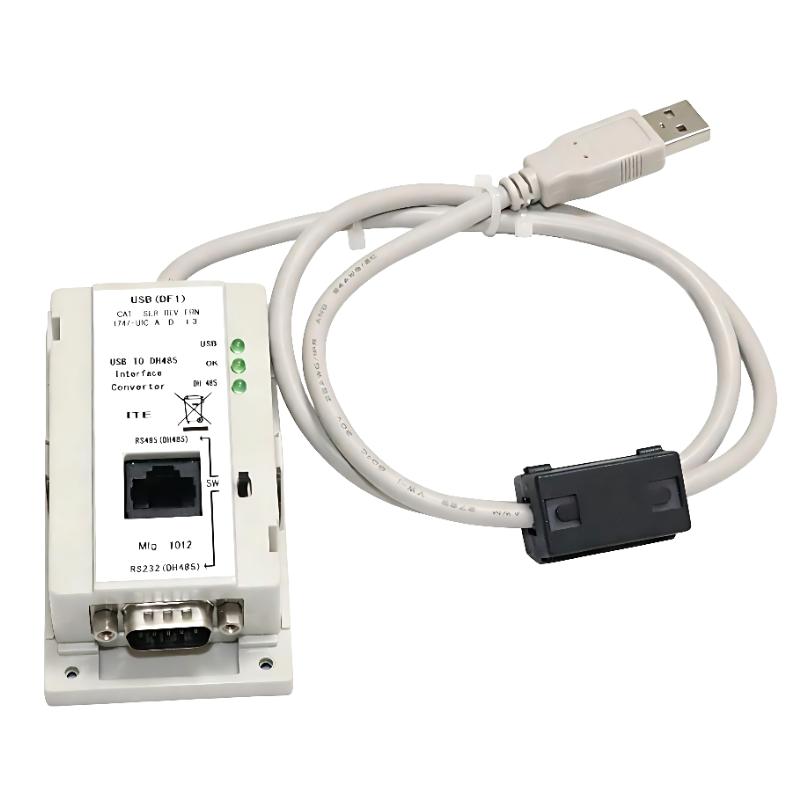

Allen Bradley 1747-UIC USB To DH485 Interface Converter

Applications

The Allen Bradley 1747-UIC USB to DH485 Interface Converter is designed to simplify connectivity between modern PCs and legacy SLC 500 or MicroLogix PLC systems. Key applications include:

• Establishing reliable communication between USB-equipped computers and DH485 industrial networks
• Programming, monitoring, and troubleshooting SLC 500 or MicroLogix PLCs
• Data transfer for PLC configuration, firmware updates, and system diagnostics
• Supporting industrial maintenance and system upgrades without network redesign
• Enabling engineers to interface with legacy systems in modern workstations

Advantages

• Plug-and-Play USB Connectivity: Eliminates the need for legacy serial ports
• Seamless DH485 Integration: Fully compatible with Allen Bradley DH485 networks
• Reliable Data Transfer: Ensures accurate communication with SLC 500 and MicroLogix devices
• Compact and Portable: Ideal for field engineers and maintenance teams
• User-Friendly Design: Simplifies setup and connection for rapid deployment
• Supports Legacy Systems: Extends the usability of existing DH485 networks
• Windows-Compatible: Works with modern operating systems for software tools
• Efficient Firmware and Program Uploads: Speeds up PLC programming and configuration tasks
• Durable Construction: Designed for repeated connection cycles and industrial use
• Trusted Performance: Proven solution for connecting PCs to industrial controllers

Technical FAQs

1. What is the primary function of the 1747-UIC module?
   It converts USB signals to DH485, allowing PCs to communicate with SLC 500 and MicroLogix PLCs.
2. Which PLCs are supported?
   Compatible with Allen Bradley SLC 500 series and MicroLogix controllers.
3. Does it require a driver installation?
   Yes, Allen Bradley provides drivers for Windows operating systems.
4. Can it be used for PLC programming and monitoring?
   Absolutely, it supports full programming, monitoring, and troubleshooting operations.
5. Is it compatible with modern USB ports?
   Yes, it is specifically designed for USB-equipped computers.
6. Can it transfer data reliably over DH485 networks?
   Yes, it ensures stable and accurate communication for programming and diagnostics.
7. Is it portable for field engineers?
   Yes, its compact design makes it ideal for on-site use.
8. Does it support multiple PCs on the same network?
   Typically, it is intended for single PC-to-network connections at a time.
9. Which software tools can use this converter?
   Compatible with RSLogix 500, RSLinx Classic, and other Allen Bradley configuration tools.
10. Does it extend the life of legacy DH485 networks?
    Yes, it allows modern PCs to interface with older DH485 networks, preserving existing infrastructure.
