Brand:Allen Bradley PLC Item No.:1746-P5 Product Origin:USA Product Dimensions:140 × 85 × 140 mm Product Weight:0.64 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

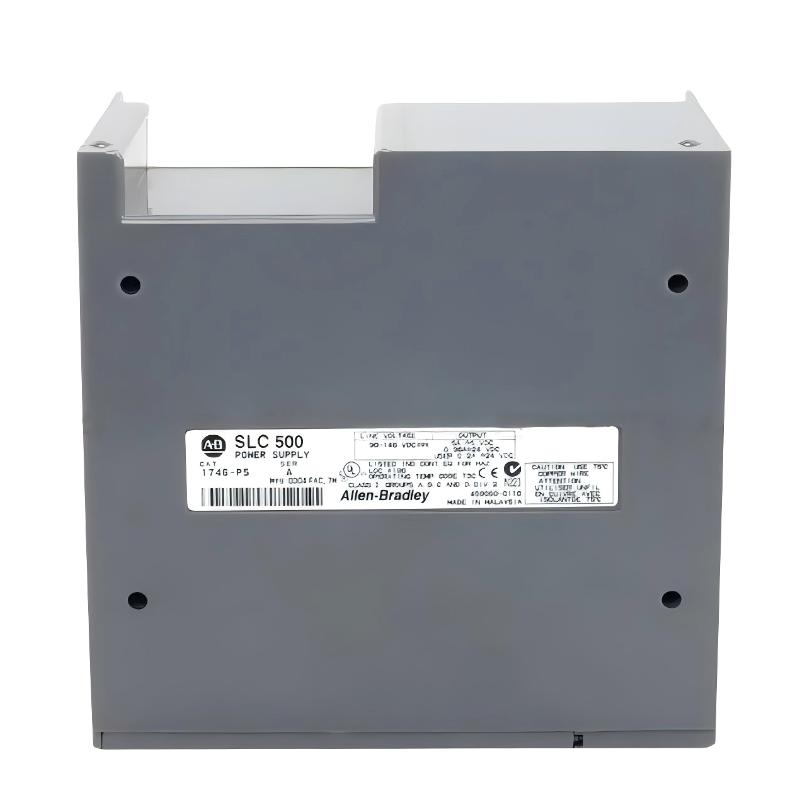

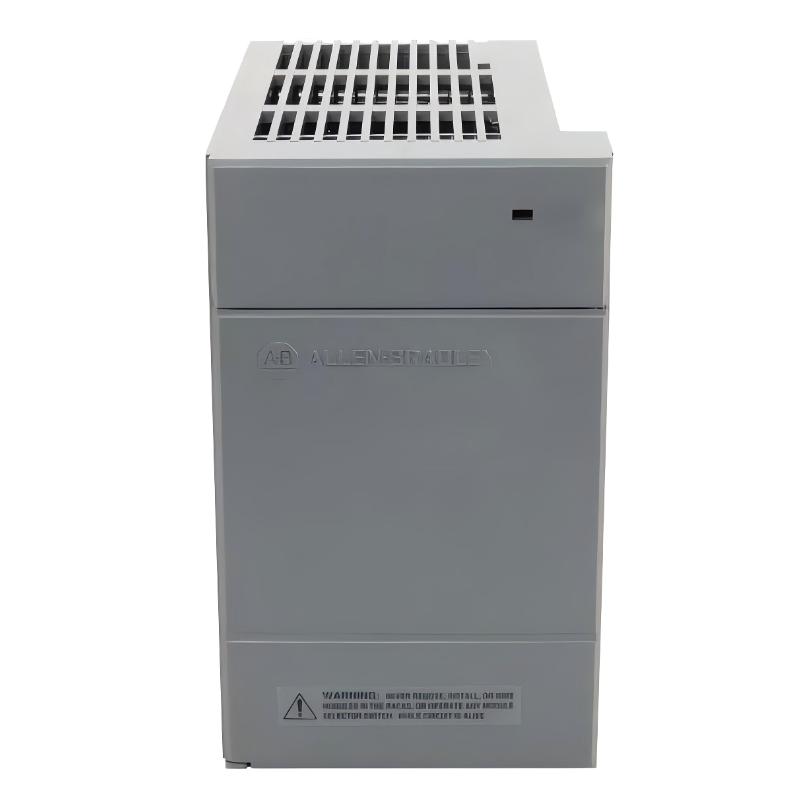

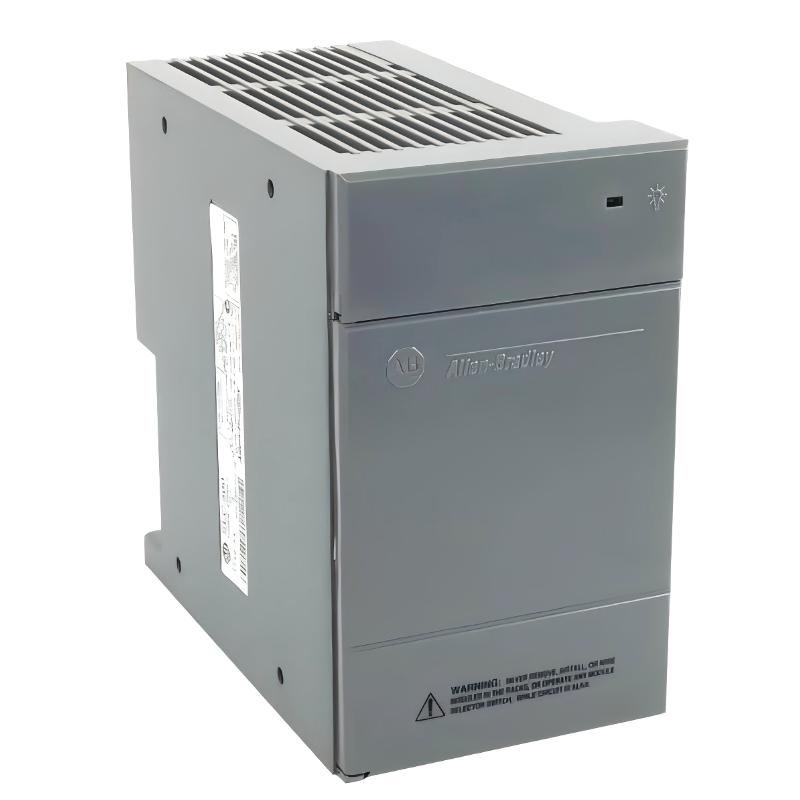

The Allen Bradley 1746-P5 SLC 500 Power Module is a reliable solution for supplying regulated DC power to SLC 500 PLC systems and I/O modules. Designed for seamless integration with the SLC 500 platform, it ensures stable operation of processors and input/output modules, protecting the system from overloads and voltage fluctuations. Its compact, rugged design and built-in diagnostics make it ideal for industrial automation applications where uptime and reliability are critical.
Technical Specifications
Specification
Details
Module Type
SLC 500 Power Module
Dimensions
140 × 85 × 140 mm
Weight
0.64 kg
Output Voltage
Regulated DC (SLC 500 standard)
Output Current
Supports multiple modules as per system requirements
Mounting
SLC 500 chassis compatible
Operating Temperature
0°C to 60°C
Protection
Overload, short circuit, voltage fluctuation
Recommended Related Models
Model
Product Name
Allen Bradley 1746-P6
SLC 500 Power Module with higher output current
Allen Bradley 1746-P4
SLC 500 Power Module standard version
Allen Bradley 1746-A4
Analog Output Module for SLC 500
Allen Bradley 1746-I8
Digital Input Module, 8 channels
Popular Related Models
Model
Product Name
Allen Bradley 1746-OV8
8-Channel Digital Output Module
Allen Bradley 1746-OW4
4-Channel Relay Output Module
Allen Bradley 1746-I4
4-Channel Digital Input Module
Allen Bradley 1746-AO4
4-Channel Analog Output Module
Applications
• Supplies regulated power to SLC 500 PLC systems and I/O modules.
• Integration with industrial control panels for continuous automation operation.
• Powering SLC 500 processors, digital and analog input/output modules.
• Replacement or upgrade of existing SLC 500 power supplies in manufacturing plants.
• Ensuring reliable operation of critical automation and process control systems.
Key Advantages
• Provides stable and reliable DC power for SLC 500 modules and controllers.
• Compact form factor optimizes panel space utilization.
• Built-in protection against overload, short circuits, and voltage fluctuations.
• Easy installation and replacement reduce downtime in industrial systems.
• Compatible with a wide range of SLC 500 modules for seamless integration.
Technical FAQs
1. What is the primary function of the 1746-P5 module?
It provides regulated DC power to SLC 500 PLC systems and I/O modules.
2. What is the output voltage and current rating?
The module delivers the required voltage and current to support standard SLC 500 configurations.
3. Is it compatible with all SLC 500 modules?
Yes, it supports processors, digital, and analog I/O modules within the SLC 500 system.
4. Does it have built-in protection features?
Yes, it includes overload, short circuit, and voltage fluctuation protections.
5. Can it be hot-swapped?
Replacement should follow proper shutdown procedures; hot-swapping is not recommended.
6. What is the typical operating temperature range?
It operates reliably between 0°C and 60°C.
7. How is the module mounted?
It is designed for standard SLC 500 chassis mounting.
8. Can it support multiple I/O modules simultaneously?
Yes, it can provide power to multiple modules according to system specifications.
9. Is diagnostic monitoring available?
Yes, LED indicators provide status information for proper operation.
10. Does it support long-term industrial use?
Yes, the module is built for reliable operation in industrial environments.
