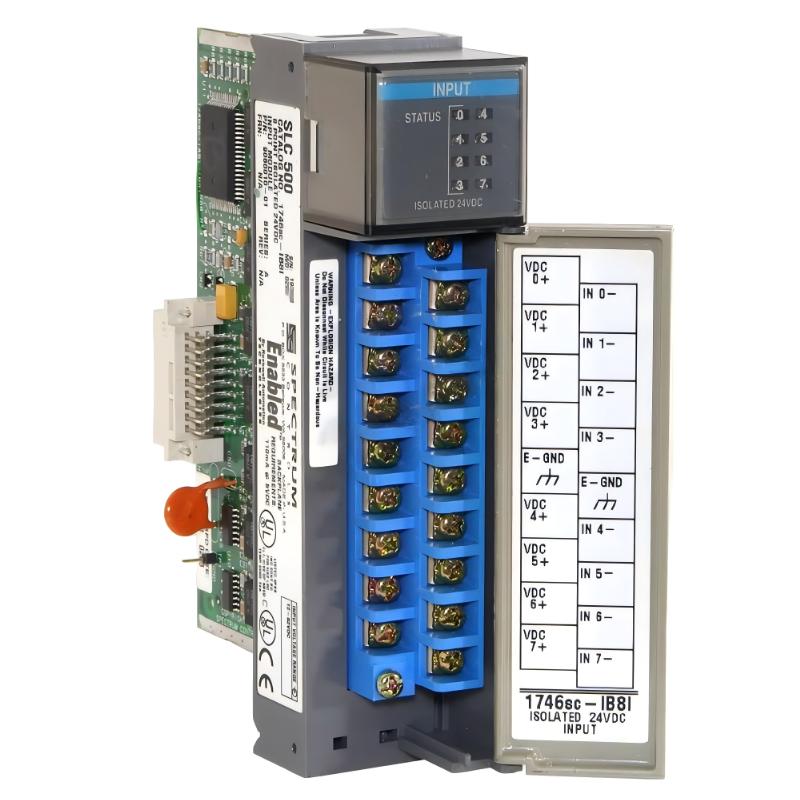

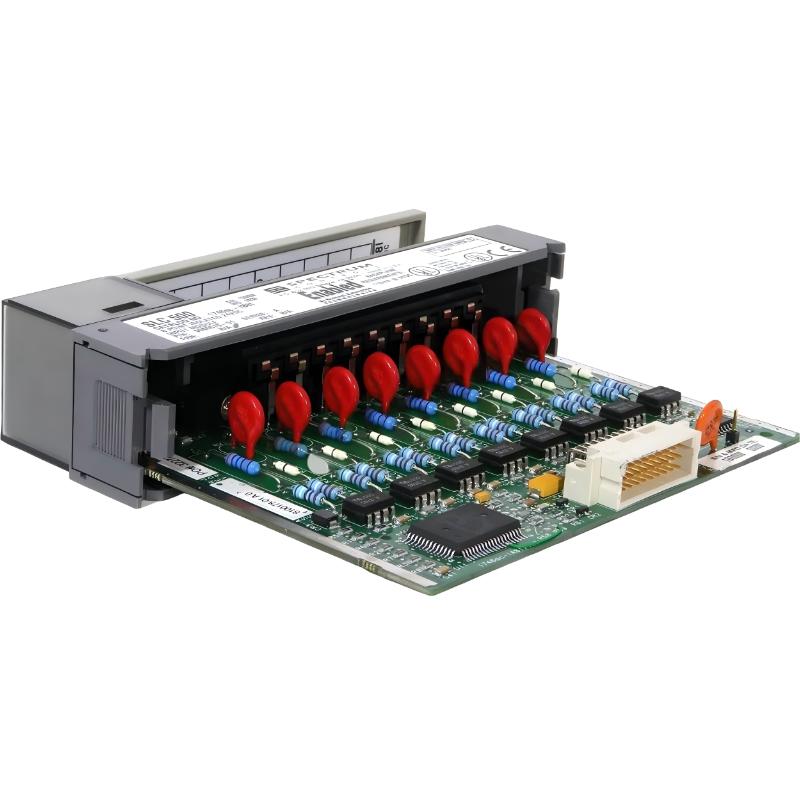

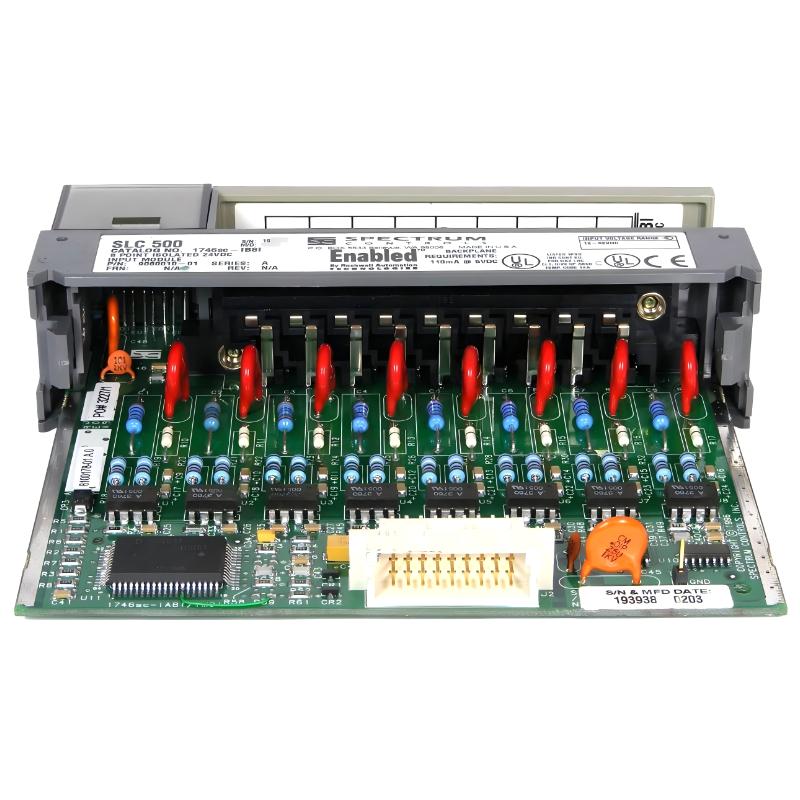

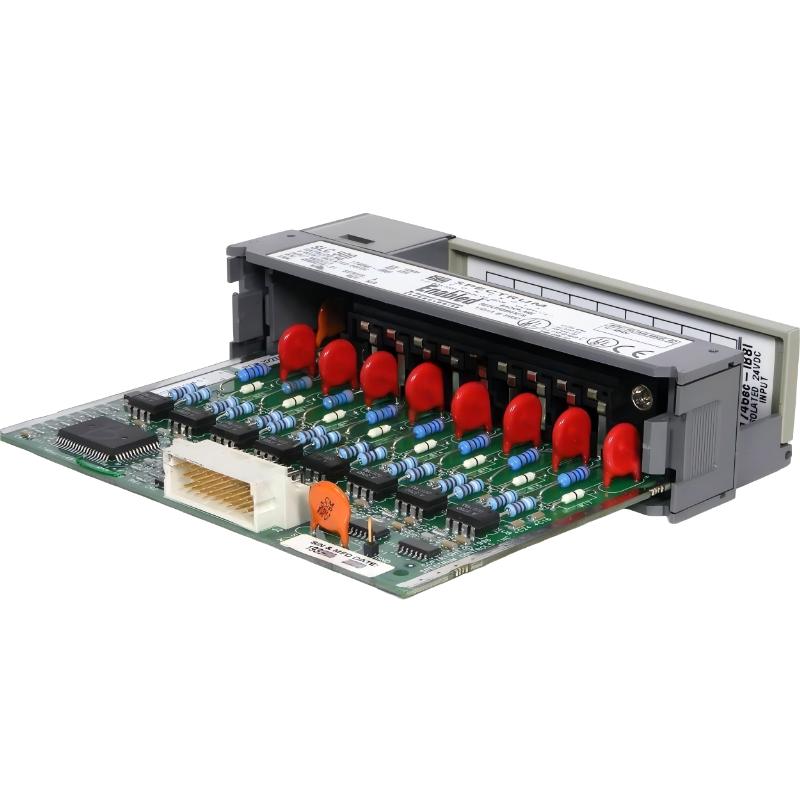

Allen Bradley 1746SC-IB8I SLC 500 Isolated Input Module

Applications

• Monitoring discrete field signals in industrial automation systems.

• Integration with SLC 500 PLCs for isolated digital input acquisition.

• Interfacing sensors, switches, and other field devices with PLCs.

• Protection of PLC inputs from voltage spikes and ground loops via isolation.

• Use in manufacturing, process control, and automated system monitoring.

Key Advantages

• Provides 8 isolated digital input channels for reliable signal acquisition.

• Compact design fits standard SLC 500 chassis, optimizing panel space.

• Electrical isolation protects PLC and system components from surges and noise.

• Simplifies installation and troubleshooting with clear terminal labeling.

• Rugged industrial-grade construction ensures dependable operation in harsh environments.

Technical FAQs

1. How many input channels does the 1746SC-IB8I module provide?
It provides 8 isolated digital input channels.

2. What types of signals can the module accept?
It supports standard discrete ON/OFF signals from sensors and switches.

3. Is the module fully compatible with SLC 500 PLC systems?
Yes, it integrates seamlessly with SLC 500 controllers.

4. Does the isolation protect the PLC from voltage spikes?
Yes, galvanic isolation ensures protection against surges and ground loops.

5. Can it operate in harsh industrial environments?
Yes, it is built to withstand vibration, dust, and electromagnetic interference.

6. How is the module mounted?
It mounts directly into a standard SLC 500 chassis.

7. Are diagnostics available for monitoring input status?
Yes, built-in LEDs indicate the status of each input channel.

8. Is configuration required before use?
Minimal configuration is needed; the module is plug-and-play within the SLC 500 system.

9. Can it handle long cable runs from field devices?
Yes, input isolation and design allow reliable operation over standard industrial distances.

10. What is the operating temperature range?
It operates reliably between 0°C and 60°C.
