Brand:Allen Bradley PLC Item No.:1747-M1 Product Origin:USA Product Dimensions:80 × 50 × 20 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

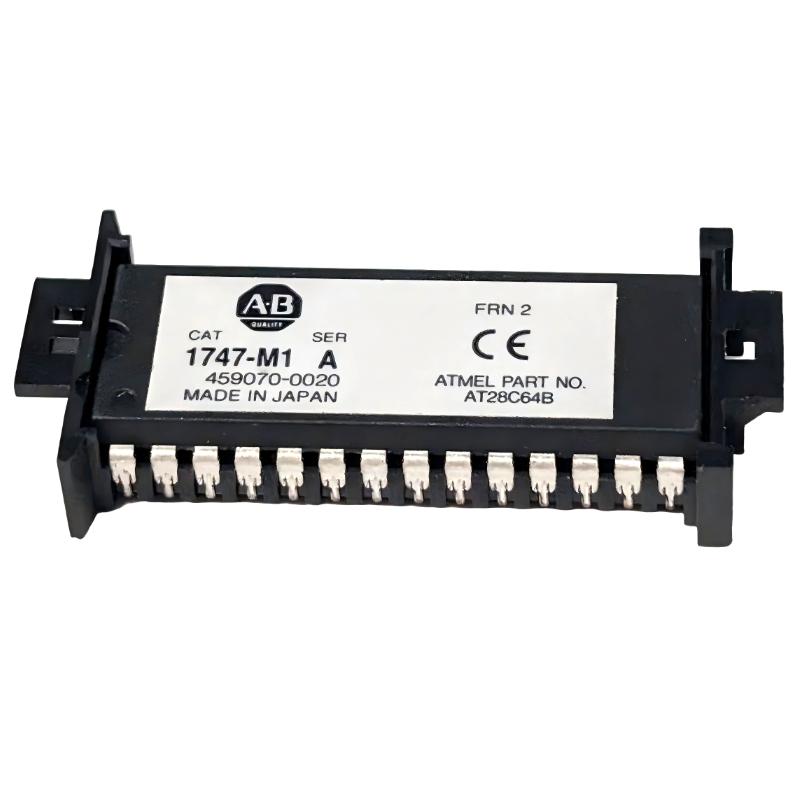

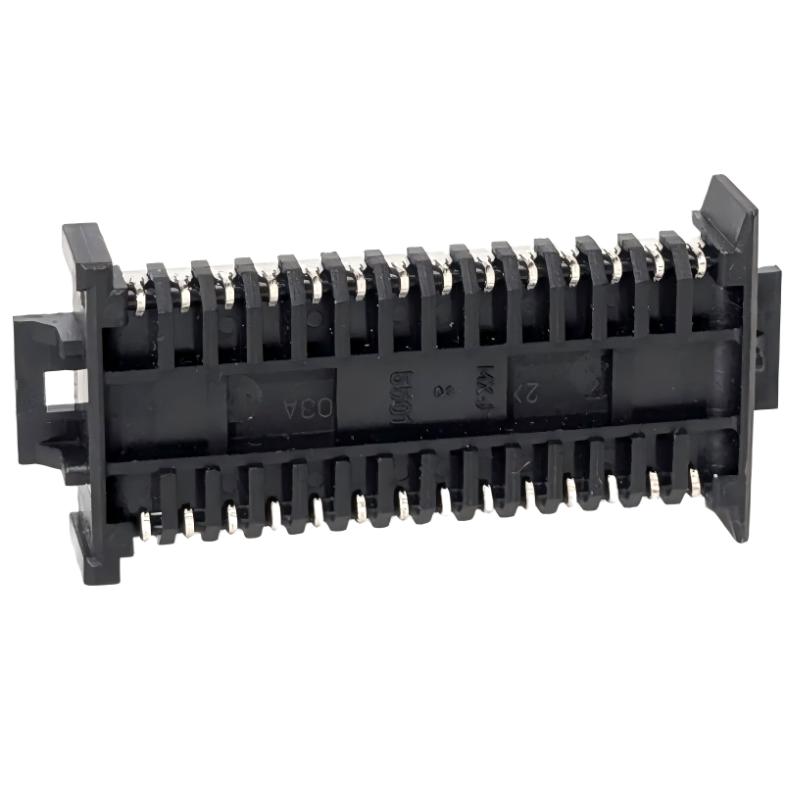

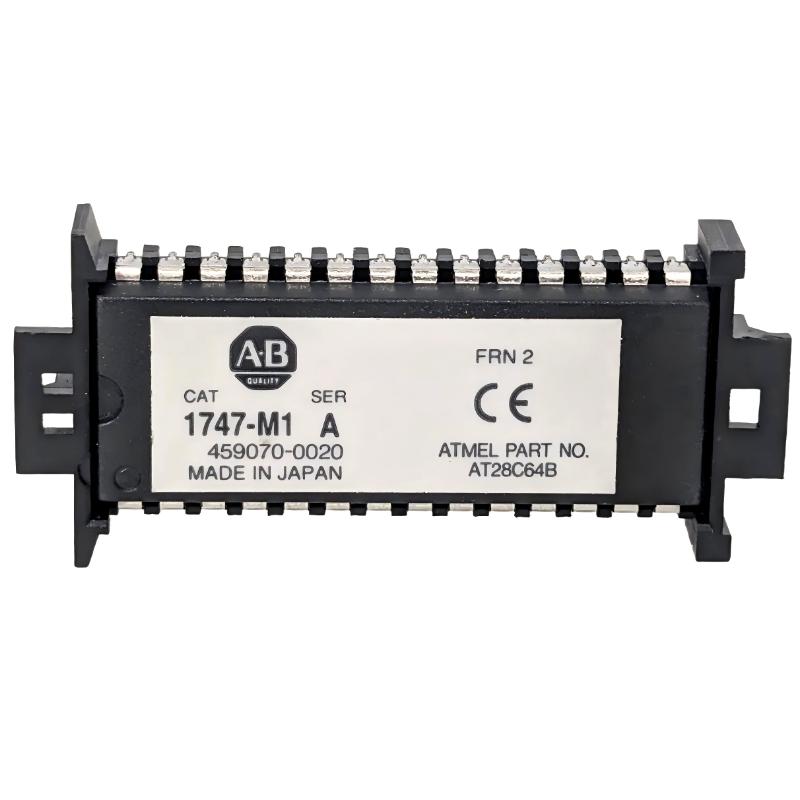

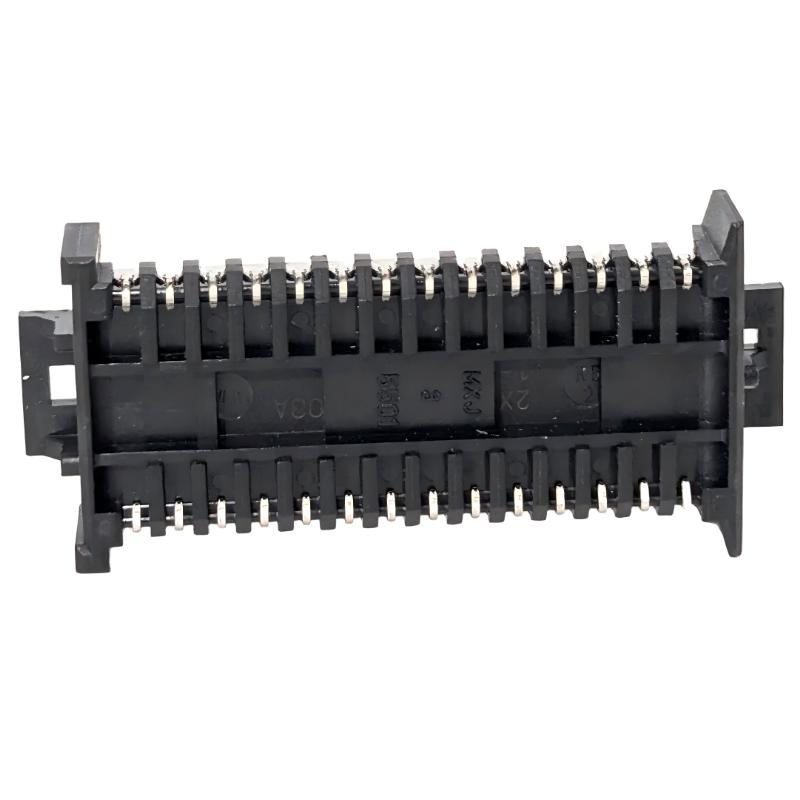

The Allen Bradley 1747-M1 EEPROM Storage Module delivers reliable, non-volatile memory for SLC 500 PLC systems. Designed to preserve programs and critical data during power interruptions, it ensures smooth operation, quick recovery, and secure system maintenance. Its compact size, rugged construction, and built-in diagnostics make it ideal for industrial automation environments requiring secure and dependable memory storage.
Technical Specifications
Specification
Details
Module Type
EEPROM Storage Module
Dimensions
80 × 50 × 20 mm
Weight
0.1 kg
Memory Type
Non-volatile EEPROM
Mounting
SLC 500 chassis compatible
Operating Temperature
0°C to 60°C
Construction
Industrial-grade rugged design
Diagnostics
LED indicators for memory status
Recommended Related Models
Model
Product Name
Allen Bradley 1746-P5
SLC 500 Power Module
Allen Bradley 1746-I4
4-Channel Digital Input Module
Allen Bradley 1746-OV8
8-Channel Digital Output Module
Allen Bradley 1746-AO4
4-Channel Analog Output Module
Popular Related Models
Model
Product Name
Allen Bradley 1746-M2
EEPROM Storage Module (larger capacity)
Allen Bradley 1746-I8
8-Channel Digital Input Module
Allen Bradley 1746-OB8
8-Channel Relay Output Module
Allen Bradley 1746-AI4
4-Channel Analog Input Module
Applications
• Provides non-volatile memory storage for SLC 500 PLC programs and data.
• Retains critical system configurations and operational data during power loss.
• Supports program backup and restoration in industrial automation systems.
• Integration with SLC 500 PLCs for secure and reliable storage solutions.
• Facilitates system maintenance, upgrades, and disaster recovery in manufacturing and process control environments.
Key Advantages
• Offers reliable non-volatile EEPROM storage for critical PLC data.
• Compact design ensures minimal space usage in SLC 500 chassis.
• Protects PLC programs and data against power interruptions and system failures.
• Simplifies backup, restore, and system migration operations.
• Rugged industrial-grade construction ensures consistent performance in harsh environments.
Technical FAQs
1. What is the primary function of the 1747-M1 module?
It provides non-volatile EEPROM storage for SLC 500 PLC programs and data.
2. Is it compatible with all SLC 500 PLC systems?
Yes, it integrates seamlessly with the SLC 500 series processors.
3. How much memory does the module provide?
It provides sufficient non-volatile memory for typical SLC 500 program storage requirements.
4. Does it retain data during power loss?
Yes, the EEPROM storage ensures all programs and critical data are preserved.
5. Can it be used for system backups?
Yes, it is ideal for backup, restoration, and disaster recovery operations.
6. How is the module mounted?
It is designed for SLC 500 chassis mounting.
7. Can it be used in harsh industrial environments?
Yes, it is built to withstand vibration, dust, and industrial electrical noise.
8. Are diagnostics available for storage status?
Yes, LED indicators provide status of memory operation and health.
9. Is configuration required before use?
Minimal setup is needed; the module is plug-and-play with SLC 500 PLCs.
10. What is the operating temperature range?
The module operates reliably between 0°C and 60°C.
