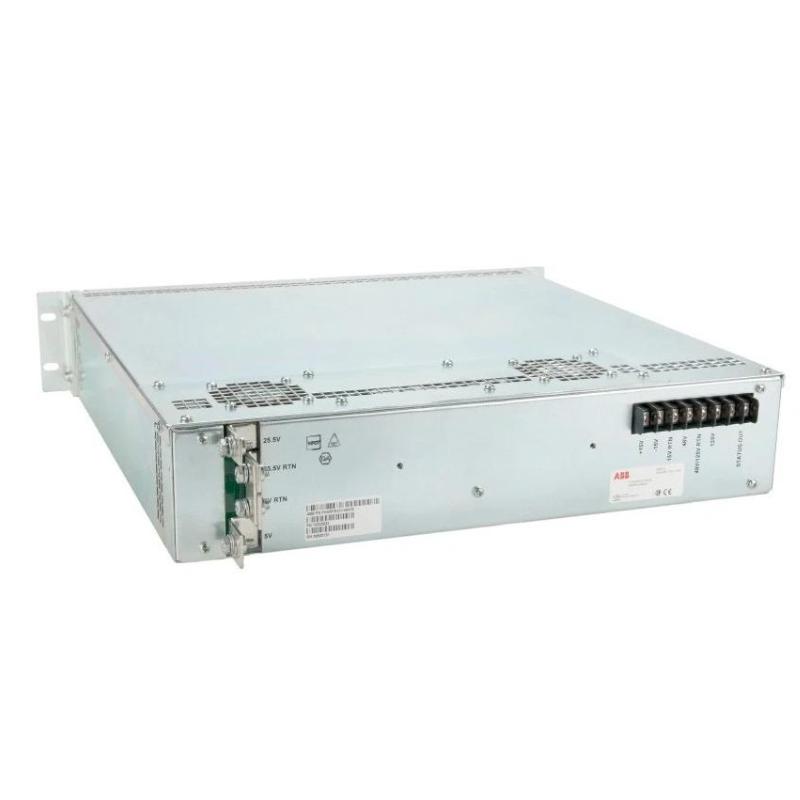

Name: ABB Bailey PHARPSCH100000 MPS III Power Supply Chassis
Brand: ABB Bailey
SKU: 10248
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The ABB Bailey PHARPSCH100000 MPS III Power Supply Chassis is a high-capacity, rugged solution for centralized industrial power management. Its spacious design accommodates multiple power modules, ensuring efficient distribution and redundancy for critical automation systems. Engineered for durability and easy maintenance, it integrates seamlessly with ABB Bailey platforms to provide reliable and continuous power for complex industrial operations.

Technical Specifications

Feature	Specification
Chassis Type	MPS III Power Supply Chassis
Module Compatibility	MPS III Power Modules
Input Voltage	24–48 VDC
Protection	Structural grounding and shielding
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	540 × 230 × 550 mm
Weight	3.8 kg (8.380 lb)

Applications

The ABB Bailey PHARPSCH100000 MPS III Power Supply Chassis is designed as a central backbone for industrial power distribution and system integration. Key applications include:

Housing and managing multiple MPS III power modules in distributed control systems (DCS)
Providing reliable power for critical industrial automation and SCADA systems
Redundant power setups in manufacturing, chemical, and energy sectors
Integration of industrial IoT and edge computing nodes
High-availability power management for control cabinets and process automation systems

Its robust construction and spacious design allow for flexible configuration and easy maintenance.

Advantages

Centralized Power Management: Supports multiple MPS III modules for scalable power solutions.
Durable Industrial Design: Built to withstand vibration, heat, and electrical interference in industrial environments.
Optimized Layout: Provides easy access for module installation, maintenance, and cabling.
Seamless ABB Integration: Compatible with ABB Bailey legacy and modern systems.
Enhanced Reliability: Long-term operation with minimal maintenance requirements.

Technical FAQs

Q: How many power modules can this chassis accommodate?
A: It is designed to house multiple MPS III modules, depending on the configuration.
Q: Does the chassis provide protection for the installed modules?
A: Yes, it includes grounding, shielding, and structural support for safe module operation.
Q: Can the modules be hot-swapped within the chassis?
A: Yes, modules can be replaced without shutting down the system.
Q: What input voltage does the chassis support?
A: Compatible with 24–48 VDC industrial power inputs.
Q: Does it require active cooling?
A: The chassis is designed for passive airflow, but additional cooling can be added if needed.
Q: Is remote monitoring possible?
A: The chassis itself does not monitor, but integrated MPS III modules support ABB DCS protocols for remote monitoring.
Q: Can it be installed in vibration-prone environments?
A: Yes, the chassis is built for industrial vibration tolerance.
Q: What is the operating temperature range?
A: -20°C to 60°C, suitable for standard indoor industrial environments.
Q: Is it compatible with older ABB Bailey power modules?
A: Yes, backward compatibility ensures integration with legacy modules.
Q: What is the expected operational lifespan?
A: Over 10 years under normal industrial operating conditions.
