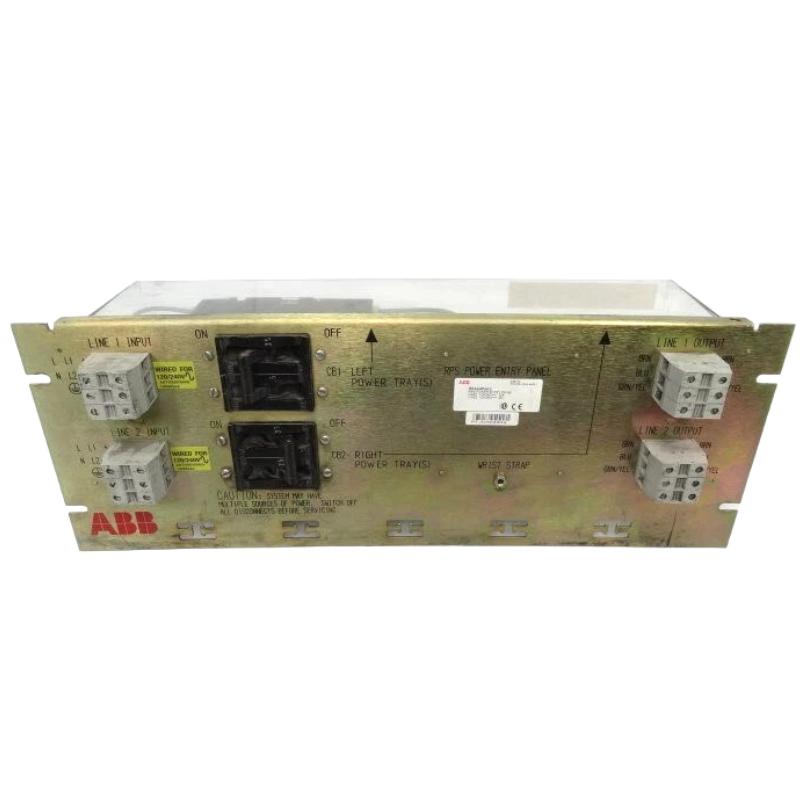

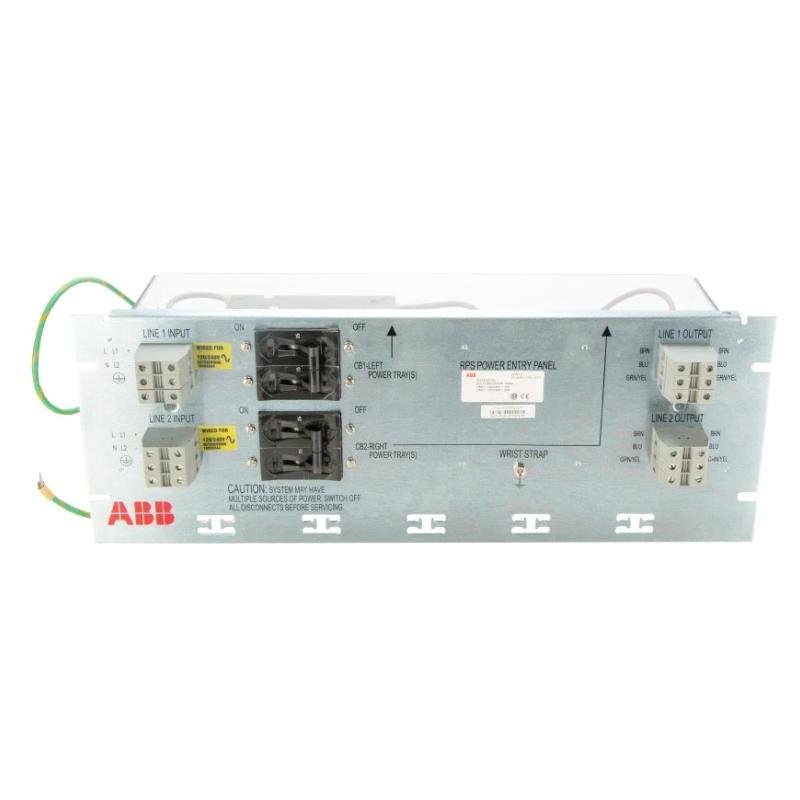

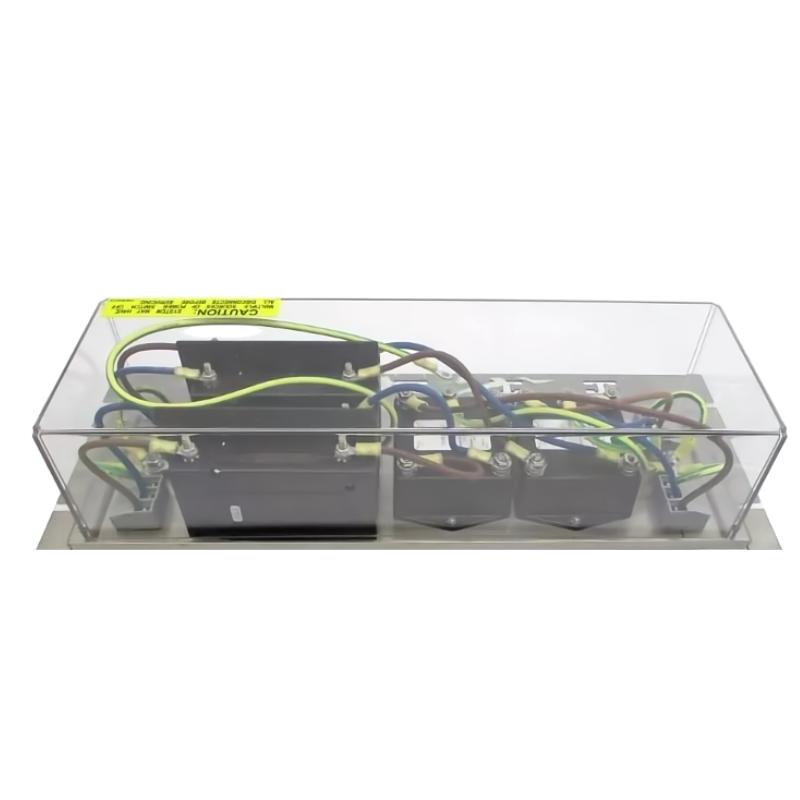

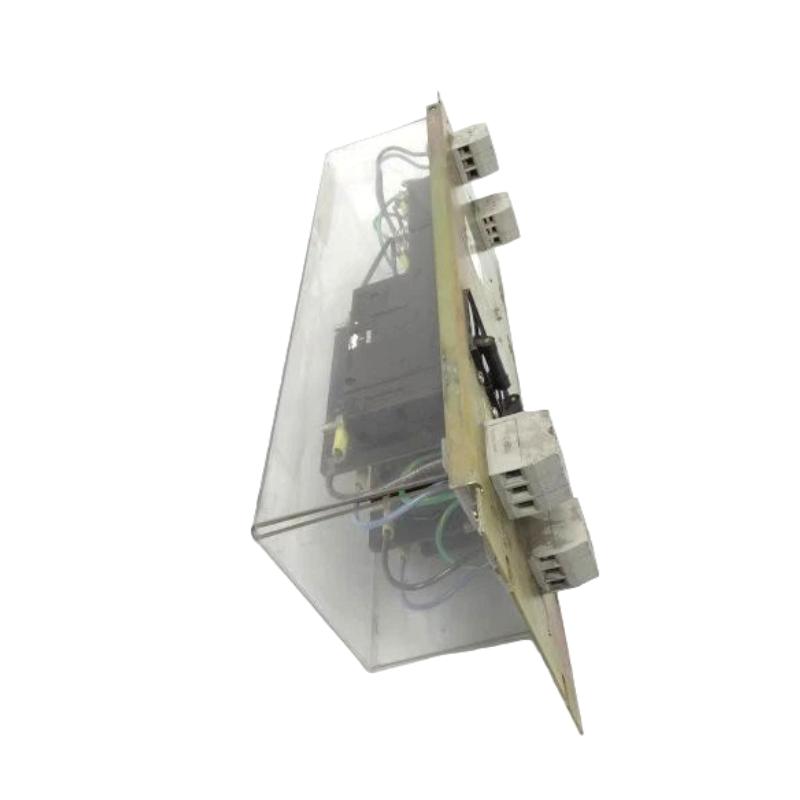

ABB Bailey PHARPSPEP21013 6644463A2 Power Input Panel With Dual Chassis

Applications

The ABB Bailey PHARPSPEP21013 Power Input Panel With Dual Chassis is engineered for high-availability industrial power management. It is ideal for:

• Dual-input power configurations in distributed control systems (DCS)
• Redundant power feed for SCADA and automation networks
• Large-scale manufacturing, chemical, and energy plant operations
• Centralized power management for multiple ABB Bailey modules
• Industrial IoT and edge computing applications requiring uninterrupted power

The dual-chassis design ensures seamless integration while providing redundancy for critical operations.

Advantages

• Redundant Power Support: Dual chassis allows simultaneous or backup power inputs.
• High Durability: Built to withstand vibration, thermal stress, and electromagnetic interference.
• Space-Efficient Layout: Compact dual-chassis design optimizes cabinet installation.
• Seamless Integration: Compatible with both legacy and modern ABB Bailey systems.
• Maintenance-Friendly: Easy access for module replacement, inspection, and servicing.

Technical FAQs

1. Q: Can the panel support hot-swapping of modules?
   A: Yes, modules can be replaced without interrupting system operation.
2. Q: What input voltage range does it support?
   A: Compatible with 24–48 VDC industrial input sources.
3. Q: Does it provide protection for connected modules?
   A: Yes, structural grounding and shielding safeguard modules from electrical faults.
4. Q: Can it operate in a vibration-prone environment?
   A: Yes, the chassis is designed to withstand typical industrial vibrations.
5. Q: Is remote monitoring possible?
   A: While the panel itself does not monitor, connected ABB Bailey modules can be monitored remotely via DCS protocols.
6. Q: Does it require active cooling?
   A: No, passive airflow is sufficient under standard operating conditions.
7. Q: What is the operating temperature range?
   A: -20°C to 60°C, suitable for industrial indoor environments.
8. Q: Can it be installed in existing ABB Bailey cabinets?
   A: Yes, the dual-chassis design is compatible with standard ABB cabinet configurations.
9. Q: Is the panel backward compatible with older ABB Bailey modules?
   A: Yes, it supports integration with legacy systems.
10. Q: What is the expected operational lifespan?
    A: Over 10 years under standard industrial operating conditions.
