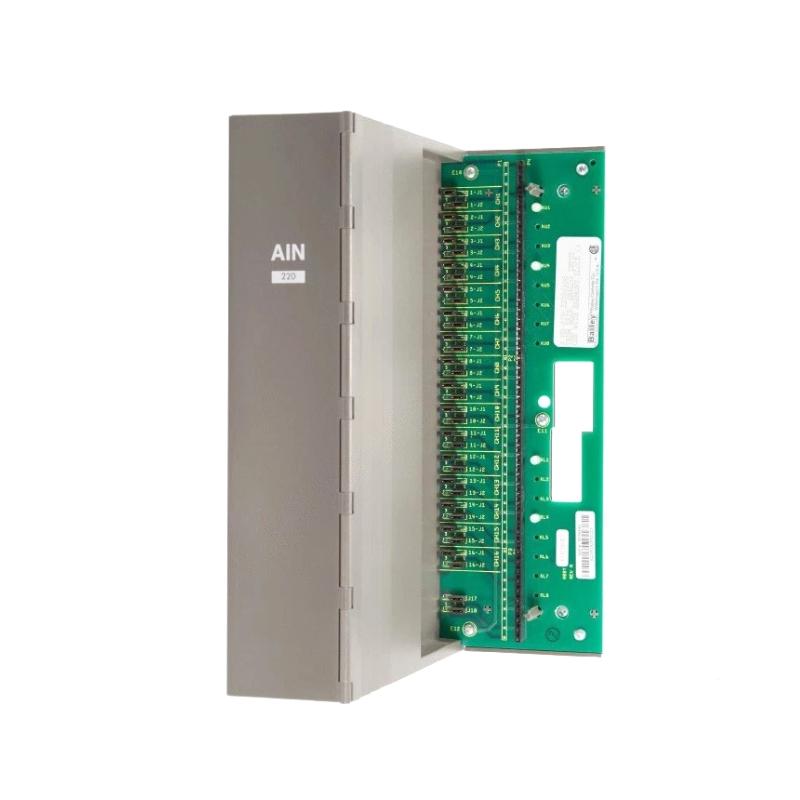

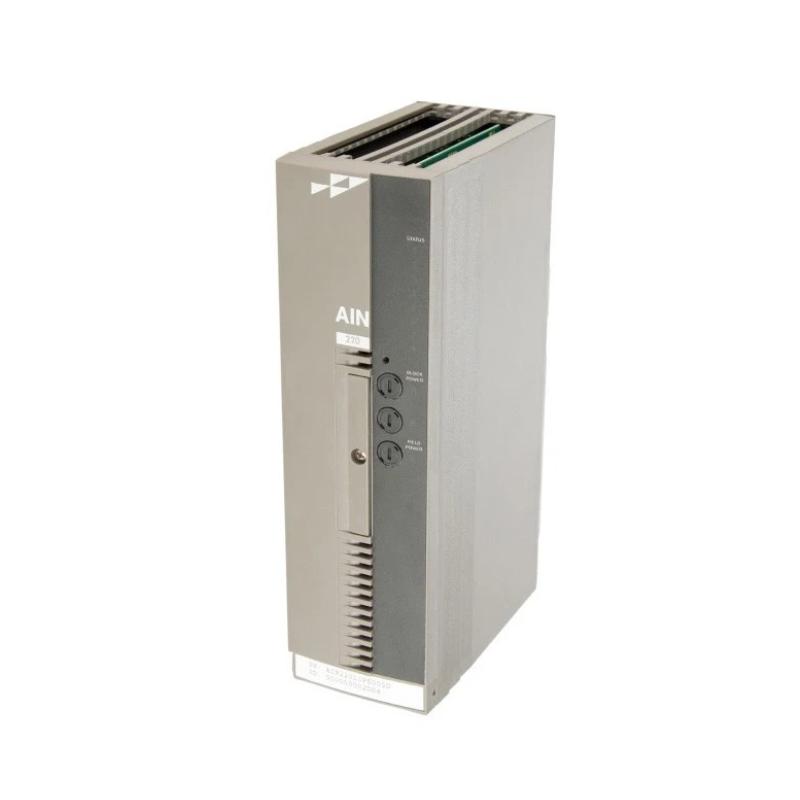

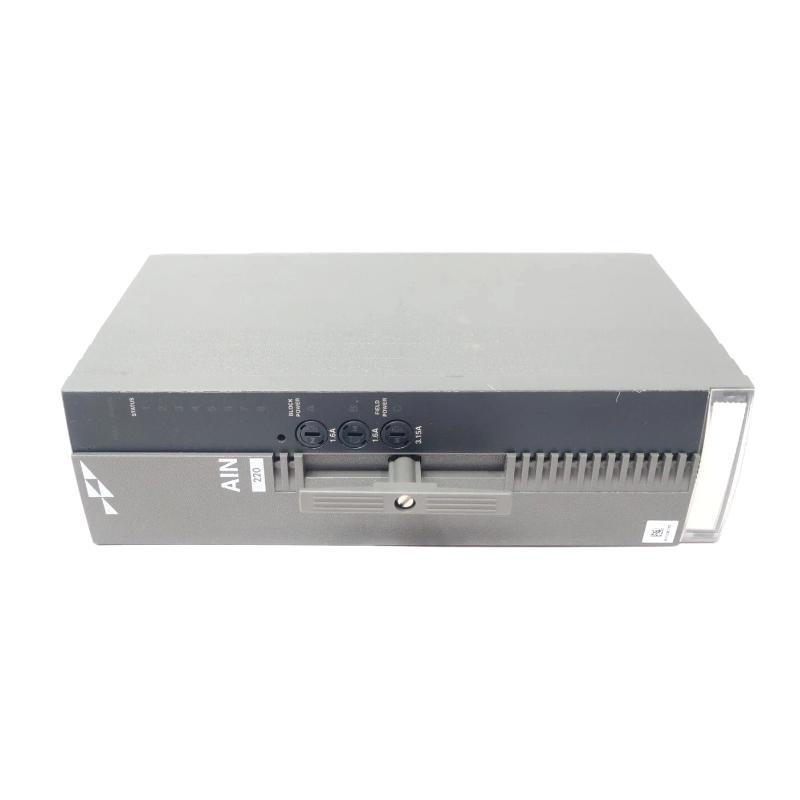

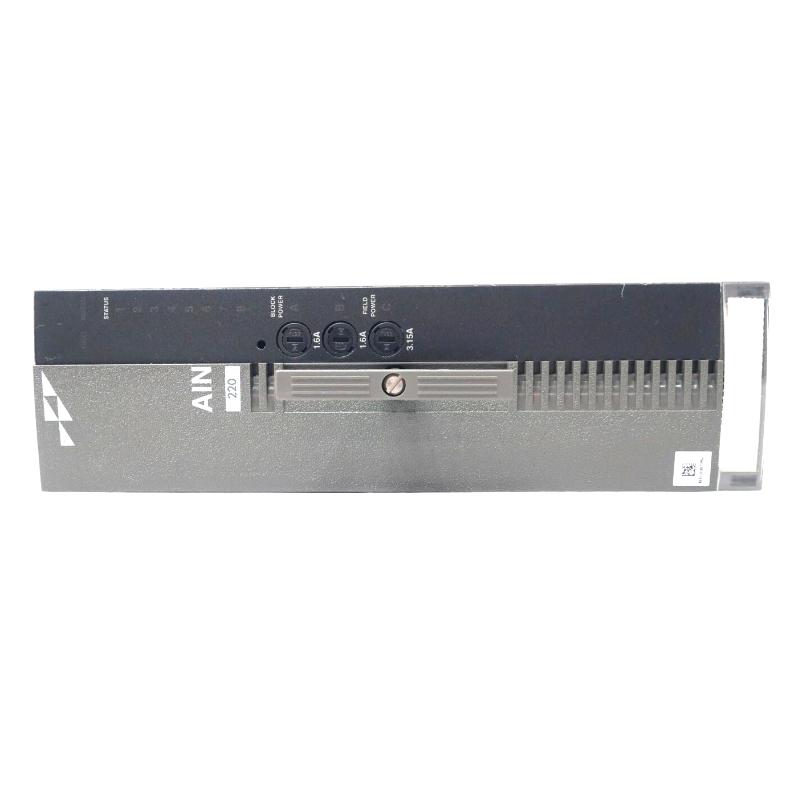

Name: ABB Bailey PHBAIN2000C100 Analog Input Base
Brand: ABB Bailey
SKU: 10253
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The ABB Bailey PHBAIN2000C100 Analog Input Base provides reliable, high-precision analog signal acquisition for industrial automation and process control. Its compact and durable design allows installation in standard cabinets while delivering accurate readings from a wide range of field sensors. Fully compatible with ABB Bailey analog systems, it supports efficient integration and long-term operation in demanding industrial environments.

Technical Specifications

Feature	Specification
Module Type	Analog Input Base
Supported Signals	4–20 mA, 0–10 VDC
Channels	Up to 12 channels
Protection	Electrical noise filtering
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	280 × 100 × 75 mm
Weight	1.8 kg (3.968 lb)

Applications

The ABB Bailey PHBAIN2000C100 Analog Input Base is engineered for high-performance signal acquisition in industrial automation. Its applications include:

Integration of analog sensors into ABB Bailey DCS systems
Precise monitoring of process variables such as temperature, pressure, and flow
SCADA and industrial automation networks requiring accurate analog inputs
Edge computing nodes in smart factory setups
Industrial plants in chemical, pharmaceutical, and energy sectors

The compact form factor allows installation in standard control cabinets without compromising accessibility or performance.

Advantages

Accurate Signal Acquisition: Captures analog signals with high precision for reliable control.
Compact and Efficient Design: Space-saving base for tight control cabinet layouts.
Industrial-Grade Reliability: Resistant to vibration, temperature fluctuations, and EMI.
Seamless ABB Integration: Fully compatible with ABB Bailey legacy and modern analog modules.
Maintenance-Friendly: Simple access for servicing and module replacement ensures long-term operation.

Technical FAQs

Q: What types of analog inputs are supported?
A: Supports standard 4–20 mA and 0–10 VDC signals.
Q: How many channels can the base accommodate?
A: Up to 12 analog input channels per base.
Q: Is the base suitable for vibration-prone environments?
A: Yes, it is designed to withstand typical industrial vibrations.
Q: Can it be installed with older ABB Bailey modules?
A: Yes, backward compatibility ensures integration with legacy systems.
Q: What is the operating temperature range?
A: -20°C to 60°C for standard indoor industrial use.
Q: Does it require active cooling?
A: No, passive cooling is sufficient under normal operating conditions.
Q: How is electrical interference handled?
A: Integrated filtering ensures minimal noise and accurate measurements.
Q: Can it be replaced without system shutdown?
A: Yes, hot-swapping is supported when used in compatible ABB Bailey configurations.
Q: What is the expected operational lifespan?
A: Over 10 years under normal industrial operating conditions.
Q: Can it interface with SCADA or DCS systems for real-time monitoring?
A: Yes, it communicates seamlessly with ABB SCADA and DCS protocols.
