Brand:ABB Bailey Item No.:PHBAIN2200S100 Product Origin:Sweden (SE) Product Dimensions:280 × 100 × 75 mm Product Weight:1.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

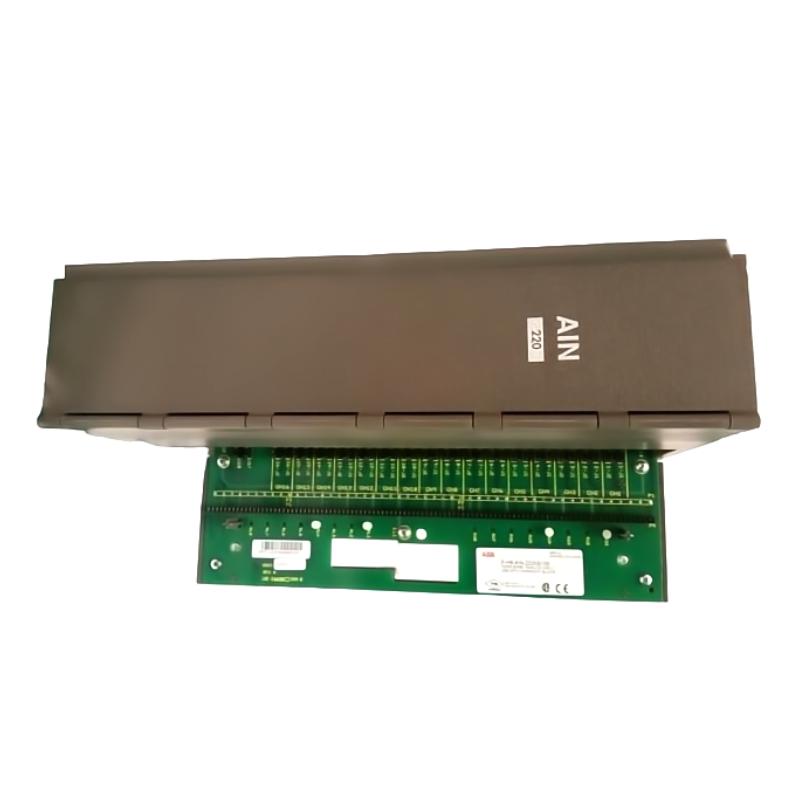

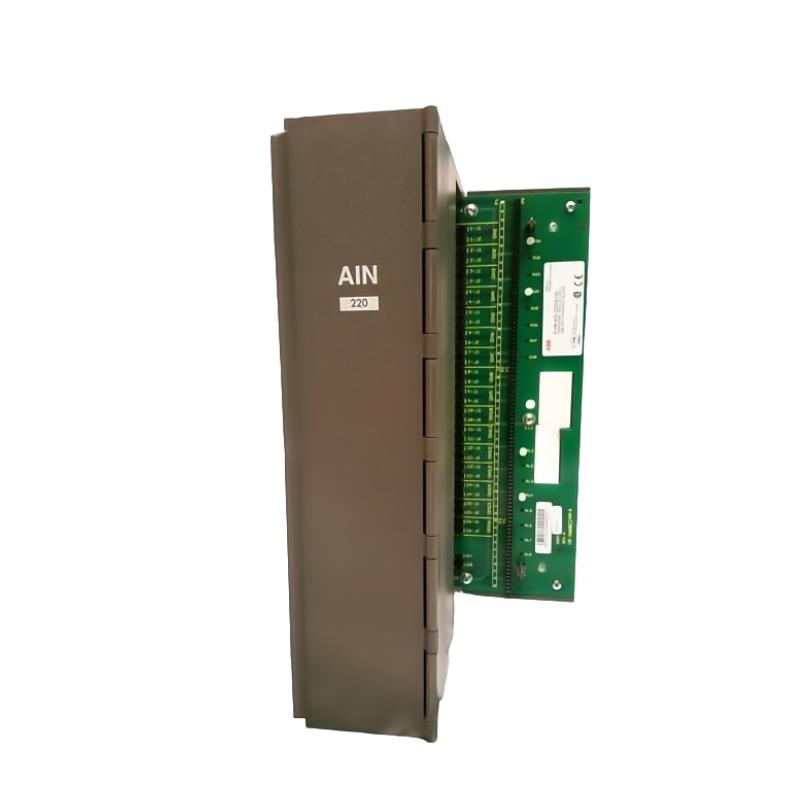

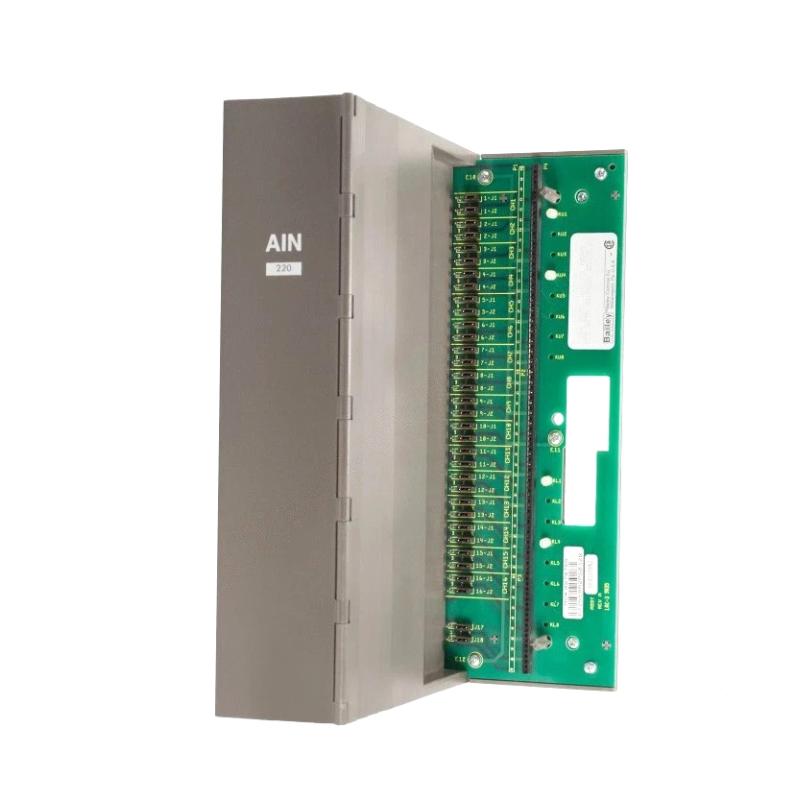

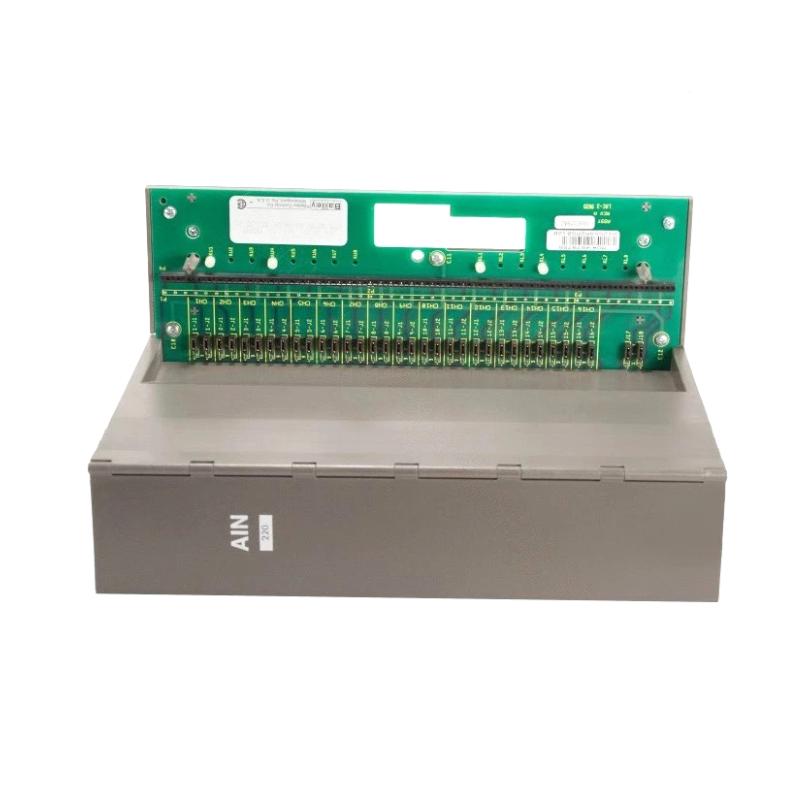

The ABB Bailey PHBAIN2200S100 Analog Input Base delivers reliable and high-precision analog signal acquisition for industrial automation applications. Compact and robust, it ensures accurate readings from a wide range of field sensors while fitting efficiently into control cabinets. Fully compatible with ABB Bailey analog systems, it provides long-term reliability and seamless integration into process control environments.
Technical Specifications
Feature
Specification
Module Type
Analog Input Base
Supported Signals
4–20 mA, 0–10 VDC
Channels
Up to 12 channels
Protection
Electrical noise filtering
Operating Temperature
-20°C to 60°C
Dimensions (L × W × H)
280 × 100 × 75 mm
Weight
1.8 kg (3.968 lb)
Applications
The ABB Bailey PHBAIN2200S100 Analog Input Base is engineered for robust and precise analog signal acquisition in industrial automation. Typical applications include:
Connecting field sensors to ABB Bailey DCS systems
Monitoring critical process parameters such as temperature, pressure, and flow
Integration with SCADA systems for real-time process visibility
Automation in chemical, pharmaceutical, and energy industries
Edge computing environments where accurate sensor data is essential
Its slim, compact design ensures efficient installation in standard control panels while maintaining reliable performance.
Advantages
High-Precision Acquisition: Ensures accurate analog signal measurement for critical process control.
Compact Form Factor: Ideal for tight cabinet spaces without sacrificing channel capacity.
Industrial Durability: Resistant to vibration, electrical interference, and temperature variations.
Full System Compatibility: Works seamlessly with ABB Bailey analog modules and legacy systems.
Easy Maintenance: Designed for quick inspection and servicing, minimizing operational downtime.
Technical FAQs
Q: Which analog signal types are supported? A: Compatible with standard 4–20 mA and 0–10 VDC signals.
Q: How many channels does the base support? A: Up to 12 analog input channels per base.
Q: Can it operate in vibration-heavy environments? A: Yes, it is engineered to withstand industrial vibrations.
Q: Is it compatible with older ABB Bailey systems? A: Yes, fully backward compatible for seamless integration.
Q: What is the operational temperature range? A: -20°C to 60°C, suitable for standard industrial indoor environments.
Q: Does it require active cooling? A: No, it operates efficiently under passive cooling conditions.
Q: How does it handle electrical interference? A: Built-in filtering ensures minimal noise and high signal accuracy.
Q: Can it be replaced without shutting down the system? A: Yes, hot-swapping is supported in compatible ABB Bailey configurations.
Q: What is the expected operational lifespan? A: Over 10 years under normal industrial conditions.
Q: Can it integrate with SCADA or DCS for real-time monitoring? A: Yes, it communicates seamlessly with ABB SCADA and DCS protocols.
