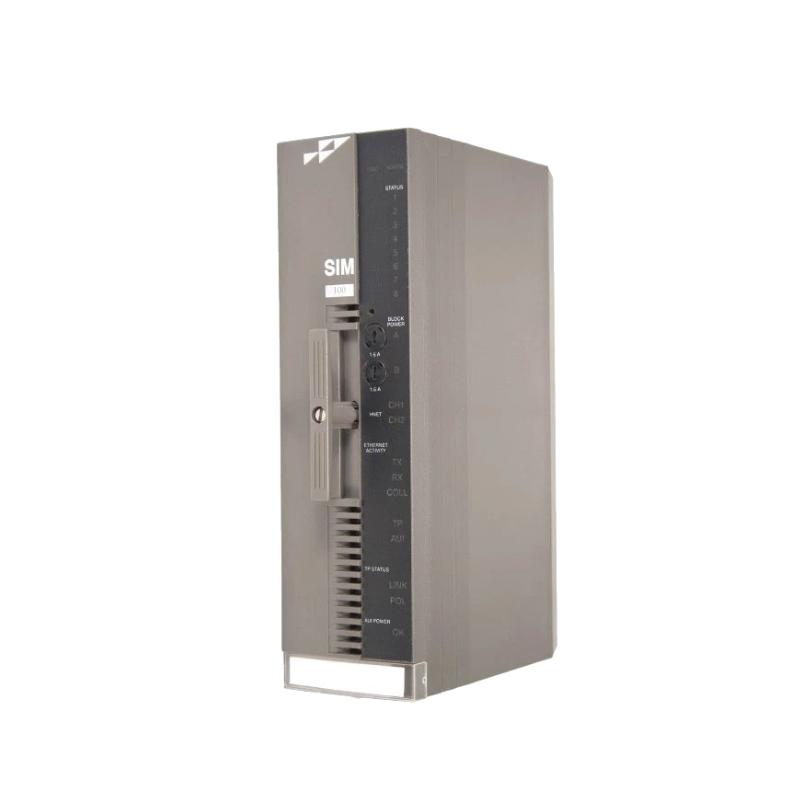

ABB Bailey SIM-100 PHBSIM10010000 Simulation Module

Applications

The ABB Bailey SIM-100 Simulation Module is designed to facilitate testing, training, and validation within ABB automation systems. Key applications include:

• Simulating process signals for DCS system testing
• Operator training without affecting live processes
• Validation of control logic and alarm systems
• Industrial automation troubleshooting and diagnostics
• Laboratory and engineering test setups for process control studies

Its compact design allows for easy integration into training or test environments while maintaining high fidelity signal simulation.

Advantages

• High-Fidelity Simulation: Accurately replicates analog and digital signals for testing and training purposes.
• Compact Design: Small footprint allows flexible placement in control cabinets or test racks.
• Safe Training Environment: Enables operator and engineer training without impacting live systems.
• Industrial Reliability: Resistant to vibration and electromagnetic interference during simulation exercises.
• Seamless Integration: Compatible with ABB Bailey DCS modules and legacy systems.

Technical FAQs

1. Q: What types of signals can the SIM-100 simulate?
   A: Supports analog (4–20 mA, 0–10 VDC) and digital process signals.
2. Q: Can it be used for operator training without risk to live systems?
   A: Yes, it safely isolates simulation from operational DCS hardware.
3. Q: Is it suitable for use in industrial test labs?
   A: Yes, designed for robust performance in engineering and lab environments.
4. Q: What is the operating temperature range?
   A: -20°C to 60°C, suitable for standard indoor industrial conditions.
5. Q: Does it require active cooling?
   A: No, passive cooling is sufficient.
6. Q: Can multiple modules be used simultaneously?
   A: Yes, multiple SIM-100 modules can simulate multiple process channels concurrently.
7. Q: Is it compatible with older ABB Bailey systems?
   A: Yes, full backward compatibility ensures integration with legacy modules.
8. Q: How precise are the simulated signals?
   A: High-accuracy simulation ensures realistic testing and operator training scenarios.
9. Q: Can it be mounted in standard racks or cabinets?
   A: Yes, its compact footprint allows easy integration into control racks.
10. Q: What is the expected operational lifespan?
    A: Over 10 years under normal indoor industrial conditions.
