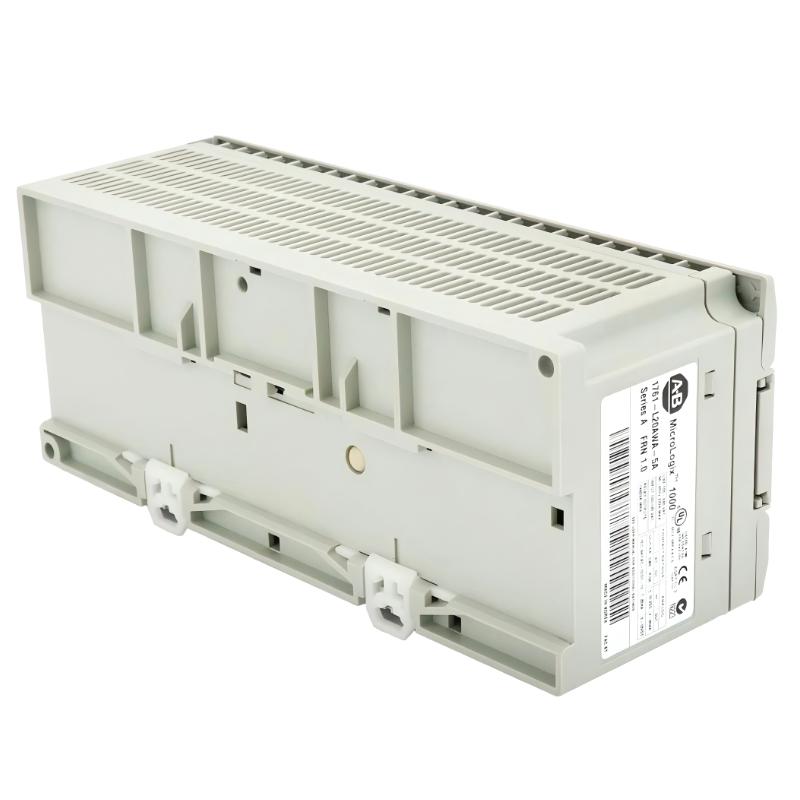

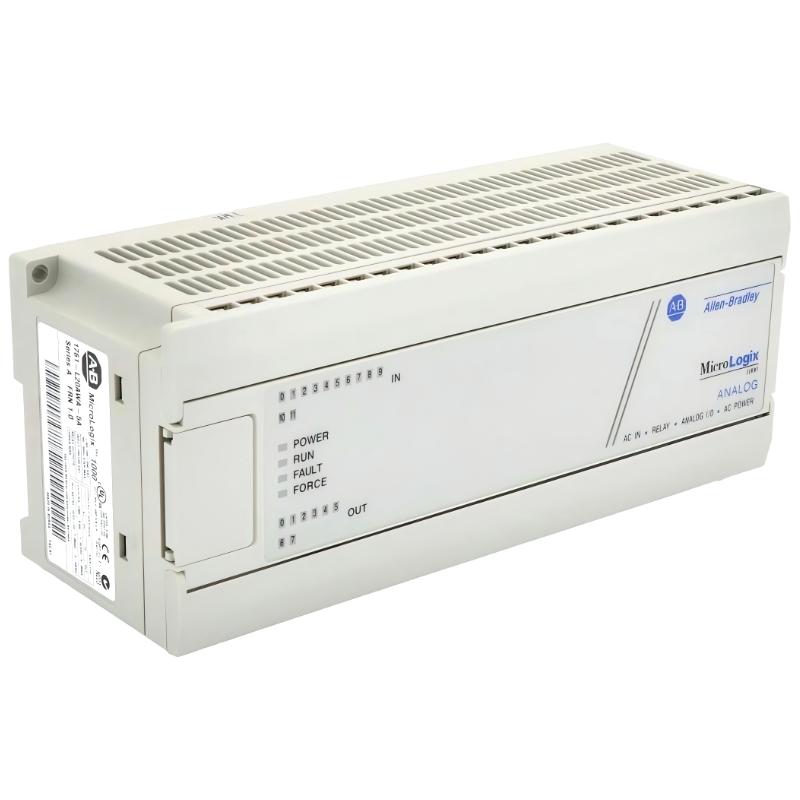

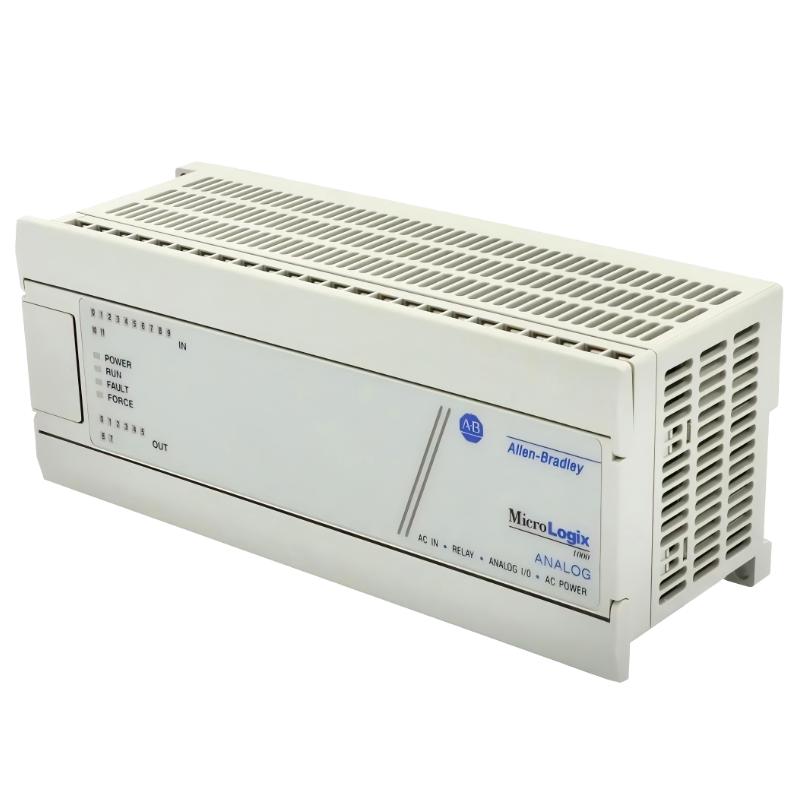

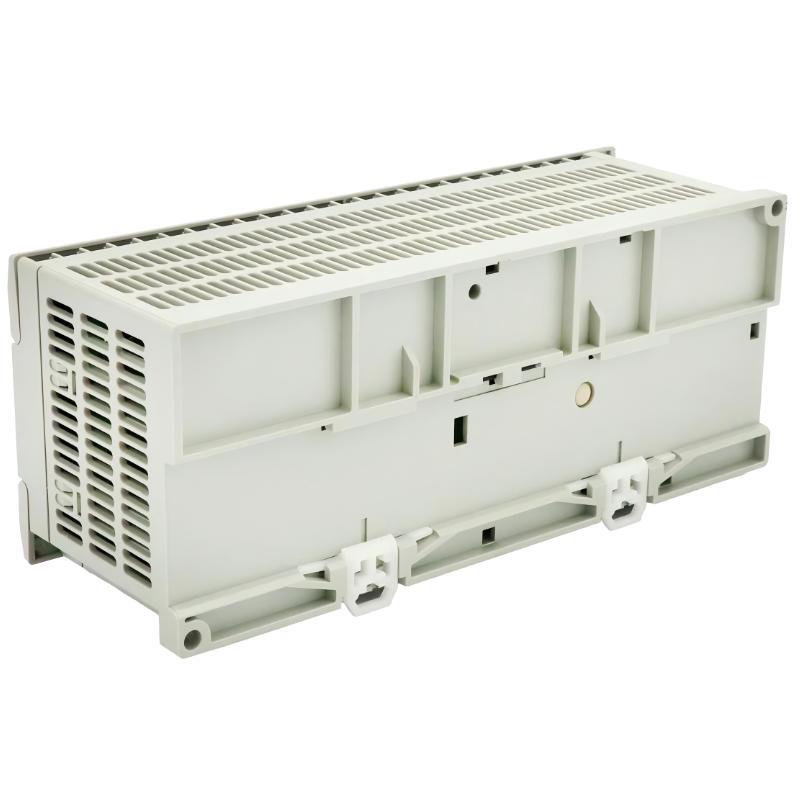

The 1761-L20AWA-5A MicroLogix 1000 Controller from Rockwell Automation is a compact 20-point programmable logic controller (PLC) designed for small-scale industrial automation and OEM machine control applications.
This controller combines:
- CPU
- Power supply
- Digital I/O
- Analog I/O
- Communication interface
into a single compact housing, making it ideal for space-saving automation systems.
The 1761-L20AWA-5A features:
- 12 × 120V AC digital inputs
- 8 relay outputs
- 4 analog inputs
- 1 analog output
- Built-in RS-232 DF1 communication
It is commonly used in packaging machines, conveyors, HVAC systems, pump stations, and general industrial automation systems. The model has been officially discontinued by Rockwell Automation but remains widely used in legacy systems.
Technical Specifications (Including Size & Weight)
| Parameter | Specification |
|---|---|
| Model | 1761-L20AWA-5A |
| Series | MicroLogix 1000 |
| Module Type | Compact PLC Controller |
| Power Supply | 120/240V AC |
| Input Voltage Range | 79–132V AC |
| Frequency | 47–63 Hz |
| Power Consumption | ~12–13 W |
| Digital Inputs | 12 × 120V AC |
| Digital Outputs | 8 × Relay Outputs |
| Analog Inputs | 4 |
| Analog Output | 1 |
| Analog Input Signal | -10.5 to +10.5V DC / -21 to +21 mA |
| Analog Output Signal | 0–10V DC / 4–20 mA |
| Output Voltage Range | 24–125V DC / 0–240V AC |
| Communication Port | RS-232 |
| Communication Protocol | DF1 |
| Memory | 1 KB EEPROM |
| Instruction Capacity | ~737 instruction words |
| Data Memory | ~437 data words |
| Mounting Type | DIN Rail / Panel Mount |
| Isolation Voltage | 1500V AC |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Weight | ~0.54 kg |
Technical specifications sourced from Rockwell Automation and industrial automation distributors.
Physical Dimensions
- Size (H × W × D): 80 × 73 × 200 mm
- Equivalent imperial size: 7.87 × 2.87 × 3.15 inches
Dimension references from official and distributor documentation.
Key Features
- Integrated compact PLC architecture
- 12 AC digital inputs and 8 relay outputs
- Built-in analog I/O capability
- Supports voltage and current analog signals
- RS-232 DF1 communication support
- EEPROM non-volatile memory
- DIN rail and panel mounting options
- Compact all-in-one industrial controller
Recommended Related Models
The 1761-L20AWA-5A is commonly associated with:
- 1761-L16BWB MicroLogix 1000
- 1761-L20BWA-5A
- 1761-L32AWA controllers
- 1761-NET-AIC communication converter
- 1761-CBL-PM02 programming cable
- RSLogix 500 programming software
