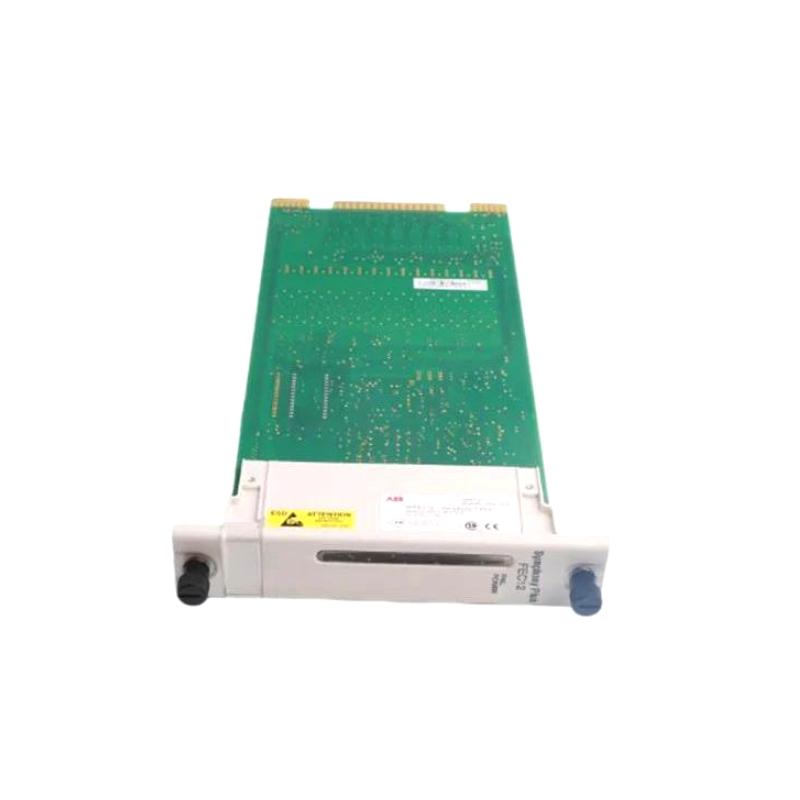

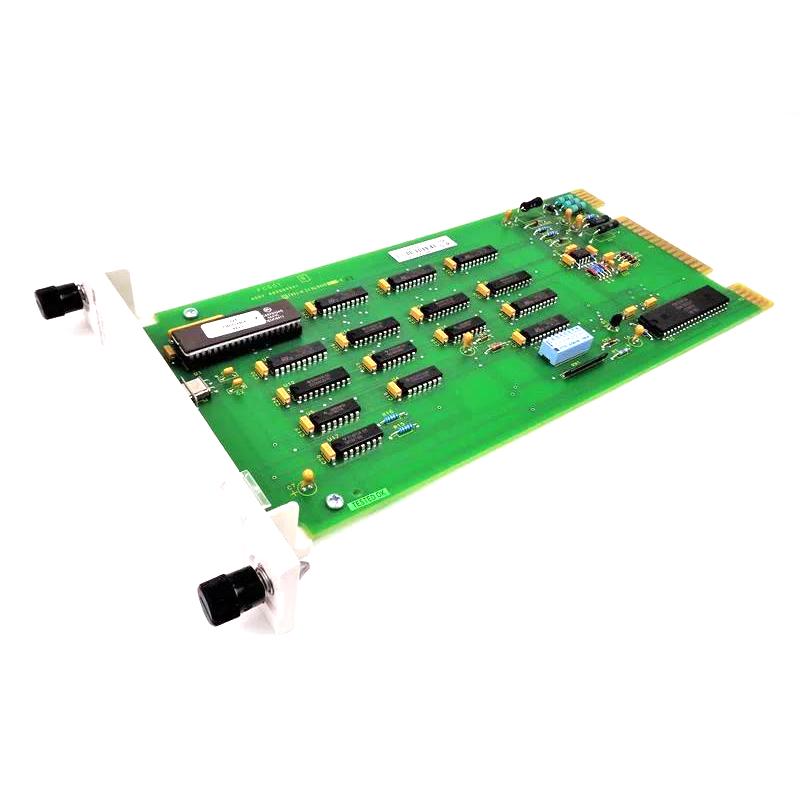

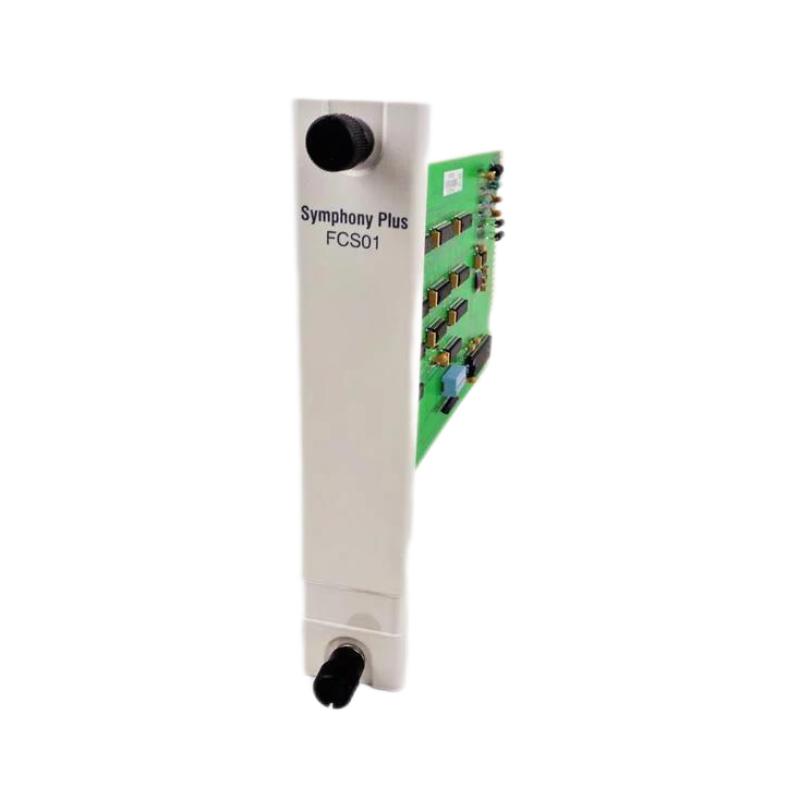

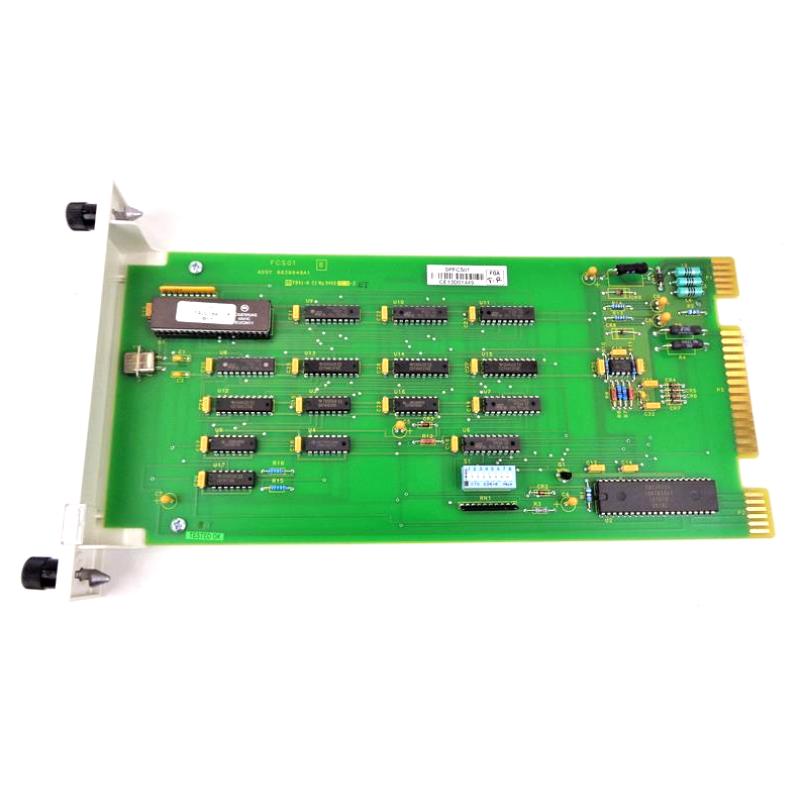

Name: ABB Bailey SPFCS01 Frequency Counter Module
Brand: ABB Bailey
SKU: 10272
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The ABB Bailey SPFCS01 Frequency Counter Module provides high-precision frequency measurement for industrial automation and process control. Compact, lightweight, and robust, it ensures accurate monitoring of critical process signals while integrating seamlessly into ABB Bailey DCS systems. Its industrial-grade design guarantees long-term reliability, making it an essential module for diagnostics, monitoring, and control applications.

Technical Specifications

Feature	Specification
Module Type	Frequency Counter Module
Frequency Range	DC to 10 MHz
Compatibility	ABB Bailey DCS and legacy modules
Protection	EMI shielding, vibration-resistant
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	297.18 × 175.26 × 35.56 mm
Weight	0.227 kg (0.500 lb)

Applications

The ABB Bailey SPFCS01 Frequency Counter Module is engineered for precise frequency measurement in industrial automation and process control systems. Typical applications include:

Monitoring and measuring process signal frequencies in DCS systems
Integrating with ABB Bailey control and SCADA networks for real-time monitoring
Industrial equipment diagnostics and performance validation
Automation of energy, chemical, and manufacturing plant processes
High-precision testing in laboratory or industrial settings

Its compact form factor ensures easy integration into control cabinets or racks.

Advantages

High-Accuracy Measurement: Provides precise frequency readings for critical process signals.
Compact and Lightweight: Small footprint allows installation in standard industrial panels.
Reliable Industrial Performance: Resistant to vibration, EMI, and temperature variations.
Seamless Integration: Fully compatible with ABB Bailey DCS systems and legacy modules.
Low Maintenance: Minimal servicing required due to durable industrial design.

Technical FAQs

Q: What frequency range can the SPFCS01 measure?
A: Supports measurement from DC up to 10 MHz, suitable for most industrial applications.
Q: Can it interface with ABB Bailey SCADA systems?
A: Yes, fully compatible for real-time frequency monitoring and data logging.
Q: Is it suitable for vibration-prone environments?
A: Yes, designed to withstand typical industrial vibrations.
Q: What is the operating temperature range?
A: -20°C to 60°C for standard indoor industrial use.
Q: Does it require active cooling?
A: No, passive cooling is sufficient.
Q: Can it operate with legacy ABB Bailey modules?
A: Yes, backward compatibility ensures seamless integration.
Q: How precise is the frequency measurement?
A: High-resolution measurement ensures minimal error for industrial applications.
Q: Can it be mounted in standard racks or cabinets?
A: Yes, its compact size allows flexible mounting options.
Q: What protection does it provide against EMI?
A: Integrated shielding minimizes electromagnetic interference on the signals.
Q: What is the expected operational lifespan?
A: Over 10 years under normal industrial conditions.
