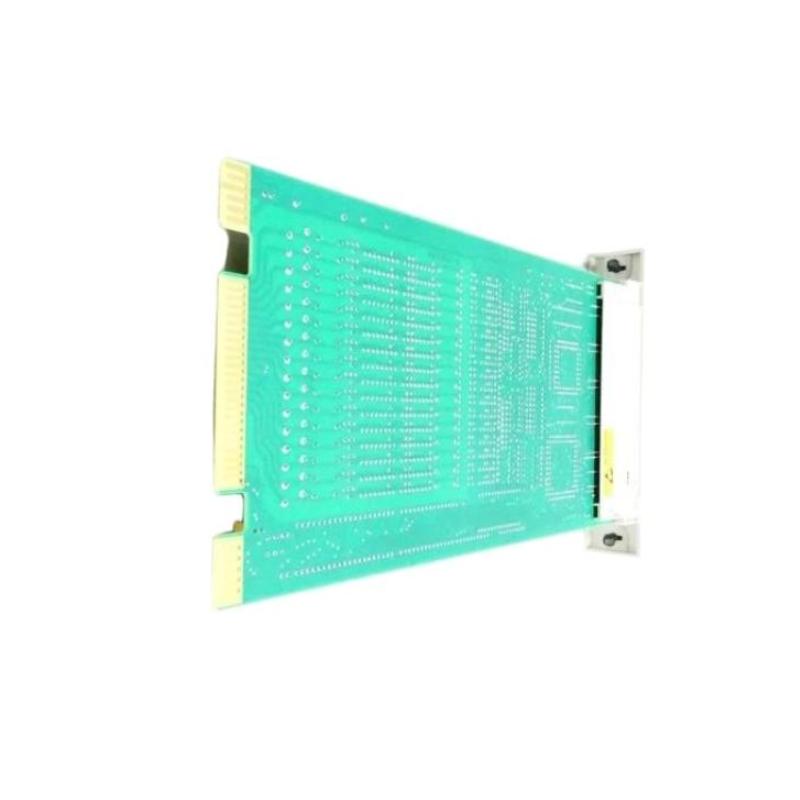

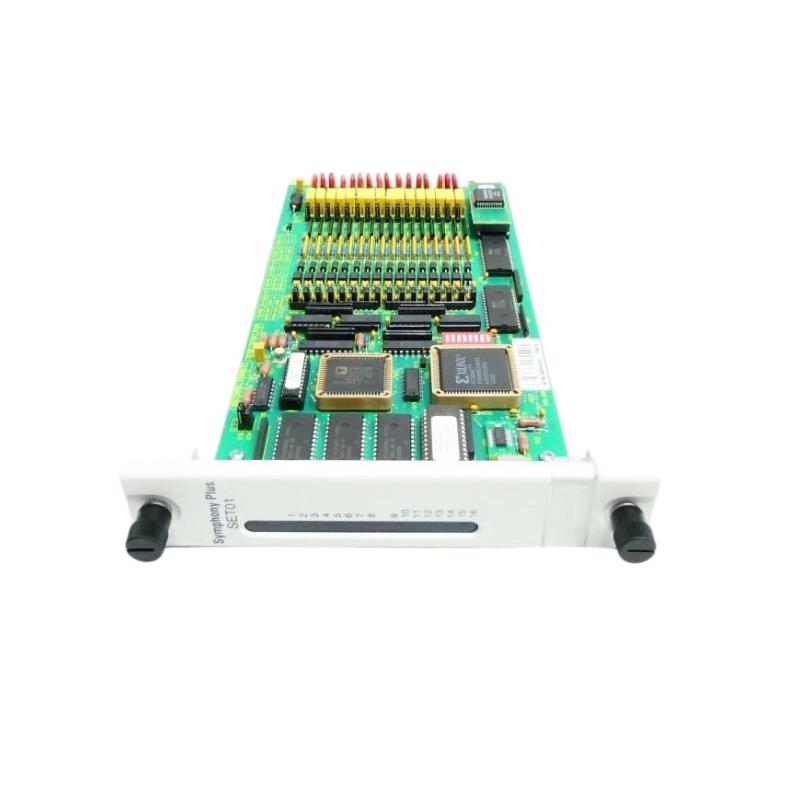

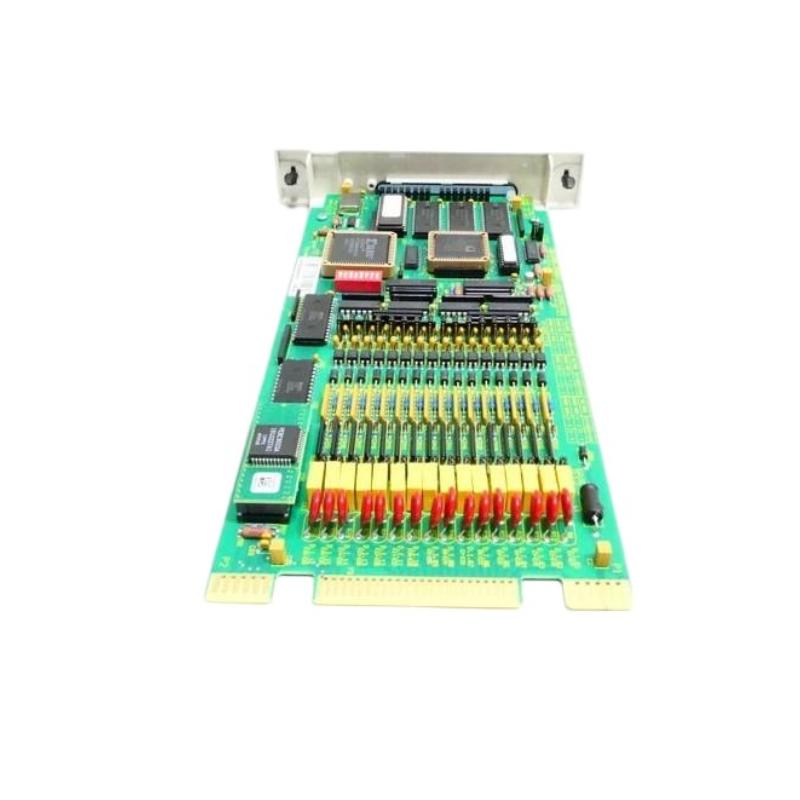

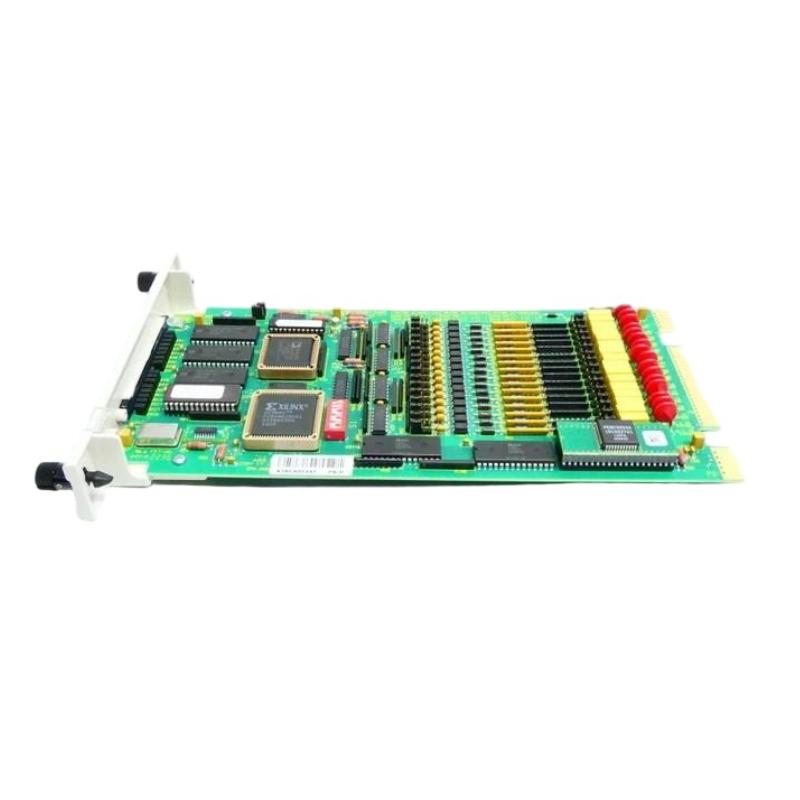

ABB Bailey SPSET01 SOE DI And Time Synchronization Module

Applications

The ABB Bailey SPSET01 is designed for precise event logging and time synchronization in industrial automation systems. Typical applications include:

• Capturing and logging sequence-of-event (SOE) digital inputs for critical processes
• Synchronizing time across distributed ABB Bailey modules for accurate system coordination
• Integration with SCADA and DCS systems for real-time event tracking
• Power generation, distribution, and industrial plant monitoring
• Process diagnostics and fault analysis where precise timing is critical

Its compact design allows easy integration into control panels while ensuring accurate time-stamped data capture.

Advantages

• Precise Event Logging: Records digital input events with accurate timestamps.
• Time Synchronization: Ensures consistent time across multiple ABB Bailey modules and systems.
• Compact and Lightweight: Minimal footprint enables flexible mounting in control cabinets.
• Industrial-Grade Reliability: Resistant to vibration, EMI, and standard operating temperature ranges.
• Seamless Integration: Compatible with ABB Bailey DCS, SCADA, and legacy modules.

Technical FAQs

1. Q: What is the primary function of the SPSET01 module?
   A: Captures SOE digital input events and synchronizes time across the system.
2. Q: What type of digital inputs does it support?
   A: Supports discrete digital inputs from sensors, switches, and control signals.
3. Q: Can it be integrated with SCADA and DCS systems?
   A: Yes, fully compatible for real-time event tracking and logging.
4. Q: Is it suitable for high-vibration industrial environments?
   A: Yes, designed to maintain reliability under typical plant vibrations.
5. Q: What is the operating temperature range?
   A: -20°C to 60°C, suitable for indoor industrial conditions.
6. Q: How accurate is the time synchronization?
   A: High-precision timekeeping ensures accurate timestamping of all events.
7. Q: Can multiple modules be synchronized together?
   A: Yes, multiple SPSET01 modules can operate in a synchronized network.
8. Q: Does it require active cooling?
   A: No, passive cooling is sufficient for normal operation.
9. Q: Can it be installed in standard control cabinets?
   A: Yes, compact dimensions allow flexible installation.
10. Q: What is the expected operational lifespan?
    A: Over 10 years under normal industrial operating conditions.
