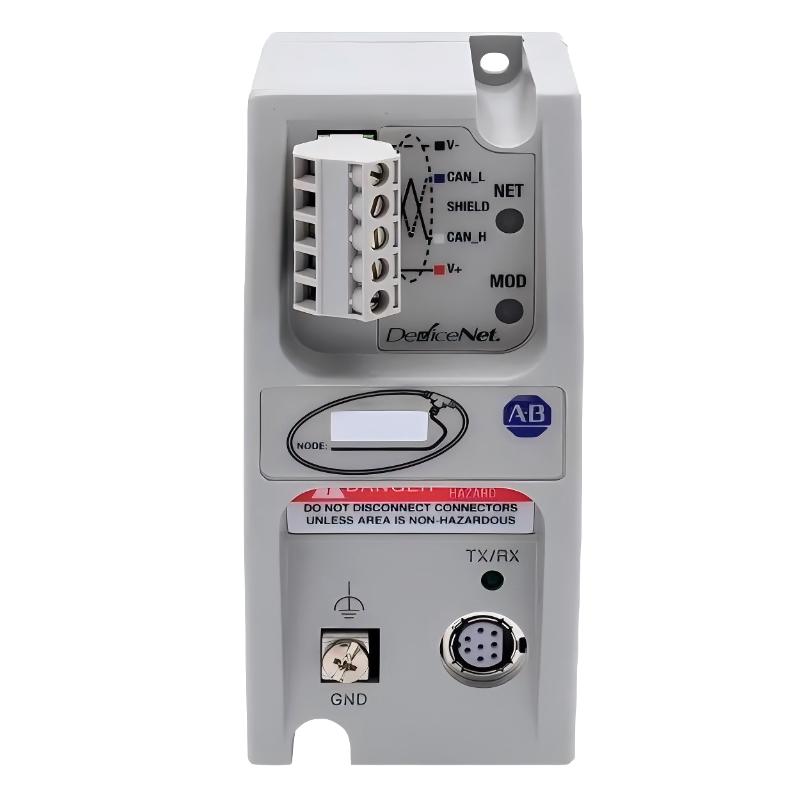

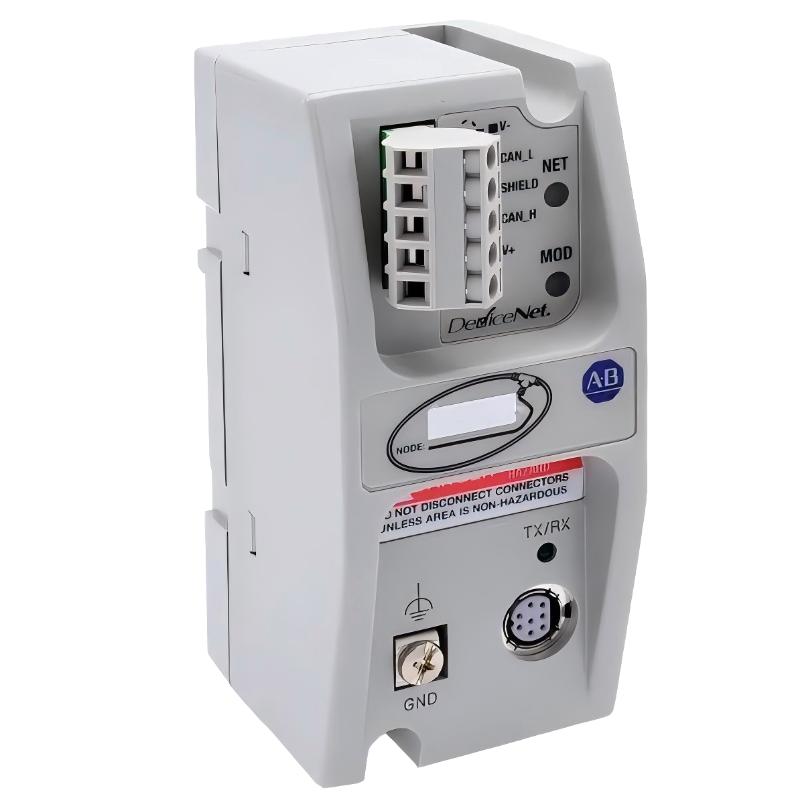

The 1761-NET-DNI (DeviceNet Interface) from Rockwell Automation is a communication gateway module used to connect MicroLogix, SLC, and other DF1-based devices to a DeviceNet industrial network.
It acts as a protocol converter between DF1 serial communication and DeviceNet, enabling older PLC systems to participate in DeviceNet-based distributed control architectures.
Typical use cases include:
- Connecting MicroLogix PLCs to DeviceNet networks
- Peer-to-peer communication between controllers
- DeviceNet master/slave integration
- Legacy system network expansion
Main Functions
The 1761-NET-DNI provides:
- DF1 ↔ DeviceNet protocol conversion
- DeviceNet slave operation (with peer-to-peer messaging capability)
- Serial RS-232 communication interface for PLC connection
- Multi-node DeviceNet network participation
- Data exchange between PLCs and DeviceNet master controllers
It allows legacy MicroLogix or SLC controllers to communicate on a modern (for its era) industrial fieldbus network.

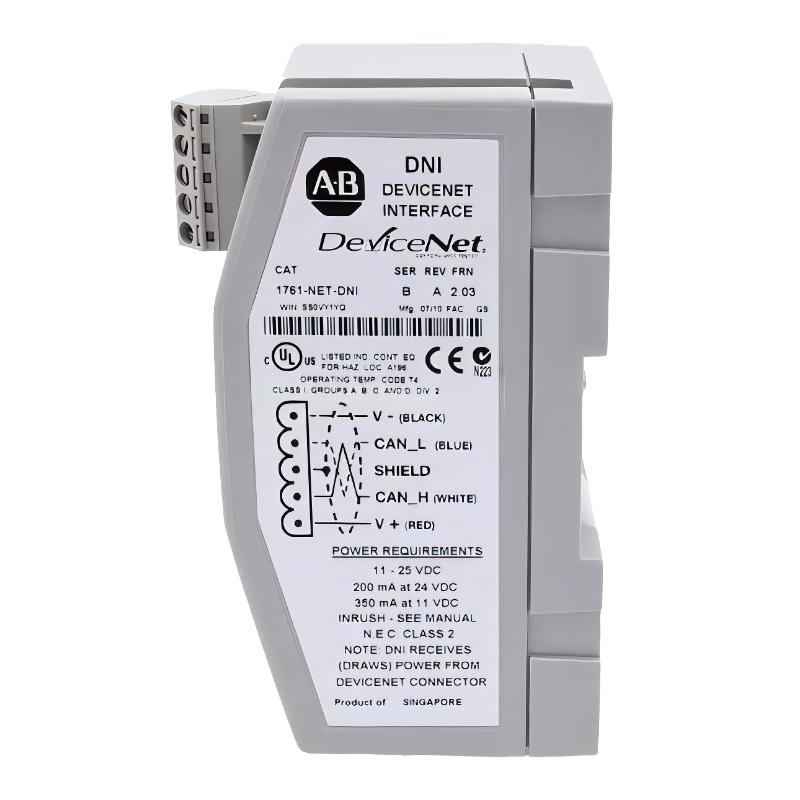

Technical Specifications (Including Size & Weight)
| Parameter | Specification |
|---|---|
| Model | 1761-NET-DNI |
| Series | MicroLogix Communication Modules |
| Device Type | DeviceNet Interface / Protocol Converter |
| Power Supply | 11–25 V DC |
| Current Draw | ~200 mA @ 24 V DC |
| Communication Ports | 1 × DeviceNet, 1 × RS-232 (DF1) |
| DeviceNet Nodes | Up to 64 nodes (typical configuration limit varies) |
| Isolation Voltage | ~500 V DC |
| Mounting Type | DIN rail or panel mount |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Vibration | Up to 2.5 g (operating) |
| Shock | Up to 30 g |
| Power Dissipation | ~5 W |
| Weight | ~0.23 kg |
(Source: industrial distributor specifications and product listings)
Physical Dimensions (L × W × H)
- Approx. 50.8 × 127 × 63.5 mm
-
Equivalent form commonly listed as:
- 5.08 × 12.70 × 6.35 cm
Key Features
- Converts DF1 serial communication to DeviceNet network
- Supports DeviceNet slave mode operation
- Enables peer-to-peer messaging between controllers
- Provides electrical isolation between networks
- DIN rail / panel mounting flexibility
- Compatible with MicroLogix and SLC controllers
- Supports industrial fieldbus integration
