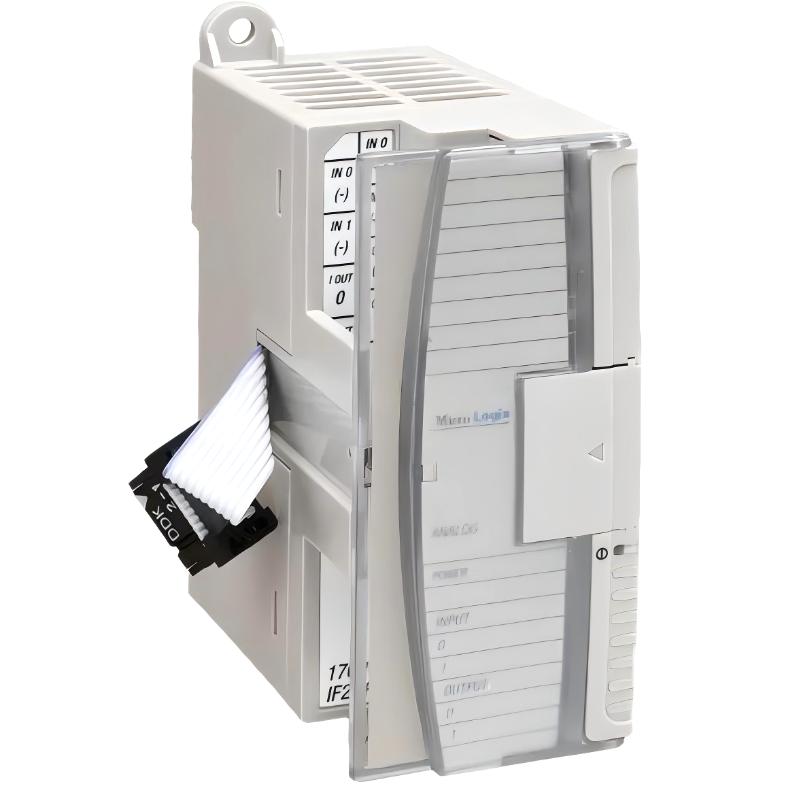

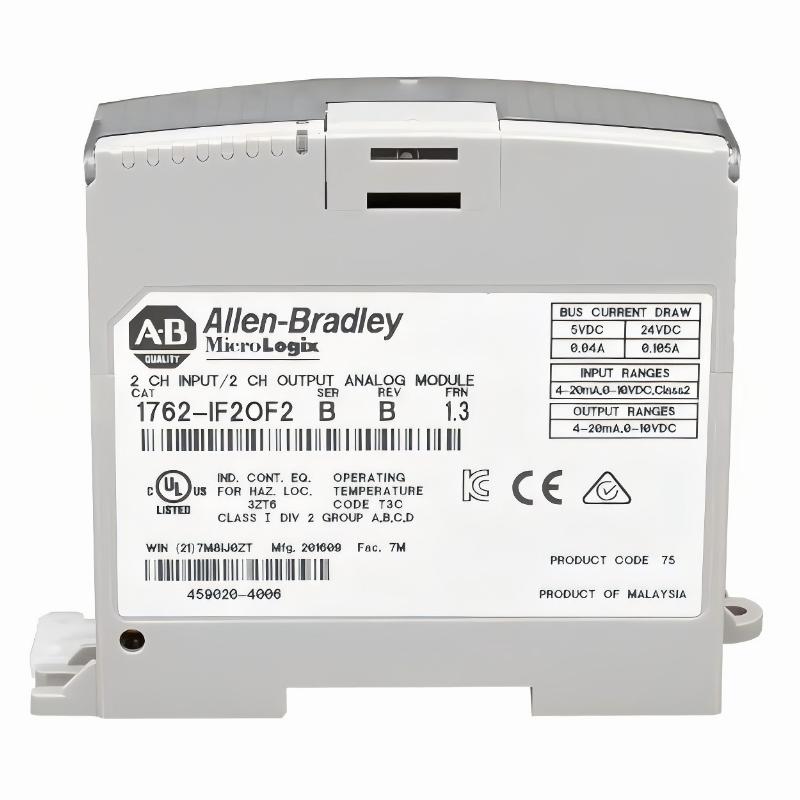

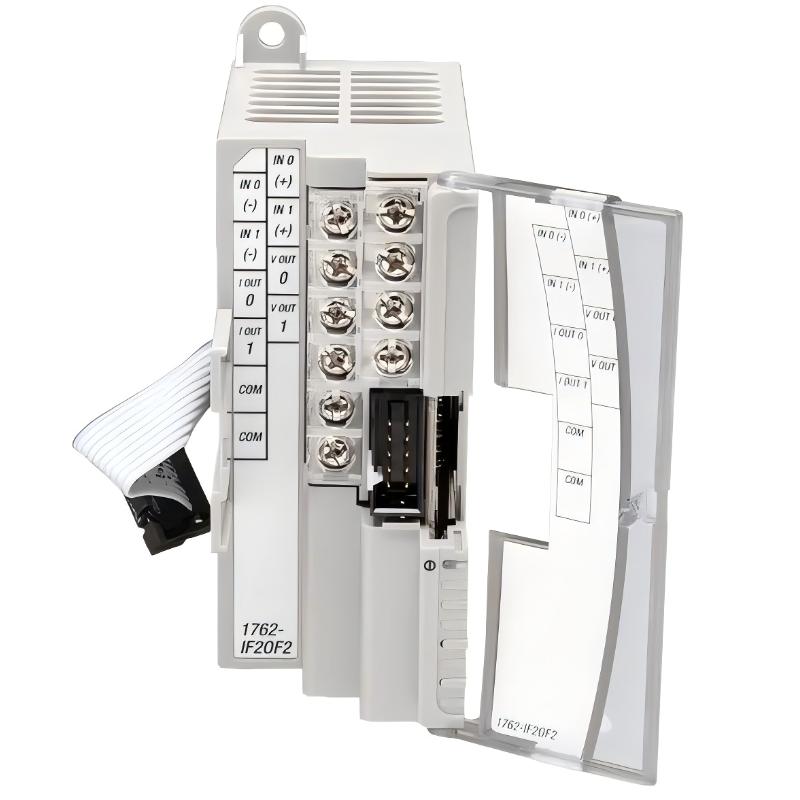

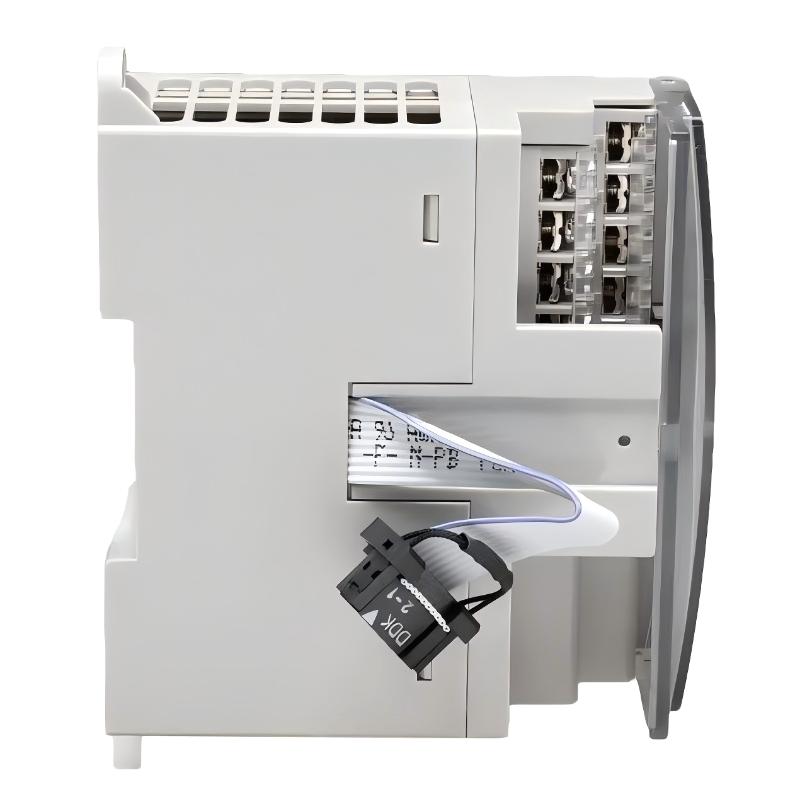

The 1762-IF2OF2 from Rockwell Automation is a MicroLogix 1200 expansion I/O module designed for analog signal processing.
It provides a combined analog input/output function, allowing both measurement and control within a single compact module.
It is commonly used with:
- MicroLogix 1100 / 1200 / 1400 PLC systems
- Small process control applications
- Machine-level analog signal control
Main Functions
The 1762-IF2OF2 provides:
- 2 analog inputs
- 2 analog outputs
- Configurable voltage or current signals
- Signal conditioning and conversion for PLC systems
- Real-time analog process control
Supported signals:
- Voltage: 0–10 V DC
- Current: 4–20 mA
Technical Specifications (Including Size & Weight)
| Parameter | Specification |
|---|---|
| Model | 1762-IF2OF2 |
| Series | MicroLogix 1200 I/O |
| Module Type | Analog Input/Output Combo |
| Analog Channels | 4 total (2 input + 2 output) |
| Input Signal Range | 0–10 V DC / 4–20 mA |
| Output Signal Range | 0–10 V DC / 4–20 mA |
| Resolution | 12-bit |
| Converter Type | Successive approximation |
| DA Converter Type | Resistor string |
| Input Impedance | ~200 kΩ |
| Update Time | Input ~2.5 ms / Output ~4.5 ms |
| Isolation Voltage | ~30 V system isolation (Class 2 requirement) |
| Operating Temperature | -20°C to 65°C |
| Power Consumption | ~40 mA @ 5 V DC |
| Mounting | DIN rail |
Weight: ~0.24 kg ([turn0search2][turn0search12])
Physical Dimensions (L × W × H)
- 90 × 40 × 87 mm ([turn0search12])
- Height including mounting tabs: ~110 mm ([turn0search8])
Key Features
- Compact 4-channel analog module (2 in / 2 out)
- Supports voltage and current signals
- High-resolution 12-bit conversion
- Fast update time for control applications
- Built-in diagnostics (overrange / underrange detection)
- Easy integration with MicroLogix PLC systems
- DIN rail mounting design
