Introduction

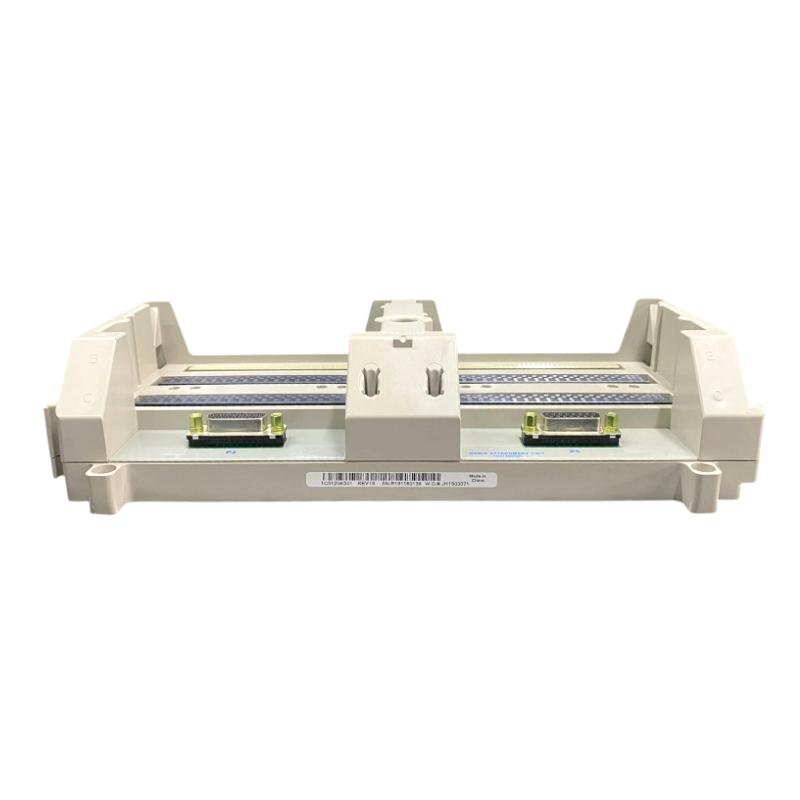

The Ovation 1C31206G01 4-Slot Rack Module Base Assembly provides a secure and flexible foundation for Ovation 1C3 series modules. Compact, lightweight, and industrial-grade, it ensures stable operation in demanding environments while supporting system expansion and hot-swappable module replacement. Ideal for DCS and SCADA applications, it enhances reliability and simplifies maintenance in complex process control systems.

Technical Specifications

Feature	Specification
Module Type	4-Slot Rack Module Base Assembly
Capacity	Up to 4 Ovation modules
Compatibility	Ovation 1C3 series modules
Protection	EMI-resistant, vibration-resistant
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	195 × 175 × 130 mm
Weight	0.6 kg (1.323 lb)

Applications

The Ovation 1C31206G01 4-Slot Rack Module Base Assembly provides a reliable platform for housing and connecting multiple Ovation modules in industrial control systems. Typical applications include:

Mounting and organizing up to four Ovation control modules in a compact rack
Industrial automation and distributed control systems
Supporting DCS and SCADA module expansion for process plants
Centralized module management for power generation, chemical, and manufacturing plants
Facilitating easy maintenance and hot-swappable module replacement

Its durable design ensures stable operation while enabling flexible system expansion.

Advantages

Stable Module Housing: Provides secure support for up to four modules in a compact assembly.
Flexible Expansion: Allows easy addition or replacement of modules for system upgrades.
Compact and Lightweight: Minimal footprint simplifies installation in control cabinets.
Industrial Reliability: Resistant to vibration, EMI, and temperature fluctuations.
Simplified Maintenance: Hot-swappable module design reduces downtime during servicing.

Technical FAQs

Q: How many modules can the base assembly hold?
A: Up to four Ovation modules in a 4-slot configuration.
Q: Is the assembly compatible with Ovation 1C3 series modules?
A: Yes, specifically designed for Ovation 1C3 series modules.
Q: Can it be mounted in standard control cabinets?
A: Yes, compact dimensions allow flexible panel or rack installation.
Q: Is it suitable for industrial vibration environments?
A: Yes, engineered to maintain module stability under vibration.
Q: Does it support hot-swappable modules?
A: Yes, modules can be added or replaced without shutting down the system.
Q: Can it handle EMI in noisy industrial environments?
A: Yes, designed with EMI-resistant materials to ensure reliable operation.
Q: What is the operating temperature range?
A: -20°C to 60°C, suitable for typical industrial environments.
Q: Is assembly straightforward?
A: Yes, lightweight design and intuitive slot configuration allow easy setup.
Q: Can multiple assemblies be connected for larger systems?
A: Yes, multiple 4-slot base assemblies can be combined for larger module racks.
Q: What is the expected operational lifespan?
A: Over 10 years under standard industrial conditions.
