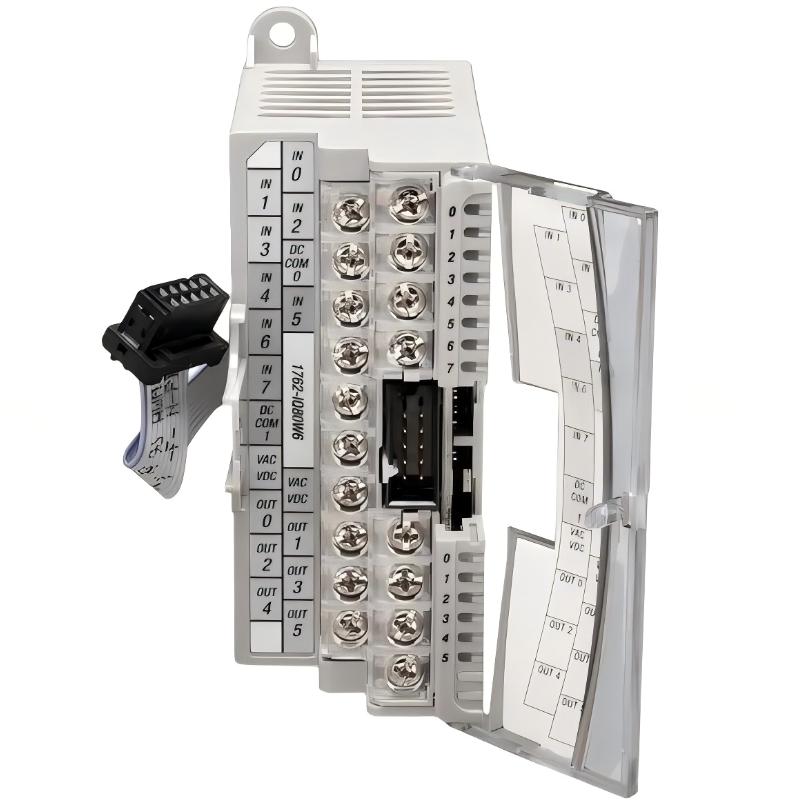

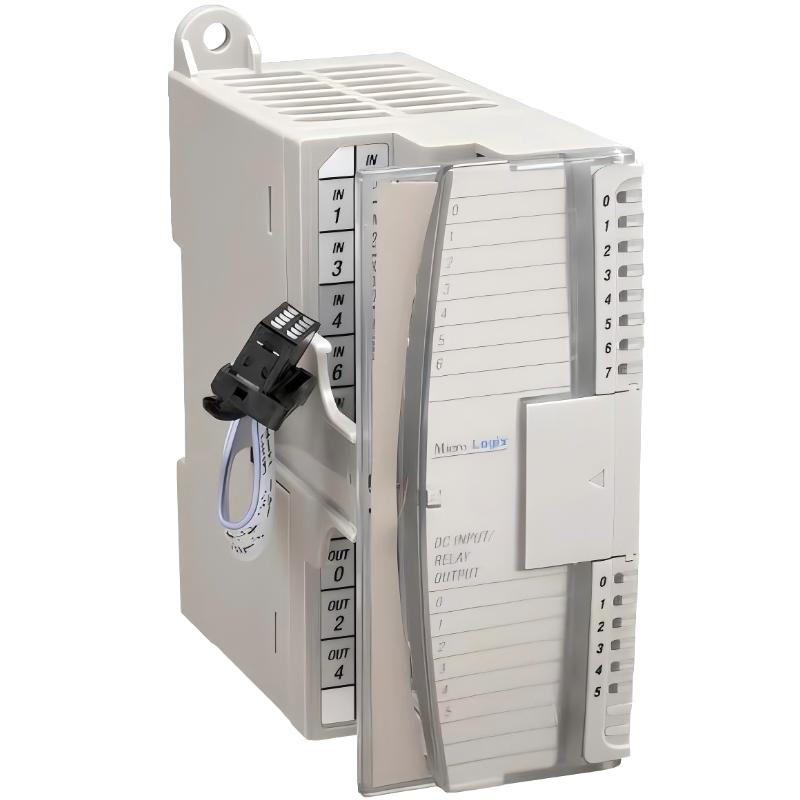

The 1762-IQ8OW6 from Rockwell Automation is a MicroLogix 1200 series digital combination I/O module.
It provides both digital inputs and relay outputs in a single compact expansion module, making it useful for space-saving machine control applications.
It is typically used with:
- MicroLogix 1100
- MicroLogix 1200
- MicroLogix 1400
Common applications include small machinery, conveyors, packaging systems, and general industrial automation.
Main Functions
The 1762-IQ8OW6 provides:
- 8 × 24V DC digital inputs (sink/source compatible)
- 6 × AC/DC relay outputs
- Signal isolation between input/output groups
- LED status indicators for each channel
- Fast switching for discrete control tasks
It is a mixed I/O (combo) module, combining input and output functionality in one unit.

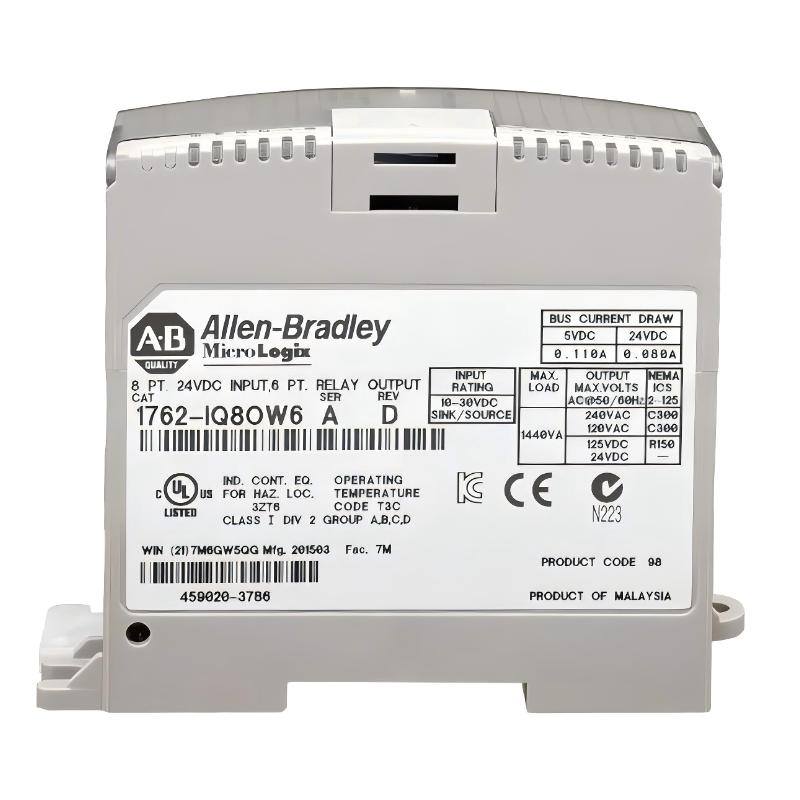

Technical Specifications (Including Size & Weight)
| Parameter | Specification |
|---|---|
| Model | 1762-IQ8OW6 |
| Series | MicroLogix 1200 I/O |
| Type | Digital combination module |
| Inputs | 8 × 24V DC |
| Outputs | 6 × relay (AC/DC) |
| Total I/O Points | 14 |
| Input Voltage Range | 10–30V DC |
| Output Voltage Range | 5–265V AC / 5–125V DC |
| Signal Delay | ~8 ms (inputs), ~10 ms (outputs) |
| Power Consumption | ~5 W max |
| Bus Current Draw | ~80–110 mA @ 5V DC |
| Operating Temperature | -20°C to 65°C |
| Mounting | DIN rail |
Weight: ~280 g (0.28 kg)

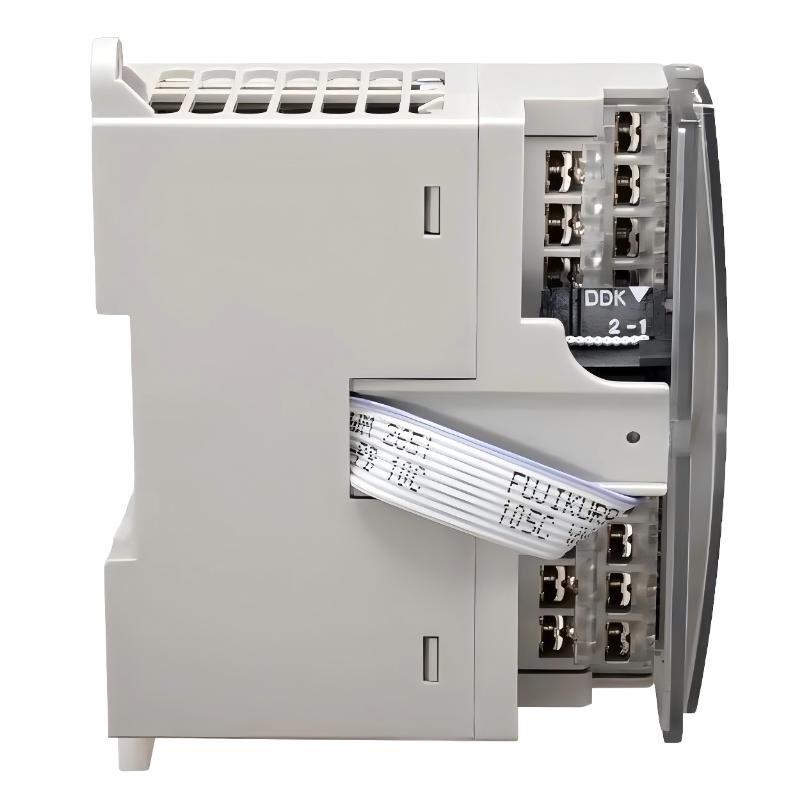

Physical Dimensions (L × W × H)
- 90 × 40.4 × 87 mm
- Height including mounting tabs: 110 mm
Key Features
- Compact 14-point mixed I/O module
- 8 DC inputs + 6 relay outputs
- Supports sinking and sourcing input wiring
- Relay outputs handle AC or DC loads
- LED indicators for diagnostics
- Electrical isolation between I/O groups
- Easy plug-in expansion for MicroLogix PLCs
