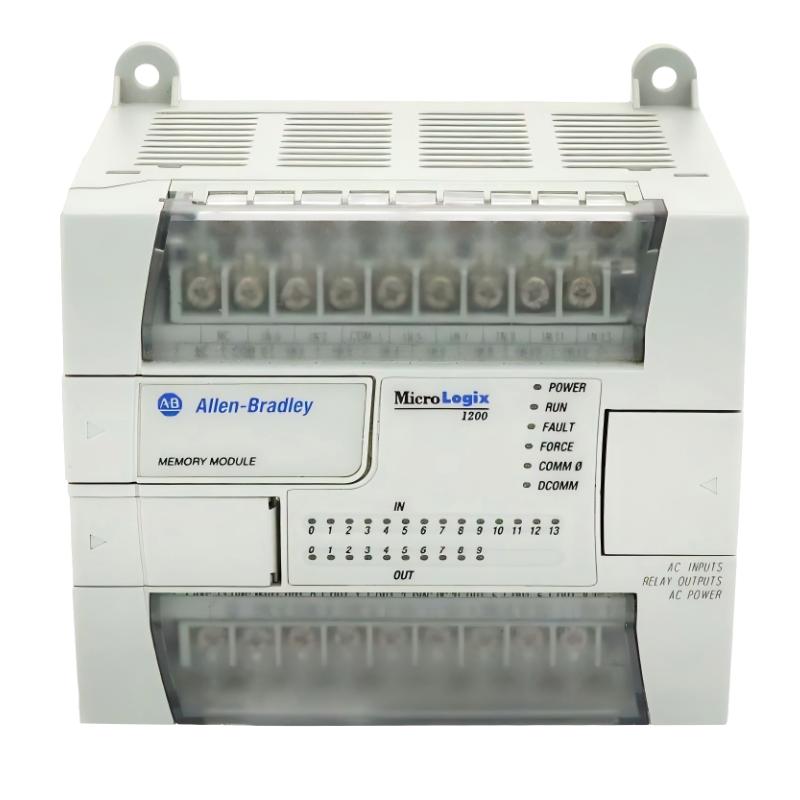

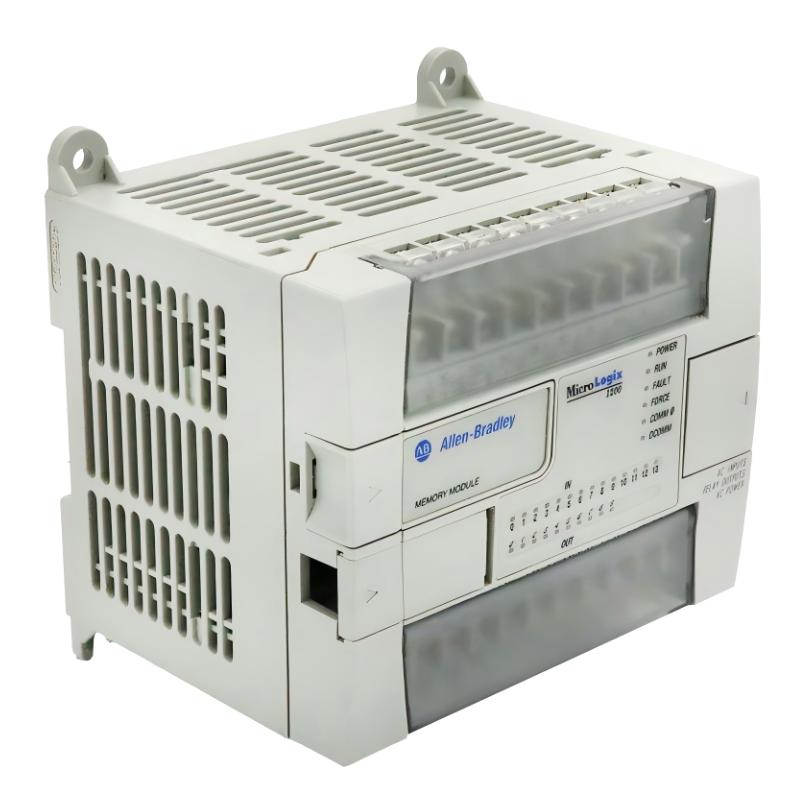

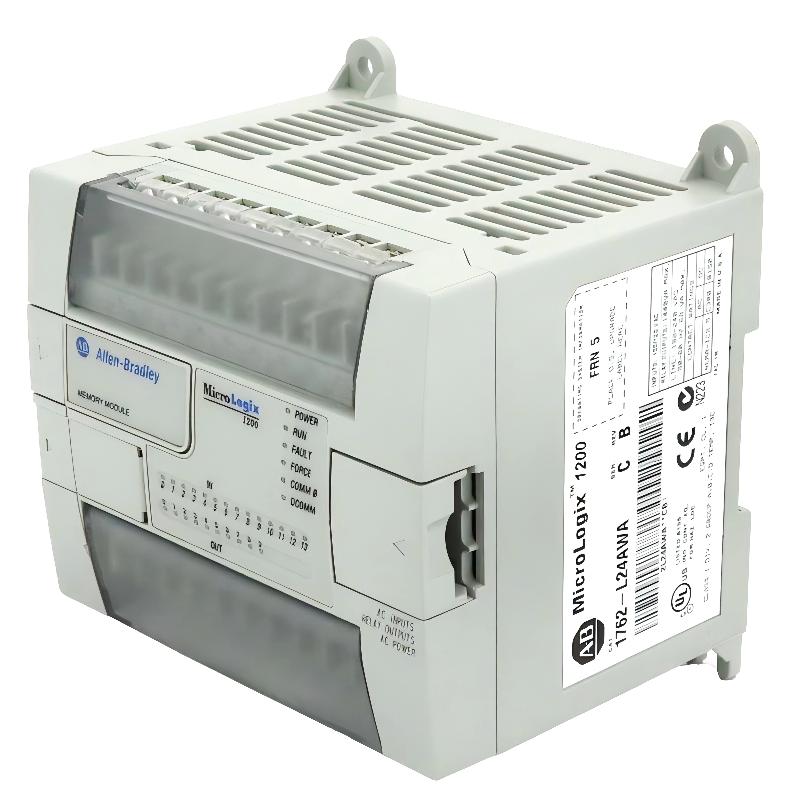

The 1762-L24AWA from Rockwell Automation is a MicroLogix 1200 series compact PLC controller designed for small-to-medium industrial automation systems.
It integrates:
- CPU
- Power supply
- Digital I/O
- RS-232 communication
into a single unit, commonly used in conveyors, packaging machines, pump control, HVAC systems, and OEM equipment.
Technical Specifications (Including Size & Weight)
| Parameter | Specification |
|---|---|
| Model | 1762-L24AWA |
| Series | MicroLogix 1200 |
| Power Supply | 120/240V AC |
| Input Type | 14 × 120V AC digital inputs |
| Output Type | 10 × relay outputs |
| Total I/O | 24 points |
| Communication | RS-232 (DF1, DH-485, ASCII, Modbus RTU support) |
| Memory | 6 KB user memory |
| Input Voltage Range | 79–132V AC |
| Output Rating | Relay contacts (general industrial load switching) |
| Mounting | DIN rail / panel mount |
| Operating Temperature | 0°C to 55°C |
| Isolation Voltage | Industrial-grade isolation (per MicroLogix 1200 platform) |
Physical Dimensions (H × W × D)
- 90 × 110 × 87 mm ([turn0search0][turn0search12])
Weight
- Approximately 0.9 kg (shipping weight) ([turn0search4])
Key Features
- Compact all-in-one PLC design (controller + I/O + power supply)
- 24 total I/O points (14 inputs, 10 relay outputs)
- Built-in RS-232 serial port
- Supports multiple serial protocols (DF1, DH-485, Modbus RTU, ASCII)
- Expandable via MicroLogix 1200 I/O modules

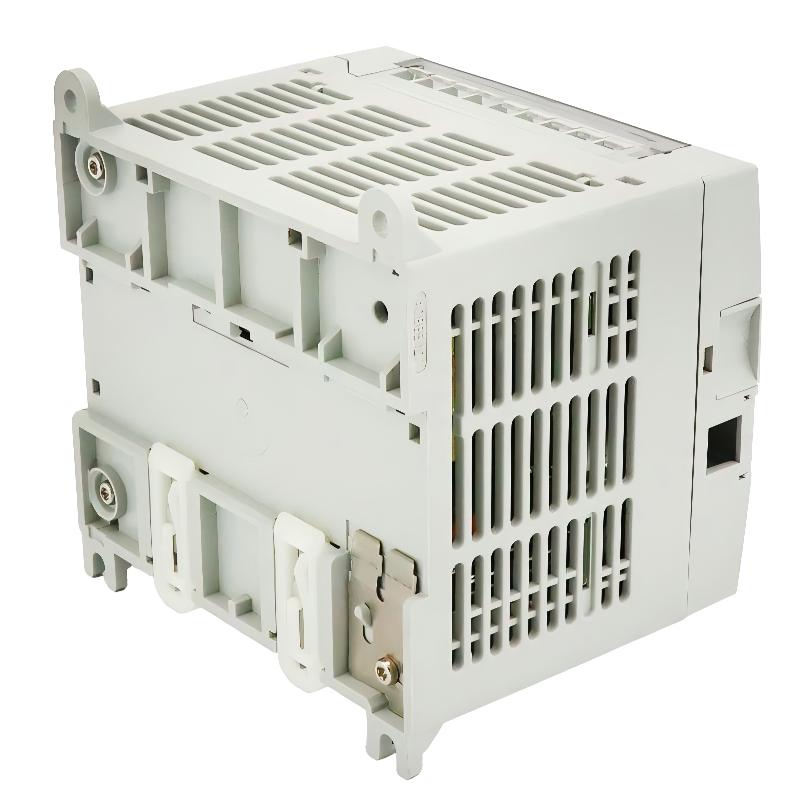

- Simple DIN rail mounting
- Designed for basic machine automation
