Introduction

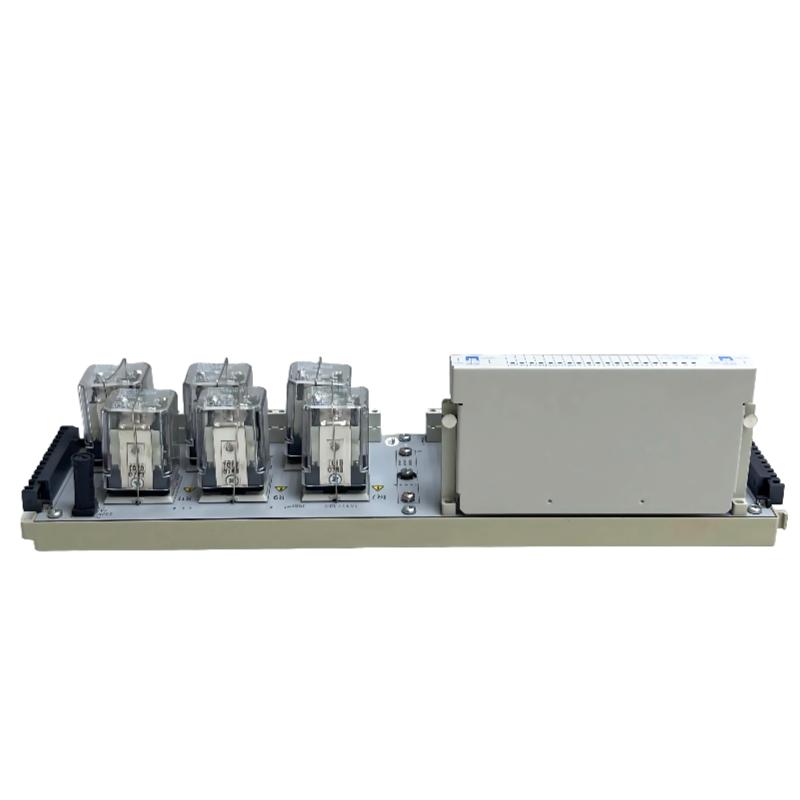

The Ovation 1C31222G01 Relay Output Base provides a stable and reliable foundation for relay output modules in industrial automation systems. Compact and lightweight, it ensures secure installation and module stability while supporting flexible expansion and maintenance. Designed for industrial durability, it integrates seamlessly with Ovation 1C3 series modules to enhance system reliability and operational efficiency.

Technical Specifications

Feature	Specification
Module Type	Relay Output Base
Function	Provides secure mounting for relay modules
Compatibility	Ovation 1C3 series relay output modules
Protection	EMI-resistant, vibration-resistant
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	220 × 140 × 35 mm
Weight	0.32 kg (0.706 lb)

Applications

The Ovation 1C31222G01 Relay Output Base serves as a secure foundation for installing and interfacing relay output modules in industrial control systems. Typical applications include:

Mounting Ovation relay output modules for digital device control
Organizing and supporting multiple relay modules in compact control panels
Industrial automation and distributed control systems (DCS)
Power generation, chemical, and manufacturing plant operations
Facilitating hot-swappable module replacement and maintenance

Its design ensures stability and reliability while enabling flexible system expansion.

Advantages

Stable Module Foundation: Provides secure mounting for relay output modules.
Modular and Expandable: Supports easy addition or replacement of modules.
Compact and Lightweight: Simplifies panel installation without sacrificing strength.
Industrial Durability: Resistant to vibration, EMI, and temperature fluctuations.
Maintenance-Friendly: Supports quick module changes to minimize downtime.

Technical FAQs

Q: What modules can be installed on this base?
A: Designed to hold Ovation relay output modules securely.
Q: Is it suitable for high-vibration industrial environments?
A: Yes, engineered to maintain stability under vibration.
Q: Can multiple bases be used together for larger systems?
A: Yes, multiple bases can be installed side by side for expanded module capacity.
Q: What is the operating temperature range?
A: -20°C to 60°C, ideal for industrial conditions.
Q: Is installation straightforward?
A: Yes, lightweight design and intuitive mounting simplify setup.
Q: Does it provide EMI protection?
A: Yes, constructed with EMI-resistant materials for reliable operation.
Q: Can it support hot-swappable modules?
A: Yes, designed for easy module insertion and replacement without shutting down the system.
Q: What is the maximum number of relay modules it can hold?
A: Supports a single base configuration; multiple bases can be combined for more modules.
Q: Is it compatible with Ovation 1C3 series modules?
A: Yes, fully compatible with Ovation 1C3 series relay output modules.
Q: What is the expected lifespan of the base?
A: Over 10 years under normal industrial operating conditions.
