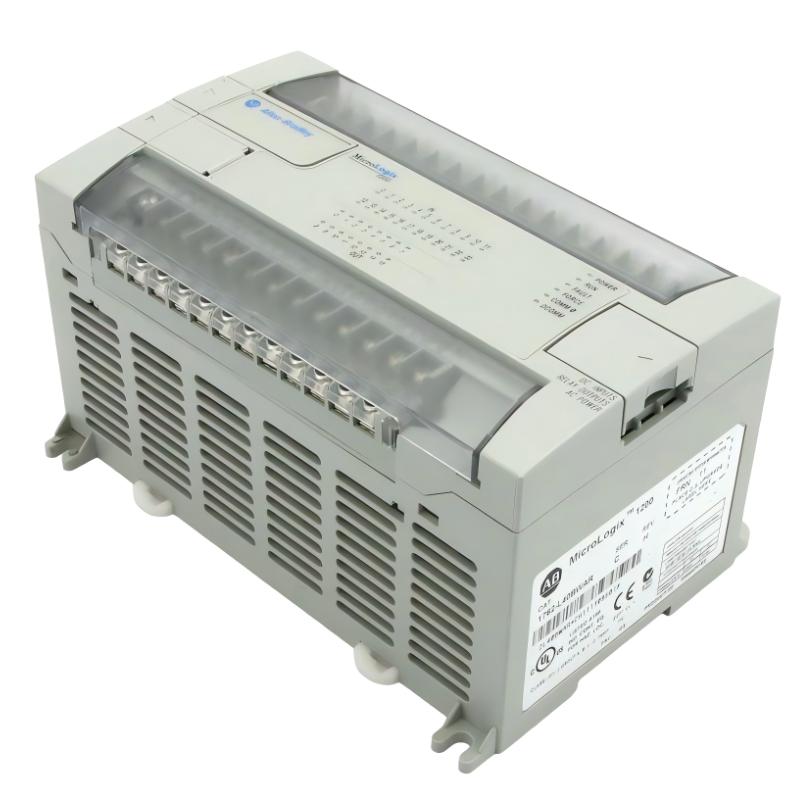

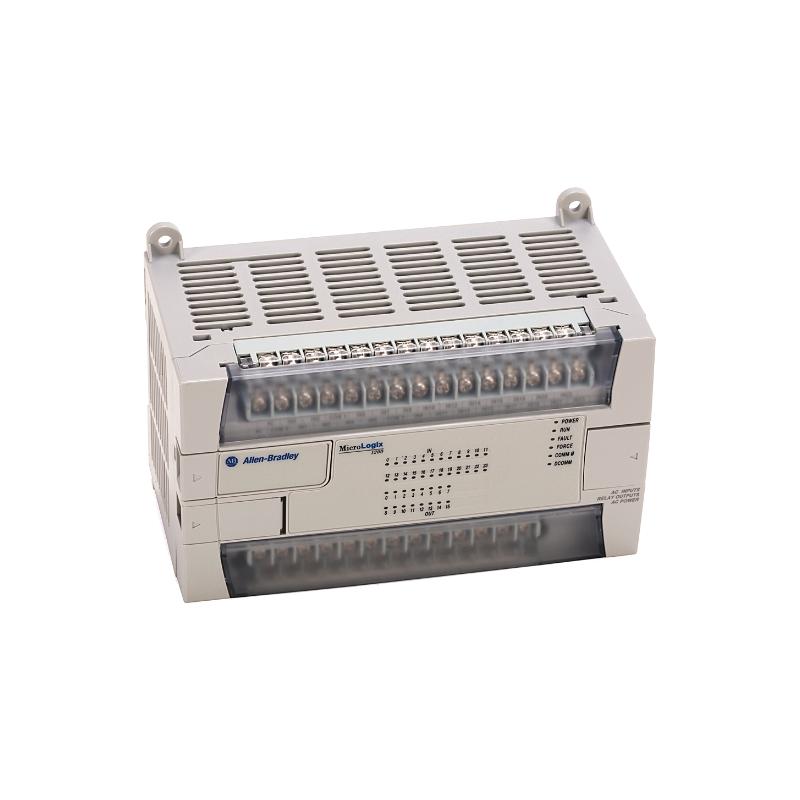

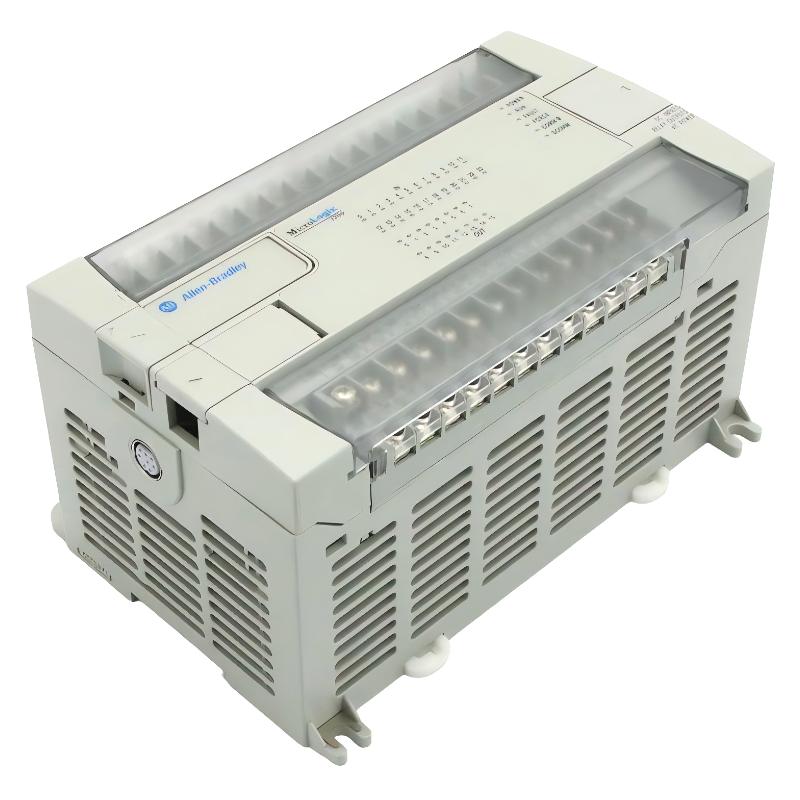

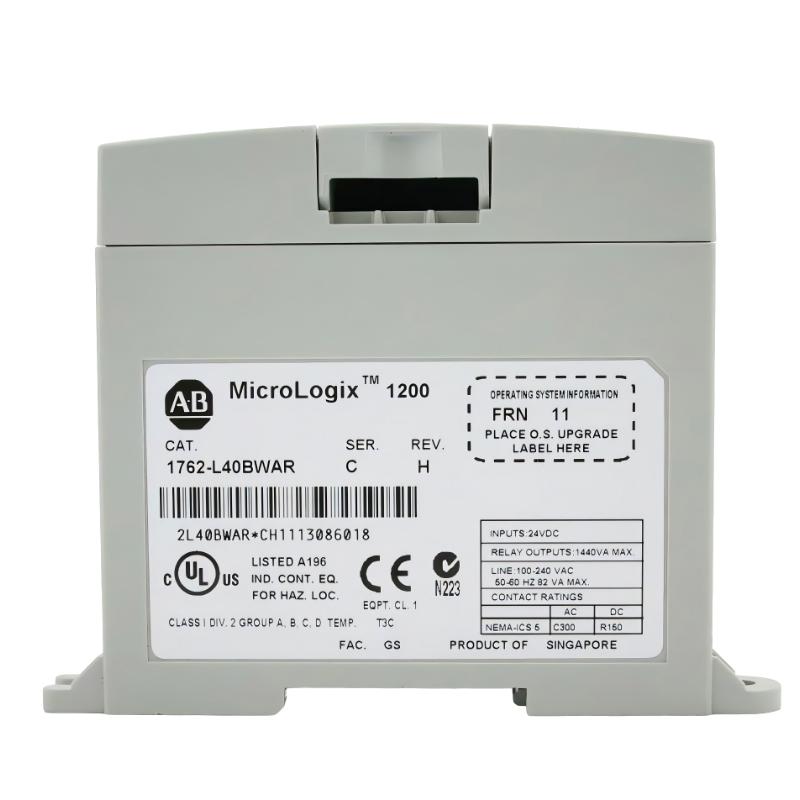

The 1762-L40BWA from Rockwell Automation is a MicroLogix 1200 series compact programmable logic controller (PLC) designed for small and medium industrial automation applications.
It integrates:
- CPU
- Power supply
- Digital I/O
- Serial communication
into a single compact controller widely used in:
- Conveyor systems
- Packaging machinery
- Pump and HVAC control
- OEM machine automation
- General industrial control systems
Technical Specifications (Including Size & Weight)
| Parameter | Specification |
|---|---|
| Model | 1762-L40BWA |
| Series | MicroLogix 1200 |
| Power Supply | 120/240V AC |
| Inputs | 24 × 24V DC digital inputs |
| Outputs | 16 × relay outputs |
| Total I/O | 40 points |
| Communication | RS-232 |
| Supported Protocols | DF1, DH-485, ASCII, Modbus RTU |
| User Memory | ~6 KB |
| Input Type | 24V DC sink/source |
| Output Type | Relay |
| High-Speed Inputs | Supported |
| Operating Temperature | 0°C to 55°C |
| Mounting | DIN rail / panel mount |
| Power Consumption | ~35 VA |
Physical Dimensions
- 90 × 180 × 87 mm (H × W × D)
- Compact integrated housing for 40-point configuration.
Weight
- Approximately 1.0–1.2 kg
Key Features
- Integrated PLC with built-in power supply and I/O
- 40 total digital I/O points
- 24 DC inputs and 16 relay outputs
- Built-in RS-232 communication port
- Supports DF1, DH-485, ASCII, and Modbus RTU
- High-speed input capability
- DIN rail or panel mounting
- Expandable using 1762 I/O modules
