Brand:Allen Bradley PLC Item No.:Allen Bradley 1762-L40BWAR Product Origin:USA Product Dimensions:90 x 195 x 87 mm Product Weight:0.95 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

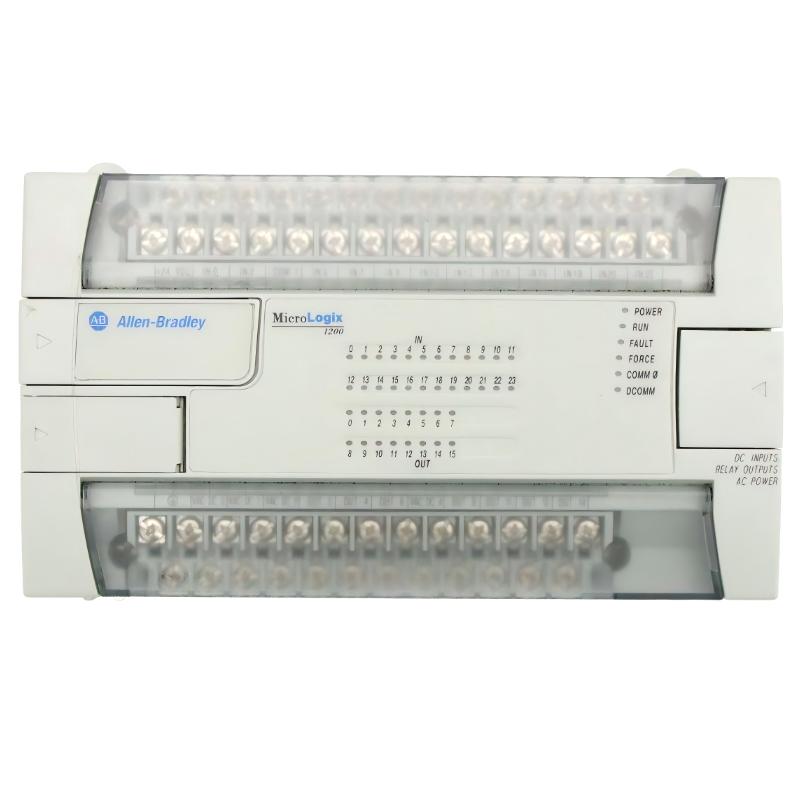

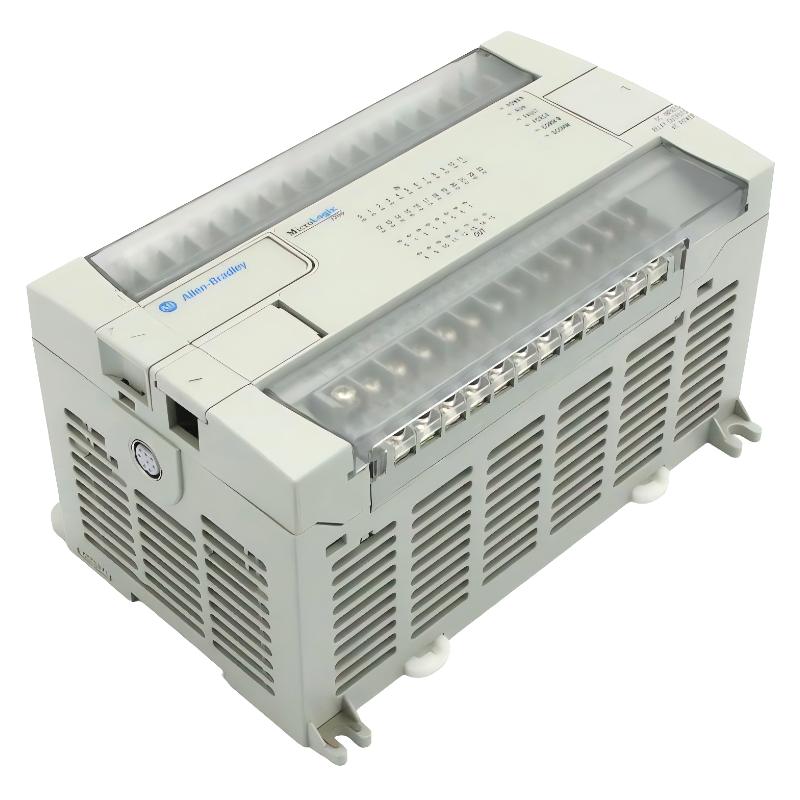

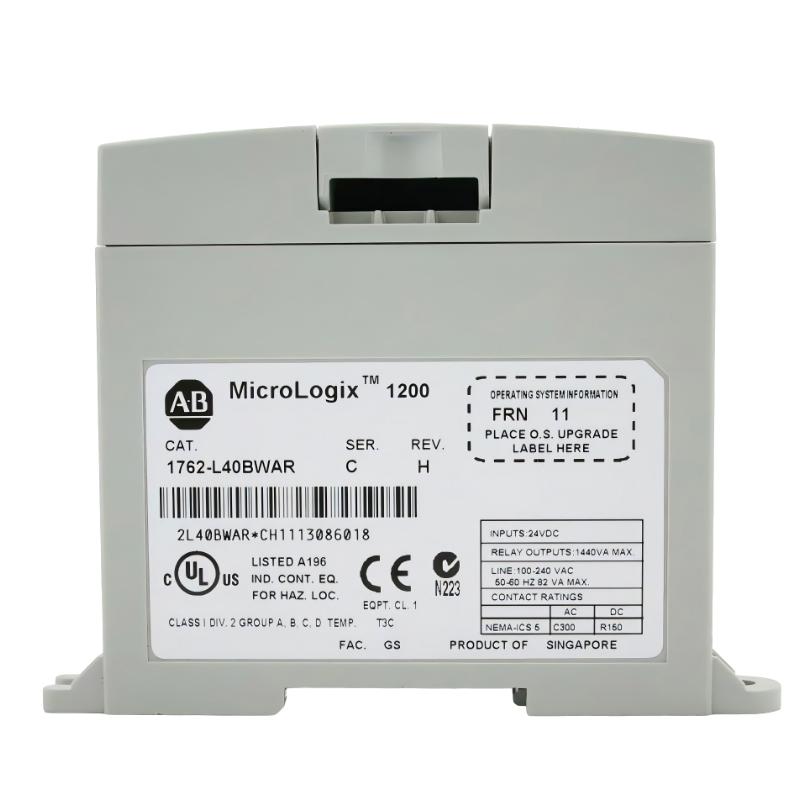

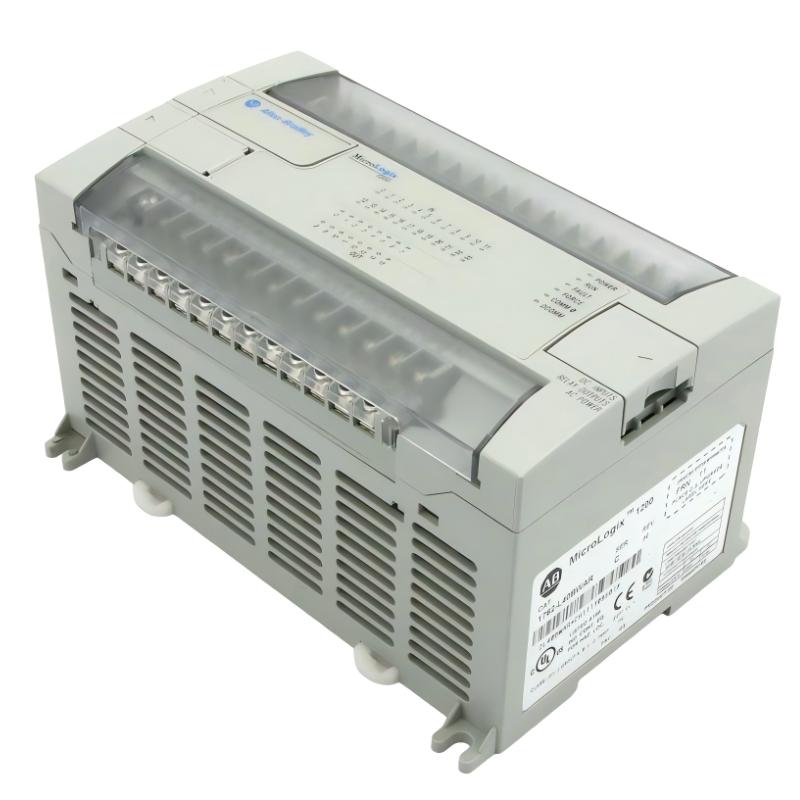

The Allen Bradley 1762-L40BWAR CPU Module is designed to deliver dependable machine-level automation in compact industrial environments where stability, flexibility, and efficient control are essential. As part of the trusted MicroLogix family, this controller combines robust processing capability with integrated I/O architecture, making it an ideal solution for OEM systems, standalone machinery, packaging lines, and small-scale manufacturing operations.
Engineered for consistent real-time performance, the module supports streamlined programming, fast data handling, and reliable communication across industrial automation networks. Its compact footprint allows seamless installation inside space-constrained control panels while maintaining high operational efficiency.
Core Technical Parameters
Specification Item
Details
Product Brand
Allen Bradley
Model Number
1762-L40BWAR
Product Type
CPU Module
Series
MicroLogix 1200
Input Power
120/240V AC
Digital Inputs
24 Inputs
Relay Outputs
16 Outputs
Communication Port
RS-232 Serial Port
Memory Capacity
User Program Memory Integrated
Mounting Method
DIN Rail / Panel Mount
Operating Temperature
0°C to 55°C
Storage Temperature
-40°C to 85°C
Enclosure Rating
Open Type
Dimensions
Approx. 90 x 195 x 87 mm
Weight
Approx. 0.95 kg
Compatible & Recommended Related Models
Related Model
Description
1762-IF4
Analog Input Expansion Module
1762-OW8
Relay Output Expansion Module
1762-IQ16
Digital Input Module
1762-OF4
Analog Output Module
1761-CBL-PM02
Programming Cable
1761-NET-AIC
Communication Interface Converter
Frequently Selected Allen Bradley Models
Popular Model
Module Category
1756-L81E
ControlLogix Controller
1769-L33ER
CompactLogix Processor
1783-US8T
Industrial Ethernet Switch
1734-IB8
POINT I/O Input Module
2711P-T10C4D8
PanelView Plus Terminal
1606-XLS240E
Industrial Power Supply
Industrial Applications
The 1762-L40BWAR CPU Module is widely implemented in industrial automation systems that require compact yet dependable control functionality. Its versatile architecture makes it suitable for both new installations and system modernization projects.
Typical application environments include:
Packaging and labeling machinery
Conveyor automation systems
Water treatment equipment
Food and beverage production lines
Small assembly stations
Material handling systems
Textile manufacturing equipment
HVAC automation panels
Its stable relay output design is especially beneficial for applications involving mixed electrical loads and frequent switching operations.
Operational Advantages
Compact Yet Powerful Architecture
The module offers an excellent balance between processing capability and installation efficiency. Its integrated I/O configuration reduces panel complexity and lowers overall wiring requirements.
Reliable Industrial Durability
Designed for demanding industrial conditions, the controller maintains stable performance during long production cycles and continuous operation environments.
Flexible Expansion Capability
The system supports additional expansion modules, allowing users to scale automation functions according to operational requirements without replacing the main controller.
Simplified Maintenance
With user-friendly diagnostics and accessible communication interfaces, maintenance engineers can perform troubleshooting and programming tasks efficiently, minimizing downtime.
Cost-Effective Automation Solution
The 1762-L40BWAR provides dependable automation performance while helping manufacturers optimize budget allocation for compact control applications.
Technical FAQs
1. What type of controller is the 1762-L40BWAR?
It is a MicroLogix 1200 programmable logic controller designed for small and medium industrial automation systems.
2. Does this module include built-in I/O?
Yes. The controller integrates both digital inputs and relay outputs within the main unit.
3. What power supply does the module require?
The unit operates using 120/240V AC input power.
4. Can additional I/O modules be connected?
Yes. Expansion modules from the 1762 series can be added for increased functionality.
5. What communication interface is available?
The module includes an RS-232 serial communication port for programming and data exchange.
6. Is the controller suitable for OEM machine builders?
Absolutely. Its compact size and reliable control capability make it highly suitable for OEM equipment integration.
7. What mounting options are supported?
The controller supports both DIN rail mounting and direct panel installation.
8. Can the unit operate in industrial temperature environments?
Yes. It is designed for industrial operating temperatures ranging from 0°C to 55°C.
9. Are relay outputs suitable for mixed load applications?
Yes. Relay outputs provide flexibility for controlling different electrical load types.
10. Why is the 1762-L40BWAR still widely used in automation systems?
Its proven reliability, easy integration, scalable expansion capability, and stable long-term performance continue to make it a trusted choice in industrial automation environments.
