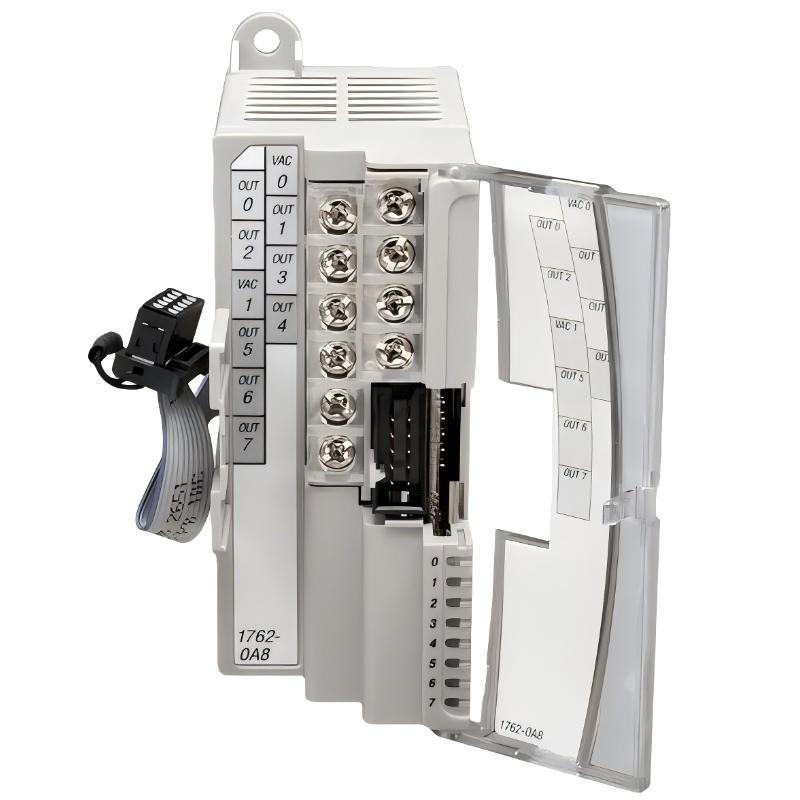

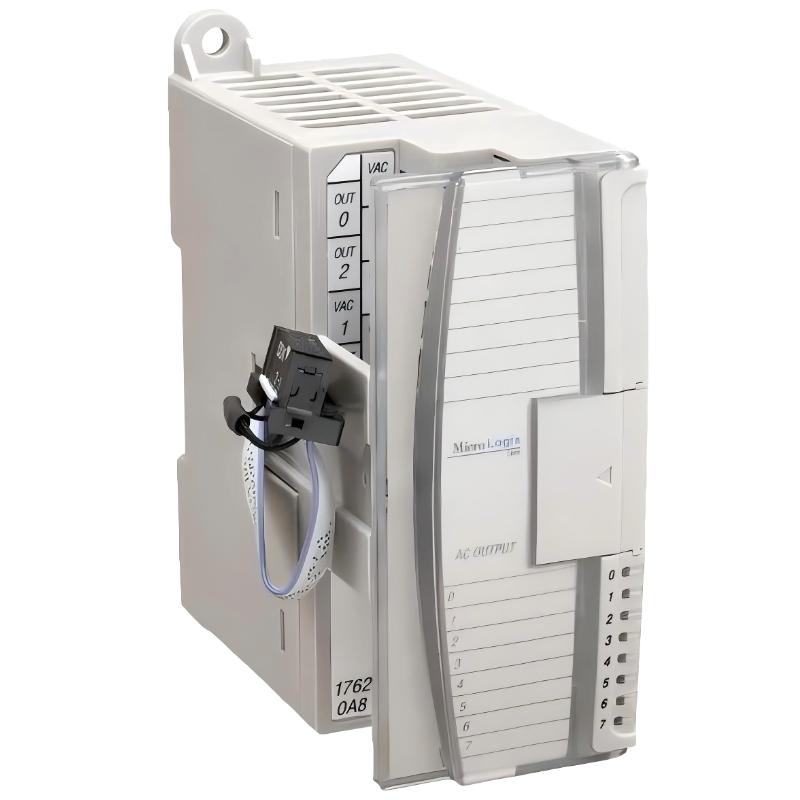

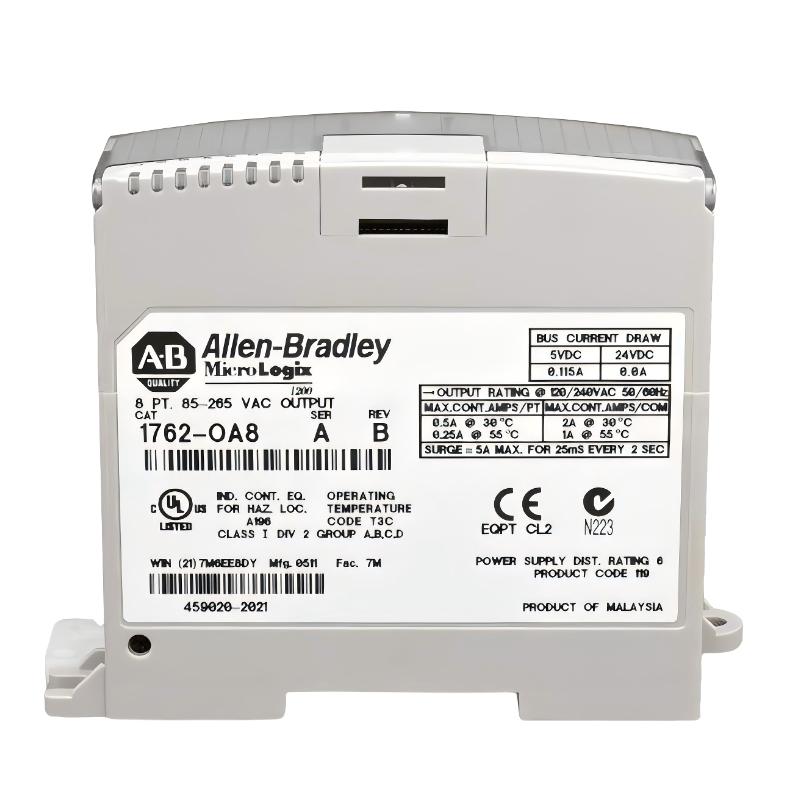

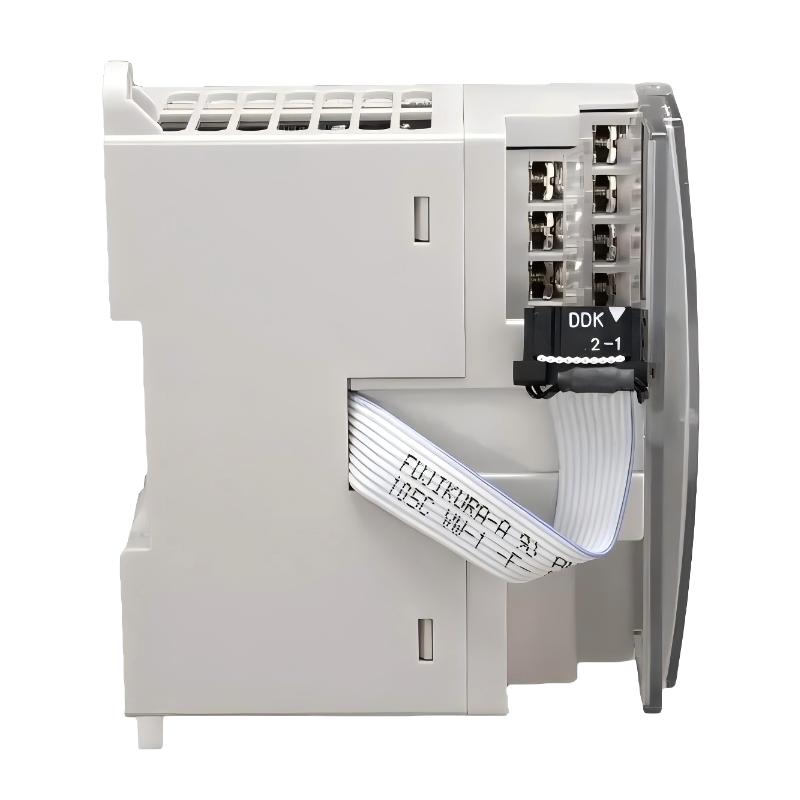

Built for industrial environments that demand dependable switching performance, the Allen Bradley 1762-OA8 Output Module delivers stable AC output expansion for MicroLogix automation systems. This compact expansion module is engineered to optimize control cabinet efficiency while providing consistent signal transmission for demanding automation tasks.
The 1762-OA8 is widely trusted in manufacturing facilities, process control systems, and OEM equipment where reliable output control and seamless system integration are critical. Its rugged construction and straightforward installation make it an excellent choice for expanding control capabilities without increasing system complexity.
Product Configuration & Technical Details
| Technical Item | Specification |
|---|---|
| Brand | Allen Bradley |
| Model | 1762-OA8 |
| Module Type | Output Module |
| Product Family | MicroLogix 1200 Expansion I/O |
| Output Type | AC Digital Outputs |
| Number of Outputs | 8 Outputs |
| Voltage Category | 120/240V AC |
| Mounting Style | DIN Rail / Panel Mount |
| Backplane Current Draw | Approx. 190 mA at 5V DC |
| Isolation Voltage | 1200V AC |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions | Approx. 90 x 87 x 40 mm |
| Net Weight | Approx. 0.32 kg |
Suggested Companion Modules
| Related Model | Function Description |
|---|---|
| 1762-L40BWAR | MicroLogix CPU Controller |
| 1762-IF4 | Analog Input Module |
| 1762-OW8 | Relay Output Module |
| 1762-IQ16 | Digital Input Expansion |
| 1762-OF4 | Analog Output Expansion |
| 1761-CBL-HM02 | Communication Cable |
