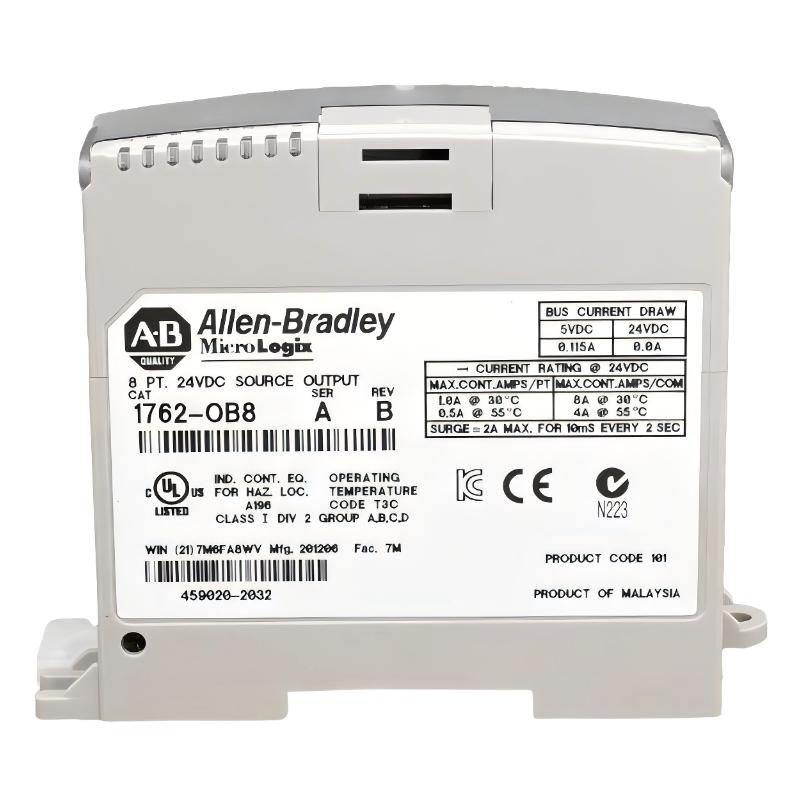

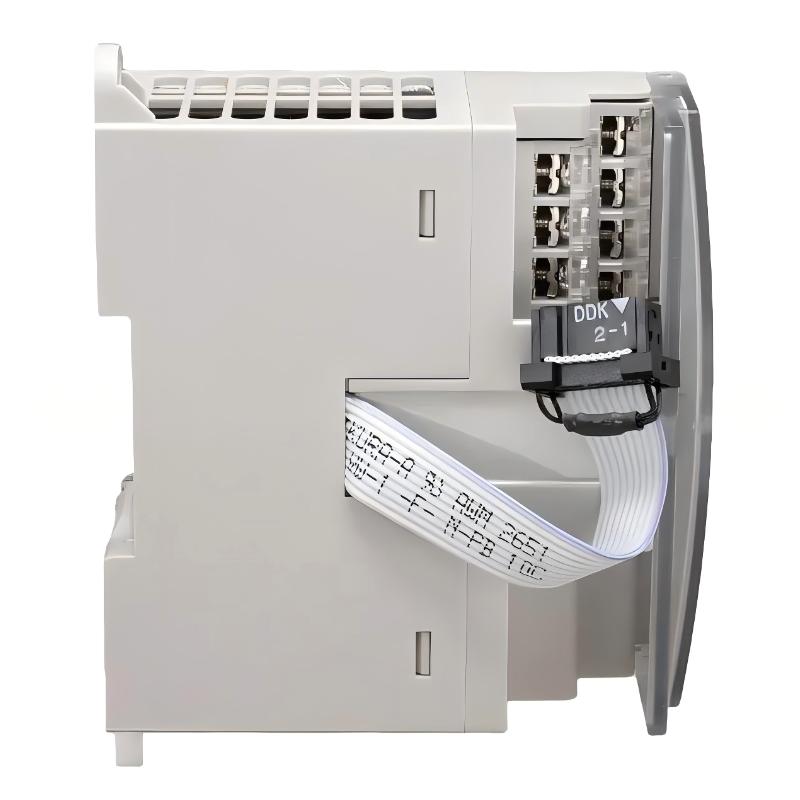

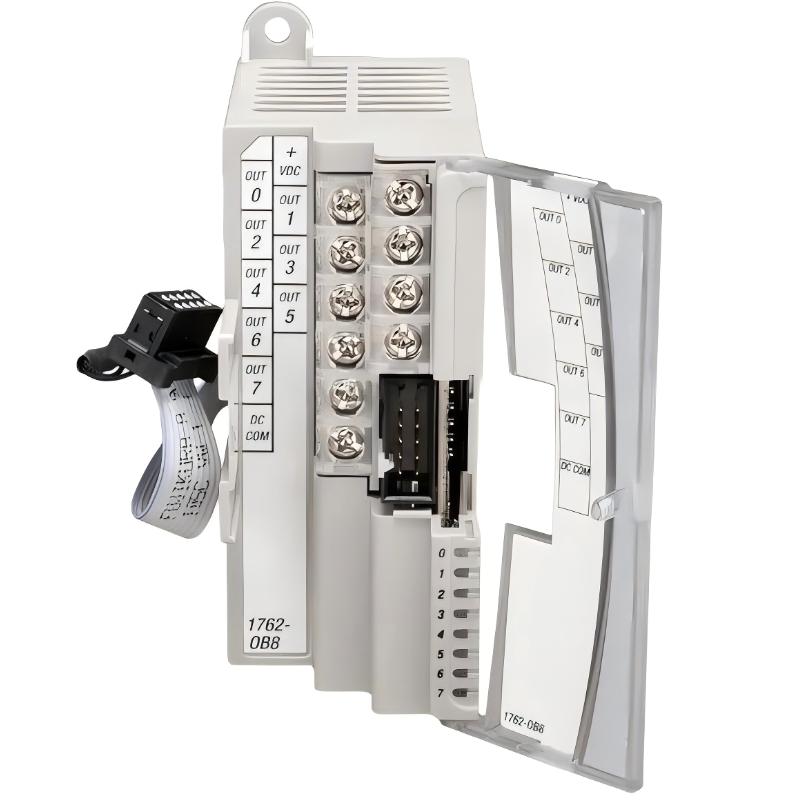

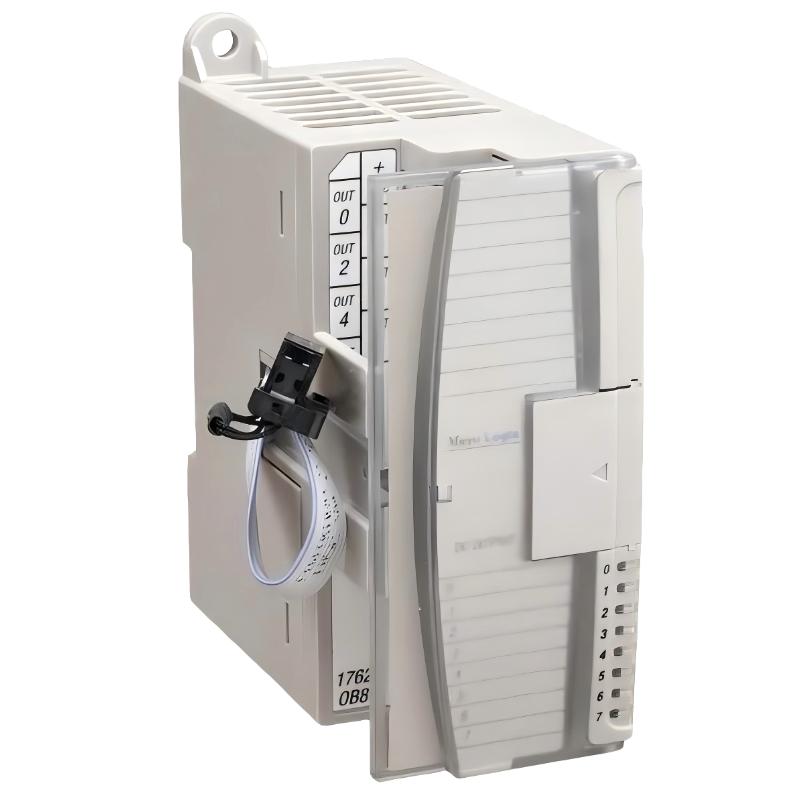

1762-OB8-4 1762-OB8-3 1762-OB8-1 1762-OB8-2

The Allen Bradley 1762-OB8 Output Module is a dependable digital expansion solution engineered for industrial control systems requiring fast and stable DC output performance. Designed to integrate seamlessly with the MicroLogix controller platform, this compact module provides efficient output expansion while maintaining excellent operational consistency in demanding automation environments.

Its durable industrial-grade construction and efficient transistor output architecture make the 1762-OB8 an ideal choice for OEM equipment manufacturers, machine builders, and industrial facilities seeking reliable signal control with optimized cabinet space utilization.

Electrical Characteristics & Hardware Details

Specification	Description
Brand Name	Allen Bradley
Model Number	1762-OB8
Module Classification	Output Module
Product Series	MicroLogix 1200 Expansion I/O
Output Quantity	8 Digital Outputs
Output Type	DC Sourcing Transistor
Operating Voltage Range	10.2 to 26.4V DC
Nominal Output Voltage	24V DC
Current Rating per Output	0.5 A
Isolation Type	Group Isolated
Status Indicators	LED Diagnostics
Installation Method	DIN Rail / Panel Mount
Operating Temperature Range	0°C to 55°C
Storage Temperature Range	-40°C to 85°C
Environmental Humidity	5% to 95% Non-Condensing
Dimensions	Approx. 90 x 40 x 87 mm
Weight	Approx. 0.24 kg

Recommended Supporting Models

Related Product	Function
1762-L40BWAR	MicroLogix CPU Controller
1762-IQ16	Digital Input Expansion Module
1762-IF2OF2	Analog Combination Module
1762-OW8	Relay Output Expansion
1762-OF4	Analog Output Module
1761-CBL-PM02	PLC Communication Cable

Commonly Used Allen Bradley Automation Products

Model	Product Category
1756-L71	ControlLogix Processor
1769-L24ER-QBFC1B	CompactLogix Controller
1734-IB8S	POINT I/O Safety Input
2711P-T7C22D9P	PanelView Plus Operator Terminal
5069-OB16	Compact 5000 Output Module
1606-XLS480E	Industrial Power Supply

Industrial Usage Scenarios

The 1762-OB8 Output Module is widely deployed in automation systems requiring reliable DC switching and compact digital output expansion.

Typical industrial applications include:

Automated packaging machinery
Conveyor control systems
Industrial assembly equipment
Process monitoring systems
Food and beverage machinery
Textile automation equipment
Warehouse material handling systems
HVAC and building automation

Its compact design and responsive transistor outputs make it especially effective in applications requiring rapid control signal execution.

Performance Advantages

Efficient Space Utilization

The compact housing design allows engineers to maximize cabinet space without sacrificing output capability, making it ideal for modern high-density control panels.

Fast Output Response

The transistor-based sourcing outputs provide rapid switching performance for automation systems requiring quick and accurate signal transmission.

Dependable Industrial Construction

Built to withstand demanding factory conditions, the module offers stable long-term operation and reduced maintenance requirements.

Flexible Expansion Capability

The module integrates smoothly with compatible MicroLogix systems, enabling scalable automation architecture for growing operational demands.

Simplified Maintenance and Diagnostics

Integrated LED status indicators help technicians quickly identify operational conditions and reduce troubleshooting time during maintenance procedures.

Technical FAQs

1. What is the primary function of the 1762-OB8 module?

The module provides 8-point DC digital output expansion for compatible MicroLogix control systems.

2. What type of outputs are included?

The module uses sourcing transistor outputs designed for DC applications.

3. Is the 1762-OB8 suitable for compact control panels?

Yes. Its slim industrial design is optimized for installations with limited cabinet space.

4. Which controllers are compatible with this module?

The module is commonly used with Allen Bradley MicroLogix 1200 series controllers.

5. What voltage range does the module support?

It supports DC operating voltages ranging from 10.2V to 26.4V DC.

6. Can the module handle high-speed switching applications?

Yes. The transistor output design supports fast response times for industrial automation systems.

7. What mounting methods are available?

The module supports DIN rail mounting as well as panel installation.

8. Does the module provide diagnostic indicators?

Yes. LED indicators are integrated for output status monitoring and diagnostics.

9. In which industries is the 1762-OB8 commonly used?

It is widely used in manufacturing, logistics, packaging, food processing, and material handling industries.

10. Why do engineers select the 1762-OB8 for automation projects?

Its compact size, reliable DC output performance, easy integration, and industrial durability make it a trusted choice for automation expansion systems.
