Introduction

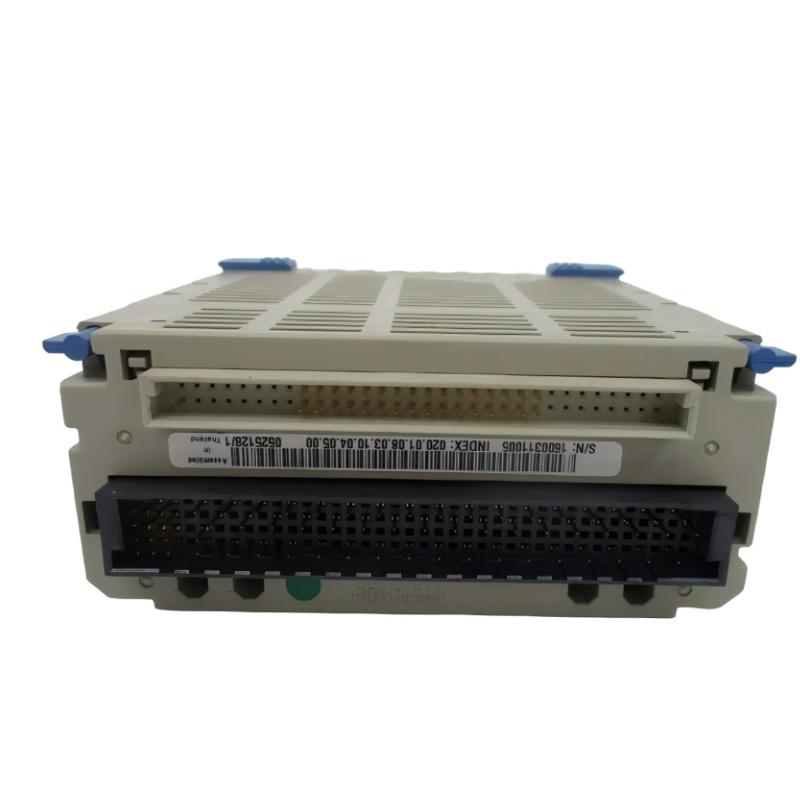

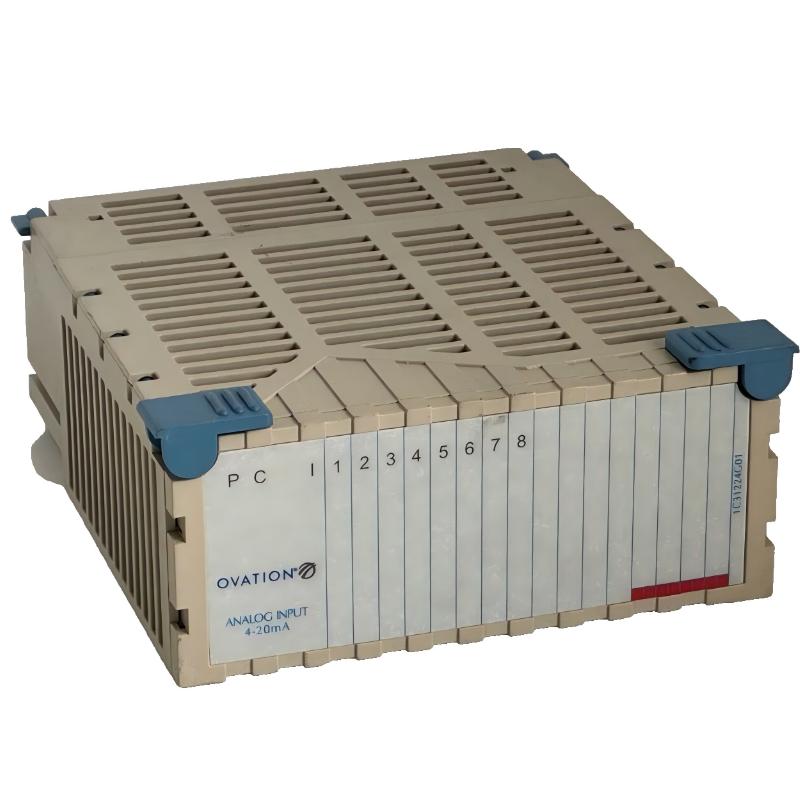

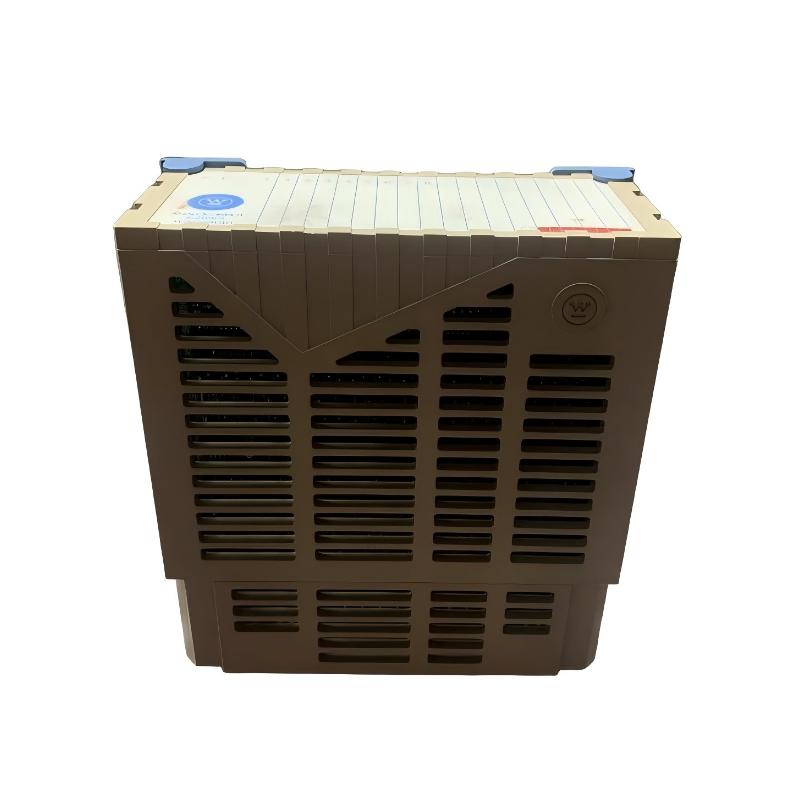

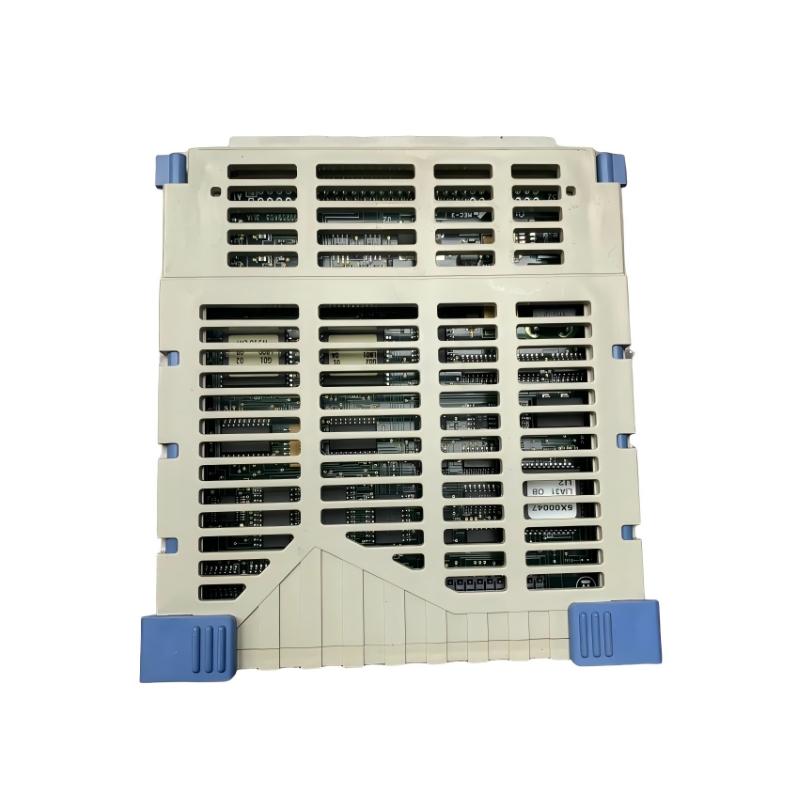

The Ovation 1C31224G01 8-Channel Analog Input Module provides precise, multi-channel signal acquisition for industrial automation and process control systems. Compact and lightweight, it integrates seamlessly with Ovation 1C3 series DCS and SCADA systems, offering reliable monitoring of temperature, pressure, flow, and other critical process variables. Industrial-grade durability ensures consistent operation even in demanding environments.

Technical Specifications

Feature	Specification
Module Type	8-Channel Analog Input Module
Function	Analog signal acquisition
Compatibility	Ovation 1C3 series DCS and SCADA systems
Protection	EMI-resistant, vibration-resistant
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	121 × 52 × 166 mm
Weight	0.45 kg (0.992 lb)

Applications

The Ovation 1C31224G01 8-Channel Analog Input Module is designed for accurate and reliable acquisition of analog signals in industrial automation systems. Typical applications include:

Collecting data from sensors, transducers, and process instruments
Integration with Ovation 1C3 series DCS for process monitoring and control
SCADA systems requiring real-time analog signal processing
Power generation, chemical, and manufacturing plants
Monitoring temperature, pressure, flow, and other process variables

Its multi-channel capability enables efficient and precise data acquisition in compact spaces.

Advantages

Multi-Channel Capability: Supports eight analog inputs for comprehensive process monitoring.
High Accuracy: Ensures precise signal acquisition from industrial sensors.
Compact and Lightweight: Fits easily into control panels without occupying excessive space.
Industrial-Grade Reliability: Resistant to vibration, EMI, and temperature fluctuations.
Seamless Integration: Fully compatible with Ovation 1C3 series DCS and SCADA systems.

Technical FAQs

Q: How many channels does this module support?
A: Eight analog input channels.
Q: Is it compatible with Ovation 1C3 DCS systems?
A: Yes, fully integrated for reliable analog data acquisition.
Q: What types of signals can it measure?
A: Voltage, current, and signals from standard industrial sensors.
Q: Can it operate in high-vibration environments?
A: Yes, engineered for vibration resistance in industrial applications.
Q: What is the operating temperature range?
A: -20°C to 60°C, suitable for most industrial environments.
Q: Does it require active cooling?
A: No, passive cooling is sufficient for normal operation.
Q: How does it handle electromagnetic interference (EMI)?
A: EMI-resistant design ensures accurate and stable signal readings.
Q: Can multiple modules be used together for larger systems?
A: Yes, modules can be networked to expand channel capacity.
Q: Is installation straightforward?
A: Yes, compact size and lightweight design allow easy panel mounting.
Q: What is the expected lifespan of the module?
A: Over 10 years under normal industrial operating conditions.
