Brand:Allen Bradley PLC Item No.:Allen Bradley 1762-OF4 Product Origin:USA Product Dimensions:90 x 87 x 40 mm Product Weight:0.27 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

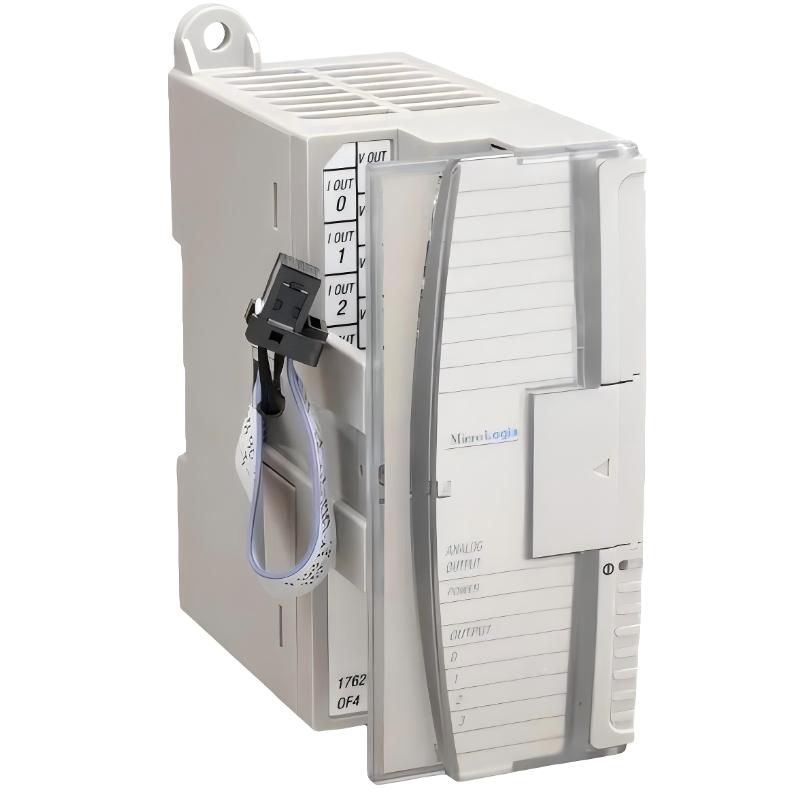

The Allen Bradley 1762-OF4 Analog Output Module is engineered to provide accurate and stable analog signal control for demanding industrial automation systems. Designed as part of the highly trusted MicroLogix expansion I/O family, this module delivers dependable analog output performance for applications requiring precise process regulation and responsive equipment control.
Its compact industrial design, combined with high-performance signal accuracy, makes the 1762-OF4 an ideal solution for manufacturers seeking efficient analog integration within modern control architectures. Whether used in process automation, machine control, or OEM equipment, the module supports smooth operation, flexible scalability, and long-term reliability.
Product Specifications & Hardware Information
Technical Specification
Details
Manufacturer
Allen Bradley
Model Number
1762-OF4
Product Type
Analog Output Module
Product Family
MicroLogix 1200 Expansion I/O
Number of Outputs
4 Analog Outputs
Output Signal Types
Voltage / Current
Voltage Output Range
0 to 10V DC
Current Output Range
4 to 20 mA
Resolution
14-bit
Backplane Current Draw
Approx. 150 mA at 5V DC
Isolation
Non-Isolated Outputs
Mounting Type
DIN Rail / Panel Mount
Operating Temperature
0°C to 55°C
Storage Temperature
-40°C to 85°C
Relative Humidity
5% to 95% Non-Condensing
Dimensions
Approx. 90 x 87 x 40 mm
Weight
Approx. 0.27 kg
Recommended Companion Products
Related Model
Product Function
1762-L40BWAR
MicroLogix CPU Controller
1762-IF4
Analog Input Module
1762-OB8
DC Output Module
1762-IQ16
Digital Input Expansion
1762-OW16
Relay Output Module
1761-CBL-PM02
PLC Programming Cable
Popular Allen Bradley Automation Components
Product Model
Category
1756-OF8
ControlLogix Analog Output Module
1769-L33ER
CompactLogix Controller
5069-OF4
Compact 5000 Analog Output Module
1734-OE4C
POINT I/O Analog Output
2711P-T12C6D2
PanelView Plus HMI
1606-XLS960E
Industrial Power Supply
Common Industrial Applications
The Allen Bradley 1762-OF4 Analog Output Module is widely used in industrial environments requiring precise analog signal generation and process control functionality.
Typical applications include:
Variable frequency drive control
Industrial temperature regulation
Process flow control systems
Pressure and level control applications
Packaging and filling machinery
Water and wastewater automation
Chemical processing systems
HVAC and energy management systems
Its flexible voltage and current output capability allows seamless integration with a wide range of industrial field devices.
Key Functional Advantages
High-Accuracy Analog Performance
The module delivers precise analog output signals, helping improve process consistency and overall system efficiency in critical industrial operations.
Flexible Signal Compatibility
Supporting both voltage and current output ranges, the 1762-OF4 provides excellent compatibility with drives, valves, sensors, and process equipment.
Compact Industrial Design
Its slim mechanical profile allows easy installation in crowded control cabinets while simplifying panel organization.
Reliable Long-Term Operation
Designed for industrial reliability, the module maintains stable signal performance even in continuous-duty production environments.
Simplified System Expansion
The module integrates efficiently with MicroLogix control systems, enabling scalable automation upgrades without extensive redesign.
Technical FAQs
1. What is the primary function of the 1762-OF4 module?
The module provides analog output expansion for MicroLogix automation systems.
2. How many analog outputs are available?
The 1762-OF4 includes 4 analog output channels.
3. What signal types does the module support?
It supports both voltage outputs and current outputs for industrial control applications.
4. Is the module suitable for process automation?
Yes. It is widely used in process control systems requiring accurate analog signal transmission.
5. What controllers are compatible with this module?
The module is designed for compatible Allen Bradley MicroLogix control systems.
6. Can the module control variable frequency drives?
Yes. The analog output functionality makes it suitable for VFD speed control applications.
7. What mounting methods are supported?
The module supports DIN rail mounting and direct panel installation.
8. Is the module designed for industrial environments?
Yes. It is engineered for reliable operation in demanding industrial conditions.
9. What industries commonly use the 1762-OF4?
It is widely used in manufacturing, water treatment, HVAC, food processing, and chemical automation industries.
10. Why is the 1762-OF4 popular in industrial automation projects?
Its precise analog control capability, flexible signal compatibility, compact structure, and dependable performance make it a trusted automation solution.
