Brand:Allen Bradley PLC Item No.:Allen Bradley 1762-OW8 Product Origin:USA Product Dimensions:90 x 87 x 40 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

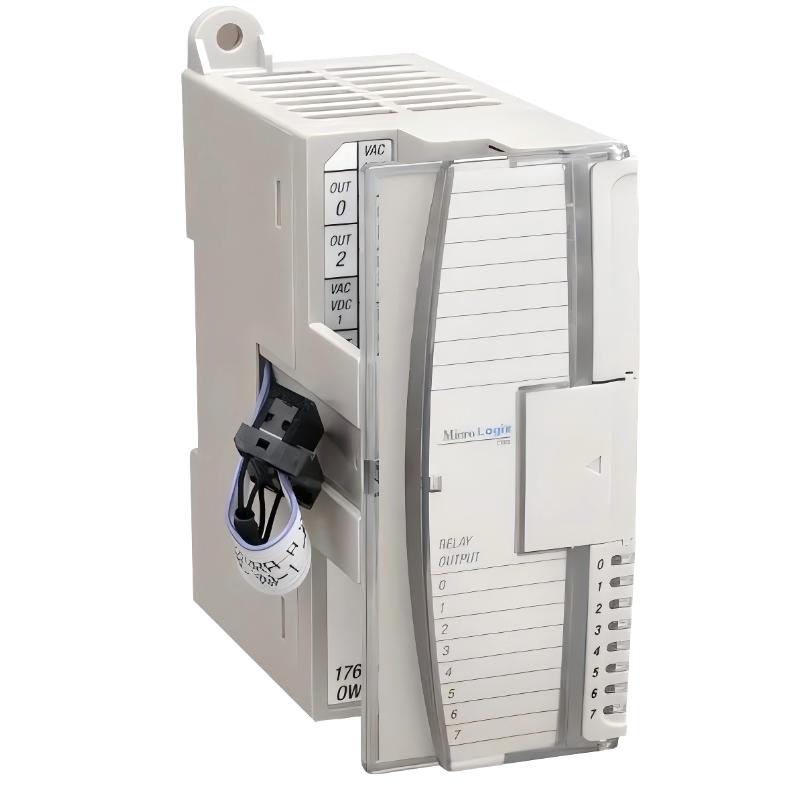

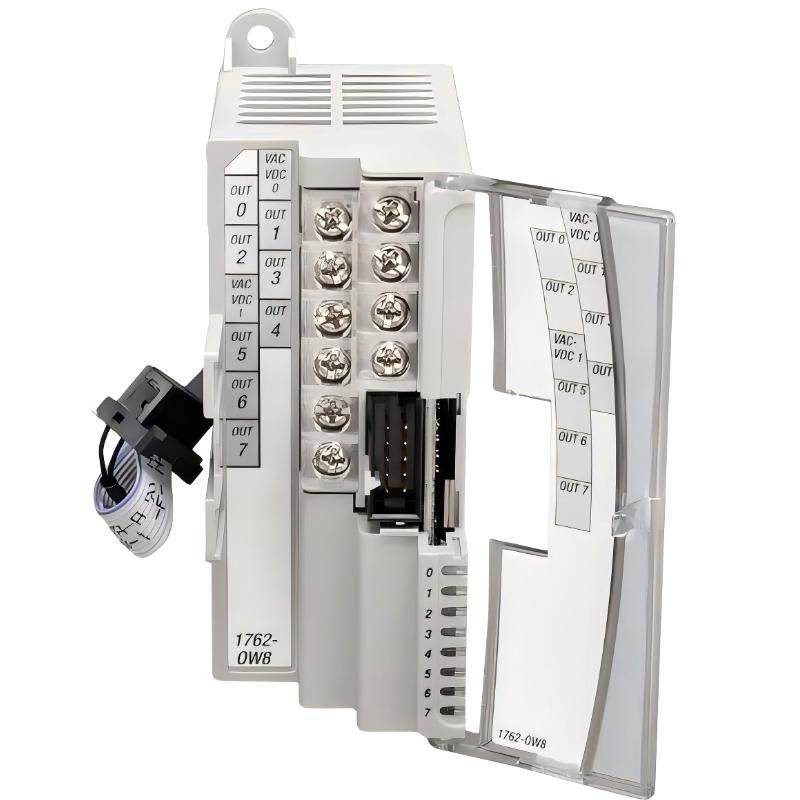

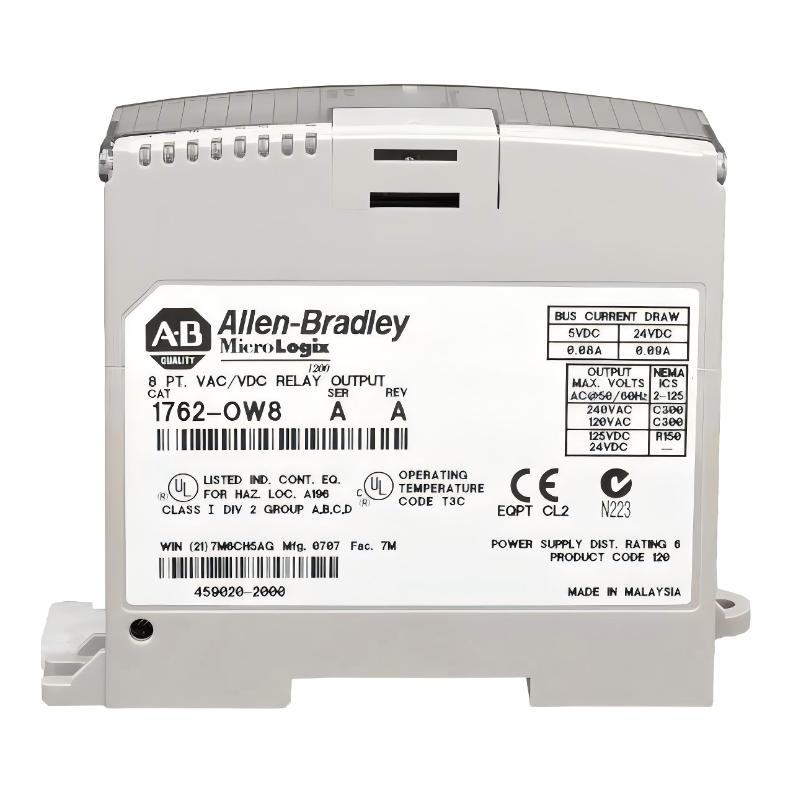

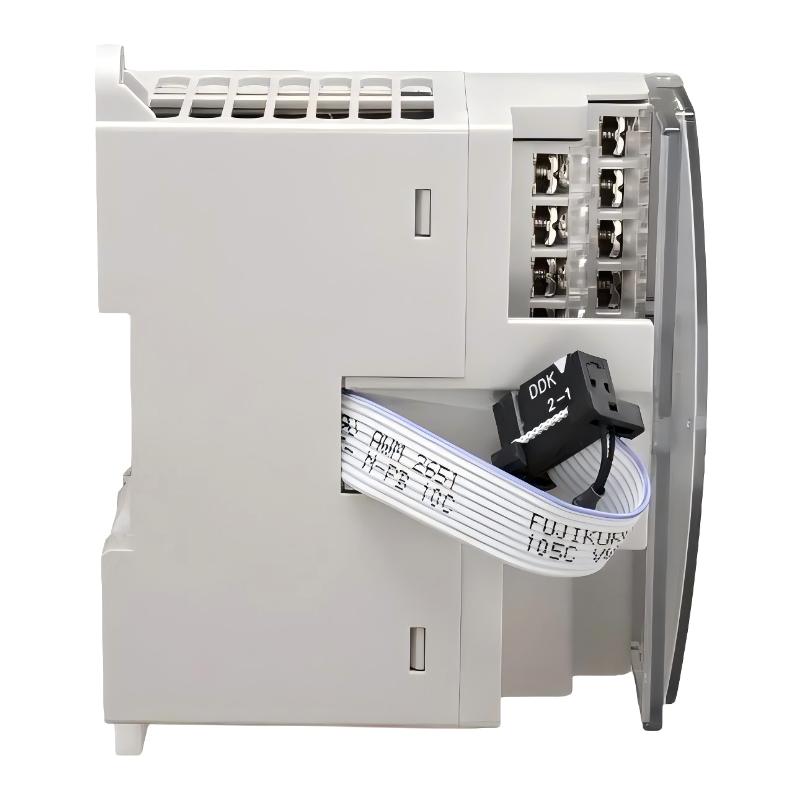

The Allen Bradley 1762-OW8 Relay Output Module is engineered to provide dependable relay-based output expansion for industrial automation systems requiring versatile load control and long-term operational stability. As part of the trusted MicroLogix 1200 expansion I/O family, this module delivers reliable switching performance for both AC and DC applications in demanding production environments.
Its compact industrial design, combined with durable relay output architecture, makes the 1762-OW8 an ideal solution for machine builders, OEM automation projects, and manufacturing facilities seeking efficient system scalability with minimal panel space requirements.
Product Specifications & Technical Data
Technical Specification
Details
Brand
Allen Bradley
Model Number
1762-OW8
Product Category
Relay Output Module
Product Family
MicroLogix 1200 Expansion I/O
Number of Outputs
8 Relay Outputs
Output Contact Type
Normally Open Relay
Output Voltage Range
5 to 265V AC / 5 to 125V DC
Maximum Current per Output
2.5 A
Isolation Type
Relay Isolated
Output Response Time
Approx. 10 ms
Status Indicators
LED Output Indicators
Mounting Options
DIN Rail / Panel Mount
Operating Temperature Range
0°C to 55°C
Storage Temperature Range
-40°C to 85°C
Humidity Rating
5% to 95% Non-Condensing
Dimensions
Approx. 90 x 87 x 40 mm
Weight
Approx. 0.30 kg
Recommended Related Models
Related Product
Description
1762-L40BWAR
MicroLogix CPU Controller
1762-IQ16
Digital Input Expansion Module
1762-OB8
DC Transistor Output Module
1762-IF4
Analog Input Module
1762-OF4
Analog Output Module
1761-CBL-PM02
PLC Communication Cable
Popular Allen Bradley Automation Products
Product Model
Product Type
1756-L81E
ControlLogix Controller
1769-L33ER
CompactLogix Processor
1734-OW4
POINT I/O Relay Output Module
5069-OB16
Compact 5000 Output Module
2711P-T10C22D9P
PanelView Plus HMI
1783-US8T
Industrial Ethernet Switch
Typical Industrial Applications
The Allen Bradley 1762-OW8 Relay Output Module is widely used in industrial automation systems where flexible relay switching and reliable output control are essential.
Common applications include:
Conveyor and material handling systems
Packaging and labeling equipment
Industrial motor and pump control
HVAC automation systems
Food and beverage machinery
Water treatment control panels
Assembly line automation
Process monitoring equipment
Its relay-based output configuration allows compatibility with multiple load types, making it suitable for diverse industrial control environments.
Key Product Advantages
Flexible AC and DC Load Control
The relay outputs support a wide voltage range, enabling reliable switching performance across various industrial devices and equipment types.
Compact High-Efficiency Design
The slim module profile helps maximize control cabinet space while providing efficient output expansion capability.
Reliable Industrial Durability
Built for continuous-duty industrial environments, the 1762-OW8 delivers stable long-term operation with reduced maintenance requirements.
Seamless System Integration
The module integrates smoothly with compatible MicroLogix control systems, simplifying expansion and reducing engineering complexity.
Easy Diagnostics and Maintenance
Integrated LED indicators provide quick visual status monitoring, helping technicians improve troubleshooting efficiency and reduce downtime.
Technical FAQs
1. What is the main function of the 1762-OW8 module?
The module provides 8 relay outputs for industrial automation system expansion and device control.
2. What type of outputs are included in the module?
The module uses relay-based normally open outputs suitable for AC and DC switching applications.
3. How many outputs does the 1762-OW8 provide?
The module includes 8 relay output channels.
4. Which controller series is compatible with this module?
It is commonly used with Allen Bradley MicroLogix 1200 controllers and related automation systems.
5. Can the module control both AC and DC loads?
Yes. The relay outputs are designed to handle a wide range of AC and DC voltages.
6. What mounting methods are supported?
The module supports DIN rail mounting and direct panel installation.
7. Is the module suitable for industrial environments?
Yes. It is designed for reliable operation in demanding industrial automation conditions.
8. Does the module include diagnostic indicators?
Yes. LED indicators provide operational status visibility for easier maintenance and troubleshooting.
9. What industries commonly use the 1762-OW8?
It is widely used in manufacturing, logistics, packaging, HVAC, water treatment, and machine automation industries.
10. Why is the 1762-OW8 popular in automation projects?
Its flexible relay switching capability, compact structure, reliable performance, and easy integration make it a dependable expansion module for industrial control systems.
