Brand:Allen Bradley PLC Item No.:Allen Bradley 1762SC-OF8 Product Origin:USA Product Dimensions:165 × 42 × 96 mm Product Weight:0.91 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

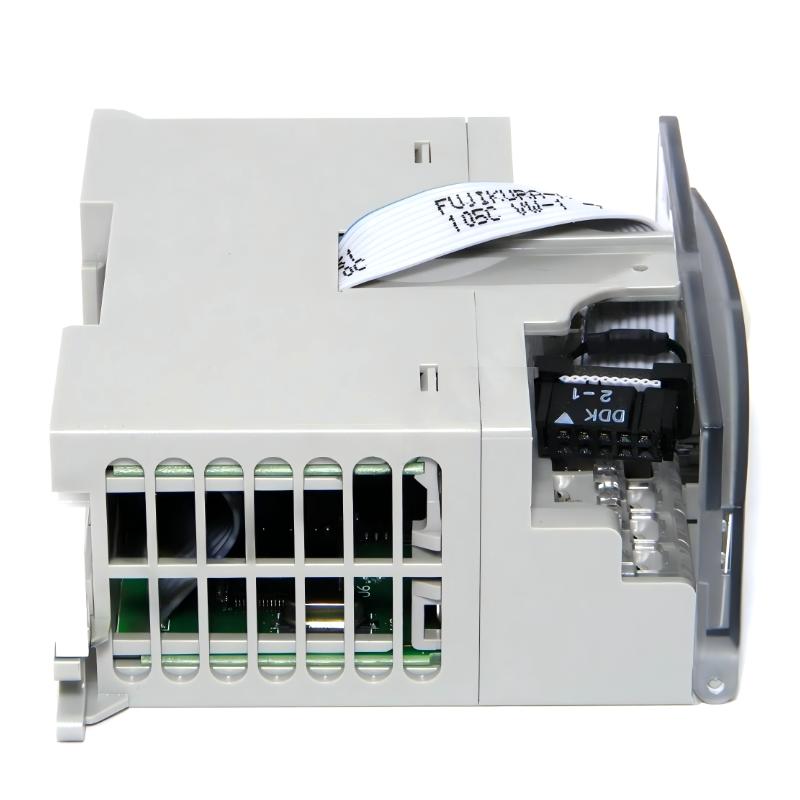

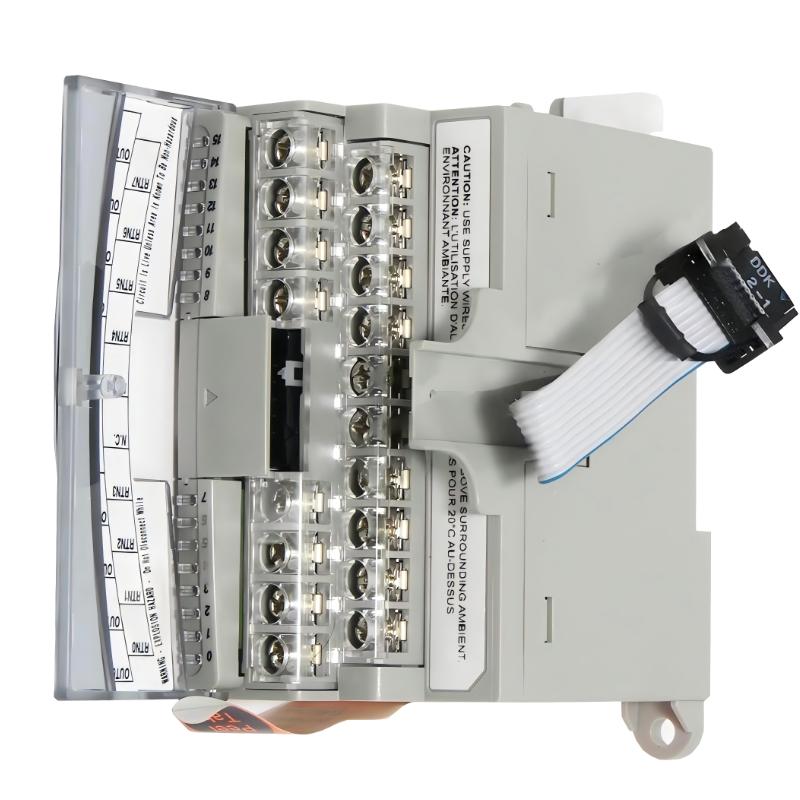

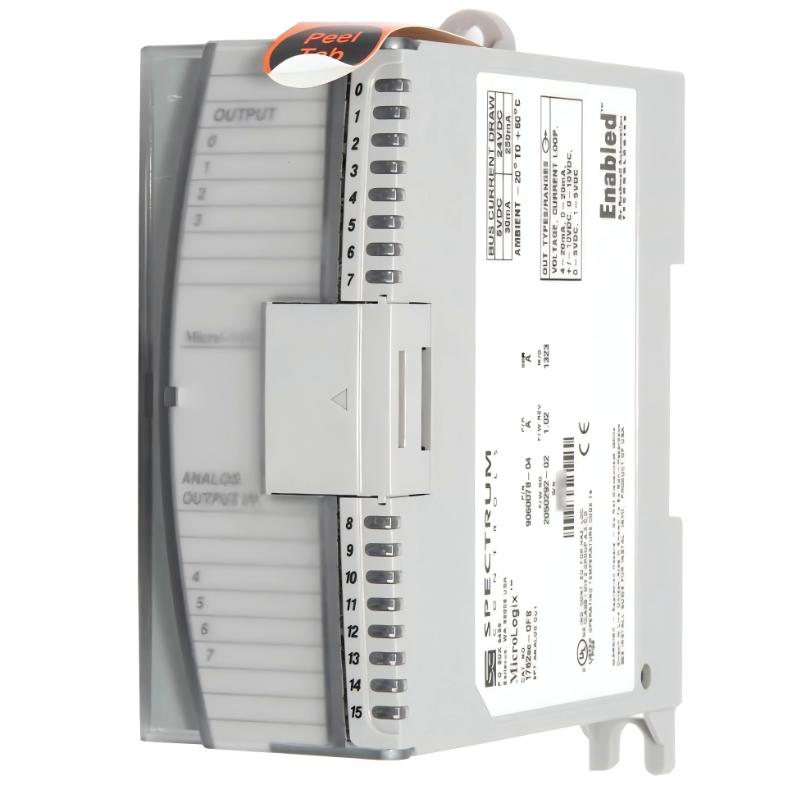

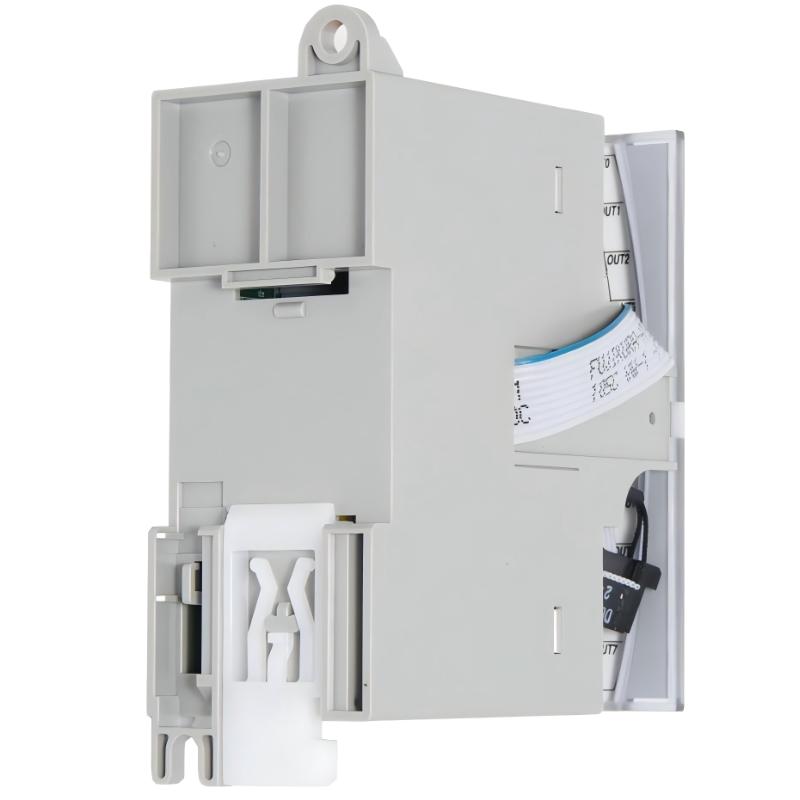

The Allen Bradley 1762SC-OF8 is a high-performance universal analog output module developed by Spectrum Controls for use with Allen Bradley MicroLogix PLC systems. Designed for demanding industrial environments, this module delivers flexible, high-density analog signal output across multiple signal types, enabling precise process control in compact automation architectures.
Engineered for applications where accuracy, channel flexibility, and system efficiency are critical, the 1762SC-OF8 supports mixed voltage and current outputs with per-channel configurability—making it a powerful upgrade over standard fixed-function analog modules.
Technical Specifications
Specification
Details
Manufacturer
Spectrum Controls (Allen Bradley compatible)
Model
1762SC-OF8
Product Type
Universal Analog Output Module
Compatible PLC Series
MicroLogix 1100 / 1200 / 1400
Output Channels
8 Analog Outputs
Output Types
Voltage & Current (mixed configuration supported)
Voltage Output Ranges
0–5V, 1–5V, 0–10V, ±10V
Current Output Ranges
0–20 mA / 4–20 mA
Resolution
16-bit high precision
Channel Configuration
Independent per channel
Update / Response Time
< 1 ms to 63% full scale
Backplane Current
~30 mA (5V), varies by system load
Power Dissipation
Approx. 4.9 W max
Isolation
Industrial-grade channel isolation
Operating Temperature
-20°C to 60°C
Storage Temperature
-40°C to 85°C
Humidity
5%–95% non-condensing
Mounting Type
DIN rail / panel mount
Dimensions
Approx. 165 × 42 × 96 mm
Weight
Approx. 0.91 kg
Recommended Related Modules
Module
Function
1762SC-IF8U
Universal Analog Input Module
1762-OF4
Standard Analog Output Module
1762-IF4
Analog Input Module
1762-OB8
DC Output Module
1762-OW16
Relay Output Module
1762-L40BWAR
MicroLogix CPU Controller
Popular Allen Bradley Control System Products
Model
Category
1756-OF8
ControlLogix Analog Output
1769-L33ER
CompactLogix Controller
5069-OF4
Compact 5000 Analog Output
1734-OE4C
POINT I/O Analog Output
2711P-T10C4D8
PanelView HMI Terminal
1606-XLE480E
Industrial Power Supply
Industrial Applications
The 1762SC-OF8 is widely used in advanced industrial automation systems requiring precise analog output control and multi-signal flexibility.
Typical applications include:
Process control systems with variable setpoint regulation
HVAC and environmental control automation
Chemical dosing and blending systems
Variable speed drive (VFD) control
Pressure, flow, and temperature regulation loops
OEM machine automation systems
Energy management and utility systems
Water and wastewater treatment control
Its universal output capability makes it especially valuable in systems where multiple analog signal standards must coexist in a single control architecture.
Key Advantages
Universal Output Flexibility
Each channel can be individually configured for voltage or current output, eliminating the need for multiple dedicated modules.
High-Resolution Control Accuracy
With 16-bit resolution, the module provides precise analog signal control for demanding industrial processes requiring fine tuning and stability.
High-Density Compact Design
Eight analog outputs in a compact footprint help reduce control cabinet size while maximizing system capability.
Fast Response Performance
Sub-millisecond response behavior ensures smooth and responsive control for real-time process adjustments.
Reduced System Complexity
By combining multiple output types in one module, it simplifies wiring, configuration, and spare parts management.
Technical FAQs
1. What is the 1762SC-OF8 used for?
It is a universal analog output module used for precise control of industrial processes via PLC systems.
2. How many outputs does it provide?
The module provides 8 independently configurable analog output channels.
3. What output types are supported?
It supports both voltage and current outputs, including 0–10V and 4–20mA standards.
4. Can each channel be configured differently?
Yes. Each channel can operate independently with different signal types and ranges.
5. What PLC systems is it compatible with?
It is compatible with Allen Bradley MicroLogix 1100, 1200, and 1400 controllers.
6. What is the resolution of the module?
It provides 16-bit high-resolution analog output control.
7. Is it suitable for fast process control?
Yes. It has fast response time suitable for dynamic industrial control loops.
8. What industries commonly use this module?
It is widely used in manufacturing, HVAC, chemical processing, energy systems, and water treatment.
9. Does it reduce system hardware requirements?
Yes. It replaces multiple single-function output modules with one universal solution.
10. Why is the 1762SC-OF8 considered a premium upgrade?
Because it combines high-density outputs, universal signal compatibility, and high precision in a single compact industrial module, improving both flexibility and system efficiency.
