Introduction

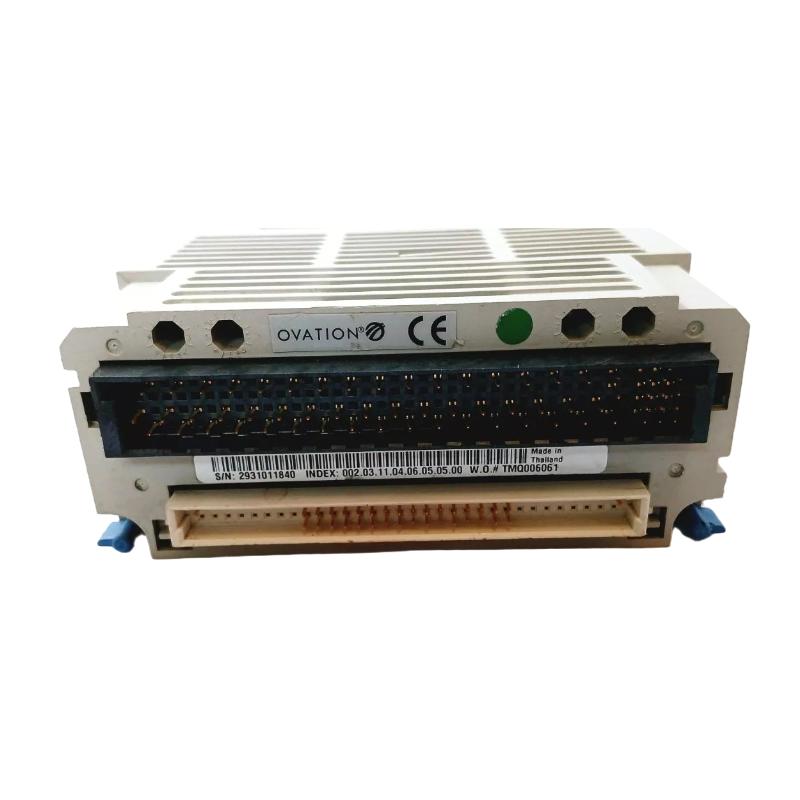

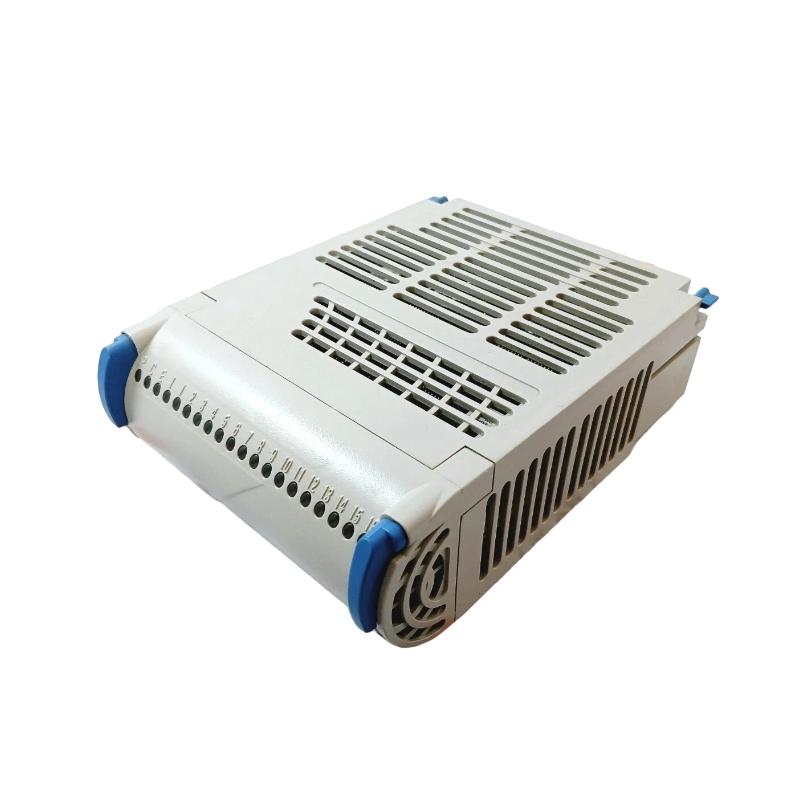

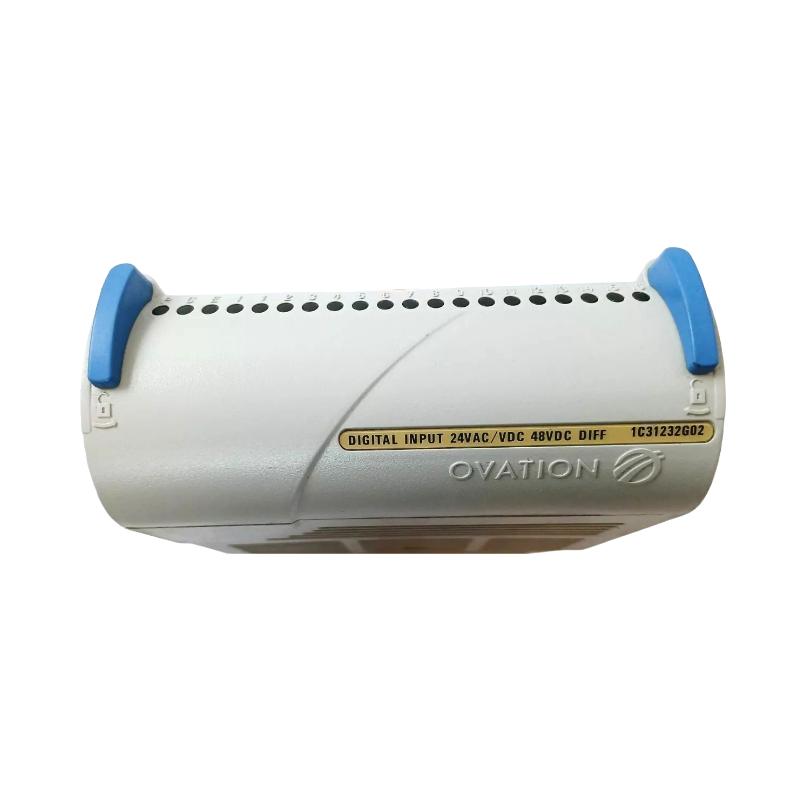

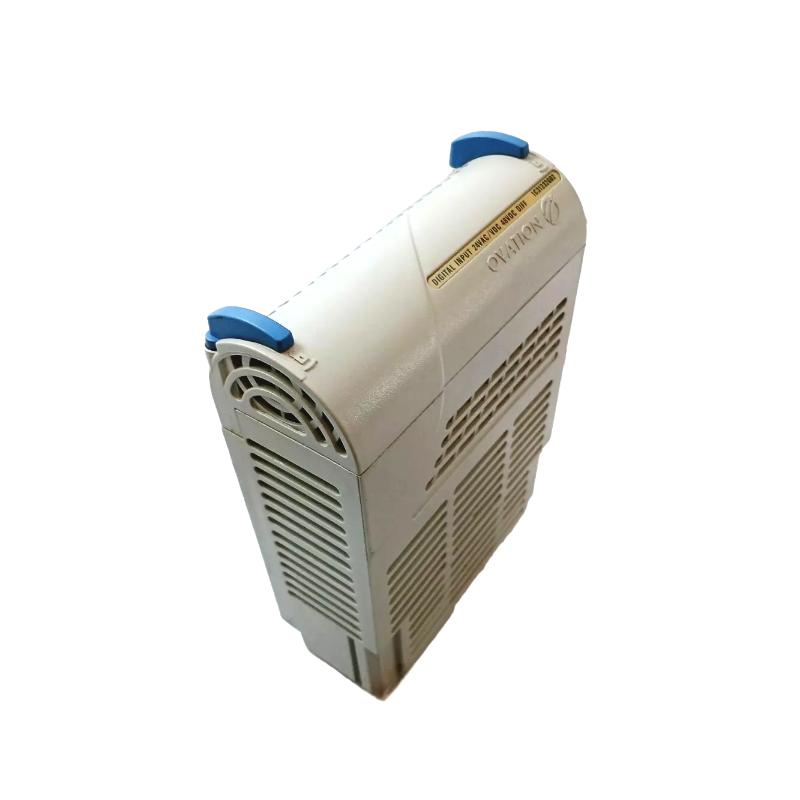

The Ovation 1C31232G02 Differential Digital Input Module provides high-speed, reliable digital signal acquisition for industrial automation and process control systems. Its differential input design ensures exceptional noise immunity, while compact and robust construction allows seamless integration with Ovation 1C3 DCS and SCADA systems. Perfect for monitoring critical digital signals, it supports efficient operation even in challenging industrial environments.

Technical Specifications

Feature	Specification
Module Type	Differential Digital Input Module
Function	High-speed differential digital signal acquisition
Compatibility	Ovation 1C3 series DCS and SCADA systems
Protection	EMI-resistant, vibration-resistant
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	50 × 240 × 200 mm
Weight	0.372 kg (0.820 lb)

Applications

The Ovation 1C31232G02 Differential Digital Input Module is engineered for accurate, high-speed digital signal acquisition in industrial automation systems. Typical applications include:

Capturing differential digital signals from field devices and sensors
Integration with Ovation 1C3 DCS for real-time process monitoring
High-speed event detection in SCADA and process control systems
Power generation, chemical, and manufacturing plant automation
Monitoring alarms, switches, and control inputs with high noise immunity

Its differential input design ensures precise signal detection even in electrically noisy environments.

Advantages

High-Speed Digital Input: Provides rapid and accurate signal detection.
Differential Input Design: Enhances noise immunity for reliable operation.
Compact and Industrial-Grade: Fits control panels while resisting vibration and EMI.
Seamless Integration: Fully compatible with Ovation 1C3 DCS and SCADA systems.
Low Maintenance: Designed for long-term, reliable performance.

Technical FAQs

Q: What type of signals does this module support?
A: Differential digital signals from industrial sensors and switches.
Q: Is it compatible with Ovation 1C3 series DCS?
A: Yes, fully compatible for real-time digital input monitoring.
Q: Can it operate in high-vibration industrial environments?
A: Yes, designed for stable performance under vibration conditions.
Q: Does it have noise immunity?
A: Yes, differential input design ensures high noise rejection.
Q: What is the operating temperature range?
A: -20°C to 60°C, suitable for industrial environments.
Q: Can multiple modules be networked for larger systems?
A: Yes, modules can be combined to expand digital input capacity.
Q: Is installation straightforward?
A: Yes, compact design allows easy panel mounting.
Q: What is the expected operational lifespan?
A: Over 10 years under standard industrial conditions.
Q: Can it detect high-speed events?
A: Yes, designed for rapid detection of digital signal changes.
Q: Does it support integration with SCADA systems?
A: Yes, ideal for centralized digital input monitoring and control.
