Introduction

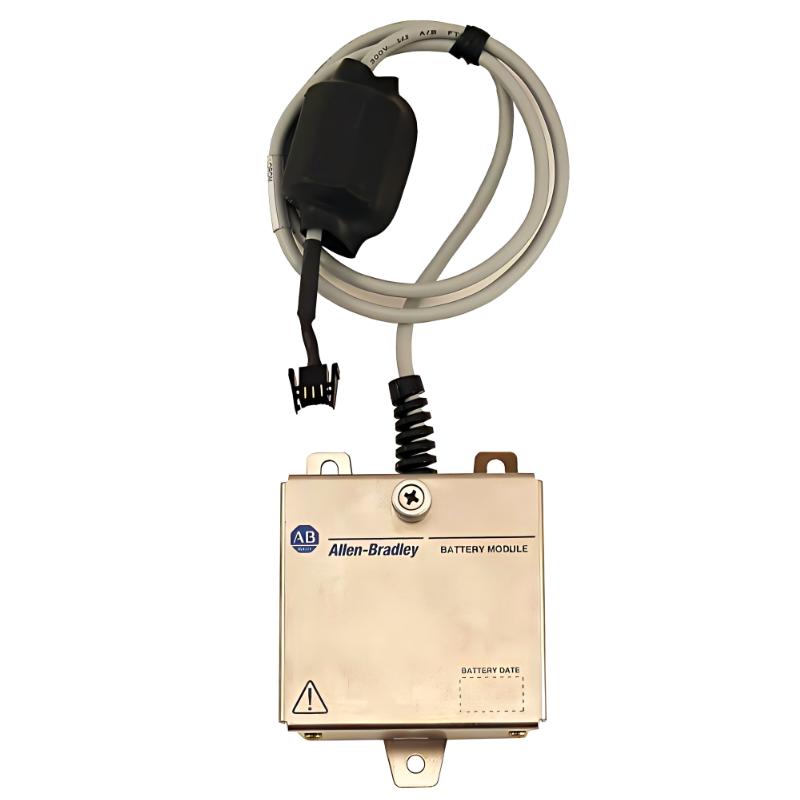

The Allen Bradley 1756-BATM ControlLogix Battery Module provides reliable backup power to maintain controller memory and configuration in industrial automation systems. Its compact, industrial-grade design ensures dependable performance in demanding environments. Fully compatible with ControlLogix systems, it protects critical data and supports continuous operation, even during power interruptions.

Technical Specifications

Feature	Specification
Module Type	ControlLogix Battery Module
Function	Provides backup power for controller memory
Compatibility	Allen Bradley ControlLogix systems
Protection	EMI-resistant, vibration-resistant
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	105.7 × 74.9 × 86.4 mm
Weight	1.07 kg (2.359 lb)

Applications

The Allen Bradley 1756-BATM ControlLogix Battery Module is designed to provide reliable power backup for ControlLogix systems. Typical applications include:

Maintaining memory and configuration in ControlLogix controllers during power interruptions
Industrial automation systems in manufacturing, chemical, and process plants
Protecting critical data and ensuring system continuity during power outages
Supporting SCADA and DCS systems requiring continuous operation
Enabling safe and reliable controller maintenance without data loss

Its compact and robust design ensures reliable performance in demanding industrial environments.

Advantages

Reliable Backup Power: Maintains system memory and configuration during power loss.
Compact Form Factor: Optimized for installation in ControlLogix chassis without occupying excessive space.
Industrial-Grade Design: Resistant to vibration, EMI, and temperature variations.
Long-Term Reliability: Supports extended operation and reduces risk of data loss.
Easy Replacement: Hot-swappable design allows quick battery replacement without downtime.

Technical FAQs

Q: What is the primary purpose of this battery module?
A: Provides backup power to maintain memory and configuration in ControlLogix controllers.
Q: Can it be used while the system is running?
A: Yes, it supports hot-swappable replacement without interrupting operation.
Q: What is the operating temperature range?
A: -20°C to 60°C, suitable for industrial environments.
Q: Is it compatible with all ControlLogix controllers?
A: It is compatible with ControlLogix systems that support the 1756-BATM battery module.
Q: How long can it maintain controller memory during power loss?
A: Typically provides several weeks of memory retention under normal conditions.
Q: Does it require any special maintenance?
A: Minimal maintenance; periodic replacement recommended based on usage and battery life.
Q: Can it operate in high-vibration environments?
A: Yes, designed for industrial reliability.
Q: How is the battery module installed?
A: Simply inserts into the designated slot in the ControlLogix chassis.
Q: Does it have EMI protection?
A: Yes, built to resist electromagnetic interference in industrial applications.
Q: What is the expected lifespan of the battery module?
A: Typically 3–5 years depending on operating conditions and usage.
