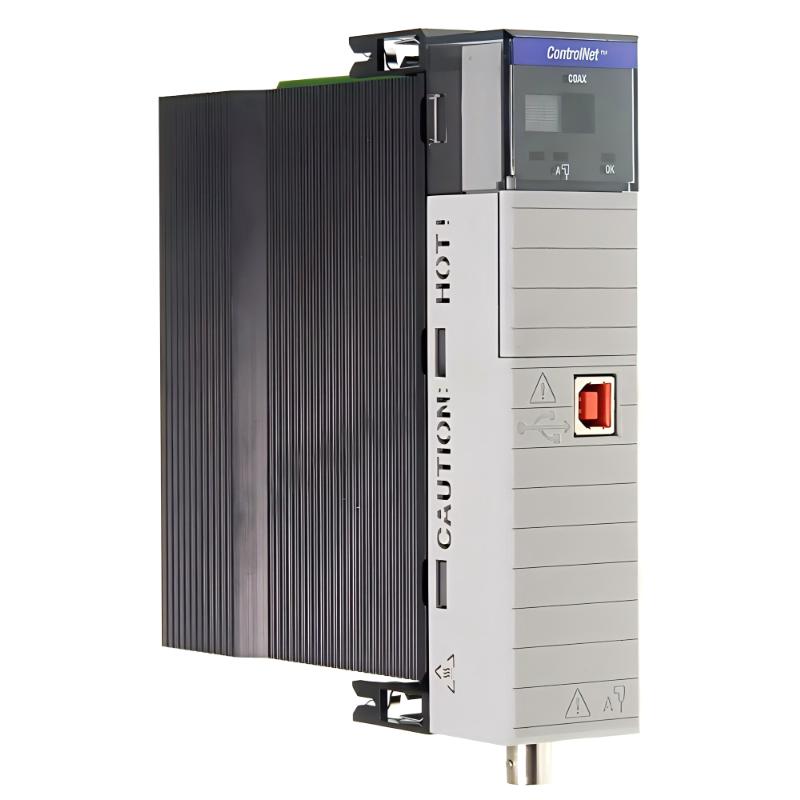

The Allen Bradley 1756-CN2/A ControlLogix ControlNet Communication Module delivers fast, reliable network communication for industrial automation systems. Its compact and robust design ensures consistent operation in demanding environments, while seamless integration with ControlLogix controllers and ControlNet networks enables high-speed, deterministic communication. Ideal for distributed I/O and multi-controller systems, it supports scalable and mission-critical industrial applications.

Technical Specifications

Feature	Specification
Module Type	ControlNet Communication Module
Function	High-speed network communication for ControlLogix systems
Compatibility	ControlLogix controllers and ControlNet networks
Protection	EMI-resistant, vibration-resistant
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	144.5 × 34.6 × 130.18 mm
Weight	0.26 kg (0.573 lb)

Applications

The Allen Bradley 1756-CN2/A ControlLogix ControlNet Communication Module provides robust network communication for industrial automation systems. Typical applications include:

High-speed data communication between ControlLogix controllers and distributed I/O systems
Integration with ControlNet networks in manufacturing, power generation, and chemical plants
Connecting multiple controllers for coordinated process automation
Real-time SCADA and DCS monitoring across industrial networks
Facilitating deterministic, reliable messaging for mission-critical operations

Its design ensures consistent, high-performance communication in electrically noisy and demanding industrial environments.

Advantages

High-Speed ControlNet Communication: Ensures fast, deterministic data exchange between controllers and I/O devices.
Industrial-Grade Reliability: Resistant to EMI, vibration, and temperature variations.
Compact and Space-Efficient: Designed to fit easily in ControlLogix chassis without compromising performance.
Seamless Integration: Compatible with ControlLogix systems and ControlNet networks.
Scalable Networking: Supports multi-node architectures for complex industrial automation systems.

Technical FAQs

Q: What is the primary function of this module?
A: Provides high-speed ControlNet network communication for ControlLogix systems.
Q: Is it compatible with all ControlLogix controllers?
A: It is compatible with ControlLogix controllers that support ControlNet communication.
Q: Can it operate in high-vibration environments?
A: Yes, engineered to maintain reliable performance under vibration conditions.
Q: What is the operating temperature range?
A: -20°C to 60°C, suitable for industrial environments.
Q: Can multiple modules be used on the same ControlNet network?
A: Yes, supports multiple nodes in a single ControlNet architecture.
Q: Does it provide deterministic communication?
A: Yes, designed for predictable and reliable messaging in real-time control systems.
Q: How is the module installed?
A: Easily mounts in the ControlLogix chassis and connects to the ControlNet network.
Q: Does it require additional configuration software?
A: Yes, network configuration is managed through Rockwell Automation software.
Q: Is it suitable for mission-critical industrial applications?
A: Yes, designed for reliable, high-performance network communication.
Q: What is the expected operational lifespan?
A: Over 10 years under standard industrial operating conditions.
