Introduction

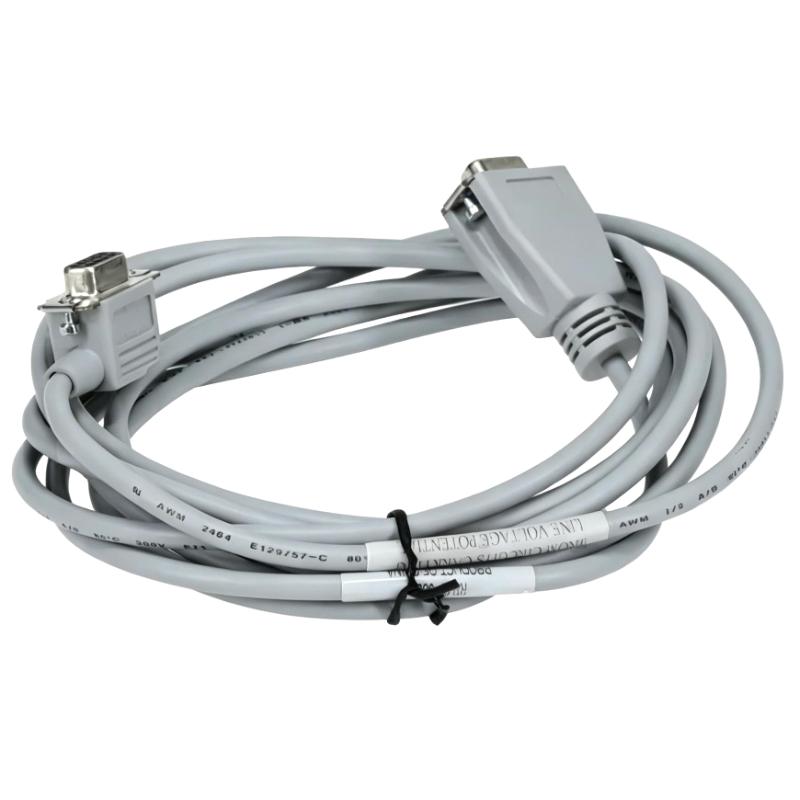

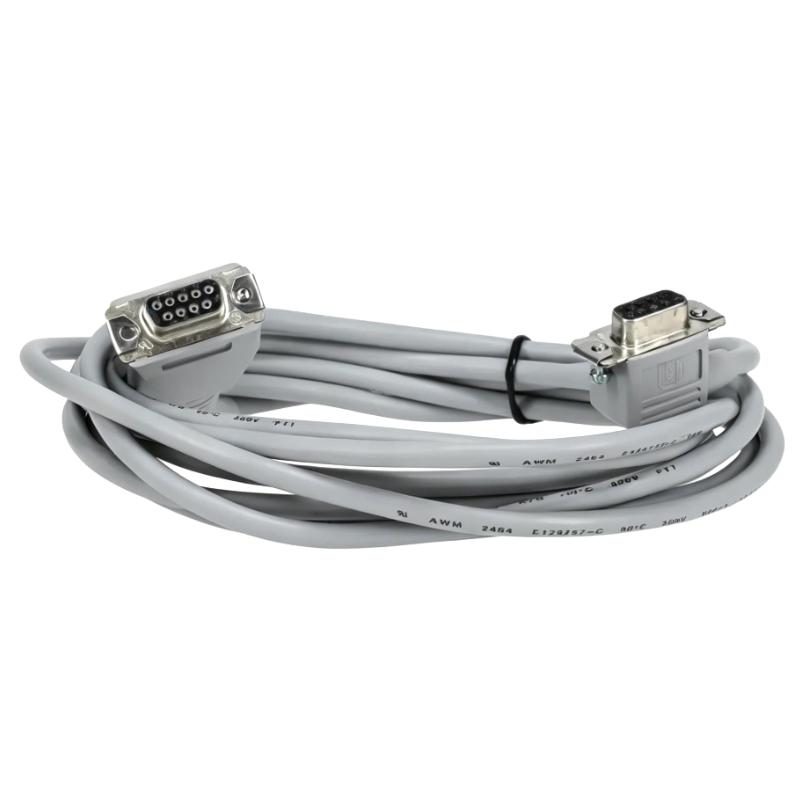

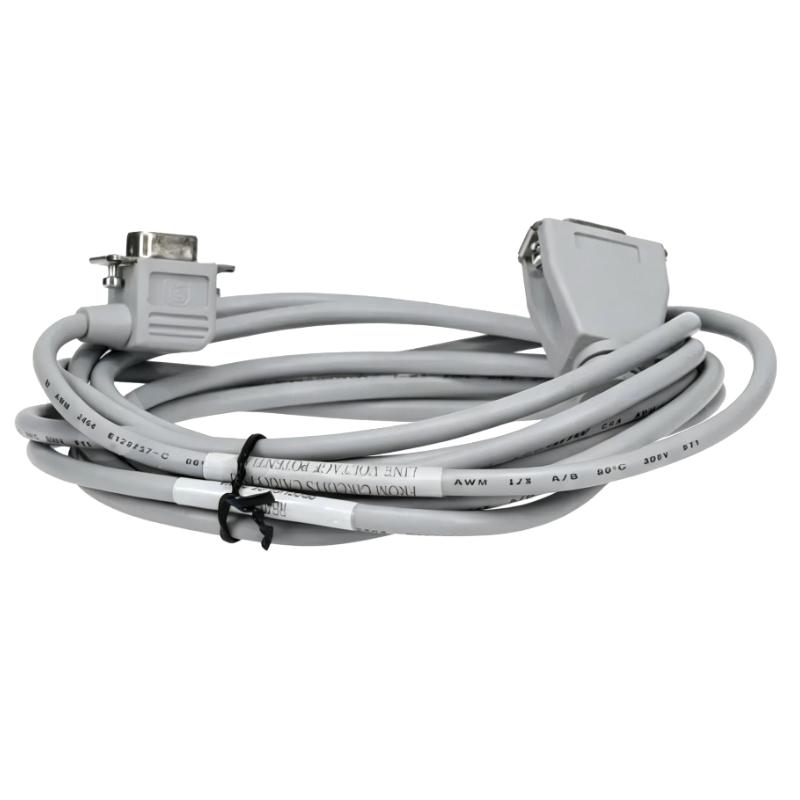

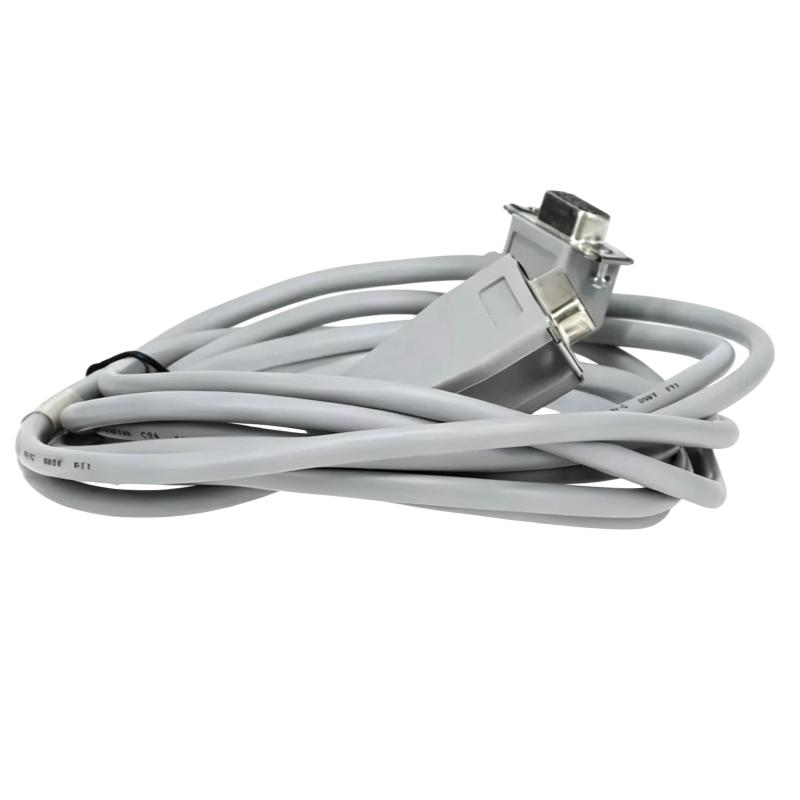

The Allen Bradley 1756-CP3 ControlLogix Programmer Cable ensures reliable and efficient connectivity between programming devices and ControlLogix controllers. Its robust industrial-grade design and 3-meter length provide flexible reach, durability, and stable communication. Ideal for downloading, uploading, programming, and troubleshooting in industrial automation environments, this cable is essential for maintenance engineers and system integrators.

Technical Specifications

Feature	Specification
Product Type	Programmer Cable
Function	Connects programming devices to ControlLogix controllers
Cable Length	3 meters
Protection	EMI-resistant, durable industrial design
Dimensions (Cable Only)	Standard 3-meter length
Shipping Weight	3 kg (6.614 lb)

Applications

The Allen Bradley 1756-CP3 ControlLogix Programmer Cable is engineered for reliable connection between ControlLogix controllers and programming devices. Typical applications include:

Downloading, uploading, and modifying programs in ControlLogix controllers
Connecting laptops or programming terminals to ControlLogix systems for configuration
Troubleshooting and maintenance of industrial automation systems
Supporting firmware updates and diagnostics in SCADA and DCS environments
Facilitating quick and safe controller commissioning in manufacturing, power, and process plants

Its robust design ensures stable communication even in electrically noisy or industrial environments.

Advantages

Reliable Data Transfer: Ensures stable and accurate communication between programmer and controller.
Industrial-Grade Design: Resistant to EMI, physical wear, and environmental stress.
Flexible Length: 3-meter cable provides convenient reach within control panels or racks.
Plug-and-Play Connection: Simple and fast connection to ControlLogix controllers.
Maintenance-Friendly: Durable construction reduces wear from repeated use.

Technical FAQs

Q: What is the purpose of the 1756-CP3 cable?
A: It connects programming devices to ControlLogix controllers for program upload, download, and configuration.
Q: What is the cable length?
A: 3 meters.
Q: Is it compatible with all ControlLogix controllers?
A: Yes, compatible with ControlLogix systems that support programming via the 1756-CP3 interface.
Q: Can it be used in high-EMI environments?
A: Yes, designed for industrial reliability and EMI resistance.
Q: Can the cable be used for firmware updates?
A: Yes, fully supports firmware updates and diagnostic operations.
Q: Is the cable durable for repeated use?
A: Yes, built to withstand industrial conditions and repeated plug-in cycles.
Q: Can it connect to laptops and programming terminals?
A: Yes, compatible with standard programming devices used in ControlLogix systems.
Q: Is the cable plug-and-play?
A: Yes, no special drivers are required for standard programming operations.
Q: What is the shipping weight of the cable?
A: 3 kg (6.614 lb).
Q: Can it be used for commissioning multiple controllers?
A: Yes, suitable for programming and configuring multiple ControlLogix controllers in industrial setups.
