Introduction

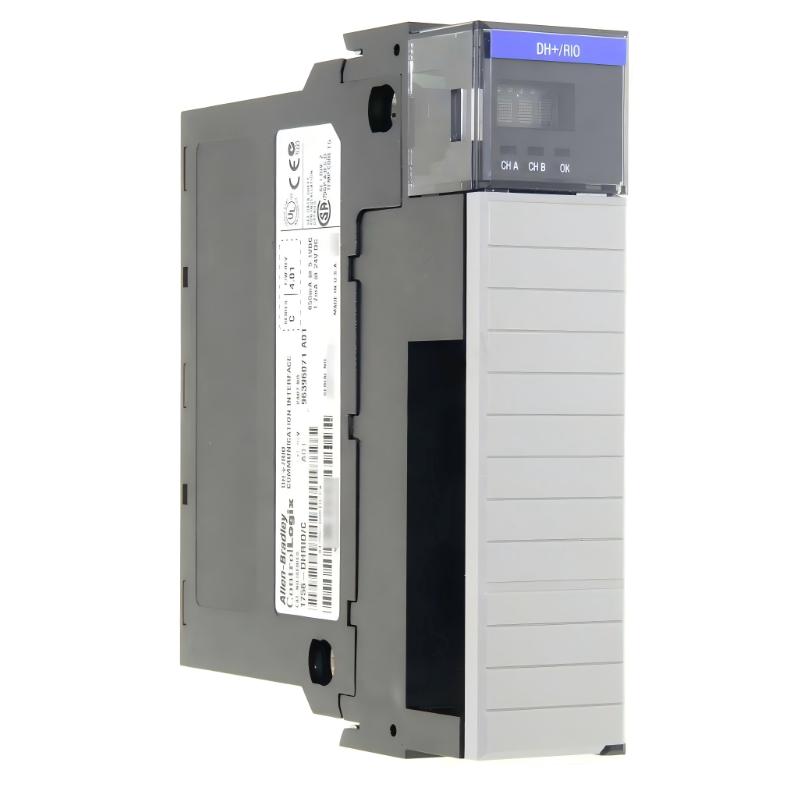

The Allen Bradley 1756-DHRIO/C ControlLogix Remote I/O Communication Interface Module provides fast and reliable connectivity between ControlLogix controllers and distributed I/O modules. Its industrial-grade design ensures consistent performance in challenging environments while supporting scalable and modular automation architectures. Ideal for large-scale industrial systems, this module enhances operational efficiency and simplifies network wiring complexity.

Technical Specifications

Feature	Specification
Module Type	Remote I/O Communication Interface Module
Function	Connects ControlLogix controllers to distributed I/O systems
Compatibility	ControlLogix controllers and Remote I/O networks
Protection	EMI-resistant, vibration-resistant
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	144.5 × 34.6 × 130.18 mm
Weight	0.272 kg (0.599 lb)

Applications

The Allen Bradley 1756-DHRIO/C ControlLogix Remote I/O Communication Interface Module provides a robust link between ControlLogix controllers and remote I/O systems. Typical applications include:

Connecting distributed I/O modules to central ControlLogix controllers for large-scale automation systems
Integrating remote field devices in manufacturing, chemical, and power plants
Supporting deterministic and high-speed I/O data communication for SCADA and DCS systems
Facilitating modular and scalable control architectures
Enhancing operational efficiency and reducing wiring complexity in industrial automation

Its compact and durable design ensures reliable network connectivity even in electrically noisy environments.

Advantages

High-Speed Remote Communication: Provides fast and reliable data exchange with remote I/O modules.
Industrial-Grade Reliability: Resistant to vibration, EMI, and temperature variations.
Compact and Space-Efficient: Fits easily in ControlLogix chassis while maintaining full functionality.
Seamless Integration: Compatible with ControlLogix controllers and distributed I/O systems.
Scalable Networking: Supports multiple remote I/O nodes for complex automation systems.

Technical FAQs

Q: What is the main function of this module?
A: Provides a communication interface between ControlLogix controllers and remote I/O modules.
Q: Is it compatible with all ControlLogix controllers?
A: It is compatible with ControlLogix controllers that support Remote I/O interfaces.
Q: Can it operate in high-vibration industrial environments?
A: Yes, designed for reliable performance under vibration conditions.
Q: What is the operating temperature range?
A: -20°C to 60°C, suitable for industrial environments.
Q: How many remote I/O nodes can it support?
A: Supports multiple remote I/O nodes depending on the system configuration.
Q: Does it provide deterministic communication?
A: Yes, ensures predictable and fast data transfer between controller and I/O.
Q: How is the module installed?
A: Easily mounts into the ControlLogix chassis and connects to remote I/O networks.
Q: Is software configuration required?
A: Yes, network and I/O configuration are managed via Rockwell Automation software.
Q: Can it be used for mission-critical applications?
A: Yes, designed for industrial reliability and continuous operation.
Q: What is the expected operational lifespan?
A: Over 10 years under standard industrial operating conditions.
